Saltfoss Energy: Compact Molten Salt Reactor Development

Overview

History and Organizational Background

Name Change and Etymology

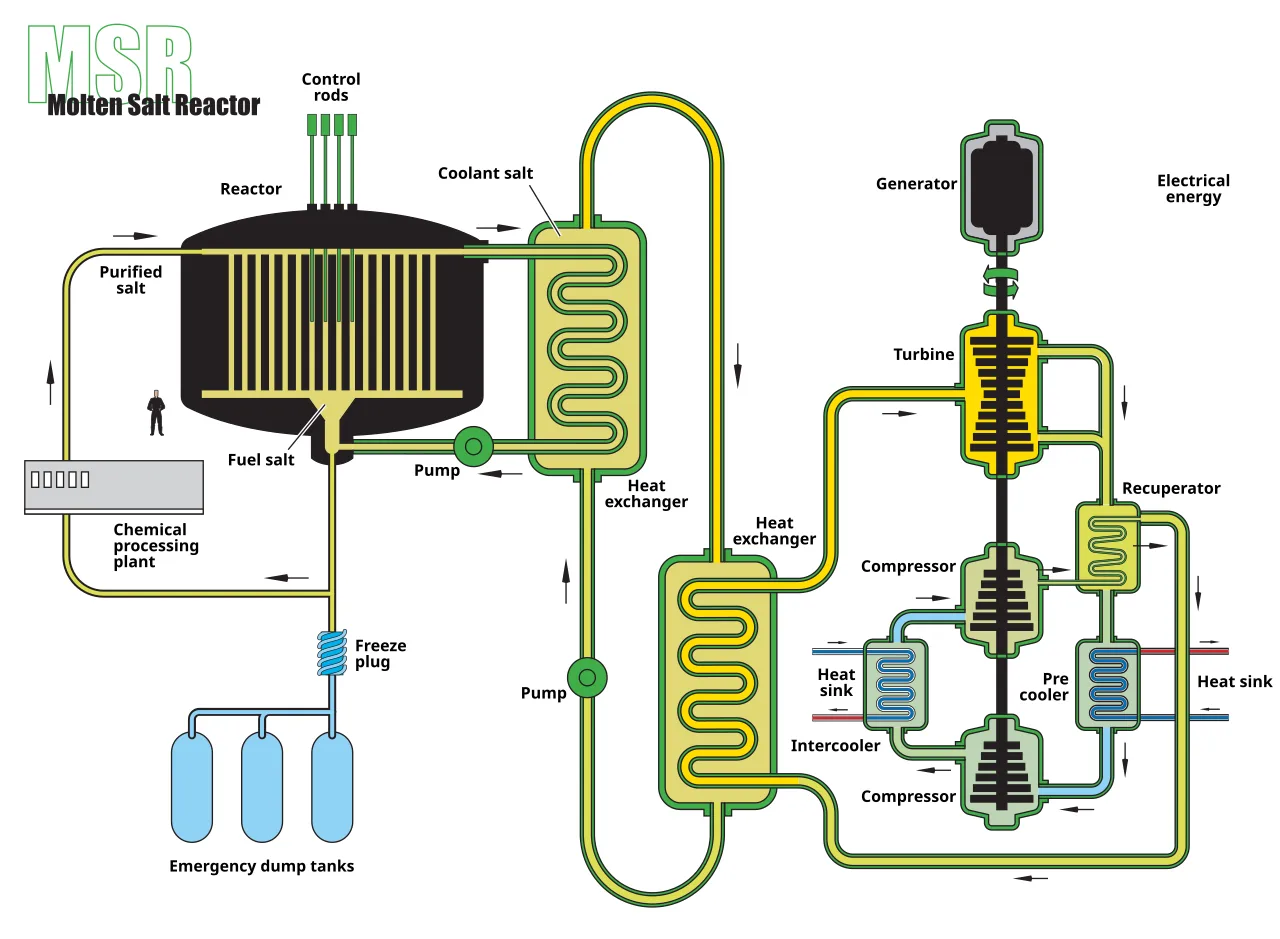

How does the Compact Molten Salt Reactor work?

Saltfoss Energy ApS is developing small molten salt reactors (MSRs), a nuclear technology that fundamentally reimagines fuel configuration and thermal management compared to conventional light water reactors. Unlike traditional designs that rely on solid uranium oxide pellets encased in zirconium alloy cladding, the Saltfoss design utilizes a liquid fuel matrix. In this configuration, uranium is dissolved directly into a molten fluoride salt mixture, creating a homogeneous fuel-salt solution that serves simultaneously as the primary coolant and the neutron-moderating medium.

This liquid fuel approach eliminates the need for high-pressure containment vessels characteristic of Pressurized Water Reactors (PWRs) and Boiling Water Reactors (BWRs). Conventional solid-fuel reactors must maintain water at pressures exceeding 150 atmospheres to prevent boiling at operating temperatures around 300°C. In contrast, the molten salt fuel in the Saltfoss Compact Molten Salt Reactor (CMSR) boasts a significantly higher boiling point, often exceeding 700°C. This thermal margin allows the reactor core to operate at approximately one atmosphere of pressure, drastically reducing the mechanical stress on the reactor vessel and simplifying the primary coolant loop design.

The use of liquid fuel also introduces inherent safety features and operational flexibility. The high boiling point provides a large passive safety margin; in the event of a loss of cooling, the salt can absorb significant heat before vaporizing, reducing the risk of a steam explosion. Furthermore, the liquid state allows for online fueling and fission product removal, potentially extending core life and improving neutron economy. The Saltfoss team, comprising physicists and engineers from institutions such as the Niels Bohr Institute and CERN, leverages these thermodynamic advantages to propose a compact, scalable reactor module with a target capacity of 100 MW, aiming for commercial operation by 2030.

Comparison of Reactor Technologies

The structural simplicity of the CMSR design reduces material requirements and potential failure points. By operating at near-atmospheric pressure, the reactor vessel can be smaller and thinner-walled than the massive pressure vessels required for solid-fuel reactors. This compactness supports Saltfoss Energy’s strategy of modular deployment, allowing for flexible siting and integration into existing or new energy infrastructure in Denmark and beyond. The reliance on established scientific principles from institutions like DTU and CERN underscores the technical rigor behind the proposed design, focusing on safety, sustainability, and cost-efficiency through thermodynamic optimization.

What distinguishes Saltfoss's fuel and moderator strategy?

Saltfoss Energy ApS has undergone a significant technical pivot in its reactor design strategy, shifting away from its initial conceptual framework to a configuration that prioritizes supply chain resilience and material simplicity. The company, founded in 2015 by a team of physicists, chemists, and engineers with educational backgrounds at the Niels Bohr Institute, CERN, ESS, and DTU, originally planned to utilize molten Sodium hydroxide (NaOH) as a key component in its small molten salt reactor design. This early approach was coupled with the use of High-Assay Low-Enriched Uranium (HALEU) as the primary fuel source. However, in early 2023, Saltfoss announced a strategic change to its core technology parameters, moving to a system that employs graphite as the moderator and Low-Enriched Uranium (LEU) for fuel. This adjustment reflects a pragmatic response to the evolving nuclear fuel market and the specific challenges associated with deploying new reactor technologies at scale.

Challenges with HALEU Supply

The decision to move away from HALEU was primarily driven by supply chain constraints. HALEU, which typically contains between 5% and 19.95% uranium-233 or uranium-235, has been identified as a critical bottleneck for the next generation of small modular reactors (SMRs). Unlike traditional Low-Enriched Uranium (LEU), which is widely available from established enrichment facilities, HALEU requires specific enrichment infrastructure that has historically been optimized for different reactor types or is in the process of being scaled up globally. For a startup developing a proposed 100 MW plant with a target commissioning date of 2030, relying on a fuel source with a relatively nascent global supply chain presents a significant operational risk. By switching to LEU, Saltfoss aligns its fuel requirements with the existing, robust infrastructure of the nuclear industry, potentially reducing lead times and securing more predictable pricing for its proposed facility in Denmark.

Material Strategy: Graphite and NaOH

Concurrently, the company adjusted its moderator strategy. The original plan involving molten Sodium hydroxide (NaOH) has been supplemented or replaced in the current design by graphite. Graphite is a well-understood moderator material with a long history of use in various reactor types, including RBMK and high-temperature gas-cooled reactors. Its adoption likely simplifies the thermal and neutronic characteristics of the reactor core, leveraging decades of operational data. The shift in early 2023 indicates a maturation of Saltfoss’s engineering vision, moving from a highly novel, potentially complex chemical environment to a configuration that balances innovation with proven material science. This strategic realignment supports the company’s broader vision of delivering safe, sustainable, and cost-effective nuclear power, ensuring that the technical pathway to the 2030 commissioning goal is grounded in accessible materials and established supply chains.

Deployment Strategy and Barge Integration

Saltfoss Energy is developing a deployment strategy centered on modular, small molten salt reactors designed for high mobility and cost efficiency. The company’s core concept involves housing individual reactor units within standard shipping containers, which are then integrated onto barges for transport and installation. This approach allows for centralized manufacturing, where reactors are built in a controlled factory environment rather than on-site, significantly reducing construction timelines and capital expenditure. The modular design facilitates scalability, enabling the potential deployment of multiple units on a single barge to meet varying energy demands.

Technical Specifications and Mobility

Each individual reactor unit is designed to produce a single reactor output of 100 MWe. This capacity is optimized for flexibility, allowing the reactors to serve diverse energy markets, from industrial zones to remote communities. The barge integration provides a unique mobility benefit, enabling the reactors to be easily transported via waterways to different locations. This mobility is particularly advantageous for temporary power needs or for regions with limited infrastructure, as the barges can be moved relatively quickly compared to traditional land-based nuclear plants. The use of standard shipping containers ensures compatibility with existing global logistics networks, further enhancing the ease of deployment.

Deployment Specifications

The centralized manufacturing model is a key component of Saltfoss Energy’s strategy to reduce costs. By producing reactors in a dedicated facility, the company can achieve economies of scale and maintain consistent quality control. This contrasts with traditional nuclear power plants, which often face delays and cost overruns due to on-site construction complexities. The modular nature of the reactors also simplifies maintenance and upgrades, as individual units can be replaced or serviced with minimal disruption to the overall power output. This approach aligns with the company’s vision of providing safe, sustainable, and cheap nuclear power through innovative design and efficient deployment methods.

Why it matters

Saltfoss Energy ApS represents a distinct approach to the emerging small modular reactor (SMR) market by focusing on molten salt reactor (MSR) technology deployed via floating power barges. As a private Danish startup, the company aims to deliver its first power barge in the first half of 2030, marking a significant milestone for proposed nuclear infrastructure in Denmark (per company profile). This timeline positions Saltfoss as one of the early movers in commercializing MSR technology, a design that differs substantially from traditional light water reactors. The proposed 100 MW capacity of these units targets niche markets where flexibility and modularity are critical, potentially reducing the upfront capital expenditure associated with larger nuclear plants.

Molten Salt Technology and Safety

The core of Saltfoss Energy’s value proposition lies in the inherent safety features of molten salt reactors. Unlike conventional reactors that rely on active cooling systems and high-pressure vessels, MSRs utilize a liquid fuel mixture that can passively drain into a catch tank in the event of a power failure, minimizing the risk of meltdown. This technology aligns with the company’s stated vision of delivering safe and sustainable nuclear power. The team behind Saltfoss, comprising physicists, chemists, and engineers with educational roots at the Niels Bohr Institute, CERN, ESS, and DTU, leverages this scientific pedigree to advance the engineering of these complex systems. The use of uranium as the primary fuel source maintains compatibility with existing nuclear fuel cycles while allowing for greater thermal efficiency.

Economic Competitiveness and Fossil Fuel Comparison

Saltfoss Energy positions its technology as a cost-competitive alternative to fossil fuels, aiming to provide cheap nuclear power. The modular nature of the 100 MW power barges allows for standardized manufacturing and scalable deployment, which can reduce construction times and mitigate financial risks. By targeting the first half of 2030 for the initial delivery, the company seeks to capitalize on the growing demand for low-carbon energy sources in Denmark and potentially across Europe. The floating barge format offers additional flexibility, allowing the reactors to be towed to optimal locations or docked near coastal industrial hubs, thereby reducing transmission losses and land-use constraints. This strategic focus on cost and safety aims to address key barriers to nuclear energy adoption, offering a viable pathway for integrating nuclear power into a diversified energy mix.
