Overview

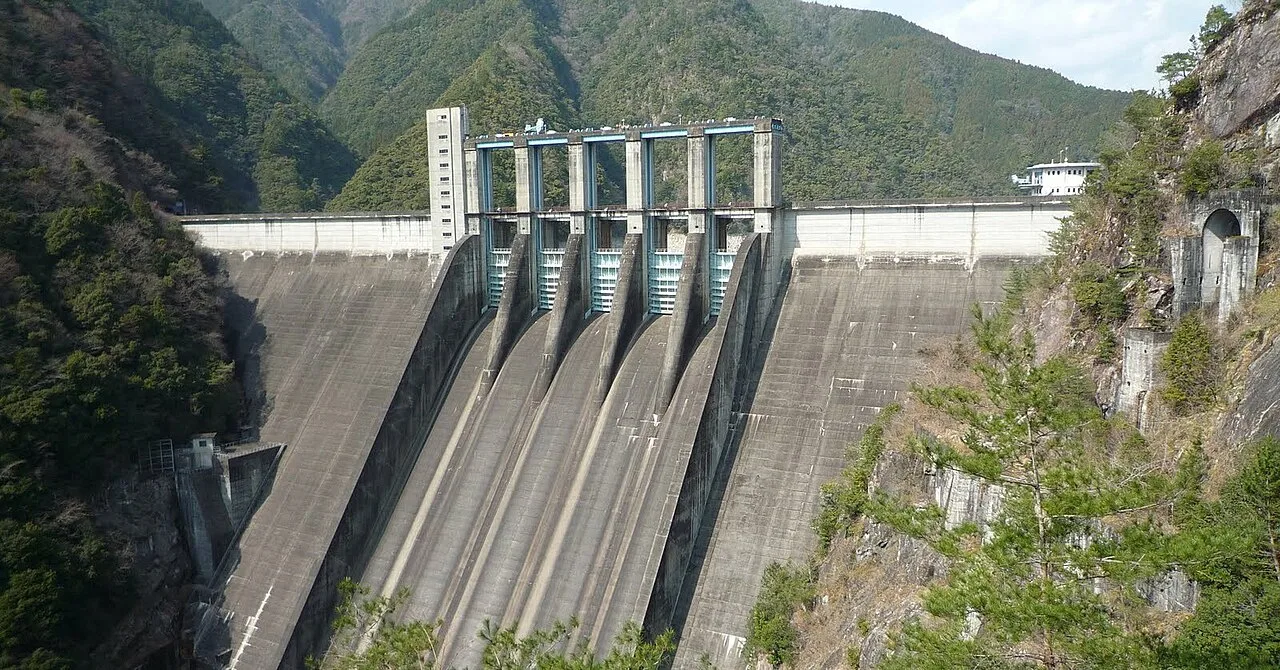

The Sakuma Dam is a major hydroelectric infrastructure project situated on the Tenryū River, located on the border of Toyone in the Kitashitara District of Aichi Prefecture, Japan. It is classified as a gravity dam and stands as one of the tallest dams in Japan. The facility supports a hydroelectric power station with an installed capacity of 350 MW, making it a significant contributor to the regional energy mix. The dam is operated by the Electric Power Development Company, which has managed the facility since its commissioning in 1956. The structure is located on the island of Honshū and plays a critical role in the management of the Tenryū River's water flow and power generation capabilities.
In addition to its primary function of power generation, the Sakuma Dam is a prominent feature within the Tenryū-Okumikawa Quasi-National Park. This designation highlights the dam's integration into the natural landscape of the region, offering both ecological and recreational value to visitors and local communities. The dam's location on the border of Toyone provides strategic access for maintenance and operational activities, while its presence in the quasi-national park ensures that environmental considerations are part of its ongoing management. The 350 MW capacity of the power station allows for substantial electricity output, which is distributed to meet the energy demands of the surrounding areas.
A key technical feature of the Sakuma Dam is the nearby frequency converter station. This installation allows for the interchange of power between Japan's two distinct alternating current (AC) networks: the 50 Hz and 60 Hz grids. This capability is crucial for balancing the load and ensuring stability across the national power system, particularly in regions where the two frequencies meet. The frequency converter station enhances the flexibility of the Sakuma Dam's power output, enabling efficient distribution and utilization of the generated electricity. The dam's operational status remains active, continuing to serve as a vital component of Japan's hydroelectric infrastructure.
History of Tenryū River Development
The development of the Tenryū River for hydroelectric power began during the Meiji era, when the Japanese government recognized the river's significant potential for energy generation. This early realization laid the groundwork for extensive infrastructure projects that would define the region's energy landscape. The Taishō period saw accelerated efforts to harness the river's flow, driven by the growing industrial demand for electricity in central Japan.
Early Private Enterprise and Fukuzawa Momosuke
A key figure in the river's early electrification was Fukuzawa Momosuke, a prominent industrialist who played a pivotal role in establishing Tenryūgawa Electric Power. His leadership helped mobilize capital and technical expertise necessary for constructing the initial dams and power stations along the Tenryū basin. The company focused on integrating multiple small-scale hydro facilities to create a cohesive power network.
Nationalization and Pre-War Dams
In 1938, the Tenryūgawa Electric Power assets were nationalized, forming part of Nippon Hassoden, one of the eight major electric power companies created by the Japanese government to streamline energy production. This consolidation allowed for more coordinated planning and larger-scale investments in hydroelectric infrastructure. Prior to the construction of the Sakuma Dam, other significant dams were built to test technologies and meet regional demand.
The Yasuoka Dam, commissioned in 1935, was one of the earlier major structures on the river, demonstrating the feasibility of large-scale hydroelectric generation in the Tenryū basin. Shortly after, the Iwakura Dam was completed in 1938, further expanding the river's capacity to produce electricity. These projects provided critical engineering insights and operational experience that informed the design and construction of the Sakuma Dam, which would later become one of the tallest dams in Japan with a capacity of 350 MW.
Construction and Commissioning
The development of the Sakuma Dam represents a significant post-World War II infrastructure project in Japan, driven by the need to modernize the nation's hydroelectric capacity. The Electric Power Development Company (Nippon Densha Kaisha) spearheaded the initiative, initiating formal construction efforts in 1952. This timeline followed earlier strategic planning, with foundational concepts for the dam first proposed in 1921, indicating a multi-decade vision for harnessing the Tenryū River’s potential. The project required substantial engineering coordination to realize the 350 MW hydroelectric power station that would eventually define the region's energy landscape.
Hazama Corporation served as the main contractor for the construction phase, overseeing the physical realization of the dam structure on the border of Toyone in Kitashitara District, Aichi Prefecture. The construction period spanned four years, culminating in the dam’s completion in 1956. This rapid development phase was critical for integrating the facility into Japan’s broader grid infrastructure, particularly given its role in supporting a frequency converter station that enables power interchange between the country’s 50 Hz and 60 Hz AC networks. The engineering challenges involved not only the dam’s height—one of the tallest in Japan—but also the precise alignment required for the adjacent power station and converter facilities.
The social impact of the Sakuma Dam’s construction was considerable, necessitating the relocation of 240 households, comprising 296 families, from the inundation zone. This demographic shift altered the local community structure along the Tenryū River, with families moving to accommodate the reservoir’s expansion. Additionally, the Iida Line train stations were affected by the construction, requiring adjustments to the railway infrastructure to maintain connectivity through the newly developed hydroelectric zone. These relocations and infrastructural modifications were essential to clear the land for the dam’s footprint and ensure the smooth operation of the surrounding transport and energy networks.
The official opening ceremony took place in 1957, marking the formal commissioning of the Sakuma Dam and its associated power station. The event was attended by Emperor Hirohito and Empress Kojun, underscoring the national significance of the project. Their presence highlighted the dam’s role as a cornerstone of Japan’s post-war energy recovery and modernization efforts. The ceremony celebrated not only the technical achievement of constructing one of the country’s tallest dams but also the successful integration of the 350 MW capacity into the national grid, facilitated by the Electric Power Development Company’s strategic planning and Hazama Corporation’s execution.
Dam Design and Hydroelectric Capacity
The Sakuma Dam is engineered as a hollow-core concrete gravity structure, a design choice that optimizes material usage while maintaining structural integrity against the hydrostatic pressure of the Tenryū River. This specific construction method involves a series of vertical and horizontal voids within the dam body, reducing the total volume of concrete required compared to a solid gravity dam while preserving stability. The dam features central spillways integrated into the crest, allowing for efficient discharge of excess water during peak flow periods on the Tenryū River. These spillways are critical for managing the reservoir levels, ensuring that the water head remains optimal for power generation while preventing overflow during seasonal rains or flood events. The structural design reflects mid-20th-century engineering advancements in Japan, focusing on durability and efficient water management for hydroelectric purposes. The primary function of the Sakuma Dam is to support the Sakuma Hydroelectric Power Station, which has an installed capacity of 350 MW. This facility utilizes the potential energy of the stored water to generate electricity, contributing significantly to the regional power supply. In addition to its direct generation capacity, the dam serves a dual role in the broader Tenryū River hydroelectric system. It acts as the lower reservoir for the Shin-Toyone Hydroelectric Power Station, which has a substantially larger capacity of 1,200,000 kW (or 1,200 MW). This integrated approach allows for efficient energy transfer and storage, where water released from the upstream Shin-Toyone station flows into the Sakuma reservoir, maximizing the utilization of the water resource. The proximity of a frequency converter station further enhances the system's efficiency, enabling the interchange of power between Japan's 50 Hz and 60 Hz AC networks, thus facilitating regional grid stability.Comparison of Hydroelectric Capacities
| Hydroelectric Station | Capacity (kW) | Capacity (MW) | Role in System |
|---|---|---|---|
| Sakuma Hydroelectric Power Station | 350,000 | 350 | Primary generation from Sakuma Dam |
| Shin-Toyone Hydroelectric Power Station | 1,200,000 | 1,200 | Upstream station; Sakuma Dam serves as lower reservoir |
Technical Evolution of the Converter Station
The Sakuma Dam’s hydroelectric output is integrated into the broader Japanese grid through a specialized frequency converter station, a critical infrastructure component given the island nation’s unique 50 Hz and 60 Hz AC network divide. This facility enables the seamless interchange of power between the two distinct frequency zones, maximizing the utility of the 350 MW capacity generated at the dam. The technical architecture of this converter station has undergone significant evolution to enhance reliability and efficiency.
Valve Technology Transition
The core of the converter station’s operation lies in its valve technology. Initially, the station utilized mercury arc valves manufactured by ASEA, a pioneering technology for early HVDC and frequency conversion applications. In 1993, the system underwent a major technological upgrade, transitioning to light-triggered thyristors. This shift marked a move toward more robust and maintainable solid-state components. The thyristors are arranged in a quadrivalve configuration, designed to handle the substantial electrical loads required for frequency conversion.
Thyristor and Reactor Specifications
Each valve in the system consists of series-connected thyristors. Specifically, there are 7 thyristors per valve, with each unit rated for 2,500 A and a blocking voltage of 6 kV. This configuration results in a total of 84 thyristors per inverter, providing the necessary voltage and current handling capabilities. The system also incorporates a DC smoothing reactor, specified at 0.12 H and 2,400 A, which helps stabilize the direct current flow between the inverter and rectifier sides of the converter. The transformers within the station utilize delta and wye connections to manage phase shifts and voltage levels effectively.
Harmonic Filtering
To mitigate the harmonic distortions inherent in frequency conversion, the station employs a comprehensive harmonic filtering system. This includes dedicated filters for the 5th, 7th, 11th, and 13th harmonics, which are the most prominent in such systems. Additionally, a high-pass filter setup is utilized to capture higher-order harmonics, ensuring that the power fed into both the 50 Hz and 60 Hz networks meets strict quality standards. This technical configuration ensures that the Sakuma Dam’s output is efficiently and cleanly integrated into Japan’s dual-frequency grid infrastructure.
Why it matters
The Sakuma Dam represents a pivotal node in Japan's national energy infrastructure, primarily due to its strategic role in resolving the country's unique electrical frequency divide. Japan's power grid is historically split into two distinct systems: the 50 Hz network in the east, centered on Tokyo, and the 60 Hz network in the west, anchored by Osaka. This bifurcation originated from early 20th-century procurement decisions for generators from Germany and the United States, creating a persistent challenge for national power interchange. The Sakuma Dam's hydroelectric power station, with a capacity of 350 MW, is situated directly on this boundary, making it an ideal location for frequency conversion.
Adjacent to the dam, a specialized frequency converter station facilitates the seamless transfer of electricity between the 50 Hz and 60 Hz AC networks. This infrastructure allows for the efficient balancing of supply and demand across the island of Honshū, enabling power generated in one region to be utilized in the other. The ability to interchange power between these two frequencies is critical for grid stability, particularly during peak demand periods or unexpected outages. The Sakuma Dam's location on the Tenryū River, on the border of Toyone, Kitashitara District, Aichi Prefecture, provides the necessary hydraulic head and water flow to support this continuous conversion process.
Historical Significance and Engineering Scale
Beyond its operational function, the Sakuma Dam holds significant historical value as a major post-war development project. Its construction was aided by loans from the United Nations, reflecting the international cooperation and economic reconstruction efforts that characterized Japan's recovery in the mid-20th century. Commissioned in 1956, the dam was operated by the Electric Power Development Company, a key player in Japan's energy sector.
The structure is recognized as one of the tallest dams in Japan, underscoring its engineering ambition and the scale of investment required to harness the Tenryū River's potential. Its height and the associated reservoir provide not only hydroelectric power but also flood control and water supply benefits for the surrounding regions. The dam's enduring operational status since 1956 demonstrates the durability of its construction and the sustained importance of its role in Japan's energy mix.
The integration of the 350 MW power station with the frequency converter station at Sakuma Dam exemplifies the strategic planning involved in Japan's energy infrastructure. It serves as a critical link in the national grid, ensuring that the geographic and historical divisions of the power system do not hinder overall efficiency. This infrastructure continues to play a vital role in maintaining the reliability and flexibility of Japan's electricity supply, bridging the gap between the eastern and western grids.
