Overview
The Roselend Dam is a significant hydroelectric infrastructure project located in the Savoie department of the Rhône-Alpes region in south-eastern France. Classified as an arch-buttress dam, it stands as a key component of the regional energy grid, primarily designed for hydroelectric power generation. The structure is situated approximately 5 km east of the town of Beaufort, positioned just west and below the Cormet de Roselend mountain pass. This strategic location allows the dam to effectively harness water resources from the surrounding alpine terrain to support the 546 MW La Bâthie Power Station. The facility is currently operational and is operated by Électricité de France, continuing to contribute to the energy output of the Rhône-Alpes region.
The engineering design of the Roselend Dam was developed by the firm Coyne et Bellier. Construction activities commenced in 1955, marking the beginning of a multi-year development phase that integrated both civil engineering and mechanical systems. The reservoir began to fill in 1960, initiating the initial stages of water retention and power generation potential. The associated power station achieved operational status in 1961, followed by the formal completion of the dam structure in 1962. This timeline reflects the phased approach typical of major hydroelectric projects of the mid-20th century, ensuring that the mechanical and civil components were synchronized to maximize efficiency upon full commissioning.
As a hydroelectric powerplant, the Roselend Dam utilizes water as its primary fuel source, converting the potential energy of the stored reservoir into electrical energy. The 546 MW capacity of the La Bâthie Power Station underscores the dam's role in providing substantial baseload or peaking power to the local grid. The arch-buttress design is particularly suited to the topography of the Savoie department, allowing for structural stability while optimizing material usage in the mountainous landscape. The dam's continued operation under Électricité de France highlights its enduring relevance in the French energy infrastructure, serving as a testament to the engineering standards established during its construction in the 1950s and early 1960s.
Design and Structural Engineering

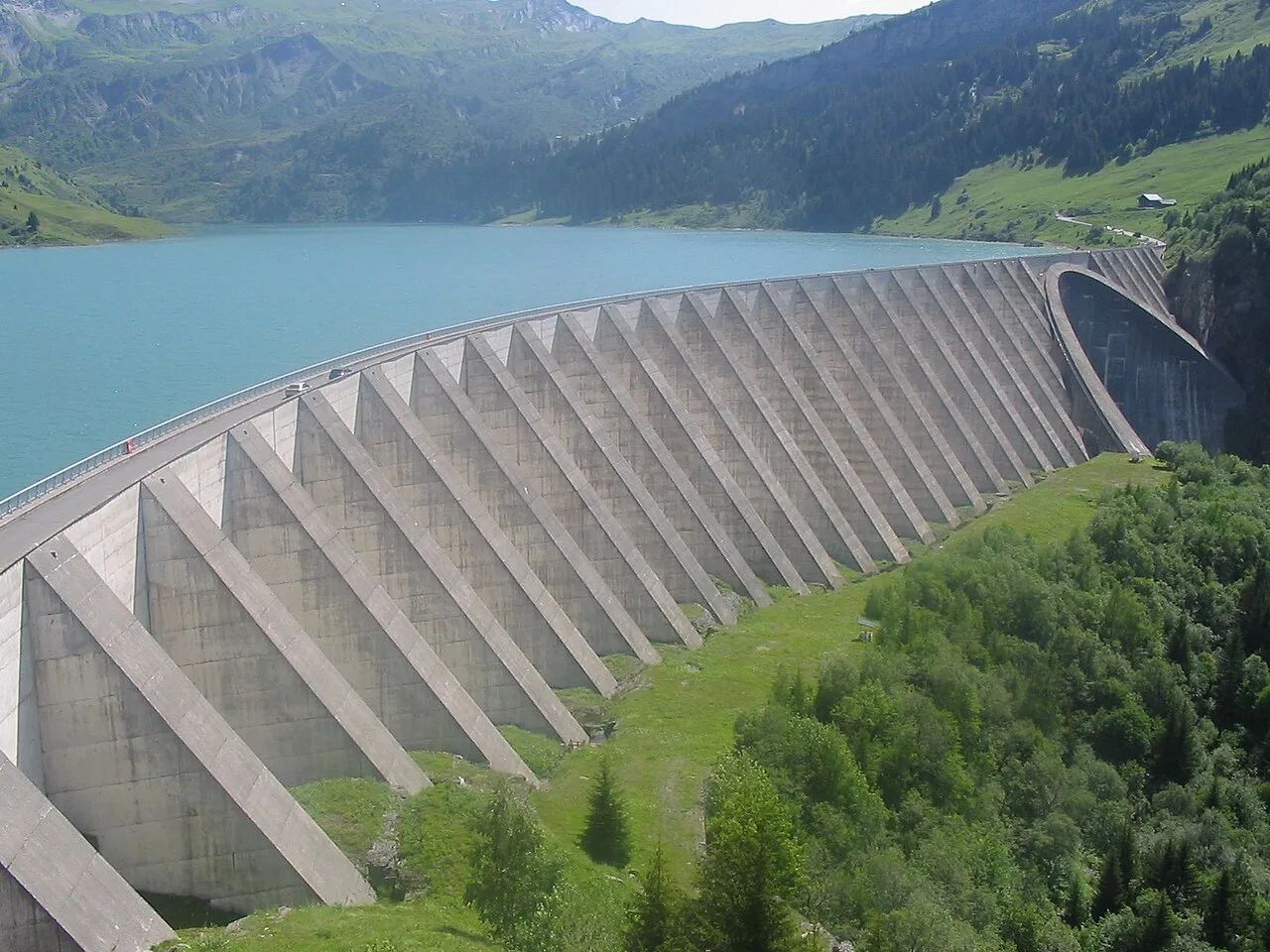

The Roselend Dam utilizes an arch-buttress structural configuration, a design choice that optimizes material efficiency for the specific topographical constraints of the site located just west and below the Cormet de Roselend mountain pass. This architectural form relies on the curvature of the arch to transfer the hydrostatic pressure of the reservoir laterally into the abutments, while the buttresses provide vertical support and stability against the thrust of the water. The engineering firm Coyne et Bellier was responsible for the design, overseeing the construction process that commenced in 1955. The structural integrity of the dam is critical for the operation of the 546 MW La Bâthie Power Station, which relies on the reservoir's capacity to regulate water flow for hydroelectric power generation. The dam was completed in 1962, following the initial filling of the reservoir in 1960 and the operational launch of the power station in 1961. The arch-buttress design allows for a thinner dam body compared to a gravity dam, reducing the volume of concrete required while maintaining strength through geometric distribution of forces. This configuration is particularly effective in narrow valleys where the abutments can effectively anchor the arch. The structural parameters of the Roselend Dam are detailed in the table below.| Structural Parameter | Value |
|---|---|
| Dam Type | Arch-buttress |
| Height | [?] |
| Crest Length | [?] |
| Crest Width | [?] |
| Volume | [?] |
| Reservoir Capacity | [?] |
| Construction Start | 1955 |
| Completion Year | 1962 |
| Designer | Coyne et Bellier |
| Operator | Électricité de France |
| Associated Power Station | La Bâthie Power Station |
| Installed Capacity | 546 MW |
Reservoir Hydrology and Water Management
The Roselend Dam creates the Lac de Roselend reservoir, a critical component of the hydroelectric infrastructure in the Savoie department of the Rhône-Alpes region. Located 5 km east of Beaufort and just west of the Cormet de Roselend mountain pass, the reservoir serves the primary purpose of hydroelectric power generation for the 546 MW La Bâthie Power Station. The water body was designed by Coyne et Bellier, with construction beginning in 1955. The reservoir began to fill in 1960, preceding the operational status of the power station in 1961 and the dam's completion in 1962.
Reservoir Statistics
| Parameter | Value |
|---|---|
| Reservoir Name | Lac de Roselend |
| Location | Savoie, Rhône-Alpes, France |
| Distance from Beaufort | 5 km (3 mi) east |
| Associated Power Station | La Bâthie Power Station |
| Installed Capacity | 546 MW |
| Construction Start | 1955 |
| Reservoir Filling Start | 1960 |
| Operational Status | Operational (since 1961) |
| Completion Year | 1962 |
The hydrological management of Lac de Roselend involves the integration of water from adjacent infrastructure, specifically the St. Guerin and Gittaz dams. These upstream structures contribute to the flow regulation necessary to maintain the operational efficiency of the La Bâthie Power Station. The arch-buttress design of the Roselend Dam allows for effective containment of the reservoir volume, supporting the consistent water supply required for the 546 MW capacity output. The coordination between the St. Guerin, Gittaz, and Roselend dams ensures optimized water usage for power generation in the region.
How does the La Bâthie Power Station operate?
The La Bâthie Power Station serves as the primary hydroelectric generation facility for the Roselend Dam complex, converting the potential energy of the stored water into electrical power. The system relies on a significant hydraulic head of 1,250 m to drive the turbines, a vertical drop that is achieved through a long, inclined penstock. This penstock measures 13 km in length, transporting water from the reservoir situated just west of the Cormet de Roselend mountain pass down to the underground power station located near Beaufort in the Savoie department. The design by Coyne et Bellier optimized this layout to maximize the efficiency of the energy conversion process, leveraging the natural topography of the Rhône-Alpes region.
Turbine and Generator Configuration
At the heart of the La Bâthie Power Station are six Pelton turbine-generators. Pelton turbines are impulse turbines particularly well-suited for high-head, low-flow hydroelectric schemes like Roselend. The water from the 13 km penstock is directed through nozzles onto the buckets of the Pelton wheels, transferring kinetic energy to the rotor. This mechanical rotation drives the connected generators to produce electricity. The combined installed capacity of these six units is 546 MW, making it a substantial contributor to the regional power grid. The power station itself is housed underground, a common engineering solution for high-head dams to reduce surface footprint and thermal losses, and it became operational in 1961, preceding the final completion of the dam structure in 1962.
Operational Flow and Infrastructure
The operational cycle begins with water stored in the Roselend reservoir, which began filling in 1960. When power demand requires generation, gates open to allow water to flow into the 13 km penstock. The pressure built up over the 1,250 m hydraulic head accelerates the water to high velocities before it strikes the Pelton turbines. After passing through the turbines, the water is discharged into the tailrace, typically flowing into the local river system downstream. The entire infrastructure, including the arch-buttress dam and the underground power station, was constructed starting in 1955. Électricité de France operates the facility, maintaining the mechanical and electrical components to ensure continuous power generation. The integration of the dam and the power station allows for flexible energy production, capable of adjusting output based on the water flow and electrical demand in the south-eastern France grid.
Construction History and Timeline
The Roselend Dam project was engineered by the firm Coyne et Bellier, marking a significant development in the hydroelectric infrastructure of south-eastern France. Construction activities commenced in 1955, initiating the transformation of the landscape located 5 km east of Beaufort in the Savoie department. The structure, classified as an arch-buttress dam, was positioned just west and below the Cormet de Roselend mountain pass to optimize water retention and gravitational potential for power generation.
The filling of the reservoir began in 1960, signaling the transition from civil engineering works to hydraulic testing. This phase was critical for assessing the structural integrity of the arch-buttress design under increasing hydrostatic pressure. The associated La Bâthie Power Station achieved operational status in 1961, allowing for initial power output while final construction details were finalized. The dam was officially declared complete in 1962, establishing it as a key asset for Électricité de France.
Construction Timeline
| Year | Event |
|---|---|
| 1955 | Construction begins |
| 1960 | Reservoir begins to fill |
| 1961 | Power station becomes operational |
| 1962 | Dam completion |
The rapid progression from construction start in 1955 to full completion in 1962 reflects the efficient project management by Coyne et Bellier. The La Bâthie Power Station, supported by the dam, provides a capacity of 546 MW, serving as a primary source of hydroelectric power in the Rhône-Alpes region. The operational status of the dam remains active, continuing its role in the regional energy grid under the operation of Électricité de France. The structural design ensures stability in the mountainous terrain of the Savoie department, leveraging the natural topography below the Cormet de Roselend pass.
Why it matters
The Roselend Dam stands as a defining piece of infrastructure within the French Alpine hydroelectric network, embodying the engineering ambition of mid-20th-century energy development in south-eastern France. Located in the Savoie department, this arch-buttress structure serves not merely as a water barrier but as the critical upstream control mechanism for the regional power grid managed by Électricité de France (EDF). Its strategic position, situated just west and below the Cormet de Roselend mountain pass, allows for efficient gravitational water management from the surrounding high-altitude catchment areas. The dam’s primary significance lies in its direct support of the La Bâthie Power Station, a facility with an installed capacity of 546 MW. This output represents a substantial contribution to the Rhône-Alpes region’s energy mix, providing a reliable, variable renewable source that complements other hydroelectric and thermal assets in the French grid. The operational status of the dam, having been completed in 1962, demonstrates the enduring nature of its design. The engineering firm Coyne et Bellier, responsible for the dam’s design, selected the arch-buttress configuration to optimize structural efficiency against the specific geological pressures of the Roselend valley. This design choice allowed for a robust yet material-efficient structure capable of withstanding decades of hydraulic stress. Construction of the dam began in 1955, reflecting a period of intense infrastructure investment in France. The reservoir started filling in 1960, and the power station achieved operational status in 1961, slightly ahead of the dam’s final completion in 1962. This phased approach to commissioning allowed EDF to begin generating revenue and stabilizing local grid frequency while final construction details were being finalized. The 546 MW capacity of the La Bâthie station is a key metric for understanding the dam’s impact; it provides a significant baseload and peaking power capability, crucial for balancing the French electricity network, which has historically relied heavily on nuclear and hydroelectric sources. As a major hydroelectric asset, the Roselend Dam also plays a role in flood control and water resource management for the downstream areas. The reservoir’s ability to store significant volumes of water allows for regulated release, mitigating flood risks in the lower Rhône valley and ensuring consistent water flow for agricultural and municipal use. The dam’s continued operation under EDF highlights the long-term viability of large-scale hydroelectric projects in the Alps. It remains a testament to the engineering prowess of the Coyne et Bellier firm and the strategic foresight of French energy planners who recognized the potential of the Alpine watersheds. The integration of the Roselend Dam into the broader EDF network ensures that its 546 MW output is efficiently transmitted and utilized, contributing to the energy security and sustainability of the region.What distinguishes arch-buttress dams from other hydro structures?
The Roselend Dam employs an arch-buttress structural design, a specific engineering configuration that distinguishes it from solid gravity or simple arch dams. This design relies on a curved upstream face that transfers the hydrostatic pressure of the reservoir water laterally into the valley walls, while a series of vertical supports, or buttresses, carry the load down to the foundation. According to the grounding data, the Roselend Dam supports the 546 MW La Bâthie Power Station and was designed by Coyne et Bellier, with construction beginning in 1955 and completion in 1962.
Structural Efficiency and Material Usage
The primary advantage of the arch-buttress design is its material efficiency compared to solid gravity dams. A gravity dam relies on its own massive weight to resist the horizontal thrust of the water, requiring a large volume of concrete or masonry. In contrast, the arch-buttress system utilizes the geometric strength of the arch and the vertical stability of the buttresses. This allows for a thinner upstream face and reduced overall volume of construction materials. For the Roselend Dam, located 5 km east of Beaufort in the Savoie department, this efficiency was critical given its position just west and below the Cormet de Roselend mountain pass. The complex topography of the Rhône-Alpes region often favors such designs to minimize the footprint and material costs while maintaining structural integrity against the significant water pressure required to drive the 546 MW output of the associated power station.
Comparison with Other Dam Types
Unlike a simple arch dam, which transfers load primarily through curvature, or a gravity dam, which relies on mass, the arch-buttress dam combines both principles. The buttresses provide additional support to the arch, allowing for greater spans or higher water heads with less material than a solid arch. This design was particularly relevant for the Roselend project, which began filling its reservoir in 1960 and saw the power station become operational in 1961. The structural choice reflects the engineering priorities of the mid-20th century, where optimizing concrete usage and adapting to specific valley geometries were key factors. The dam’s primary purpose remains hydroelectric power generation, and its structural form is directly tied to the efficiency of converting the potential energy of the stored water into the electrical output managed by Électricité de France.
