Overview
The Romashka reactor stands as a distinctive example of Soviet-era nuclear innovation, designed not merely to generate heat but to explore alternative pathways for electricity production. Developed by the Kurchatov Institute of Atomic Energy, this experimental research reactor began its operational life in 1964. Unlike the vast majority of nuclear power plants that rely on the thermodynamic cycle of heating water to drive steam turbines, Romashka utilized a fundamentally different approach: direct thermoelectric conversion. This method represents a significant divergence from conventional nuclear engineering, aiming to reduce mechanical complexity and increase reliability through the direct transformation of thermal energy into electrical energy.
The core principle behind Romashka’s design mirrors the technology found in radioisotope thermoelectric generators (RTGs), which are commonly used in space exploration. However, while RTGs typically provide modest power outputs suitable for satellites and deep-space probes, the Romashka reactor was engineered to achieve a significantly higher power rating. This scaling up of thermoelectric technology for a nuclear reactor presented unique engineering challenges, particularly in managing the temperature gradients across thermocouples and maintaining the structural integrity of the conversion materials under intense neutron flux and thermal stress.
As a research facility, Romashka served as a critical testbed for evaluating the viability of direct conversion systems for terrestrial nuclear power. The Kurchatov Institute, a premier center for atomic energy research in the Soviet Union, leveraged this platform to investigate how uranium-fueled reactors could efficiently produce electricity without the intermediate step of mechanical rotation. This experimental focus highlights the breadth of Soviet nuclear research, which extended beyond the standard pressurized water reactors and boiling water reactors that dominated the grid. The reactor’s decommissioned status today marks the end of an era for this specific technological pathway, yet its historical significance remains in the insights it provided into alternative nuclear energy architectures.
How does direct thermoelectric conversion work?
The Romashka reactor utilized direct thermoelectric conversion to generate electricity, a method fundamentally different from the conventional steam-turbine cycle used in most nuclear power plants. Instead of heating water to produce steam that drives a mechanical turbine, the reactor converted heat energy directly into electrical energy using semiconductor materials. This process relies on the Seebeck effect, where a temperature gradient across a thermocouple generates a voltage difference. The voltage V is proportional to the temperature difference ΔT and the Seebeck coefficient α, expressed as V=αΔT. This direct conversion eliminates the moving parts of a turbine-generator set, reducing mechanical complexity and maintenance requirements.
Comparison with Radioisotope Thermoelectric Generators
The technology is similar to that of a radioisotope thermoelectric generator (RTG), commonly used in space exploration. Both systems use thermocouples to convert heat into electricity. However, the Romashka reactor was a higher-power system compared to typical RTGs. RTGs rely on the decay heat of radioisotopes, such as plutonium-238, while the Romashka reactor used the heat from a uranium-fueled nuclear reaction. This allowed for a more substantial and controllable power output, making it suitable for experimental and potentially larger-scale applications than the compact RTGs used in spacecraft.
Silicon-Germanium Semiconductors
The thermocouples in the Romashka reactor were made of silicon-germanium (Si-Ge) semiconductors. These materials were chosen for their high-temperature stability and efficient thermoelectric properties. Silicon-germanium alloys can withstand the high temperatures generated by the uranium fuel, maintaining their electrical and thermal characteristics over extended periods. The use of Si-Germanium semiconductors was a key technological choice that enabled the direct conversion of nuclear heat into electricity with reasonable efficiency for an experimental reactor.
| Feature | Romashka Reactor | Standard Turbine-Based Reactor |
|---|---|---|
| Power Conversion Method | Direct thermoelectric conversion | Steam turbine cycle |
| Primary Fuel | Uranium | Uranium (typically) |
| Key Components | Silicon-germanium thermocouples | Steam generators, turbines, generators |
| Moving Parts | Few (pumps, valves) | Many (turbine blades, generator rotor) |
| Similarity | Similar to RTGs but higher power | Similar to conventional thermal power plants |

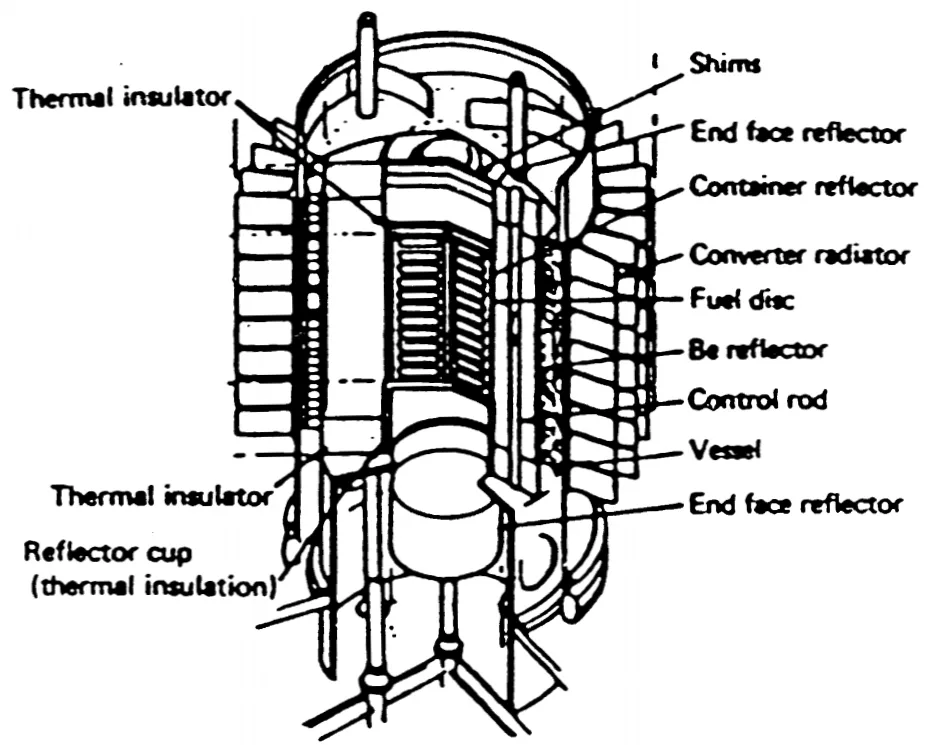

Reactor design and fuel composition
The Romashka reactor represented a distinct departure from conventional nuclear power generation by utilizing direct thermoelectric conversion rather than the traditional Rankine cycle. Unlike standard light-water or gas-cooled reactors that heat a working fluid to drive a turbine, this experimental unit converted heat directly into electricity, functioning on a principle similar to a radioisotope thermoelectric generator but at a significantly higher power output. This design choice eliminated the need for complex mechanical turbines and allowed for a more compact core assembly, which was critical for its experimental role within the Soviet nuclear program.Fuel Composition and Core Configuration
The core of the Romashka reactor was fueled by 49 kg of highly enriched uranium, with an enrichment level of 90% 235U. The uranium was processed into uranium dichloride (UC2) form, a molten salt configuration that served as both the fuel matrix and the primary heat source. This specific chemical form was chosen for its thermal stability and compatibility with the thermoelectric conversion modules surrounding the core. The use of a molten salt fuel allowed for efficient heat transfer to the thermoelectric elements without the need for a separate liquid coolant loop, which is a hallmark of traditional Pressurized Water Reactors (PWRs) or Boiling Water Reactors (BWRs).Thermal Management and Reflector
Instead of a liquid coolant circulating through the core, the Romashka design relied on a beryllium reflector to manage neutron economy and thermal distribution. The beryllium reflector served a dual purpose: it reflected neutrons back into the core to sustain the fission chain reaction and acted as a thermal conductor to distribute heat evenly to the thermoelectric converters. This lack of liquid coolant simplified the primary circuit and reduced the risk of leakage, a significant advantage for an experimental setup focused on the efficiency of direct conversion. The thermal energy generated by the fission of the 49 kg of uranium was transferred through the beryllium reflector to the thermoelectric modules, where the Seebeck effect converted the temperature gradient directly into electrical current.| Technical Specification | Value / Description |
|---|---|
| Fuel Mass | 49 kg |
| Fuel Type | Highly Enriched Uranium (UC2) |
| Enrichment Level | 90% 235U |
| Coolant Type | None (Direct Conversion) |
| Reflector Material | Beryllium |
| Conversion Method | Direct Thermoelectric |
What distinguishes Romashka from other space reactors?
The Romashka reactor represented a distinct approach to Soviet nuclear power generation, primarily characterized by its use of direct thermoelectric conversion. Unlike conventional nuclear reactors that rely on the Rankine cycle—where heat generates steam to drive a turbine—Romashka converted heat directly into electricity. This mechanism is functionally similar to a radioisotope thermoelectric generator (RTG), but at a significantly higher power output scale. The grounding data indicates that Romashka was an experimental unit developed by the Kurchatov Institute of Atomic Energy and commissioned in 1964. Its design philosophy prioritized simplicity and reliability, reducing the number of moving parts compared to turbine-based systems. When comparing Romashka to other Soviet space nuclear power concepts, such as the BES-5 reactor, key differences emerge in terms of power output and system complexity. The BES-5 reactor, part of the broader Soviet space nuclear power program, utilized a more traditional thermodynamic cycle involving a turbine generator. This allowed for higher power outputs suitable for larger spacecraft or orbital platforms, but introduced greater mechanical complexity. In contrast, Romashka’s direct thermoelectric conversion offered a simpler, more robust solution, albeit with lower overall efficiency and power density. The trade-off between simplicity and power output was a central theme in Soviet nuclear reactor design during the 1960s. The Romashka reactor’s operational status is now decommissioned, reflecting the evolution of nuclear technology and the shifting priorities of the Soviet space program. Its legacy lies in the experimental insights it provided into direct thermoelectric conversion, which continued to influence subsequent reactor designs. The Kurchatov Institute of Atomic Energy played a pivotal role in its development, leveraging its expertise in nuclear physics and materials science. While specific technical details about Romashka’s power output are not provided in the grounding data, its comparison with BES-5 highlights the diverse strategies employed by Soviet engineers to address the challenges of space-based nuclear power. In summary, the Romashka reactor distinguished itself through its innovative use of direct thermoelectric conversion, offering a simpler alternative to turbine-based systems like the BES-5. This approach, while less powerful, provided valuable experimental data that contributed to the broader understanding of nuclear power in space applications. The reactor’s development by the Kurchatov Institute of Atomic Energy underscores the institution’s central role in advancing Soviet nuclear technology during the mid-20th century.History and development timeline
The Romashka reactor was an experimental nuclear power unit developed by the Kurchatov Institute of Atomic Energy in the Soviet Union. It was commissioned in 1964 (per Kurchatov Institute records). The reactor is distinct for its use of direct thermoelectric conversion to generate electricity, bypassing the traditional steam turbine cycle common in pressurized water reactors or boiling water reactors. This technology is analogous to a radioisotope thermoelectric generator (RTG) but operated at a significantly higher power output level. The primary fuel source for the reactor was uranium.
Project Origins and Sergei Korolev
The development of the Romashka reactor was closely tied to the Soviet space program and the vision of Sergei Korolev. Korolev, a leading figure in Soviet aerospace engineering, saw the potential for direct thermoelectric conversion for space applications, where the simplicity and reliability of thermocouples were advantageous compared to rotating machinery. The Kurchatov Institute of Atomic Energy served as the primary operator and developer of the project. The reactor's design aimed to validate the technology for future space missions, potentially powering satellites or lunar bases with a compact, high-output nuclear source.
Impact of Korolev's Death
The trajectory of the Romashka project was significantly altered by the death of Sergei Korolev. Korolev's passing removed a key political and technical advocate for the direct thermoelectric approach. Without his sustained support, the project faced increased competition from other nuclear power technologies, particularly those utilizing traditional steam turbines which were already well-established in terrestrial power generation. The lack of a clear, immediate application in the space program, combined with shifting priorities within the Soviet energy sector, contributed to the reactor's eventual decommissioning status. The Romashka reactor is now considered a decommissioned experimental unit, having served its primary role in demonstrating the viability of direct thermoelectric conversion on a larger scale than typical RTGs.
| Year | Event |
|---|---|
| 1964 | Romashka reactor commissioned by the Kurchatov Institute of Atomic Energy. |
| Post-1964 | Project development influenced by the death of Sergei Korolev. |
| Later years | Reactor status becomes decommissioned. |
Operational performance and testing
The Romashka reactor achieved initial criticality in 1964, marking the beginning of its operational testing phase. Developed by the Kurchatov Institute of Atomic Energy, the unit was designed to validate the concept of direct thermoelectric conversion for nuclear power generation. Unlike conventional light water reactors that rely on steam turbines, Romashka utilized a thermoelectric generator array to convert heat directly into electricity. This approach mirrored the principles of radioisotope thermoelectric generators (RTGs) but operated at a significantly higher power scale, aiming to bridge the gap between space-based nuclear power and terrestrial utility-scale output.
Thermal and Electrical Performance
During its testing period, the reactor maintained a steady heat output of 40 kW. This thermal energy was harvested by thermocouples arranged around the core, converting the temperature differential directly into electrical current. The peak temperatures recorded during operation reached 2,173 K (1,900 °C; 3,452 °F). These extreme temperatures were critical for maximizing the Seebeck effect, defined by the voltage generation formula V=S⋅ΔT, where S represents the Seebeck coefficient and ΔT is the temperature difference across the thermocouple junctions. The ability to sustain such high temperatures demonstrated the viability of ceramic fuel elements and advanced thermoelectric materials under continuous neutron flux.
Operational Duration and Decommissioning
The Romashka reactor accumulated a total of 15,000 hours of operation. This extensive runtime provided valuable data on the durability of thermoelectric modules and the stability of the direct conversion system. Despite the successful validation of the technology, the reactor was decommissioned in 1966. The relatively short operational lifespan, spanning only two years, reflected the experimental nature of the project and the shifting priorities of Soviet nuclear engineering, which increasingly favored traditional turbine-based designs for large-scale power generation. The decommissioning marked the end of this specific experimental line, though the data collected contributed to broader understanding of nuclear thermoelectric conversion.
Significance
The Romashka reactor served as a critical experimental platform for the Soviet space program, establishing foundational data for nuclear power systems intended for satellites and deep-space probes. Developed by the Kurchatov Institute of Atomic Energy, this decommissioned research reactor was not merely a terrestrial curiosity but a direct precursor to the nuclear energy solutions that would later define Soviet space exploration capabilities. Its primary significance lies in its pioneering use of direct thermoelectric conversion, a technology choice that diverged from the conventional steam-turbine method used in most early nuclear power plants.
By utilizing uranium fuel to generate heat and converting it directly into electricity through thermoelectric means, Romashka demonstrated a viable pathway for high-power space applications. This approach is conceptually similar to the radioisotope thermoelectric generator (RTG) widely used in space missions, but Romashka operated at a significantly higher power output, bridging the gap between simple RTGs and complex nuclear fission reactors. This distinction was crucial for Soviet engineers seeking to power larger spacecraft and satellites where solar panels were either insufficient or too bulky.
The reactor's operational history, beginning in 1964, provided the Soviet Union with valuable insights into the reliability and efficiency of direct thermoelectric conversion in a controlled environment. These insights were instrumental in the development of subsequent nuclear space power systems, influencing the design and implementation of reactors used in later Soviet and Russian space missions. The Kurchatov Institute's work on Romashka thus laid the groundwork for the nuclear propulsion and power technologies that enabled extended missions and enhanced capabilities in the Soviet space program.
Technical Legacy and Influence
The technical legacy of the Romashka reactor extends beyond its immediate experimental results. Its success in demonstrating the feasibility of direct thermoelectric conversion for nuclear power influenced the design of future space reactors, including those used in the Soviet Lunokhod rovers and the Venera landers. The reactor's ability to generate higher power outputs compared to traditional RTGs made it a key reference point for engineers designing power systems for missions requiring more energy than solar panels could provide.
Furthermore, the Romashka reactor's design and operational data contributed to the broader understanding of nuclear thermoelectric conversion, a technology that continues to be relevant in modern space exploration. The principles established by Romashka have informed the development of advanced thermoelectric materials and conversion systems, enhancing the efficiency and reliability of nuclear power sources for space applications. This ongoing influence underscores the reactor's significance as a pioneering achievement in nuclear engineering and space technology.
The Romashka reactor's role in the Soviet space program highlights the importance of experimental research in driving technological innovation. By providing a baseline for nuclear power in space, Romashka helped pave the way for the nuclear-powered satellites and probes that expanded humanity's reach into the cosmos. Its legacy is a testament to the ingenuity and foresight of the Kurchatov Institute and the broader Soviet scientific community in harnessing nuclear energy for space exploration.
