Research reactor: Design, fuel enrichment, and global deployment

Overview

Research reactors constitute a distinct class of nuclear fission-based facilities, fundamentally differentiated from power reactors by their primary operational objective. While power reactors are engineered to maximize thermal energy output for electricity production, heat generation, or maritime propulsion, research reactors serve primarily as intense neutron sources. This functional divergence defines their design, operational parameters, and application within the global energy infrastructure. The term "non-power reactors" is frequently used to categorize these facilities, emphasizing that their value lies not in the megawatt-hours of electricity generated, but in the flux of neutrons produced through sustained nuclear fission.

Neutron Source Functionality

The core function of a research reactor is the generation of a high-density neutron field. In the context of nuclear fission, the splitting of heavy atomic nuclei, typically uranium, releases neutrons that can induce further fission events or interact with surrounding materials. Research reactors are optimized to maximize this neutron output, often prioritizing neutron flux density over thermal efficiency. This makes them critical tools for scientific inquiry, materials testing, and isotope production. The neutrons emitted serve as probes to examine the atomic and molecular structure of matter, enabling advancements in physics, chemistry, biology, and engineering.

Unlike power reactors, which require large volumes of coolant and moderator to manage heat transfer for turbine-driven generators, research reactors may employ a variety of configurations to optimize neutron availability. The fuel source remains uranium, consistent with the broader nuclear fission paradigm, but the arrangement of fuel elements, moderators, and reflectors is tailored to the specific neutron energy spectrum required for the research objective. This flexibility allows research reactors to support a wide range of applications, from fundamental physics experiments to the production of medical isotopes essential for diagnostic imaging and therapy.

The operational status of these facilities is generally characterized as operational, reflecting their continuous role in scientific and industrial processes. As neutron sources, they provide a steady, controllable environment for experimentation, distinct from the pulsed or variable outputs of other neutron-generating technologies. This stability is crucial for long-term studies and precision measurements, cementing the research reactor's position as a foundational element in nuclear science and technology infrastructure.

What are the main applications of research reactors?

Research reactors function primarily as intense neutron sources, distinguishing them from power reactors optimized for electricity generation or heat production. This fundamental characteristic enables a diverse range of scientific, industrial, and educational applications. The primary utility of these facilities lies in their ability to provide controlled neutron fluxes for material analysis, isotope production, and experimental physics.

Neutron Scattering and Material Analysis

One of the most significant scientific applications of research reactors is neutron scattering. This technique allows researchers to probe the atomic and molecular structure of materials. By directing a beam of neutrons through a sample, scientists can analyze how the neutrons scatter, revealing details about crystal structures, magnetic properties, and dynamic processes within the material. This method is particularly valuable for studying complex materials such as polymers, superconductors, and biological macromolecules. The interaction is often described by the scattering cross-section, where the probability of interaction depends on the nuclear properties of the target atoms. Research reactors provide the steady-state neutron flux necessary for many scattering experiments, offering a complementary approach to pulsed neutron sources.

Radioisotope Production

Research reactors are critical for the production of radioisotopes used in medicine, industry, and agriculture. Medical isotopes, such as Molybdenum-99 (which decays to Technetium-99m), are essential for diagnostic imaging and nuclear medicine treatments. Industrial isotopes are used for non-destructive testing, gauging, and tracing processes. Agricultural applications include mutation breeding to develop new crop varieties and the use of isotopes as tracers to study plant metabolism and soil dynamics. The production process typically involves irradiating target materials in the reactor core, where the high neutron flux induces nuclear reactions, transforming stable atoms into radioactive isotopes.

Non-Destructive Testing and Industrial Applications

Neutron radiography and computed tomography are advanced non-destructive testing techniques enabled by research reactors. Unlike X-rays, neutrons can penetrate heavy metals and reveal lighter elements such as hydrogen, making them ideal for inspecting components in aerospace, automotive, and nuclear industries. For example, neutron radiography can detect moisture in turbine blades or corrosion under insulation in piping systems. These techniques allow for the internal examination of components without causing damage, providing critical insights into material integrity and performance.

Education and Training

Research reactors play a vital role in the education and training of nuclear engineers, physicists, and technicians. Many universities and research institutions operate small research reactors to provide hands-on experience with nuclear instrumentation, reactor physics, and operational procedures. These facilities serve as living laboratories where students can study neutron behavior, control rod mechanics, and coolant dynamics. The educational value extends beyond nuclear science, offering interdisciplinary opportunities in chemistry, biology, and materials science.

Competition with Spallation Sources

While research reactors have been the traditional neutron source, they face increasing competition from spallation neutron sources. Spallation sources use high-energy proton beams striking a heavy metal target to release neutrons, often producing higher peak fluxes than reactors. Facilities like the Spallation Neutron Source (SNS) in the United States and the European Spallation Source (ESS) in Sweden offer pulsed neutron beams, which are advantageous for time-of-flight measurements. However, research reactors remain competitive due to their steady-state flux, lower operational complexity, and cost-effectiveness for certain applications. The choice between a reactor and a spallation source depends on the specific requirements of the experiment, including flux intensity, energy spectrum, and temporal resolution.

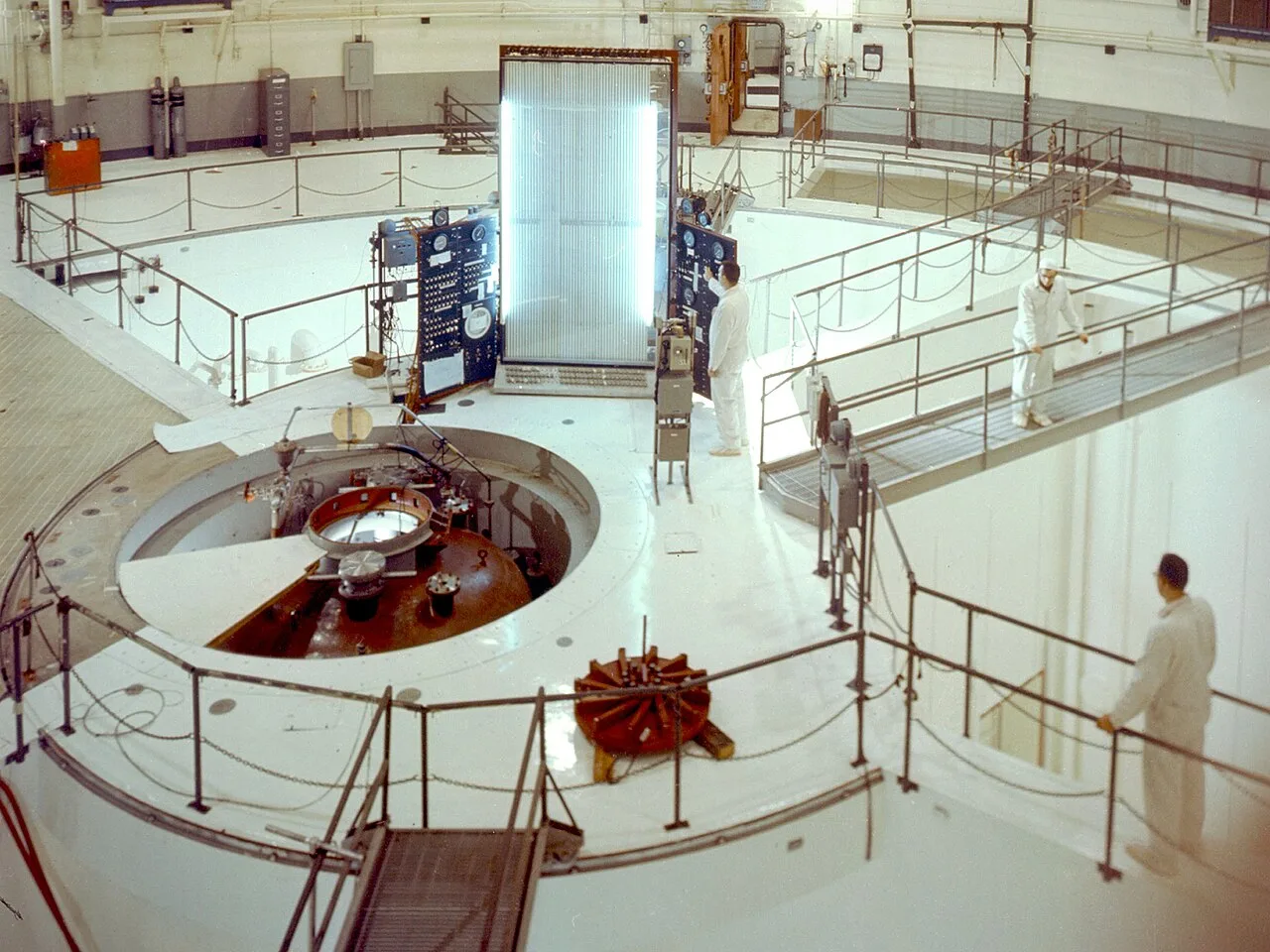

Technical design and operational characteristics

Research reactors are distinguished by a simplified technical design optimized for neutron flux rather than thermodynamic efficiency. Unlike power reactors, which prioritize electricity generation, research units function primarily as neutron sources. This fundamental difference dictates their operational parameters, allowing for lower operating temperatures and distinct cooling mechanisms. The structural simplicity reduces complexity in the core and containment systems.

Cooling and Thermal Management

Cooling in many research reactors relies on natural convection, particularly in water-cooled systems. This passive mechanism reduces reliance on active pumps, enhancing operational stability. The lower temperatures required for neutron production mean that the thermal stress on core components is generally less severe than in high-temperature power reactors. This design choice supports long-term operational reliability and simplifies maintenance schedules.

Core Components: Moderators and Reflectors

The core design incorporates specific moderators to slow down neutrons, increasing the probability of fission in the uranium fuel. Reflectors are strategically placed around the core to bounce escaping neutrons back into the active zone, thereby maximizing neutron economy. These components are critical for achieving the high power density required for effective research applications. The arrangement of these elements is optimized for flux uniformity rather than power output.

Comparison with Power Reactors

The following table outlines the key design differences between research reactors and traditional power reactors.

These design choices ensure that research reactors remain efficient for their specific roles in science and industry. The focus on neutron flux allows for diverse applications, from isotope production to materials testing. The simplified architecture supports cost-effective operation and easier access for experimental setups. This contrasts with the robust, high-output requirements of power generation units.

Fuel enrichment and non-proliferation challenges

Research reactors utilize uranium as their primary fuel, with enrichment levels playing a critical role in both operational efficiency and nuclear non-proliferation efforts. Historically, many research reactors operated using High Enriched Uranium (HEU), defined as uranium with a U-235 concentration of up to 93%. This high level of enrichment is significant because it approaches the threshold for "weapons-grade" uranium, typically considered to be uranium enriched to at least 20% U-235. The presence of HEU in numerous research reactors worldwide created a substantial non-proliferation challenge, as the fuel could potentially be reprocessed to extract fissile material for nuclear weapons.

Conversion to Low Enriched Uranium (LEU)

To mitigate these risks, a major international initiative focused on converting HEU-fueled research reactors to Low Enriched Uranium (LEU), which contains 20% or less U-235. This conversion program was initiated in 1978 by the International Atomic Energy Agency (IAEA) and the United States Department of Energy (US DOE). The goal was to reduce the global inventory of HEU, thereby minimizing the amount of potential weapons-grade material held in civilian nuclear facilities.

The conversion process involves replacing the existing HEU fuel elements with LEU alternatives that maintain the necessary neutron flux for research purposes. This shift significantly reduces the attractiveness of research reactor fuel for potential nuclear weapons programs, as the lower enrichment level requires more complex and energy-intensive reprocessing to achieve weapons-grade purity. The IAEA and US DOE have coordinated efforts to track and facilitate these conversions, providing technical and financial support to participating countries. This ongoing program remains a cornerstone of global nuclear non-proliferation strategy, addressing the specific challenges posed by the widespread use of HEU in research reactors.

What are the main types of research reactors?

Research reactors are categorized by their core design, neutron flux requirements, and primary operational functions. Unlike power reactors optimized for thermal energy conversion, these systems prioritize neutron economy for isotope production, materials testing, and fundamental physics. The following classes represent distinct engineering approaches to achieving stable criticality.

Major Reactor Classes

The selection of a reactor class depends on the specific neutron flux density (ϕ) required for the experiment. For example, isotope production often demands high thermal flux, while materials testing may require a significant epithermal component. The neutron flux is defined as:

where n is the neutron density and v is the neutron velocity. Each class optimizes these variables differently. TRIGA reactors, for instance, prioritize stability through negative temperature coefficients, while DIDO reactors maximize flux intensity for irradiation loops. The operational status of these systems remains active globally, serving as critical infrastructure for nuclear research.

Global market and major constructors

The global market for research reactors has evolved significantly since the mid-20th century, characterized by an initial period of rapid expansion followed by long-term consolidation among a few specialized constructors. During the foundational era of nuclear technology, various national agencies and industrial giants competed to supply neutron sources for scientific and industrial applications. Key historical players included the Atomic Energy of Canada Limited (AECL), which leveraged its expertise in heavy water and uranium fuel cycles, and the Argentine company INVAP, which emerged as a significant exporter of compact research units. European industrial powerhouses such as Siemens and Technicatom also held substantial market shares, providing critical infrastructure for national grid operators and research institutes across the continent.

As the market matured, corporate restructuring reshaped the competitive landscape. The French nuclear industry saw the evolution of Areva, which consolidated various engineering and fuel cycle assets to maintain a strong presence in the global research reactor sector. This consolidation trend continued as companies merged or were acquired to optimize supply chains and technological portfolios. The operational status of these facilities remains predominantly active, with many reactors continuing to serve as primary neutron sources for isotope production, materials testing, and neutron scattering experiments. The reliance on uranium as the primary fuel source has remained consistent across most reactor designs, ensuring a standardized approach to fuel cycle management for operators worldwide.

A notable example of the competitive tendering process in this sector was the 1999 OPAL tender. This procurement event highlighted the technical and economic considerations involved in selecting a research reactor for modern scientific needs. The OPAL project, which resulted in the commissioning of a high-flux reactor, demonstrated how international competition drives innovation in reactor design and efficiency. Such tenders often involve detailed evaluations of neutron flux capabilities, thermal hydraulics, and long-term operational costs. The selection process for projects like OPAL influences the broader market by setting benchmarks for performance and reliability that other constructors must meet to remain competitive.

The current market structure is defined by a smaller number of major constructors who have survived decades of technological shifts and economic pressures. These entities continue to provide essential services, including fuel supply, core design, and maintenance, ensuring that research reactors remain viable tools for scientific discovery. The transition from the diverse array of early manufacturers to today's consolidated market reflects the increasing complexity and capital intensity of nuclear fission-based systems. Despite these changes, the fundamental role of research reactors as non-power reactors, distinct from those used for electricity production or maritime propulsion, remains unchanged. They continue to provide critical neutron sources that support a wide range of scientific and industrial applications globally.

Significance

Research reactors serve as critical infrastructure for global scientific advancement, functioning primarily as neutron sources rather than electricity generators. Unlike power reactors, which drive maritime propulsion or heat generation, these non-power reactors provide the foundational neutron flux required for materials testing, neutron scattering experiments, and nuclear data acquisition. Their strategic importance extends beyond pure physics, underpinning the global supply chain for medical isotopes used in diagnostic imaging and cancer therapy. The stability of this supply chain depends on the operational continuity of a diverse fleet of reactors, many of which are aging but remain technologically indispensable for producing isotopes such as Molybdenum-99 and Iodine-125.

Non-Proliferation and Fuel Conversion

A major strategic challenge for the research reactor community is the management of High Enriched Uranium (HEU) fuel. Historically, many research reactors operated on HEU, defined as uranium enriched to 20% or more in the isotope Uranium-235. This enrichment level approaches the threshold for nuclear criticality, posing a latent non-proliferation risk. The global effort to convert these reactors to Low Enriched Uranium (LEU), typically enriched to less than 20%, is a cornerstone of nuclear diplomacy and security.

Current strategic goals focus on converting the remaining 72 HEU research reactors to LEU by the year 2035. This conversion process is technically complex, requiring adjustments to core geometry, control rod worth, and thermal hydraulics to maintain the necessary neutron flux. The success of this initiative reduces the stockpile of weapons-grade-adjacent uranium, thereby strengthening the global non-proliferation regime. The conversion effort requires coordinated investment in fuel fabrication, core design, and operational testing across multiple nations, ensuring that the scientific output of these reactors is not compromised while enhancing global nuclear security.

Worked examples

Research reactors function primarily as neutron sources rather than electricity generators. To illustrate their operational parameters, we examine the OPAL reactor in Australia and the Aerojet General Nucleonics units deployed at US universities.

OPAL Reactor: Neutron Flux Analysis

The OPAL reactor in Australia serves as a prominent case study for high-flux research applications. As a nuclear fission-based reactor using uranium fuel, OPAL is classified as a non-power reactor. Its primary function is to provide a stable neutron source for scientific experiments, distinct from power reactors used for electricity production or maritime propulsion.

In operational analysis, the key metric for a research reactor is neutron flux, often denoted as ϕ. For a reactor with thermal power P and average neutron energy E, the flux can be approximated by the relationship ϕ≈V⋅E⋅σP​, where V is the core volume and σ is the microscopic cross-section. While specific volumetric data for OPAL requires detailed core maps, the fundamental principle remains: maximizing flux density allows for shorter exposure times in neutron scattering experiments. The uranium fuel assembly is designed to optimize this flux distribution across the central beam ports.

Aerojet General Nucleonics: University Deployment

Aerojet General Nucleonics supplied research reactors to various US universities. These units also operate on the principle of nuclear fission using uranium fuel. Their deployment highlights the educational and experimental role of non-power reactors. Unlike large power reactors, these university units are scaled for specific neutron yield requirements, supporting physics, chemistry, and engineering research.

The operational status of these reactors is maintained as operational, ensuring continuous neutron output. The design prioritizes neutron economy and ease of access for experimental samples. By contrasting these university units with power reactors, the distinction between neutron source optimization and thermal energy conversion becomes clear. Both types utilize uranium fission, but the engineering goals diverge significantly.
