Overview

A penstock is a fundamental component of hydraulic engineering, defined as a sluice, gate, or intake structure designed to control water flow. In many configurations, it functions as an enclosed pipe that delivers water to hydro turbines and sewerage systems. This infrastructure element is critical for managing the pressure and volume of water required to drive mechanical or electrical generation equipment. The primary fuel or energy source for systems utilizing penstocks is water, and these structures remain operational in both historic and modern energy infrastructure contexts.

Etymology and Historical Origins

The term "penstock" is of Scots origin. It was inherited from the earlier technology of mill ponds and watermills, which predate large-scale hydroelectric power generation. In these historical contexts, penstocks were used to divert pond waters to drive the mills. This etymological root highlights the continuity of hydraulic control mechanisms from simple mechanical power systems to complex modern energy grids. The basic function of regulating water flow to optimize energy extraction has remained consistent since these early applications.

Functional Role in Energy Infrastructure

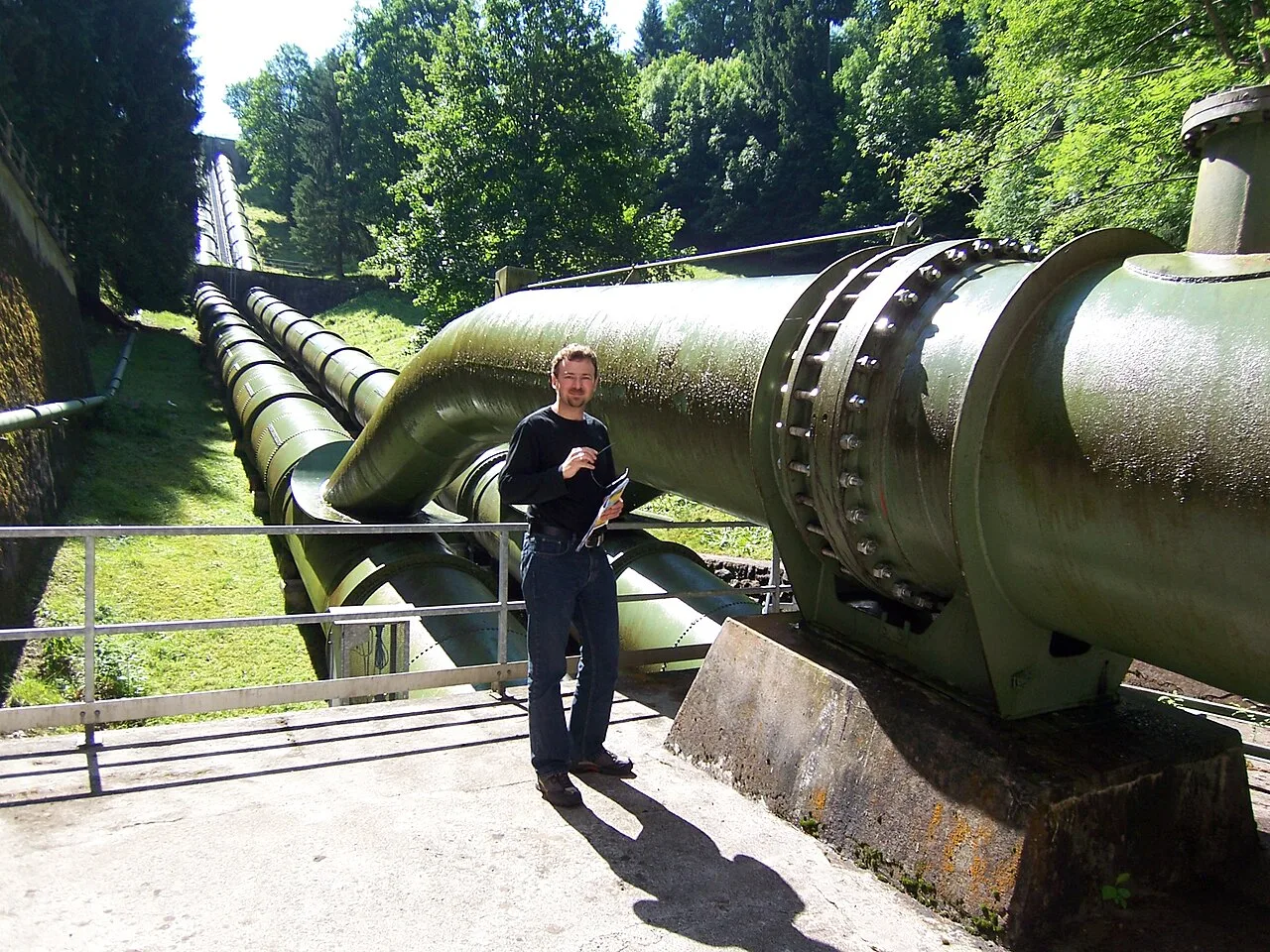

In modern hydroelectric facilities, the penstock serves as the conduit that channels water from a reservoir or intake structure to the turbine. This enclosed pipe must withstand significant hydraulic pressure, ensuring efficient energy transfer to the turbine blades. The design of the penstock is crucial for maintaining the operational status of the hydroelectric plant. By controlling the flow rate, the penstock allows operators to adjust the power output of the turbine in response to energy demand. This functionality extends beyond power generation, as penstocks are also integral to sewerage systems, where they manage the flow of wastewater through enclosed pipes.

How do penstocks function in hydroelectric systems?

Penstocks function as the primary conduit for delivering water from an intake structure to hydro turbines or sewerage systems, operating as enclosed pipes that control flow through integrated gate and sluice mechanisms. These structures divert water, a function inherited from earlier mill pond and watermill technologies where penstocks managed the diversion of pond waters to drive mills. In modern hydroelectric systems, the penstock assembly includes multiple critical components designed to regulate pressure, manage flow dynamics, and support structural integrity. Gate systems within the penstock allow for precise flow regulation, enabling operators to adjust water volume reaching the turbine blades for optimal energy conversion. These gates also serve as primary cutoff mechanisms, isolating the turbine from the water source during maintenance or emergency shutdowns.

Structural Components and Pressure Management

The penstock structure relies on several auxiliary components to maintain operational stability. Surge tanks are often integrated into the system to absorb pressure fluctuations caused by sudden changes in flow, such as rapid turbine cutoff, thereby preventing water hammer effects that could damage the pipeline. Anchor blocks secure the penstock to the terrain or foundation, resisting the thrust forces generated by water pressure and directional changes. Support piers provide vertical and lateral stability, distributing the weight of the pipe and its contents across the landscape. Drain valves are positioned at low points within the penstock to remove accumulated water during maintenance, while air bleed valves release trapped air to prevent air locks and ensure smooth flow continuity.

Flow regulation within the penstock is critical for turbine operation. The enclosed pipe design ensures that potential energy from the water head is efficiently converted into kinetic energy. The pressure within the penstock can be described by the relationship between the water head and the flow velocity. In hydraulic systems, the pressure drop across a gate or along the pipe length can be approximated using the Darcy-Weisbach equation, where head loss hf​ is proportional to the friction factor, pipe length, and velocity squared, divided by the pipe diameter and gravitational acceleration. This relationship helps engineers size the penstock to minimize energy loss while maintaining sufficient pressure at the turbine inlet. The gate systems control the flow rate, adjusting the velocity and pressure to match the turbine's operational requirements. By modulating the gate opening, operators can fine-tune the water delivery, ensuring efficient energy extraction from the water source. The integration of these components—gates, surge tanks, anchor blocks, drain valves, air bleed valves, and support piers—creates a robust system capable of handling the dynamic forces of flowing water while delivering consistent power to the hydro turbines.

Applications in watermills and irrigation

Penstocks serve as critical flow-control mechanisms in watermill operations, managing the diversion of water from mill ponds to drive mill wheels. This application represents the technological origin of the term, which is of Scots heritage and was inherited from earlier watermill infrastructure. In these systems, penstocks function as sluices or gates that regulate the volume of water entering the mill pool or directly striking the wheel, thereby controlling rotational speed and power output. The enclosed pipe or channel design ensures that water is delivered with sufficient head and pressure to maximize mechanical efficiency before discharge.

In modern irrigation infrastructure, penstocks are integral to dam systems where they channel water toward high-pressure sluice gates. These structures manage the distribution of water from reservoirs to downstream agricultural fields, ensuring precise flow rates for crop irrigation. The penstock’s role in these contexts involves maintaining structural integrity under varying hydraulic pressures while allowing for adjustable flow control through gate mechanisms. This functionality supports efficient water management in regions relying on seasonal storage and distribution.

Hydraulic Principles

The performance of penstocks in both historical and modern applications depends on fundamental hydraulic principles. Water flow through a penstock is governed by the relationship between head, flow rate, and cross-sectional area. The velocity of water exiting the penstock can be approximated using Torricelli’s law, expressed as v = √(2gh), where v is velocity, g is gravitational acceleration, and h is the hydraulic head. This equation highlights the importance of elevation difference in generating kinetic energy for turbines or mill wheels.

Pressure within the penstock is calculated using the hydrostatic pressure formula P = ρgh, where P is pressure, ρ is water density, and h is the depth of the water column. These principles ensure that penstocks are designed to withstand operational stresses while delivering consistent water flow. Engineers must account for friction losses and turbulence, which can reduce efficiency, particularly in longer or narrower penstock configurations.

Historically, watermills relied on simple wooden or stone penstocks to direct water from nearby streams or ponds. Modern irrigation systems utilize reinforced concrete or steel penstocks to handle higher pressures and larger volumes. Despite material advancements, the core function remains unchanged: to control and direct water flow for mechanical or agricultural purposes. This continuity underscores the enduring relevance of penstock technology in water management systems.

Penstocks in mine tailings dam construction

Mine tailings dams utilize specialized penstock configurations to manage the hydraulic discharge of slurry from the processing plant to the containment area. Unlike standard hydroelectric applications where water is the primary energy carrier, tailings penstocks transport a heterogeneous mixture of water and finely ground mineral solids. The structural design must accommodate high abrasion rates and variable flow velocities to prevent sedimentation within the conduit itself. Central to this application is the strategic placement of the discharge point, often referred to as the central location or spigot, which dictates the geometry of the tailings beach and the stability of the upstream face of the dam.

Structural Components and Flow Control

The penstock system in tailings management frequently employs modular construction techniques to facilitate maintenance and adapt to changing operational demands. A key component is the use of penstock rings, which are short, reinforced sections of piping that allow for precise adjustment of the discharge elevation and direction. These rings are typically fabricated from high-grade steel or reinforced concrete, designed to withstand the corrosive nature of the slurry and the mechanical stress of frequent repositioning. The reinforcement ensures structural integrity under the hydrostatic pressure exerted by the column of slurry, which can vary significantly depending on the height of the dam and the specific gravity of the tailings.

Water level control is a critical function of the tailings penstock system. By regulating the volume and velocity of the discharged slurry, operators can manage the freeboard of the dam and optimize the settlement of solids. The flow rate is often adjusted using gate valves or sluice mechanisms located at the intake structure, similar to traditional mill pond penstocks but scaled for higher solid concentrations. This control mechanism allows for the creation of a "slime settlement" zone, where the velocity of the slurry decreases, allowing finer particles to settle out of suspension while coarser materials are pushed further up the beach. The efficiency of this settlement process directly impacts the clarity of the return water and the overall stability of the tailings deposit.

Hydraulic Dynamics and Return Systems

The hydraulic behavior of tailings in penstocks is governed by complex rheological properties that differ from Newtonian fluids. The relationship between flow rate, pipe diameter, and pressure drop is often modeled using empirical formulas that account for the solid concentration and particle size distribution. While specific calculations depend on the mineralogy of the ore, the general principle involves balancing the gravitational head against the frictional losses in the pipe. If the flow velocity falls below the critical deposition velocity, solids begin to settle, leading to potential blockages and increased wear on the lower section of the penstock. Conversely, excessive velocities can cause significant erosion of the pipe lining and the tailings beach itself.

After the solids have settled in the dam, the clarified water is collected and returned to the processing plant for reuse. This return piping system is an integral part of the overall water balance of the mining operation. The return pipes are typically positioned at the lowest point of the dam or at specific collection ponds, utilizing gravity or pumping systems to convey the water back to the plant. The efficiency of the return system is influenced by the clarity of the water, which is determined by the effectiveness of the slime settlement process in the dam. Proper design of the penstock discharge and the return piping ensures minimal water loss and optimal utilization of the water resource, which is often a critical factor in the economic viability of the mining operation. The integration of these hydraulic systems requires careful coordination between civil, mechanical, and process engineers to ensure reliable and efficient operation throughout the life of the mine.

Use in water management and landfill drainage

Penstocks serve critical functions beyond hydroelectric power generation, particularly in surface water drainage, foul water sewer systems, and landfill site management. In these contexts, they act as enclosed pipes or sluice structures that regulate the flow of water, ensuring controlled discharge and efficient conveyance to treatment facilities or retention basins.

Surface Water Drainage and Foul Water Sewers

In surface water drainage systems, penstocks help manage runoff by directing water into sewers or retention basins. They are often used in conjunction with foul water sewers, where they control the inflow of wastewater to treatment plants. This regulation is essential for preventing overflow and ensuring that the system can handle varying volumes of water during peak flow periods. The use of penstocks in these applications allows for precise control over water levels, reducing the risk of flooding and improving the overall efficiency of the drainage network.

Landfill Site Management

At landfill sites, penstocks play a vital role in managing leachate and surface water. Leachate, the liquid that percolates through waste and picks up dissolved and suspended materials, must be carefully controlled to prevent contamination of surrounding soil and groundwater. Penstocks are used to isolate contaminated surface waters, directing them to retention basins or treatment facilities. This isolation is achieved through valved penstocks, which can be opened or closed to control the flow of water. Retention basins are designed to hold the water temporarily, allowing for sedimentation and initial treatment before the water is discharged or further processed.

Pre-Development Discharge Rates and Valved Penstocks

When planning drainage systems for new developments, it is important to consider pre-development discharge rates. These rates represent the natural flow of water before any human intervention, such as the construction of buildings or roads. By comparing pre-development and post-development discharge rates, engineers can design systems that mimic natural flow patterns, reducing the impact on local water bodies. Valved penstocks are often used to adjust the discharge rate, ensuring that the system can handle both normal and peak flow conditions. This approach helps maintain ecological balance and reduces the risk of flooding in downstream areas.

Technical Considerations

The design of penstocks for water management and landfill drainage must account for several technical factors, including flow rate, pressure, and material durability. The flow rate through a penstock can be calculated using the formula: Q = A * v where Q is the flow rate, A is the cross-sectional area of the penstock, and v is the velocity of the water. This formula helps engineers determine the appropriate size and shape of the penstock to handle the expected water volume. Additionally, the pressure exerted by the water must be considered to ensure the penstock can withstand the force without leaking or bursting. Materials such as steel, concrete, or high-density polyethylene (HDPE) are commonly used, depending on the specific requirements of the project.

What distinguishes penstocks from head races and flumes?

Penstocks are frequently confused with head races, leats, and flumes, yet they occupy a distinct structural niche within hydroelectric and water management infrastructure. The primary distinction lies in enclosure and elevation. A penstock is defined as an enclosed pipe or conduit that delivers water to hydro turbines or sewerage systems. This enclosure is critical for maintaining hydraulic pressure, particularly in systems where the water must traverse significant vertical drops to generate head.

Head Races and Leats

In contrast, a head race is typically a non-elevated, non-enclosed channel that conveys water from a reservoir or mill pond to the turbine. Leats function similarly, often serving as open ditches or shallow channels that rely on gravity flow without the pressurization inherent to penstocks. These structures are common in low-head hydroelectric installations or traditional watermill systems, where the water surface is exposed to the atmosphere. The lack of enclosure means that head races and leats are subject to greater evaporation losses and sediment infiltration compared to the sealed environment of a penstock.

Flumes

Flumes represent another variation, characterized as elevated but non-enclosed structures. While a flume may carry water above the surrounding terrain to maintain gradient, it remains open to the atmosphere, distinguishing it from the fully enclosed penstock. Flumes are often used to cross valleys or uneven ground where a simple channel would require excessive excavation. However, because they are not fully enclosed, flumes do not generate the same level of static pressure as penstocks, making them less suitable for high-head turbine applications where pressure containment is essential for efficiency.

The functional difference is also reflected in hydraulic behavior. In a penstock, the water column is subject to both velocity head and pressure head, governed by Bernoulli’s principle. The total energy per unit weight of water is expressed as:

E = z + P/γ + v²/2g

where z is the elevation head, P/γ is the pressure head, and v²/2g is the velocity head. In open-channel structures like head races and flumes, the pressure head P/γ is approximately zero at the water surface, simplifying the energy equation but reducing the potential for pressure-driven turbine operation.

Understanding these distinctions is essential for engineers selecting appropriate conveyance structures based on topography, head requirements, and pressure constraints. While penstocks are optimal for high-pressure, enclosed delivery, head races, leats, and flumes offer cost-effective solutions for low-head or open-channel systems.
