Optical overheating protection using total internal reflection

Overview

Solar thermal collector systems face a critical operational challenge known as optical overheating. This phenomenon occurs when the heat input from solar radiation exceeds the rate at which heat is removed by the working fluid or lost to the environment. Under these conditions, the collector may reach an equilibrium or stagnation temperature that surpasses the maximum safe operating temperature of its components. Without effective protection, this thermal stress can lead to irreversible damage, reduced efficiency, and premature system failure. Optical overheating protection refers to the various measures and technologies designed to mitigate this risk by controlling the amount of solar energy absorbed by the collector.

Stagnation Temperature and Thermal Equilibrium

The stagnation temperature is a key parameter in solar thermal engineering. It represents the maximum temperature a collector can reach when the heat removal rate drops to zero, such as when the pump fails or the valve closes. At this point, the system reaches a thermal equilibrium where the absorbed solar energy equals the heat losses to the surroundings. If this equilibrium temperature exceeds the material limits of the collector, particularly polymeric components, degradation occurs. Understanding this temperature is essential for designing robust protection strategies.

The Role of Polymeric Materials

Modern solar thermal collectors increasingly rely on polymeric materials for their cost-effectiveness, lightweight nature, and ease of manufacturing. However, polymers are often more sensitive to high temperatures than traditional metallic components. When exposed to prolonged stagnation, these materials can undergo thermal degradation, leading to changes in optical properties, mechanical strength, and overall performance. Therefore, optical overheating protection is particularly crucial for systems utilizing polymeric absorbers, glazing, or seals. Effective protection ensures that the temperature remains within the safe operating range of these materials, thereby extending the lifespan and reliability of the solar thermal system.

How does total internal reflection protect solar collectors?

Total internal reflection (TIR) serves as a passive optical mechanism to mitigate stagnation temperatures in solar thermal collectors. When the heat transfer fluid cools or flow ceases, the collector glass or cover can exceed the maximum safe operating temperature of the underlying absorber or fluid. TIR protection redirects incoming solar radiation away from the absorber, effectively shading it without mechanical moving parts.

Principle of Operation and Snell’s Law

The phenomenon relies on the behavior of light at the interface between two media with different refractive indices. According to Snell’s law, the relationship between the angle of incidence θi and the angle of refraction θr is defined by n1sin(θi)=n2sin(θr), where n1 and n2 are the refractive indices of the first and second medium, respectively. Total internal reflection occurs when light travels from a medium with a higher refractive index to one with a lower refractive index (e.g., from polycarbonate to air) and the angle of incidence exceeds a specific threshold known as the critical angle θc.

The critical angle is calculated as θc=arcsin(n2/n1). If the incident angle is greater than θc, the light is reflected entirely back into the denser medium rather than being refracted through the interface. In the context of solar collectors, this principle is engineered to activate only when specific thermal or optical conditions are met, ensuring that solar energy is captured during normal operation and rejected during potential overheating scenarios.

Role of Polycarbonate Prisms and Switching Fluids

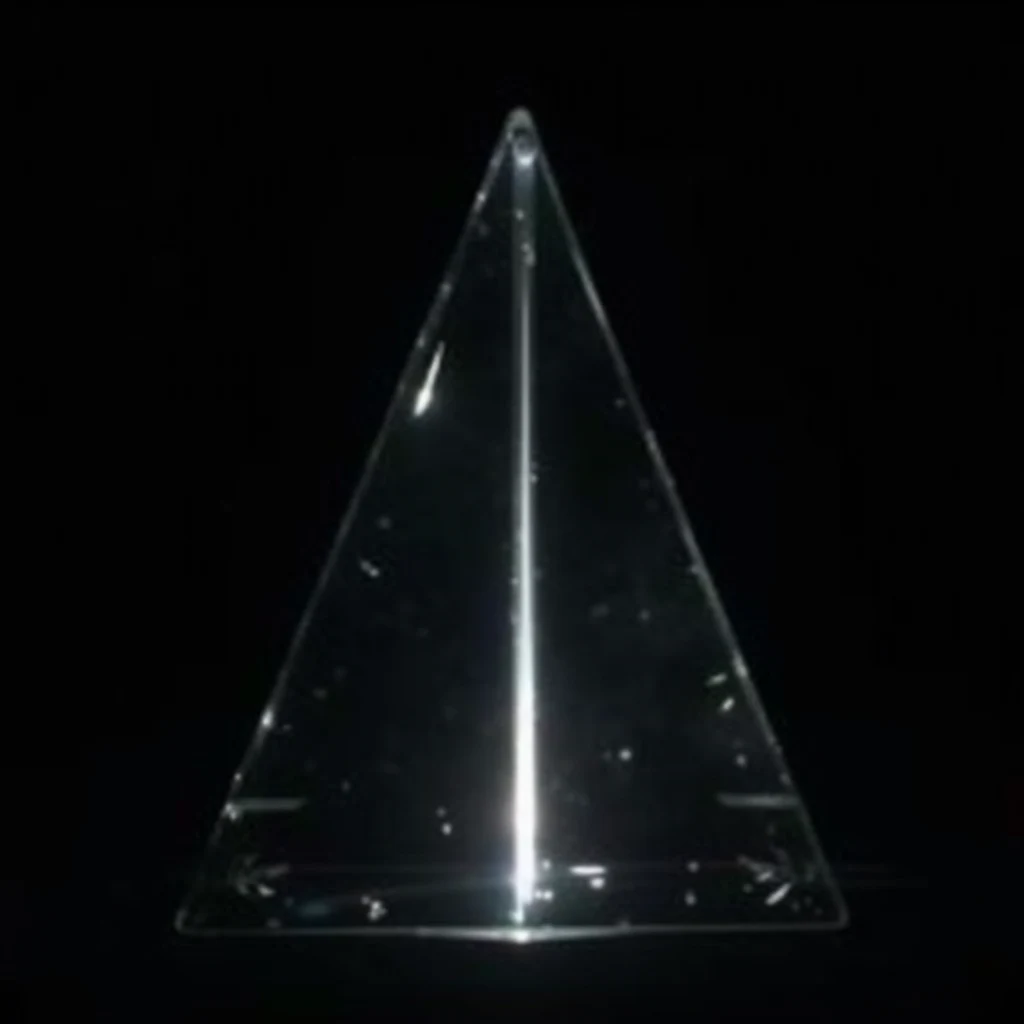

Polycarbonate prisms are frequently employed as the optical element due to their high refractive index and thermal stability. These prisms are designed with specific geometric angles that align with the critical angle for the polycarbonate-air interface. Under normal operating conditions, the refractive index of the surrounding medium or the fluid within the prism structure allows light to pass through to the absorber. However, as the temperature rises, the properties of the system change.

Switching fluids, such as thermochromic liquids or phase-change materials, can be integrated into the prism structure. As the fluid heats up, its refractive index may shift, or it may undergo a phase change that alters the optical path. This shift can cause the effective angle of incidence to exceed the critical angle, triggering total internal reflection. Consequently, the incoming solar radiation is reflected away from the absorber plate, reducing the heat load. This passive response provides a robust layer of optical overheating protection, complementing other measures to ensure the longevity and efficiency of solar thermal collector systems.

Worked examples

Optical overheating protection in solar thermal systems often relies on the principle of total internal reflection (TIR) or selective transmission through materials like polycarbonate. The critical angle determines when light is reflected away from the absorber, effectively "switching off" heat gain. The critical angle θc is calculated using Snell's Law: θc=arcsin(n2/n1), where n1 is the refractive index of the denser medium (polycarbonate) and n2 is the refractive index of the rarer medium (air or water).

Example 1: Polycarbonate in Air

Consider a polycarbonate cover with a refractive index n1≈1.54 exposed to air (n2≈1.00). This setup is common in flat-plate collectors. To find the critical angle:

Identify indices: n1=1.54, n2=1.00.
Apply formula: θc=arcsin(1.00/1.54).
Calculate ratio: 1.00/1.54≈0.6494.
Compute arcsine: θc≈40.5∘.

When sunlight strikes the polycarbonate-air interface at an angle greater than 40.5∘ (measured from the normal), total internal reflection occurs. The light reflects back into the collector or towards the sky, reducing heat absorption during peak stagnation temperatures.

Example 2: Polycarbonate in Water

In some hybrid systems, polycarbonate (n1≈1.54) is immersed in water (n2≈1.33). The higher refractive index of water reduces the critical angle, altering the switching point:

Identify indices: n1=1.54, n2=1.33.
Apply formula: θc=arcsin(1.33/1.54).
Calculate ratio: 1.33/1.54≈0.8636.
Compute arcsine: θc≈59.7∘.

Here, the critical angle is significantly higher (59.7∘). This means light must strike at a much shallower angle to undergo total internal reflection. This property allows for finer control in water-based thermal storage, where the "optical switch" activates only at specific sun angles or temperatures affecting the water's index.

Example 3: Temperature-Dependent Switching

Polycarbonate's refractive index decreases slightly as temperature rises. If n1 drops from 1.54 to 1.53 at high stagnation temperatures while in air (n2=1.00):

New index: n1=1.53.
Calculate new critical angle: θc=arcsin(1.00/1.53).
Ratio: 1.00/1.53≈0.6536.
New θc≈40.8∘.

The critical angle increases from 40.5∘ to 40.8∘. This slight shift means that as the collector heats up, the range of angles that allow light transmission narrows, enhancing the self-regulating optical protection mechanism without mechanical parts.

What are the angular dependence characteristics?

The angular dependence of optical overheating protection systems is a critical performance parameter, particularly for solar thermal collectors that rely on precise light manipulation. These systems often utilize prismatic structures or micro-lenses to redirect excess solar radiation away from the absorber surface when the incident angle of sunlight changes throughout the day. The efficiency of this redirection is not constant; it varies significantly with the angle of incidence of the incoming solar beam.

Prism Geometry and Light Transmittance

Prism-based optical protection devices function by exploiting the refractive properties of transparent materials. When sunlight strikes the prismatic surface, the light is either transmitted directly to the absorber or reflected/refracted away, depending on the geometry of the prism and the angle of incidence. The transmittance of the optical system can be modeled using Snell's Law, which describes the relationship between the angles of incidence and refraction. For a given prism with a specific apex angle α and refractive index n, the deviation angle δ of the light ray is determined by the incident angle θi.

As the sun moves across the sky, the incident angle θi changes, altering the path of the light rays. At low incident angles (near-normal incidence), the light may pass through the prism with minimal deviation, allowing maximum energy absorption. However, as the incident angle increases, the light rays may strike the internal surfaces of the prism at angles that exceed the critical angle for total internal reflection. This phenomenon can be used to optically "shut off" the collector, reflecting excess heat away from the absorber and preventing stagnation temperatures from exceeding safe operational limits.

Mathematical Modeling of Angular Response

The transmittance T(θi) of a prismatic optical protection system can be expressed as a function of the incident angle.

The design of the prism geometry must therefore be optimized for the specific latitude and orientation of the solar thermal collector. For example, a collector facing south in the northern hemisphere will experience different incident angles throughout the day compared to a collector facing east or west. The prism geometry can be tailored to maximize transmittance during peak solar hours and minimize it during periods of high incident angles, thereby providing dynamic optical overheating protection without the need for mechanical moving parts.

Impact on Collector Efficiency

The angular dependence of optical overheating protection systems directly impacts the overall efficiency of the solar thermal collector. If the transmittance drops too rapidly with increasing incident angle, the collector may underperform during early morning or late afternoon hours when the sun is lower in the sky. Conversely, if the transmittance remains high at large incident angles, the collector may be susceptible to stagnation during midday hours when the solar irradiance is at its peak. Therefore, a balance must be struck between maximizing energy capture and providing adequate optical protection against overheating.

In practice, the angular response of prismatic optical protection systems is often characterized by experimental measurements or optical simulations. These studies typically plot the transmittance T(θi) as a function of the incident angle θi for different prism geometries and materials. The results show that the angular dependence is highly sensitive to the prism apex angle α and the refractive index n. By carefully selecting these parameters, engineers can design optical protection systems that provide robust overheating protection while maintaining high optical efficiency across a wide range of incident angles.

Applications in solar thermal systems

Optical overheating protection mechanisms are critical for the longevity and efficiency of solar thermal collector systems. In these systems, the risk of stagnation occurs when the heat loss from the collector equals the solar heat gain, causing the fluid temperature to rise until it reaches an equilibrium or stagnation temperature. If this temperature exceeds the maximum safe operating temperature of the system components, thermal degradation can occur. Various measures are taken for optical overheating protection to mitigate this risk. One significant application involves the use of optical switches integrated into solar collector cover plates. This technology enables the use of polymeric materials in collector construction, which can significantly reduce manufacturing and installation costs compared to traditional glass covers.

Integration with Polymeric Cover Plates

The integration of optical switches in solar collector cover plates allows for dynamic control of solar irradiance entering the collector. By modulating the optical properties of the cover plate, the system can reduce the amount of solar energy absorbed by the absorber plate during periods of high irradiance or low heat demand. This dynamic control helps to maintain the fluid temperature within the optimal operating range, thereby reducing the risk of overheating. The use of polymeric materials for cover plates is advantageous due to their lower weight, improved impact resistance, and potential for lower production costs. However, polymeric materials often have lower thermal stability compared to glass, making optical overheating protection even more critical to prevent thermal degradation.

Cost Reduction and System Efficiency

The adoption of optical overheating protection in solar thermal systems contributes to both cost reduction and enhanced system efficiency. By enabling the use of polymeric cover plates, manufacturers can leverage the cost benefits associated with polymer processing and material properties. Additionally, the dynamic control provided by optical switches can optimize the thermal performance of the collector, ensuring that the system operates closer to its peak efficiency under varying environmental conditions. This optimization can lead to improved energy yield and a faster return on investment for solar thermal installations. The combination of cost-effective materials and advanced optical control represents a promising direction for the development of next-generation solar thermal collectors.

Why it matters

Without effective mitigation strategies, collectors can reach equilibrium or stagnation temperatures that exceed the maximum safe operating temperature of the system components. This phenomenon, often referred to as stagnation, occurs when heat input from solar radiation continues while heat removal via the working fluid is minimal or halted. The resulting thermal stress can lead to seal degradation, fluid evaporation, and structural deformation, ultimately increasing maintenance costs and reducing the overall efficiency of the solar installation.

Impact on System Efficiency and Cost

The implementation of optical overheating protection directly influences the economic viability of solar thermal technologies. By preventing excessive temperature spikes, these measures reduce the frequency of component failures and extend the operational lifespan of the collectors. This reduction in maintenance requirements lowers the levelized cost of heat (LCOH), making solar thermal energy more competitive against conventional heating sources. Furthermore, effective thermal management ensures that the system operates closer to its optimal temperature range, maximizing the thermodynamic efficiency of the heat transfer process. This efficiency gain is particularly important in large-scale installations where even minor improvements in performance can translate into significant energy savings over the system's lifecycle.

Enabling Broader Utilization and Greenhouse Management

Reliable overheating protection facilitates the broader adoption of solar thermal systems across diverse climatic conditions. In regions with high solar irradiance, the risk of stagnation is more pronounced, making optical protection essential for consistent performance. This reliability is especially beneficial in agricultural applications, such as efficient greenhouse management. Solar greenhouses rely on precise temperature control to optimize crop growth, and the ability to manage excess heat prevents thermal shock to plants and reduces the need for auxiliary cooling systems. By integrating optical protection mechanisms, greenhouse operators can harness solar energy more effectively, reducing fossil fuel dependency and lowering the carbon footprint of agricultural production. This synergy between solar thermal technology and agricultural efficiency supports sustainable farming practices and enhances food security in sun-rich regions.
