Overview
The Okuyahagi Pumped Storage Power Station is a significant hydroelectric infrastructure complex located in central Japan. The facility spans two distinct administrative regions, situated within the municipalities of Toyota in Aichi Prefecture and Ena in Gifu Prefecture. This geographic distribution allows the station to leverage the topographical variations between the two prefectures to optimize energy storage and generation. The complex is not a single monolithic structure but rather a group of large pumped-storage hydroelectric power plants, supplemented by smaller conventional hydroelectric plants. This hybrid configuration enhances operational flexibility, allowing for both energy storage during off-peak hours and consistent baseline power generation.
Operated by Chubu Electric Power Company, the Okuyahagi complex plays a crucial role in the regional energy grid. Chubu Electric Power Company manages the facility as part of its broader portfolio of energy assets in the Chubu region. The station is currently operational, contributing to the stability and reliability of power supply in central Japan. Its strategic location and operational status make it a key component of the local energy infrastructure, supporting both industrial and residential power demands in the surrounding areas.
With a combined installed capacity of 1,160 megawatts, the Okuyahagi Pumped Storage Power Station ranks among the largest pumped-storage facilities in Japan. This substantial capacity underscores its importance in the national energy landscape. The station's ability to store and release large volumes of water enables it to respond quickly to fluctuations in power demand, making it an essential asset for grid balancing. The facility's scale and operational efficiency reflect the advanced engineering and strategic planning involved in its development and ongoing management.
Why it matters
The Okuyahagi Pumped Storage Power Station holds a prominent position within Japan's national energy infrastructure, recognized as one of the country's largest facilities of its kind. With a combined installed capacity of 1,160 megawatts (1,560,000 hp), the station provides substantial grid stability and energy storage capabilities. This scale of operation is critical for balancing variable energy loads, particularly for the Chubu Electric Power Company, which operates the facility. The station's strategic importance is further amplified by its unique geographical positioning, spanning two distinct prefectures. The infrastructure is located in Toyota, Aichi Prefecture, and Ena, Gifu Prefecture, effectively bridging administrative and topographical boundaries in central Japan. This cross-prefectural layout allows for efficient water management and power distribution across the Chubu region, serving both industrial and residential demands with a high degree of reliability.Engineering Uniqueness and Geological Challenges
The engineering design of the Okuyahagi station is distinguished by its complex three-reservoir configuration. This specific architectural choice was not arbitrary but was necessitated by the challenging geological conditions of the site. The presence of significant geological faults in the region required engineers to adapt the traditional two-reservoir pumped-storage model. By incorporating a third reservoir, the design mitigates the risks associated with the fault lines, ensuring structural integrity and operational efficiency. This adaptation demonstrates a sophisticated approach to hydroelectric engineering, where geological constraints directly influence the technological solution. The three-reservoir system allows for more flexible water flow management, optimizing the pumping and generation cycles despite the underlying geological instability. The integration of smaller conventional plants alongside the large pumped-storage units further enhances the station's versatility. This hybrid approach allows for continuous power generation even when the primary pumped-storage cycles are in transition. The ability to leverage both pumped-storage and conventional hydroelectric power makes the Okuyahagi station a robust asset in the regional energy mix. The engineering team's decision to embrace the geological challenges rather than simply working around them has resulted in a facility that is not only powerful but also resilient. This resilience is crucial for long-term operational success, ensuring that the station can maintain its high capacity output over decades of service. The Okuyahagi station thus stands as a testament to the importance of site-specific engineering in large-scale energy projects, where understanding the land is as critical as understanding the machinery.How does the three-reservoir configuration work?
The Okuyahagi Pumped Storage Power Station utilizes an unconventional three-reservoir configuration that distinguishes it from standard two-body pumped-storage systems. This layout involves the upper Kuroda Dam lake, the intermediate Tominaga Dam reservoir, and the lower Yahagi Dam reservoir. The system allows for flexible energy management by leveraging the elevation differences between these three distinct water bodies, enabling both pumping and generation operations across multiple stages.
Reservoir Roles and Configuration
The three reservoirs serve specific functions within the hydroelectric cycle. The Kuroda Dam forms the upper reservoir, storing water at the highest elevation. The Tominaga Dam creates the intermediate reservoir, acting as a buffer or secondary storage level. The Yahagi Dam forms the lower reservoir, which receives water during pumping and releases it during generation. This multi-level arrangement allows the power station to optimize water usage and energy output depending on demand and water availability.
| Reservoir | Dam | Role in System |
|---|---|---|
| Upper | Kuroda Dam | Primary high-elevation storage for pumped water |
| Intermediate | Tominaga Dam | Secondary storage level; buffer between upper and lower |
| Lower | Yahagi Dam | Final discharge point; receives water during pumping cycles |
Operation of Okuyahagi 1 and Okuyahagi 2
Okuyahagi 1 and Okuyahagi 2 operate in tandem between these reservoir levels. The two plants coordinate their pumping and generation cycles to maximize efficiency. During peak demand, water flows from the upper Kuroda reservoir through the turbines to the lower Yahagi reservoir, generating electricity. During off-peak hours, water is pumped back up, utilizing the intermediate Tominaga reservoir to manage flow rates and pressure differences. This coordinated operation allows the station to deliver its combined installed capacity of 1,160 megawatts.
The three-reservoir design provides operational flexibility that single-upper or single-lower systems may lack. By utilizing the intermediate Tominaga reservoir, the system can adjust pumping rates and generation output more precisely. This configuration is particularly valuable in the hilly terrain of Toyota, Aichi Prefecture, and Ena, Gifu Prefecture, where elevation changes are significant. The layout has contributed to Okuyahagi's status as one of the largest pumped-storage power stations in Japan.
Plant specifications and capacity breakdown
The Okuyahagi Pumped Storage Power Station comprises a complex of large pumped-storage hydroelectric facilities alongside smaller conventional plants, situated across Toyota in Aichi Prefecture and Ena in Gifu Prefecture, Japan. This integrated system achieves a combined installed capacity of 1,160 megawatts, equivalent to 1,560,000 horsepower, establishing it as one of the largest pumped-storage power stations in Japan. The facility is operated by Chubu Electric Power Company and has been operational since its commissioning in 1980.Individual Plant Specifications
The total capacity is distributed among four distinct generating units, ranging from smaller conventional outputs to massive pumped-storage turbines. The complex includes Yahagi 1, Yahagi 2, Okuyahagi 1, and Okuyahagi 2. These units draw from local water sources to manage energy storage and release, with a notable water flow rate of 234 cubic meters per second utilized within the system.
| Plant Name | Type | Capacity (MW) | Reservoir/Location Context |
|---|---|---|---|
| Yahagi 1 | Conventional/Pumped-Storage | 60 | Toyota, Aichi / Ena, Gifu |
| Yahagi 2 | Conventional/Pumped-Storage | 31.2 | Toyota, Aichi / Ena, Gifu |
| Okuyahagi 1 | Pumped-Storage | 323 | Toyota, Aichi / Ena, Gifu |
| Okuyahagi 2 | Pumped-Storage | 780 | Toyota, Aichi / Ena, Gifu |
The largest unit, Okuyahagi 2, contributes 780 MW to the total output, followed by Okuyahagi 1 with 323 MW. The smaller Yahagi units provide 60 MW and 31.2 MW respectively. This configuration allows for flexible energy management across the Chubu Electric Power Company's grid, leveraging the geographical spread between Aichi and Gifu prefectures. The water flow rate of 234 cubic meters per second supports the hydraulic requirements for these capacities.
History and commissioning
The Okuyahagi Pumped Storage Power Station represents a significant development in Japan's hydroelectric infrastructure, situated across the prefectural boundaries of Toyota in Aichi Prefecture and Ena in Gifu Prefecture. This facility is characterized as a group of large pumped-storage hydroelectric power plants, supplemented by smaller conventional plants. The combined installed capacity of the station stands at 1,160 megawatts, which is equivalent to 1,560,000 horsepower. This substantial capacity places the Okuyahagi station among the largest pumped-storage power stations in Japan. The operational status of the facility is currently operational, with Chubu Electric Power Company serving as the primary operator. The chronological development of the station is marked by a phased commissioning process that began in the early 1980s. The first units of the Okuyahagi 1 and Okuyahagi 2 facilities commenced operations in September 1980. This initial phase marked the beginning of the station's contribution to the regional power grid. Following the successful launch of the first units, the subsequent units were commissioned in February 1981. This rapid succession in commissioning dates highlights the structured development timeline for both the Okuyahagi 1 and Okuyahagi 2 sections of the power station. The start of operations in September 1980 and the follow-up in February 1981 established the foundational operational history of the complex. The location of the power station in Toyota, Aichi Prefecture, and Ena, Gifu Prefecture, provides the necessary geographical features for pumped-storage hydroelectric generation. The use of water as the primary fuel or source is central to the operation of these plants. The facility's design allows for the storage of energy by pumping water to an upper reservoir and releasing it to generate electricity during peak demand periods. The operational history since 1980 demonstrates the longevity and reliability of the pumped-storage technology employed at Okuyahagi. The station continues to function as a key asset in the energy infrastructure of the region, maintaining its status as one of the largest of its kind in Japan.What distinguishes Okuyahagi from conventional pumped storage?
The Okuyahagi Pumped Storage Power Station represents a significant engineering adaptation to complex topographical and geological constraints in central Japan. Unlike many pumped-storage facilities that rely on a relatively direct vertical connection between an upper and lower reservoir, the Okuyahagi complex was necessitated by specific site conditions that prevented a straightforward layout. The facility operates as a group of large pumped-storage hydroelectric power plants alongside smaller conventional plants, utilizing water as its primary energy source. Its combined installed capacity of 1,160 megawatts places it among the largest of its kind in Japan, a scale achieved through the strategic use of the terrain rather than a single, massive dam structure.
Geological Constraints and the Tominaga Solution
The design of the Okuyahagi complex was heavily influenced by the geological reality of the region, specifically the presence of a significant fault line that bisected the potential site. This geological feature created a major engineering challenge: a single, direct penstock connection between the primary upper and lower reservoirs was structurally risky and potentially inefficient due to the fault's movement and the resulting elevation differences. To mitigate this, engineers implemented an intermediate solution centered on the Tominaga Dam. This dam serves as a crucial intermediate reservoir, effectively breaking the long hydraulic path into more manageable sections. By utilizing the Tominaga Dam, the system could navigate the fault line, allowing water to be transferred and stored in a way that minimized geological stress on the penstocks and tunnels.
This multi-stage approach is a distinguishing feature of the Okuyahagi facility. The integration of the Tominaga Dam allows for greater operational flexibility and structural resilience compared to a simple two-reservoir system. The complex spans across Toyota in Aichi Prefecture and Ena in Gifu Prefecture, further highlighting the geographical spread required to accommodate these geological realities. The decision to use an intermediate reservoir is not merely a spatial adjustment but a critical engineering response to the fault line, ensuring the long-term stability and efficiency of the 1,160 MW capacity. This configuration allows Chubu Electric Power Company to manage water flow and power generation more effectively, leveraging the natural topography while respecting the underlying geological limitations.
Geographic and infrastructure context
The Okuyahagi Pumped Storage Power Station is situated across the border of two Japanese prefectures, spanning Toyota City in Aichi Prefecture and Ena City in Gifu Prefecture. This geographic distribution allows the facility to utilize the natural topography of the region, specifically the Yahagi River system, to create the necessary elevation head for pumped-storage hydroelectricity. The plant's infrastructure is integrated into the landscape of these two municipalities, leveraging the watershed that drains into the Yahagi River. The location in central Honshu provides strategic access to the Chubu region's power grid, operated by Chubu Electric Power Company, which commissioned the facility in 1980. The combined installed capacity of 1,160 megawatts makes it one of the largest pumped-storage power stations in Japan, a status derived from the extensive network of dams and reservoirs constructed within this specific geographic corridor.
Dam Infrastructure and Reservoir System

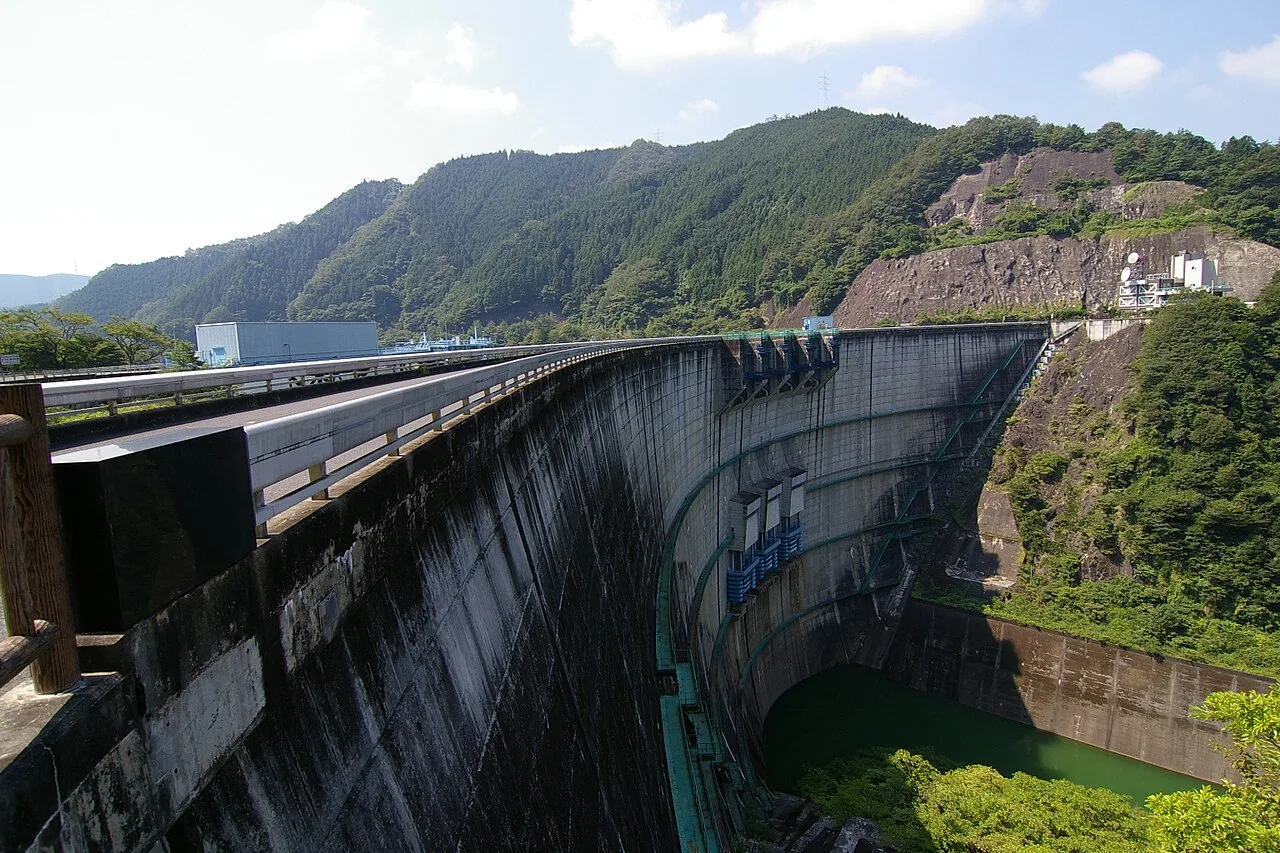

The operational core of the Okuyahagi complex relies on a series of four major dams that regulate the water flow and storage volumes required for the pumping and generating cycles. These structures are the Yahagi Dam, the Second Yahagi Dam, the Kuroda Dam, and the Tominaga Dam. Each dam plays a distinct role in managing the water resources of the Yahagi River basin. The Yahagi Dam and the Second Yahagi Dam are critical components in the upper reaches of the system, controlling the inflow and creating the primary reservoirs. The Kuroda Dam and the Tominaga Dam further refine the water management, ensuring consistent water levels for the turbines. The interplay between these four dams allows for the efficient movement of water between upper and lower reservoirs, which is the fundamental mechanism of the pumped-storage technology employed at the station. The infrastructure is designed to handle the significant hydraulic loads associated with a 1,160 MW capacity, requiring robust civil engineering works that span the valleys of both Aichi and Gifu.
Yahagi River System
The Yahagi River serves as the primary water source for the power station. The river system's flow is harnessed and modulated by the dam network to support the hydroelectric generation process. The location of the plant in Toyota and Ena places it directly within the drainage basin of this river, allowing for direct access to the water resources. The geographic context of the Yahagi River, with its specific gradient and volume, was a key factor in the selection of this site for a large-scale pumped-storage facility. The integration of the dams into the river system minimizes the environmental footprint while maximizing the hydraulic efficiency of the plant. The operational status of the station, which has been active since 1980, demonstrates the long-term viability of this geographic and infrastructural arrangement. The river's water is cycled through the turbines, generating electricity during peak demand periods and being pumped back to the upper reservoirs during off-peak hours, a process that is entirely dependent on the physical characteristics of the Yahagi River and the surrounding terrain in Aichi and Gifu Prefectures.
