Overview

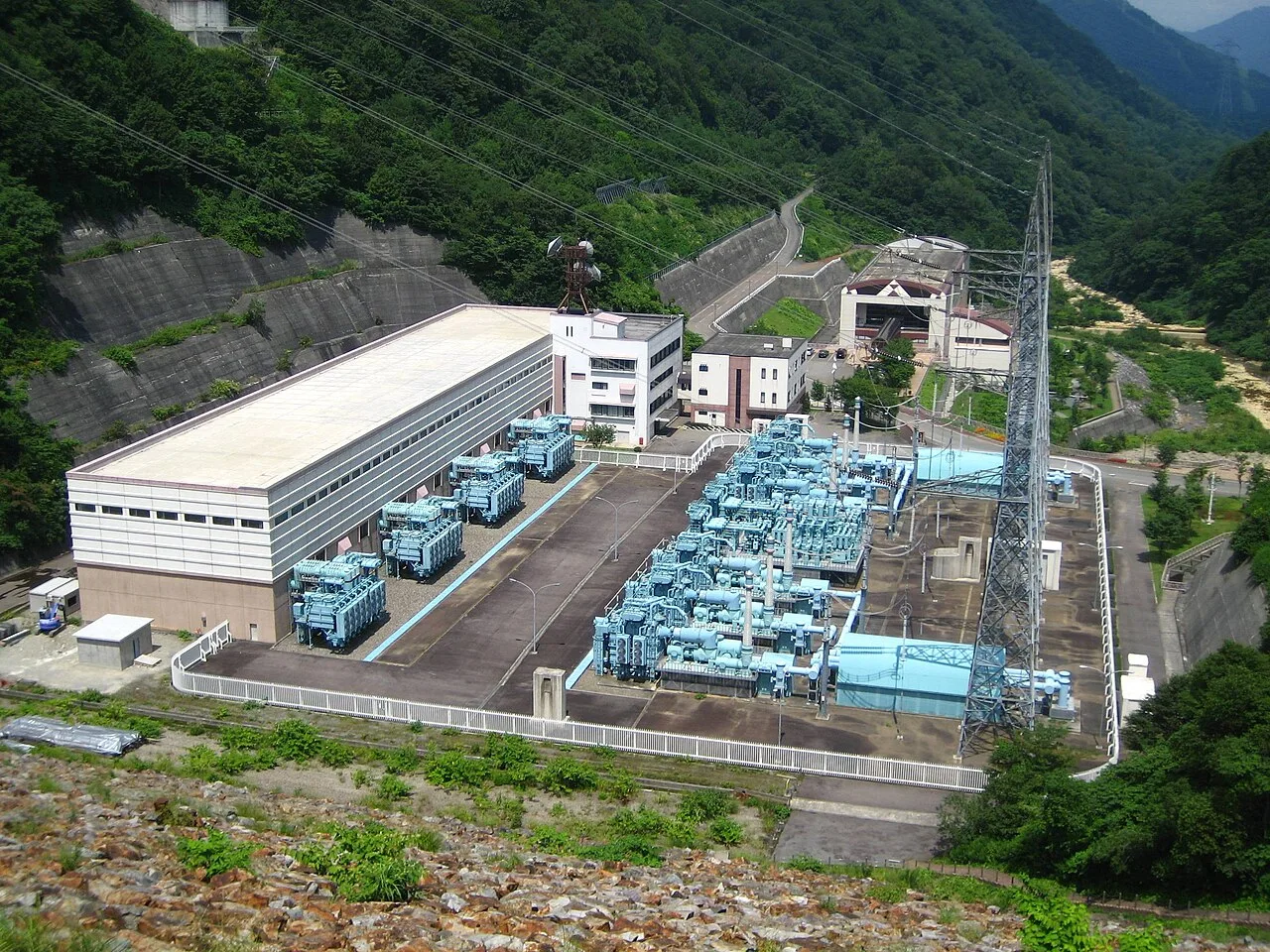

The Okukiyotsu Pumped Storage Power Station is a major hydroelectric facility located in Yuzawa, Minamiuonuma, Niigata Prefecture, Japan. Operated by the Electric Power Development Company, the plant consists of two distinct units, designated as No. 1 and No. 2, which function together as a large-scale pumped-storage system. Commissioned in 1978, the station has maintained operational status and serves as a critical component of the regional energy infrastructure, utilizing water as its primary energy source to generate electricity through hydroelectric conversion.
With a combined installed capacity of 1600 megawatts, equivalent to 2,100,000 horsepower, the Okukiyotsu facility ranks as the third largest pumped-storage power station in Japan. This significant capacity allows the plant to play a substantial role in balancing the electrical grid, particularly in the Niigata region, by storing energy during periods of low demand and releasing it during peak usage times. The strategic location in Minamiuonuma provides the necessary topographical features required for efficient pumped-storage operations, leveraging the natural elevation differences to optimize water flow and energy recovery.
The facility's design and scale reflect the engineering standards of the late 1970s, a period of significant expansion in Japan's energy sector. As a pumped-storage hydroelectric plant, it operates by moving water between upper and lower reservoirs, a process that enables flexible power generation and enhances grid stability. The Electric Power Development Company continues to manage the station, ensuring its ongoing contribution to Japan's renewable energy mix and maintaining its position among the country's most significant hydroelectric assets.
Why it matters
The Okukiyotsu Pumped Storage Power Station holds a prominent position in Japan’s energy infrastructure landscape. This scale is critical for the regional grid in Niigata Prefecture, providing substantial flexibility to balance supply and demand. Pumped-storage hydroelectricity serves as a giant battery for the power system, allowing operators to store excess energy during periods of low demand and release it during peak hours. The 1,600 MW capacity of Okukiyotsu No. 1 and No. 2 provides significant load-following capabilities, which is essential for stabilizing the frequency and voltage of the regional network. The station is located in Yuzawa, Minamiuonuma, Niigata Prefecture, placing it strategically within the Chūbu region’s energy mix.
Technical Significance of Okukiyotsu No. 2
Beyond its aggregate capacity, the Okukiyotsu complex features notable engineering achievements, particularly within the Okukiyotsu No. 2 unit. At the time of its operation, Okukiyotsu No. 2 featured the highest hydraulic head adjustable speed units in the world. Adjustable speed pumped-storage units offer superior operational flexibility compared to constant-speed units. They can vary the speed of the turbine-generator set to optimize efficiency across a wider range of water flow rates and electrical output levels. This technology allows the plant to respond more precisely to grid frequency fluctuations, making it a valuable asset for grid stability. The high hydraulic head indicates a significant vertical distance between the upper and lower reservoirs, which contributes to the energy density of the system. The combination of high head and adjustable speed technology represents a significant advancement in hydroelectric engineering, enhancing the economic and operational performance of the station. These technical features underscore the importance of Okukiyotsu not just as a source of power, but as a technological benchmark in pumped-storage hydroelectricity. The facility continues to operate under the management of the Electric Power Development Company, maintaining its role in the regional energy infrastructure.
How does pumped storage work at Okukiyotsu?
The Okukiyotsu facility operates as a dual-unit pumped-storage hydroelectric system, utilizing two distinct reservoirs to manage energy demand fluctuations in Niigata Prefecture. This configuration allows the plant to function as a giant battery for the regional grid, storing excess energy during low-demand periods and releasing it rapidly when consumption peaks. The system relies on the elevation difference between the upper reservoir, Tashiro Lake, and the lower reservoir, formed by the Futai Dam.Reservoir Infrastructure
The two reservoirs are defined by their respective dam structures, both constructed as rockfill dams during the plant's development phase from 1972 to 1978. The upper reservoir is held back by the Kassa Dam, which stands at a height of 90 m. The lower reservoir is managed by the Futai Dam, with a height of 87 m. These structures were engineered to handle the significant hydraulic pressures required for the 1,600 MW combined capacity of the No. 1 and No. 2 units.| Reservoir | Dam Name | Dam Type | Height | Construction Period |
|---|---|---|---|---|
| Upper (Tashiro Lake) | Kassa Dam | Rockfill | 90 m | 1972 to 1978 |
| Lower (Futai Dam) | Futai Dam | Rockfill | 87 m | 1972 to 1978 |
Operational Mechanism
The operational cycle at Okukiyotsu is driven by the interplay between electricity demand and water flow. During periods of high electricity demand, water is released from the upper Tashiro Lake reservoir. This water flows downward through penstocks to the turbine-generators located near the lower Futai Dam reservoir. The potential energy of the falling water is converted into kinetic energy, spinning the turbines to generate electricity, which is then fed into the grid operated by the Electric Power Development Company. Conversely, during periods of low electricity demand, such as late at night or on weekends, the process is reversed. Excess electricity from the grid is used to power the turbine-generators, which act as pumps. These pumps draw water from the lower Futai Dam reservoir and push it back up to the upper Tashiro Lake reservoir. This restores the water's potential energy, effectively "charging" the system for the next peak demand period. This cyclical release and pumping mechanism allows the Okukiyotsu station to maintain grid stability and optimize the use of the 1,600 MW installed capacity.Okukiyotsu No. 1: Construction and Specifications
The Okukiyotsu No. 1 facility constitutes the initial phase of development for the Okukiyotsu Pumped Storage Power Station complex in Niigata Prefecture. Construction activities for this first plant commenced in 1972, establishing the foundational infrastructure for what would become a major energy asset in Japan. The project involved significant civil engineering works to integrate the facility with the local hydrological systems in Yuzawa and Minamiuonuma. The plant transitioned to operational status in a staggered manner between 1978 and 1982, allowing for the sequential commissioning of its generating units. This phased approach enabled the Electric Power Development Company to manage the integration of the new capacity into the regional grid efficiently. The completion of Okukiyotsu No. 1 marked a significant milestone in the region's hydroelectric capabilities, preceding the later development of the No. 2 plant.
Technical Specifications
Okukiyotsu No. 1 is designed as a pumped-storage hydroelectric power plant, utilizing water as its primary energy source. The facility is equipped with four distinct pump/generator units, each rated at 260 MW. This configuration provides the plant with a total net installed capacity of 1000 MW. The operational status of the plant remains active, contributing to the stability and flexibility of the Japanese power grid. The system is engineered to handle a maximum water flow rate of 260 cubic meters per second, which is critical for optimizing the efficiency of the pumping and generating cycles. The technical design of the four units allows for flexible operation, enabling the plant to respond to variable demand patterns by switching between pumping and generating modes. 1 form the baseline for the broader Okukiyotsu complex, which includes the subsequent No. 2 plant.
Okukiyotsu No. 2: Advanced Adjustable Speed Technology
The Okukiyotsu No. 2 facility represents the second phase of development at the site, introducing advanced adjustable speed technology to the complex. This addition comprises two pump/generator units designed for enhanced operational flexibility. Together, these units provide a combined power capacity of 600 MW, contributing significantly to the station's total output. Construction for this phase began in 1992 and was completed when the facility became operational in 1996.Technical Specifications and Hydraulic Design
The hydraulic design of Okukiyotsu No. 2 is engineered to handle substantial water volumes to drive the turbine generators. The system features a maximum water flow rate of 154 cubic meters per second. This high flow capacity allows the plant to respond quickly to grid demands, maximizing energy extraction during peak generation periods. The two units are integrated into the broader pumped-storage infrastructure located in Yuzawa and Minamiuonuma, Niigata Prefecture.
Operational Advantages of Adjustable Speed Units
The defining feature of the Okukiyotsu No. 2 units is their adjustable speed capability. Unlike fixed-speed turbines, these units can vary their rotational speed to optimize performance under different head and flow conditions. This technology enables rapid variation of power levels during both the pumping and generation phases. During generation, the units can smoothly adjust output to match fluctuating electricity demand, providing precise frequency regulation for the regional grid. During the pumping phase, adjustable speed allows the plant to absorb variable amounts of power from the grid, often utilizing surplus energy from other sources more efficiently. This flexibility enhances the overall economic and operational value of the pumped-storage system.
Technical Parameters and Hydraulic Head
The Okukiyotsu Pumped Storage Power Station comprises two distinct hydroelectric facilities, designated No. 1 and No. 2, situated in Yuzawa, Minamiuonuma, Niigata Prefecture, Japan. Operated by the Electric Power Development Company, the combined system delivers a total installed capacity of 1,600 MW, securing its position as the third largest pumped-storage power station in Japan. Both units share a common hydraulic characteristic, utilizing an effective head of 470 m to drive their respective turbine-generator sets. The station has been operational since its initial commissioning in 1978, providing critical grid stability and energy storage capabilities for the regional power network.
Technical Specifications
The technical parameters of the Okukiyotsu system are defined by the individual contributions of Plant No. 1 and Plant No. 2. The combined capacity of 1,600 MW is distributed across these two facilities, which leverage the significant elevation difference of the site. The effective head of 470 m is a key engineering feature, allowing for high-pressure water flow through the penstocks to generate electricity during peak demand periods. The system relies on water as its primary energy source, utilizing the pumped-storage mechanism to move water between upper and lower reservoirs to balance load fluctuations.
| Parameter | Okukiyotsu No. 1 | Okukiyotsu No. 2 | Combined System |
|---|---|---|---|
| Capacity | Part of 1,600 MW total | Part of 1,600 MW total | 1,600 MW |
| Units | Pumped-storage units | Pumped-storage units | Two main plants |
| Effective Head | 470 m | 470 m | 470 m |
| Flow | Derived from head/capacity | Derived from head/capacity | System-wide flow |
| Commissioning Year | 1978 (Initial) | Subsequent phases | 1978 |
| Note: Specific unit counts and individual flow rates for No. 1 and No. 2 are not explicitly detailed in the primary grounding snippets, but the total system capacity is 1,600 MW with a 470 m effective head. | |||
The engineering design of the Okukiyotsu facilities emphasizes efficiency and reliability. The use of a 470 m effective head allows for a compact yet powerful generation setup, typical of large-scale Japanese pumped-storage projects in mountainous terrain. The Electric Power Development Company manages the operational parameters to ensure optimal performance, coordinating the pumping and generating cycles to match regional energy demands. The station's status as operational since 1978 underscores its long-term reliability and importance to the Niigata Prefecture energy infrastructure.
Public Access and the Okky Museum
The Okukiyotsu Pumped Storage Power Station offers limited but significant opportunities for public engagement, allowing visitors to observe the operational scale of one of Japan's major hydroelectric facilities. Managed by the Electric Power Development Company, commonly known as J-Power, the site integrates educational resources with direct access to the infrastructure, bridging the gap between industrial energy production and public understanding of pumped-storage technology.
Interior Tours of Power Plant No. 2
Public access is primarily concentrated within the second power plant, designated as Okukiyotsu No. 2. While the entire complex is not open for unrestricted exploration, specific interior areas of the No. 2 facility are accessible to visitors. This arrangement provides a rare opportunity for engineers, energy researchers, and general tourists to view the mechanical and civil engineering components of a large-scale pumped-storage system in operation. The interior tours typically highlight the turbine halls and the vertical shafts that connect the upper and lower reservoirs, offering a tangible sense of the 1,600 megawatts of combined installed capacity that defines the station's output.
Visiting the interior allows observers to see the integration of the two large pumped-storage hydroelectric power plants located in Yuzawa, Minamiuonuma, Niigata Prefecture. The structural design of the No. 2 plant is engineered to accommodate the high-head conditions necessary for efficient energy storage and release. By granting access to these specific zones, the operator demonstrates the operational status of the facility, which has remained active since its commissioning in 1978. The tours serve as a practical demonstration of how water is used as the primary fuel source, moving through the system to generate electricity during peak demand and being pumped back up during periods of lower consumption.
The Okky Museum
Complementing the physical tours is the Okky Museum, an educational facility managed by J-Power. The museum is designed to provide comprehensive context for the power station's role within the regional and national energy grid. It features detailed models of the station, allowing visitors to visualize the relationship between the upper and lower reservoirs, the penstocks, and the turbine generators. These scale models are particularly useful for understanding the spatial layout of the facility, which spans the topography of the Minamiuonuma area.
In addition to the physical models, the Okky Museum provides explicatory panels and media resources that detail the technical specifications and historical development of the Okukiyotsu system. The exhibits explain the mechanics of pumped-storage hydroelectric power, illustrating how the system functions as a giant battery for the electric grid. The media components likely include visual presentations that demonstrate the flow of water and the conversion of potential energy into electrical energy, helping to demystify the technology for a broader audience.
The museum serves as a central hub for public engagement, offering a structured learning environment that supports the more immersive experience of the interior tours. By combining the Okky Museum's educational content with the direct observation opportunities in Power Plant No. 2, the Electric Power Development Company provides a multifaceted approach to public outreach. This strategy enhances the visibility of the station as the third largest pumped-storage power station in Japan, reinforcing its significance in the country's energy infrastructure. The facilities ensure that the public can appreciate the engineering achievements and operational efficiency of the station, which continues to contribute to the stability of the power supply in the region.
