Overview
The Okawachi Pumped Storage Power Station is a major hydroelectric facility located in Kamikawa Town, within the Kanzaki District of Hyōgo Prefecture, Japan. Operated by the Kansai Electric Power Company (KEPCO), the station serves as a critical component of the regional energy infrastructure, utilizing pumped-storage technology to manage electricity demand and supply fluctuations. With a total installed capacity of 1,280 megawatts, equivalent to 1,720,000 horsepower, the Okawachi facility ranks among the largest pumped-storage power stations in Japan, providing significant grid stability and energy storage capabilities for the Kansai region.
Operational History and Commissioning
The power plant commenced its initial operations in October 1992, marking the beginning of its contribution to the Kansai Electric Power grid. The commissioning process was completed in phases, with all four generating units fully operational by June 1995. This staged approach allowed for systematic integration of the turbine-generators and optimization of the pumped-storage cycle, ensuring reliable performance before the full capacity was brought online. The facility has remained operational since its initial startup, maintaining its status as a key asset in Japan's renewable and storage energy portfolio.
Technical Significance
As a pumped-storage hydroelectric plant, Okawachi functions by storing energy in the form of gravitational potential energy. Water is pumped from a lower reservoir to an upper reservoir during periods of low electricity demand, typically at night or during peak renewable generation. When electricity demand increases, the stored water is released back through turbines to generate power. This mechanism allows the station to act as a giant battery for the grid, offering rapid response times and high efficiency in energy conversion. The 1,280 MW capacity enables the station to deliver substantial power output during peak hours, supporting the load balancing requirements of the Kansai Electric Power Company's service area.
The strategic location in Hyōgo Prefecture provides favorable topographical conditions for pumped-storage operations, with sufficient elevation difference between the upper and lower reservoirs to maximize energy yield. The facility's scale and operational maturity make it a benchmark for similar projects in Japan, demonstrating the effectiveness of pumped-storage technology in integrating variable energy sources and enhancing grid resilience. As one of the largest facilities of its kind in the country, Okawachi continues to play a vital role in the energy mix, complementing thermal, nuclear, and emerging renewable energy sources in the Kansai region.
History and Development
The development of the Okawachi site spans more than eight decades, evolving from early 20th-century conventional hydroelectricity to a major pumped-storage facility. The initial infrastructure was established during the Meiji period with the construction of the Ota reservoir. This reservoir originally served the Minamioda conventional hydroelectric power plant, which began operation in 1909 with an installed capacity of 1450 kW (per historical records of the Minamioda plant). A second power plant was added to the site in 1919, contributing an additional 720 kW of capacity. These early installations laid the groundwork for the extensive water management and turbine infrastructure that would later define the Okawachi complex.
Expansion and Modern Commissioning
Kansai Electric Power Company (KEPCO) later undertook a significant enlargement of the facility to meet growing regional energy demands. This expansion transformed the site into one of Japan’s largest pumped-storage power stations. The modern Okawachi Pumped Storage Power Station started operation in October 1992. The commissioning process involved multiple units, with all four units fully commissioned by June 1995. The facility reached its full operational status with a total installed capacity of 1,280 MW. This development marked a significant milestone in the Kansai region’s energy infrastructure, integrating historical hydroelectric assets with advanced pumped-storage technology.
| Year | Event |
|---|---|
| 1909 | Minamioda conventional hydroelectric power plant begins operation (1450 kW). |
| 1919 | Second power plant added to the site (720 kW). |
| 1992 | Okawachi Pumped Storage Power Station starts operation (October). |
| 1995 | All four units of the Okawachi station are commissioned (June). |
Infrastructure and Reservoirs

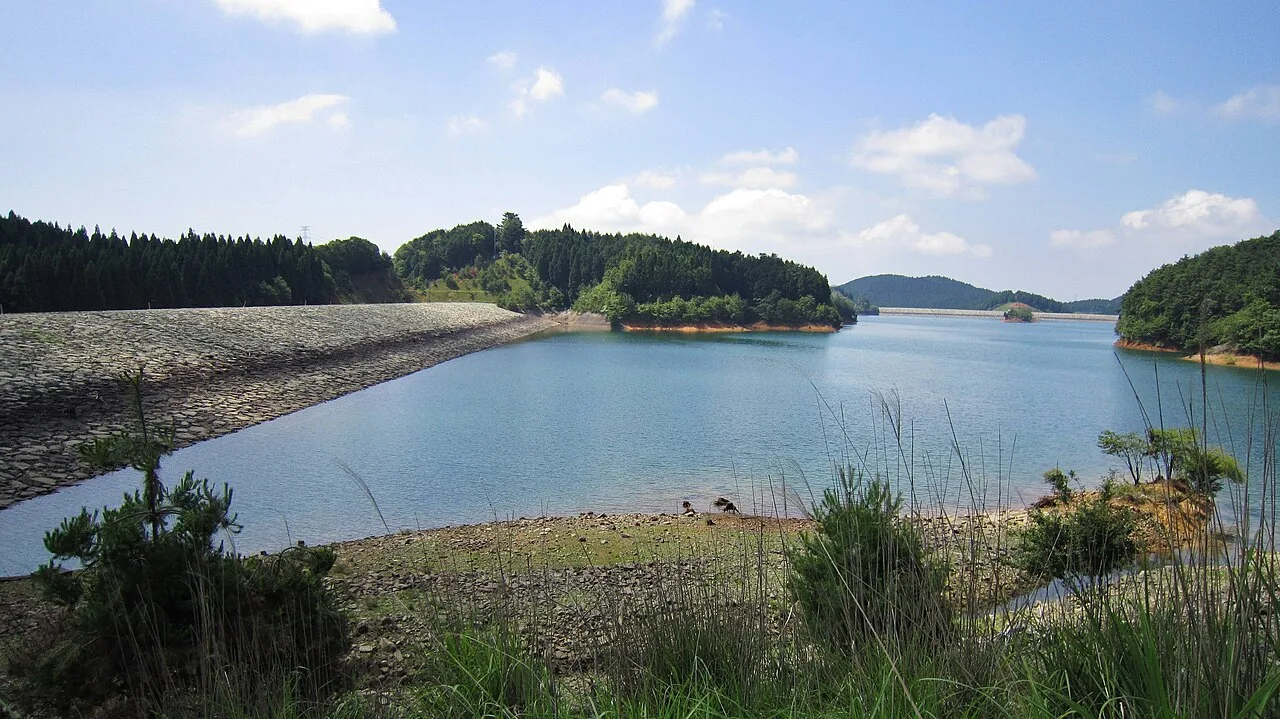

The Okawachi Pumped Storage Power Station operates as a large-scale hydroelectric facility with a total installed capacity of 1,280 megawatts, making it one of the most significant pumped-storage plants in Japan. The infrastructure relies on a dual-reservoir system designed to manage water flow and energy storage efficiency. The upper reservoir, known as the Ota reservoir, is contained by a complex arrangement of five rock-fill dams, designated as Ota Dam 1 through Ota Dam 5. These structures are fed by the Ota river, which serves as the primary water source for the upper basin. The use of rock-fill construction for these multiple dams allows for flexibility in terrain adaptation and cost-effective containment of the upper water body.
Lower Reservoir and Dam Structure
The lower reservoir, named the Hase reservoir, is contained by the Hase Dam. Unlike the upper reservoir's rock-fill configuration, the Hase Dam is constructed as a gravity dam. This structural choice provides stability through the dam's own weight, counteracting the horizontal force of the water. The Hase Dam plays a critical role in the pumped-storage cycle, receiving water discharged from the turbines and supplying water to the pumps during off-peak hours. The physical layout of the station integrates these two reservoirs to maximize the head difference, which is essential for generating the 1,280 MW of power. The facility is operated by the Kansai Electric Power Company (KEPCO), which manages the operational dynamics between the upper Ota and lower Hase basins.
Operational Layout
The power plant began operations in October 1992, with all four generating units commissioned by June 1995. The infrastructure supports the continuous cycling of water between the Ota and Hase reservoirs, enabling the station to store energy during periods of low demand and release it during peak usage. The five rock-fill dams of the upper Ota reservoir and the single gravity Hase Dam work in tandem to maintain the necessary water levels for optimal turbine performance. This configuration ensures that the Okawachi station remains a key component of the regional energy grid, leveraging the geographical features of Kamikawa Town in the Kanzaki District of Hyōgo Prefecture. The design reflects a balance between engineering efficiency and the natural topography of the site, allowing for sustained operational status since its initial commissioning.
How does pumped storage work at Okawachi?
The Okawachi Pumped Storage Power Station operates as a critical energy buffer for the Kansai Electric Power Company (KEPCO) grid, utilizing the potential energy stored in water to balance electricity supply and demand. This facility, located in Kamikawa Town within the Kanzaki District of Hyōgo Prefecture, Japan, functions by moving water between two distinct reservoirs: the upper Ota reservoir and the lower Hase reservoir. This dual-reservoir system allows the plant to act as a giant battery, storing excess energy during periods of low demand and releasing it rapidly when peak loads occur.
Operational Mechanism: Pumping and Generation
The operational cycle of the Okawachi station is defined by the continuous movement of water between the Ota and Hase reservoirs. During periods of low electricity demand, typically at night or on weekends, the plant operates in "pumping" mode. In this phase, electric motors drive turbines to pump water from the lower Hase reservoir up to the upper Ota reservoir. This process converts electrical energy into gravitational potential energy, effectively "charging" the system. The water is held in the upper Ota reservoir, ready for rapid deployment.
When electricity demand rises, such as during weekday afternoons or summer peaks, the plant switches to "generation" mode. Water is released from the upper Ota reservoir, flowing down through penstocks to the powerhouse. The gravitational force drives the water through turbine-generators, converting the potential energy back into electrical energy. This electricity is then fed into the KEPCO grid, providing immediate power to consumers. After passing through the turbines, the water collects in the lower Hase reservoir, completing the cycle and preparing for the next pumping phase.
Grid Balancing and Unit Configuration
The Okawachi facility is equipped with four generation/pumping units, which provide the flexibility needed for effective grid balancing. These units allow the plant to adjust its output incrementally, responding to fluctuations in demand with greater precision than a single large unit could achieve. The total installed capacity of the station is 1,280 megawatts (1,720,000 hp), making it one of the largest pumped-storage power stations in Japan. This substantial capacity enables KEPCO to stabilize the grid frequency and voltage, ensuring a reliable power supply across the Kansai region.
The station began its operational life in October 1992, with all four units fully commissioned by June 1995. Since its inception, the Okawachi Pumped Storage Power Station has played a vital role in the regional energy infrastructure, leveraging the natural topography of Hyōgo Prefecture to optimize energy storage and distribution. The ability to quickly switch between pumping and generation modes makes the facility an essential asset for managing the variable nature of electricity consumption and integrating other power sources into the grid.
Technology and Adjustable Speed Systems
The Okawachi Pumped Storage Power Station utilizes advanced adjustable speed technology to enhance grid stability. The facility features two adjustable speed systems manufactured by Hitachi. These systems were recognized as the first large-capacity adjustable-speed pumped storage hydroelectric systems in the world. This technological distinction highlights the engineering significance of the plant beyond its raw capacity.
Operational Flexibility
The adjustable speed systems allow for rapid variation of power levels during both pumping and generation phases. This capability enables the plant to respond effectively to grid requests for balancing demand and supply. Such flexibility is a role usually performed by thermal power plants. By mimicking the responsiveness of thermal units, the Okawachi station provides critical support to the Kansai Electric Power Company grid.
The ability to adjust speed means that the turbine-generator units can vary their output more smoothly than fixed-speed counterparts. This is particularly valuable during transitional periods between pumping and generating modes. The systems help manage frequency deviations and load fluctuations with greater precision. This technology supports the integration of variable energy sources and maintains grid reliability.
The implementation of these Hitachi systems in the early 1990s marked a significant advancement in hydroelectric engineering. The plant's operation since October 1992 has demonstrated the practical benefits of adjustable speed technology. The four units, fully commissioned by June 1995, leverage this innovation to optimize energy storage and release. This approach reduces the need for frequent start-stop cycles of thermal backup plants.
The technical design allows the station to act as a dynamic buffer for the regional power network. The adjustable speed drives enable continuous power adjustment without changing the rotational speed of the generator significantly. This results in smoother power delivery and reduced mechanical stress on the turbine components. The system's performance contributes to the overall efficiency of the 1,280 MW installed capacity.
The success of the Okawachi adjustable speed systems has influenced subsequent pumped storage projects. The technology demonstrates how hydroelectric facilities can provide ancillary services traditionally associated with thermal generation. This dual capability enhances the value proposition of pumped storage in modern energy infrastructure. The plant remains a key asset for the Kansai Electric Power Company's operational strategy.
Significance
The Okawachi Pumped Storage Power Station holds a prominent position in Japan’s energy infrastructure as one of the largest pumped-storage facilities in the country. With a total installed capacity of 1,280 megawatts, the plant serves as a critical asset for the Kansai Electric Power Company (KEPCO). This substantial capacity allows the station to play a major role in balancing the regional grid, particularly for the Kansai area, by storing excess energy during periods of low demand and releasing it during peak hours. The scale of the Okawachi facility underscores the strategic importance of hydroelectric storage in Japan’s broader energy mix, providing a reliable buffer against fluctuations in power supply.
Technological Innovation and Grid Flexibility
Beyond its sheer size, the Okawachi Pumped Storage Power Station is historically significant for its technological advancements. The site was the location of the world’s first large-capacity adjustable-speed pumped storage systems. This innovation marked a turning point in hydroelectric engineering, offering enhanced operational flexibility compared to traditional fixed-speed systems. Adjustable-speed technology allows the turbines to run at variable rotational speeds, which improves the efficiency of energy conversion and provides more precise control over power output. For the Kansai Electric Power Company, this capability translates into greater grid stability and the ability to respond more dynamically to changing load conditions.
The implementation of these advanced systems at Okawachi demonstrated the potential for pumped storage to evolve from a simple "battery" for the grid into a more nuanced tool for energy management. By integrating adjustable-speed units, the plant could optimize water usage and electricity generation, reducing mechanical stress on the turbines and extending the lifespan of the equipment. This technological milestone at Okawachi has since influenced the design and operation of other pumped-storage facilities globally, highlighting Japan’s role in advancing hydroelectric technology. The plant’s continued operation since its initial commissioning in 1992 and full completion in 1995 attests to the durability and effectiveness of these innovations.
Frequently asked questions
What is the installed capacity of the Okawachi Pumped Storage Power Station?
The Okawachi Pumped Storage Power Station has a total installed capacity of 1,280 megawatts, which is equivalent to 1,720,000 horsepower. This substantial output makes it one of the largest pumped-storage facilities in Japan. The station utilizes four distinct units to achieve this total capacity, providing significant flexibility for the regional power grid.
Where is the Okawachi Pumped Storage Power Station located?
The facility is situated in Kamikawa Town, which is part of the Kanzaki District in Hyōgo Prefecture, Japan. This location in the Kansai region allows the plant to efficiently serve the energy demands of the surrounding area, leveraging the local topography for its hydroelectric operations.
Who operates the Okawachi Pumped Storage Power Station?
The power station is operated by the Kansai Electric Power Company, commonly referred to as KEPCO. As one of the major electric utility companies in Japan, KEPCO manages the facility to ensure reliable energy storage and generation for the Kansai region's grid infrastructure.
When did the Okawachi Pumped Storage Power Station begin operations?
The station started its initial operation in October 1992. This phased approach allowed for gradual integration into the power grid and optimization of the facility's performance.
What technology does the Okawachi station use?
The Okawachi facility is a pumped-storage hydroelectric power station. This technology involves pumping water to an upper reservoir during periods of low electricity demand and releasing it through turbines to generate power during peak demand. The station's four units work in tandem to store and release energy, helping to balance the electrical grid and provide quick response capabilities for fluctuating power needs.
Summary
The Okawachi Pumped Storage Power Station is a major hydroelectric facility located in Kamikawa Town within the Kanzaki District of Hyōgo Prefecture, Japan. Operated by the Kansai Electric Power Company (KEPCO), the station represents a significant component of the regional energy infrastructure, utilizing water as its primary energy source in a pumped-storage configuration. The plant has a total installed capacity of 1,280 megawatts, equivalent to 1,720,000 horsepower, making it one of the largest pumped-storage power stations in Japan. Construction and commissioning of the facility spanned the early 1990s. The power plant initially started operation in October 1992, marking the beginning of its contribution to the Kansai grid. The commissioning process continued over the following years, with all four generating units fully commissioned by June 1995. This phased operational rollout allowed KEPCO to integrate the station's output gradually into the regional supply mix. As a pumped-storage facility, the Okawachi station plays a crucial role in load balancing and energy storage for the Kansai Electric Power Company. Pumped-storage technology involves moving water between upper and lower reservoirs to store and release energy, providing flexibility to the grid. The station's substantial capacity of 1,280 MW enables it to handle significant fluctuations in electricity demand, supporting the stability of the power network in Hyōgo Prefecture and the broader Kansai region. The facility remains operational, continuing to serve as a key asset in Japan's energy landscape. Its location in Kamikawa Town places it within a geographic area that supports the necessary hydraulic head and water resources required for efficient pumped-storage operations. The station's design and scale reflect the engineering standards of the early 1990s, with four units contributing to its total output. The Okawachi Pumped Storage Power Station exemplifies the strategic use of hydroelectric resources in Japan, where land availability and geographic features dictate the placement of large-scale energy infrastructure. The involvement of KEPCO as the operator ensures integration with the wider Kansai grid, facilitating efficient energy distribution and management. The station's continued operation underscores the enduring value of pumped-storage technology in maintaining grid reliability and supporting renewable energy integration.Operated by the Kansai Electric Power Company (KEPCO), the station represents a significant component of the regional energy infrastructure, utilizing water as its primary energy source in a pumped-storage configuration.
Construction and commissioning of the facility spanned the early 1990s. This phased operational rollout allowed KEPCO to integrate the station's output gradually into the regional supply mix.
As a pumped-storage facility, the Okawachi station plays a crucial role in load balancing and energy storage for the Kansai Electric Power Company. Pumped-storage technology involves moving water between upper and lower reservoirs to store and release energy, providing flexibility to the grid. The station's substantial capacity of 1,280 MW enables it to handle significant fluctuations in electricity demand, supporting the stability of the power network in Hyōgo Prefecture and the broader Kansai region.
The facility remains operational, continuing to serve as a key asset in Japan's energy landscape. Its location in Kamikawa Town places it within a geographic area that supports the necessary hydraulic head and water resources required for efficient pumped-storage operations. The station's design and scale reflect the engineering standards of the early 1990s, with four units contributing to its total output.
The Okawachi Pumped Storage Power Station exemplifies the strategic use of hydroelectric resources in Japan, where land availability and geographic features dictate the placement of large-scale energy infrastructure. The involvement of KEPCO as the operator ensures integration with the wider Kansai grid, facilitating efficient energy distribution and management. The station's continued operation underscores the enduring value of pumped-storage technology in maintaining grid reliability and supporting renewable energy integration.
