Overview

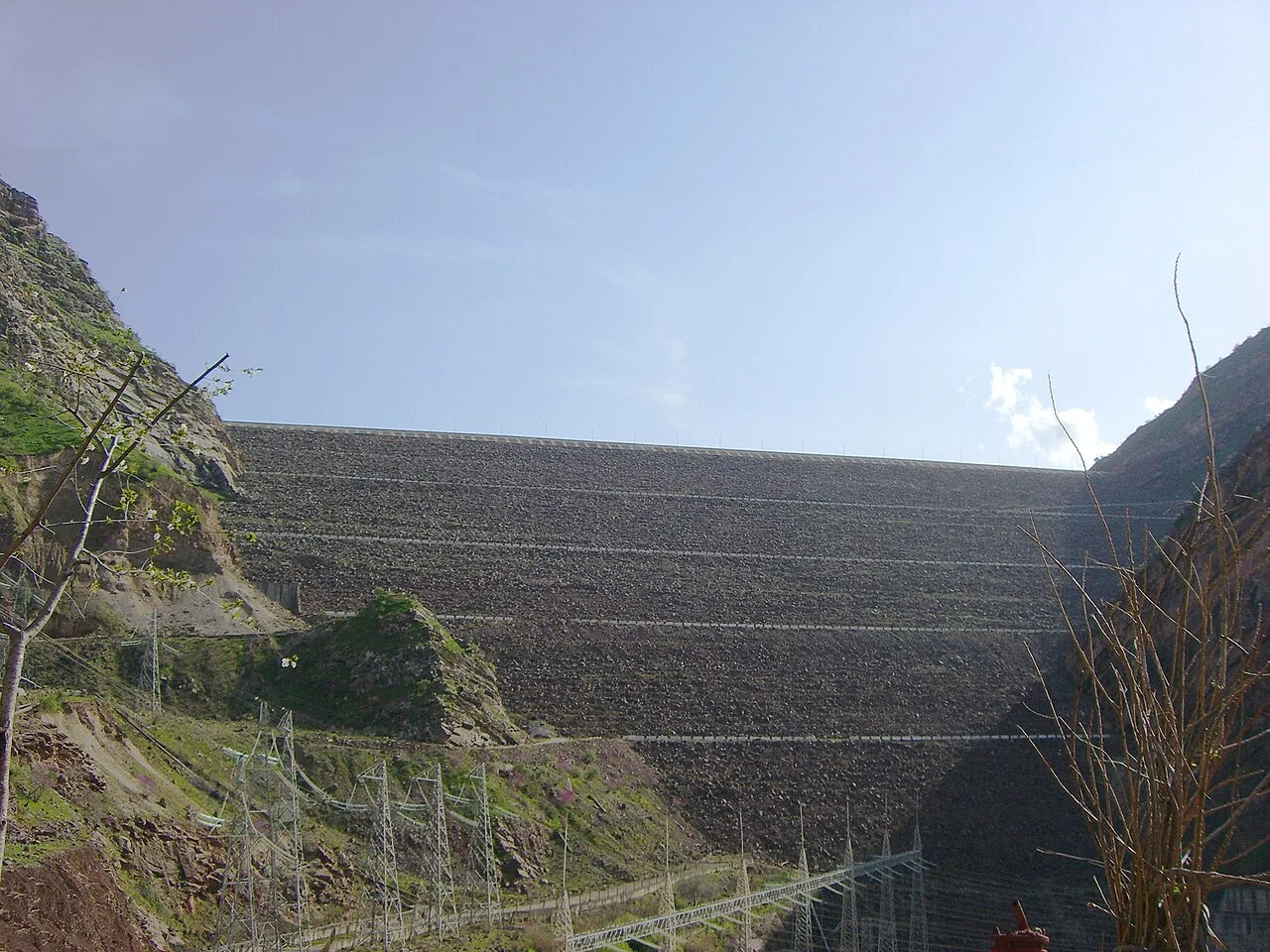

The Nurek Dam is a major hydroelectric infrastructure project located in Tajikistan, situated on the Vakhsh River. It is an earth-fill embankment dam designed primarily for hydroelectric power generation. The facility is operated by Barqi Tojik and has an installed capacity of 3015 MW. The dam holds significant engineering importance as the second tallest man-made dam in the world, with a height of 304 m. This status was achieved after the Jinping-I Dam in China surpassed it in 2013. Prior to 2013, the Nurek Dam held the record for the tallest dam globally since its completion in 1980.
Construction of the Nurek Dam began in 1961, during the era when Tajikistan was a republic within the Soviet Union. The power station's first generator was commissioned in 1972, marking the initial phase of operational output. The last generator was commissioned in 1979, and the entire project was completed in 1980. The dam remains operational and continues to serve as a critical component of Tajikistan's energy infrastructure. The Vakhsh River also hosts the Rogun Dam, which may exceed the Nurek Dam in size upon its completion.
Construction and Engineering Design
Construction of the Nurek Dam began in 1961, marking the start of a major infrastructure project in Tajikistan. The project was completed in 1980, during the period when Tajikistan was a republic within the Soviet Union. The power station's first generator was commissioned in 1972, with the last generator added in 1979. This construction timeline established the facility as a key component of the region's energy infrastructure. The engineering design features an earth-fill embankment structure. The dam includes a central cement core situated within a rock and earth fill that extends approximately 300 meters. The total volume of the dam is 54 million cubic meters. This design approach contributed to the dam's height of 304 meters. At the time of its completion in 1980, it was the tallest dam in the world. It currently stands as the second tallest man-made dam globally, after being surpassed by the Jinping-I Dam in 2013. The Rogun Dam, also located on the Vakhsh River in Tajikistan, is projected to exceed the Nurek Dam in size upon its completion. The construction and subsequent reservoir formation required the resettlement of an estimated 5,000 people. This demographic shift was a significant social impact of the engineering project.| Construction Metric | Value |
|---|---|
| Construction Start | 1961 |
| Project Completion | 1980 |
| First Generator Commissioned | 1972 |
| Last Generator Commissioned | 1979 |
| Dam Height | 304 m |
| Total Volume | 54 million m³ |
| Resettled Population | 5,000 |
Why it matters
The Nurek Dam holds a prominent position in the global hierarchy of hydraulic infrastructure, currently standing as the second tallest man-made dam in the world. With a height of 304 m, it is surpassed only by the Jinping-I Dam in China, which took the top spot in 2013. For over three decades, Nurek reigned as the world's tallest dam. It achieved this distinction upon its completion in 1980, a title it held until the construction of higher structures in the 21st century. The Rogun Dam, located further downstream on the same Vakhsh River in Tajikistan, is projected to exceed Nurek in size once fully completed, indicating the continued engineering ambition in the region.
Soviet Engineering Legacy
The construction of Nurek was a major undertaking during the era of the Soviet Union. The project began in 1961, and the first generator was commissioned in 1972. The final generator came online in 1979, and the entire project was declared complete in 1980, while Tajikistan was still a republic within the Soviet Union. This timeline reflects the scale and duration of Soviet hydroelectric development in Central Asia. The dam serves as a critical component of the region's energy infrastructure, providing an installed capacity of 3015 MW for hydroelectric power generation. Its earth-fill embankment design on the Vakhsh River represents a significant achievement in civil engineering, contributing to the energy security and industrial development of Tajikistan and the broader Soviet energy grid during its operational history.
How does the Nurek Dam generate electricity?
The Nurek Dam generates electricity through a hydroelectric power station located at its base, utilizing the hydraulic head created by the earth-fill embankment on the Vakhsh River. The facility is equipped with nine Francis turbine-generator units. These turbines are specifically chosen for their efficiency in medium-head hydroelectric applications, converting the potential energy of the stored water into mechanical rotation, which drives the generators to produce alternating current.
Turbine Specifications and Retrofitting
Initially, the power station was designed with a total installed capacity of 3,015 MW. This total is derived from the nine individual generator units. In the initial configuration, each unit had a capacity of 300 MW. However, to optimize output and accommodate grid demands, a significant retrofitting program was undertaken between 1984 and 1988. During this period, each of the nine Francis turbines was upgraded, increasing the individual capacity of each unit from 300 MW to 335 MW. This enhancement allowed the total installed capacity to reach the current figure of 3,015 MW, solidifying the plant's status as a major energy asset in Tajikistan.
Contribution to National Supply
The Nurek Dam plays a critical role in Tajikistan's energy security. As the largest hydroelectric power plant in the country, it provides a substantial portion of the nation's electricity. According to data from early 2024, the Nurek Dam contributes approximately 70% of Tajikistan's total electricity supply. This high dependency underscores the importance of the Vakhsh River's flow and the operational reliability of the nine turbine units. The dam's output is particularly vital during the winter months when hydrological conditions and domestic heating demands peak, making the 3,015 MW capacity a cornerstone of the regional grid managed by operator Barqi Tojik.
Reservoir Characteristics and Irrigation
The Nurek Reservoir is the largest in Tajikistan, serving as a critical component of the country's hydroelectric infrastructure. With a total storage capacity of 10.5 km³, the reservoir extends over a length of more than 70 km and covers a surface area of 98 km². These dimensions allow for significant water regulation on the Vakhsh River, supporting both power generation and downstream agricultural needs.
| Reservoir Parameter | Value |
|---|---|
| Total Capacity | 10.5 km³ |
| Length | Over 70 km |
| Surface Area | 98 km² |
Irrigation Infrastructure
Beyond electricity generation, the Nurek Dam plays a vital role in irrigating agricultural lands in southern Tajikistan. A key feature of this system is the Dangara irrigation tunnel, which spans 14 km. This tunnel diverts water from the reservoir to support approximately 700 km² of farmland, enhancing crop yields and stabilizing water supply for regional agriculture. The integration of the dam with such irrigation networks underscores its dual-purpose design, balancing energy production with agricultural sustainability.
What are the environmental and seismic impacts?
The construction and subsequent operation of the Nurek Dam have had significant environmental and seismic consequences for the Vakhsh River valley in Tajikistan. The creation of the reservoir required the flooding of a substantial area, which necessitated the resettlement of approximately 5000 people. This displacement altered local communities and ecosystems along the riverbanks, integrating human settlement patterns into the broader hydroelectric infrastructure development that began in 1961 and concluded in 1980. The environmental footprint of the dam is intrinsically linked to its status as an earth-fill embankment structure, which holds back the Vakhsh River to drive the 3015 MW power station operated by Barqi Tojik.
Induced Seismicity
One of the most notable geological impacts associated with the Nurek Dam is the phenomenon of induced seismicity. When the reservoir was first impounded, the weight of the accumulated water and the hydrostatic pressure exerted on the crustal faults beneath the dam structure were suspected of triggering seismic activity. This induced seismicity is a recognized risk for large dams, particularly those located in tectonically active regions like Tajikistan. The suspicion of seismic triggers arose as the water levels rose, placing new stresses on the underlying geology. While the dam itself has withstood these geological forces since its first generator was commissioned in 1972, the potential for earthquake activity remains a critical consideration for the long-term operational safety of the facility. The seismic monitoring of the Nurek Dam is essential given its height of 304 m, which makes it the second tallest man-made dam in the world, surpassed only by the Jinping-I Dam in 2013.
Environmental and Social Displacement
Beyond seismic concerns, the environmental impact of the Nurek Dam is characterized by the extensive flooding of the Vakhsh River basin. The inundation of land to create the reservoir led to the resettlement of approximately 5000 inhabitants. This demographic shift represents a significant social cost of the hydroelectric project, which was completed during the era when Tajikistan was a republic within the Soviet Union. The flooding altered local agricultural patterns and natural habitats, integrating the river's flow into the regional energy grid. The decision to prioritize hydroelectric power generation resulted in the transformation of the local landscape, balancing the energy output of the 3015 MW station against the ecological and human costs of the reservoir's expansion. The ongoing operation of the dam continues to influence the environmental dynamics of the Vakhsh River, with the potential for further changes as regional infrastructure projects, such as the nearby Rogun Dam, progress.
