Nuclear meltdown: causes, progression, and reactor safety

Overview

A nuclear meltdown constitutes one of the most severe categories of nuclear reactor accidents, characterized fundamentally by the overheating of the reactor core to the point of physical damage. The term describes a scenario where the heat generated by the nuclear fuel exceeds the capacity of the cooling systems to remove it, leading to the accidental melting of the core or the fuel itself. This definition is widely accepted in common usage to refer to the complete or partial collapse of the reactor core structure, although it is important to note that the International Atomic Energy Agency (IAEA) has not provided an official, rigid definition for the term. The phenomenon is distinct from simpler fuel element failures, which may involve localized cracking or cladding rupture without the catastrophic thermal escalation that defines a full-scale meltdown.

Distinction from Fuel Element Failure

Understanding the severity of a nuclear meltdown requires distinguishing it from other, less severe core anomalies. A fuel element failure, such as a single rod cladding breach, allows for the release of fission products into the primary coolant but does not necessarily compromise the structural integrity of the entire core. In contrast, a meltdown involves the bulk melting of the uranium fuel pellets and their surrounding cladding, often resulting in the agglomeration of molten material at the bottom of the reactor vessel. This process can lead to the formation of a "corium" mass—a mixture of molten fuel, cladding, and structural materials—that may eventually breach the reactor pressure vessel and the concrete containment building if cooling is not restored or if the heat flux exceeds the thermal limits of the surrounding structures.

General Severity and Core Collapse

The severity of a nuclear meltdown lies in its potential to trigger a chain reaction of structural and thermal failures. As the core melts, the geometry of the fuel changes, which can affect the neutron flux and, consequently, the rate of heat generation. If the cooling systems are compromised, the temperature can rise rapidly, causing the zirconium alloy cladding to react with steam, producing hydrogen gas and further increasing the pressure within the containment structure. The partial or complete collapse of the core signifies a loss of the precise geometric arrangement required for controlled nuclear fission, turning the reactor from a controlled energy source into a complex thermal and radiological hazard. The lack of an official IAEA definition does not diminish the operational reality of the event; rather, it reflects the complex, multi-variable nature of reactor physics and thermal hydraulics that define such accidents. The primary fuel source, uranium, undergoes significant phase changes during this process, transitioning from solid oxide pellets to a viscous, high-temperature liquid that can flow and settle, altering the criticality characteristics of the remaining fuel mass.

What causes a nuclear reactor meltdown?

A nuclear meltdown is fundamentally driven by the failure to remove sufficient heat from the reactor core, leading to temperatures that exceed the melting point of the nuclear fuel or structural materials. The primary mechanism involves the interplay between heat generation and heat removal. Even after the fission chain reaction is slowed or stopped, the core continues to generate significant thermal energy, known as decay heat. If the cooling systems fail to extract this energy efficiently, the temperature of the fuel rods rises, potentially causing the cladding and the uranium fuel itself to melt.

Key Mechanisms

Loss-of-coolant accidents (LOCA) are among the most common precursors to a meltdown. In a LOCA, the primary coolant—often water under high pressure—escapes the core through a break in the piping or the reactor vessel. This reduces the mass of the coolant available to absorb heat. Simultaneously, loss-of-pressure-control can exacerbate the situation. If pressure drops too rapidly, the boiling point of the coolant decreases, leading to rapid vaporization (flashing) and further reducing the liquid volume in contact with the fuel. Conversely, if pressure is not managed correctly during a steam-driven event, it can hinder the circulation of coolant.

Decay heat is a critical factor because it persists long after the reactor is technically "shutdown." The heat generation rate, often denoted as Qdecay​, is a function of the time elapsed since the shutdown and the initial power level. If the residual heat removal systems fail to keep pace with Qdecay​, the fuel temperature climbs. As the fuel pellets expand and the zirconium cladding reacts with steam (producing hydrogen and additional heat), the structural integrity of the fuel assembly degrades. This can lead to the collapse of the core geometry, where molten fuel mixes with structural materials, forming a corium mass that may eventually breach the reactor pressure vessel.

The progression to a full meltdown is not instantaneous. It typically involves stages of fuel cladding failure, core relocation, and vessel interaction. Understanding these causes is essential for designing robust safety systems, such as emergency core cooling systems (ECCS) and passive heat removal mechanisms, which aim to interrupt the thermal feedback loop before the core structure collapses.

Progression of core damage in light-water reactors

In light-water reactors, core damage progresses through six distinct stages driven by the interplay of fuel temperature, coolant chemistry, and structural mechanics. This sequence describes the thermal-hydraulic evolution from initial exposure to final relocation of the molten mass.

Stages of Core Damage

The rapid oxidation stage is critical because the reaction between zirconium and steam generates substantial heat, accelerating the temperature rise. This exothermic process can lead to a positive feedback loop, further increasing the fuel temperature. The hydrogen produced during this phase can accumulate in the containment building, posing a risk of explosive combustion if not properly managed.

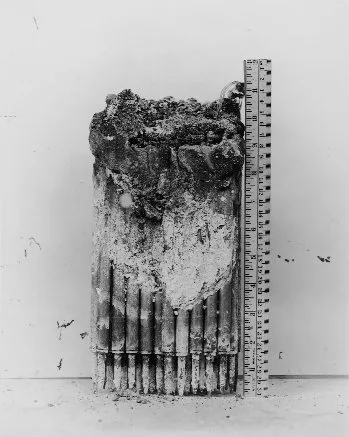

As the fuel temperature exceeds the melting point of the uranium dioxide pellets and the zircalloy cladding, the structural integrity of the fuel rods fails. This leads to the formation of a debris bed, where the collapsed materials create a complex porous medium. The heat transfer characteristics change significantly as the corium, a mixture of molten fuel, fission products, and structural materials, begins to relocate. This relocation can stress the reactor pressure vessel, potentially leading to breach and subsequent interaction with the concrete containment floor.

How do containment breaches occur?

Containment breaches represent the critical failure of the primary pressure boundary, allowing radioactive material to escape the reactor core. These breaches typically occur through two primary mechanisms: steam explosions and pressurized melt ejection. A steam explosion happens when molten core material, primarily uranium dioxide and structural steel, interacts with a large pool of water, such as the reactor pressure vessel (RPV) or the containment floor. The rapid heat transfer causes the water to flash into steam, generating a shockwave that can fracture the concrete or steel containment structure. This phenomenon is often described by the thermodynamic efficiency of the energy release, where the fraction of internal energy converted to mechanical work determines the severity of the breach.

Pressurized Melt Ejection

Pressurized melt ejection (PME) occurs when the molten core, or corium, finds a pathway through the reactor pressure vessel and is forced out under high pressure. This can happen if the lower head of the RPV fails due to thermal stresses or if the melt penetrates through a nozzle or weld. The high-pressure steam and gases within the vessel drive the corium into the containment building. If the containment is not adequately designed to handle the thermal and mechanical load of the incoming melt, the structure can rupture. This mechanism is particularly dangerous in Pressurized Water Reactors (PWRs), where the primary system operates at high pressures, typically around 150–160 bar.

Containment Challenges

Containment structures face significant challenges from overpressure and meltthrough. Overpressure can result from the accumulation of hydrogen and steam within the containment building. If the hydrogen concentration reaches a critical level, it can ignite or explode, as seen in the Fukushima Daiichi accident. The ideal gas law, PV=nRT, illustrates how temperature increases from the melt and steam generation can lead to significant pressure rises if the volume V is constrained. Meltthrough occurs when the corium penetrates the containment floor, often referred to as the "basemat." This can lead to a concrete-corium interaction, which generates additional gases and heat, further stressing the containment structure. The integrity of the containment is thus dependent on both its mechanical strength and its ability to manage thermal loads and gas compositions.

Safety features and mitigation strategies

The mitigation of nuclear meltdowns relies on the "defense in depth" strategy, which employs multiple, independent layers of protection to prevent core damage and limit the release of radioactivity. The primary active system is the Emergency Core Cooling System (ECCS). The ECCS is designed to inject coolant into the reactor core if the primary cooling loop fails, thereby removing decay heat and preventing the fuel rods from overheating. Redundancy is critical; ECCS pumps and power supplies are often divided into multiple trains to ensure that a single failure does not disable the entire system.

Containment and Core Catchers

If active cooling fails and the core temperature rises sufficiently to melt the fuel and structural materials, the molten mass, known as corium, may relocate within the reactor vessel. The containment building serves as the final physical barrier, designed to withstand high pressures and temperatures to prevent the escape of radioactive isotopes into the environment. In some reactor designs, a Core Catching Device (CCD) is installed beneath the reactor pressure vessel. The CCD is a large, water-cooled basin or structure designed to spread the molten corium over a large surface area, facilitating rapid heat removal and preventing the corium from breaching the containment floor.

Passive Safety Systems

Modern reactor designs increasingly utilize passive safety systems to mitigate meltdown risks without relying on active mechanical components or external power. These systems exploit natural physical forces, such as gravity, natural convection, and compressed gases. For example, passive residual heat removal systems may use large water tanks located above the reactor; in the event of a power failure, gravity feeds the water down to the core, and natural convection circulates the coolant. These systems enhance reliability by reducing the number of moving parts and the dependency on diesel generators or turbine-driven pumps. The integration of these strategies aims to extend the time available for operator intervention and to stabilize the reactor state even under severe accident conditions.

How do different reactor types handle meltdowns?

The susceptibility to nuclear meltdown varies significantly across reactor designs due to differences in coolant properties, fuel geometry, and passive safety mechanisms. The International Atomic Energy Agency notes that a meltdown involves the accidental melting of the core or fuel, resulting in partial or complete collapse (IAEA). Different reactor types manage this risk through distinct engineering approaches.

Reactor Type Comparison

CANDU reactors utilize heavy water as both moderator and coolant, offering flexibility in fuel cycle management. However, the large volume of heavy water in the calandria vessel means that while the core has significant thermal mass, loss of coolant can lead to zirconium-alloy cladding oxidation and subsequent hydrogen generation, similar to light water reactors. The pressure tube design isolates individual fuel channels, which can localize damage but complicates emergency cooling strategies.

Gas-cooled reactors, such as Advanced Gas-Cooled Reactors (AGRs), rely on graphite moderation and carbon dioxide or helium cooling. The high thermal capacity of graphite provides a natural buffer against rapid temperature spikes. In a loss of coolant scenario, the core temperature rises more slowly than in pressurized water reactors, allowing for extended periods for passive heat removal through conduction and radiation. This design inherently reduces the probability of a rapid, high-energy meltdown event.

Lead-cooled fast reactors (LFRs) operate at high temperatures with liquid lead or lead-bismuth eutectic as the primary coolant. The high boiling point of lead (~1749 °C) allows for operation at near-atmospheric pressures, reducing the mechanical stress on the pressure vessel. However, lead is a poor neutron moderator, requiring a larger core volume. In a meltdown scenario, the primary risk is the oxidation of the fuel and structural materials in the presence of dissolved oxygen in the lead, which can form stable oxides and release heat. The high density of lead also provides significant radiation shielding, which can complicate inspection and repair.

Liquid Fluoride Thorium Reactors (LFTRs) represent a distinct approach where the fuel (typically uranium-233 and thorium-232) is dissolved in a molten fluoride salt mixture. This design eliminates the need for solid fuel rods and cladding, which are primary failure points in traditional reactors. In the event of overheating, a passive safety mechanism involving a freeze-plug at the bottom of the core vessel can melt, draining the molten fuel into a geometrically shaped crash tank. This increases the surface area for heat dissipation and introduces neutron absorbers, effectively shutting down the fission reaction without active pumping or high-pressure containment. This passive drainage significantly mitigates the risk of a traditional "core collapse" meltdown.

Historical incidents and the China syndrome

The concept of a nuclear meltdown has been defined to mean the accidental melting of the core or fuel of a nuclear reactor, resulting in core damage from overheating. While the term is not officially defined by the International Atomic Energy Agency, it is in common usage as a reference to the core's either complete or partial collapse. Historical incidents have shaped the understanding of these severe nuclear reactor accidents. The Three Mile Island accident is a prominent example where core damage occurred, illustrating the potential for partial collapse. The Chernobyl disaster represents another major historical incident involving severe core damage. The Fukushima Daiichi nuclear disaster also involved significant core damage from overheating, further defining the scope of meltdown scenarios. These events highlight the critical nature of cooling systems in preventing the accidental melting of the core or fuel.

The China Syndrome

A theoretical concept related to nuclear meltdowns is the 'China syndrome'. This term refers to a hypothetical scenario where a molten reactor core melts through the containment building and the underlying earth, potentially reaching the other side of the country. While the term is not officially defined by the International Atomic Energy Agency, it has been defined to mean the accidental melting of the core or fuel of a nuclear reactor. The China syndrome illustrates the extreme end of core damage from overheating. It serves as a reference to the core's either complete or partial collapse. The concept underscores the potential severity of a severe nuclear reactor accident. Historical incidents like Three Mile Island, Fukushima, and Chernobyl have provided real-world data on core damage, though none fully realized the extreme depth implied by the China syndrome. The term remains a reference point in discussions about the accidental melting of the core or fuel of a nuclear reactor.

Worked examples: Analyzing the Three Mile Island accident

The Three Mile Island Unit 2 (TMI-2) accident serves as the primary case study for partial core meltdown and Emergency Core Cooling System (ECCS) interaction. Occurring on March 28, 1979, the event began with a stuck-open relief valve in the pressurizer, leading to a loss-of-coolant accident (LOCA). The ECCS activated, injecting borated water into the reactor vessel. However, operators misinterpreted pressure gauges, assuming the core was flooded when it was partially exposed, leading to the premature shutdown of the high-pressure injection pumps.

Worked Example 1: ECCS Flow Rate and Boron Concentration

Calculating the total boron added to the core during the initial injection phase requires knowing the flow rate and concentration. Assume the high-pressure injection pumps delivered 15,000 gallons per minute (GPM) of water with a boron concentration of 1,500 parts per million (ppm) for 2 hours. First, convert time to minutes: 2 hours × 60 minutes/hour = 120 minutes. Next, calculate total volume: 15,000 GPM × 120 minutes = 1,800,000 gallons. To find the total mass of boron, use the density of water (approximately 8.34 lbs/gallon) and the ppm concentration. Total water mass = 1,800,000 gallons × 8.34 lbs/gallon = 14,992,800 lbs. Total boron mass = 14,992,800 lbs × (1,500 / 1,000,000) = 22,489.2 lbs of boron. This calculation demonstrates how significant boron accumulation can affect reactivity control during a LOCA.

Worked Example 2: Core Temperature Rise Due to Decay Heat

If cooling is interrupted, decay heat causes the core temperature to rise. Assume the TMI-2 core had a thermal mass equivalent to 500 tons of uranium dioxide (UO2) with a specific heat capacity of 0.25 BTU/lb-°F. If the decay heat generation was 10 MW (megawatts) for 1 hour, calculate the temperature increase. First, convert 10 MW to BTU/hour: 10 MW × 3,412,142 BTU/MW = 34,121,420 BTU/hour. Convert the core mass to pounds: 500 tons × 2,000 lbs/ton = 1,000,000 lbs. Using the formula Q = mcΔT, where Q is heat energy, m is mass, c is specific heat, and ΔT is temperature change: 34,121,420 BTU = 1,000,000 lbs × 0.25 BTU/lb-°F × ΔT. Solving for ΔT: ΔT = 34,121,420 / (1,000,000 × 0.25) = 136.5 °F. This rise highlights the rapid overheating potential if ECCS flow is insufficient.

Worked Example 3: Hydrogen Gas Generation from Zircaloy Oxidation

As the Zircaloy cladding overheats, it reacts with steam to produce hydrogen. The reaction is Zr + 2H2O → ZrO2 + 2H2. Assume 100,000 lbs of Zircaloy oxidized. The atomic weight of Zirconium (Zr) is 91.22 g/mol, and Hydrogen (H) is 1.008 g/mol. First, convert lbs to grams: 100,000 lbs × 453.592 g/lb = 45,359,200 g. Calculate moles of Zr: 45,359,200 g / 91.22 g/mol = 497,250 moles of Zr. According to the stoichiometry, 1 mole of Zr produces 2 moles of H2. Thus, moles of H2 = 497,250 × 2 = 994,500 moles. Mass of H2 = 994,500 moles × (2 × 1.008 g/mol) = 2,002,896 g. Convert back to lbs: 2,002,896 g / 453.592 g/lb = 4,416 lbs of hydrogen gas. This volume of hydrogen contributed to the risk of explosion in the containment building.
