Molten-Salt Reactor Experiment: Design, Operation, and Legacy

Overview

The Molten-Salt Reactor Experiment (MSRE) was an experimental molten-salt reactor research reactor located at the Oak Ridge National Laboratory (ORNL) in Oak Ridge, Tennessee, United States. This facility served as a critical proof-of-concept for molten salt reactor technology, demonstrating the viability of using liquid fuel mixtures within a nuclear core. The project was operated by Oak Ridge National Laboratory and utilized uranium as its primary fuel source. The MSRE was constructed by 1964 and achieved criticality in 1965, marking the beginning of its operational phase. It continued to operate until 1969, providing valuable data on reactor physics, materials science, and thermal hydraulics specific to the molten salt configuration.

The reactor had a capacity of 8 MW. Its operational period from 1965 to 1969 allowed researchers to evaluate the performance of the molten salt technology under sustained conditions. The experiment was designed to test the concept of a reactor where the fuel is dissolved in a molten salt mixture, offering potential advantages in temperature control and fuel flexibility compared to traditional solid-fuel reactors. The technology was researched through the 1960s, with the MSRE serving as the primary experimental platform during this decade. The facility was commissioned in 1965 and remained active for several years, contributing to the broader understanding of nuclear energy systems.

Following its decommissioning, the MSRE site required extensive cleanup efforts. The costs of the cleanup project were estimated at $130 million. This significant financial investment highlights the complexities associated with decommissioning experimental nuclear facilities, particularly those involving novel materials and fuel cycles. The MSRE remains a notable example of early nuclear innovation in the United States, illustrating the efforts to explore alternative reactor designs during the mid-20th century. The project's legacy continues to influence modern research into molten salt reactors as a potential solution for future nuclear energy generation.

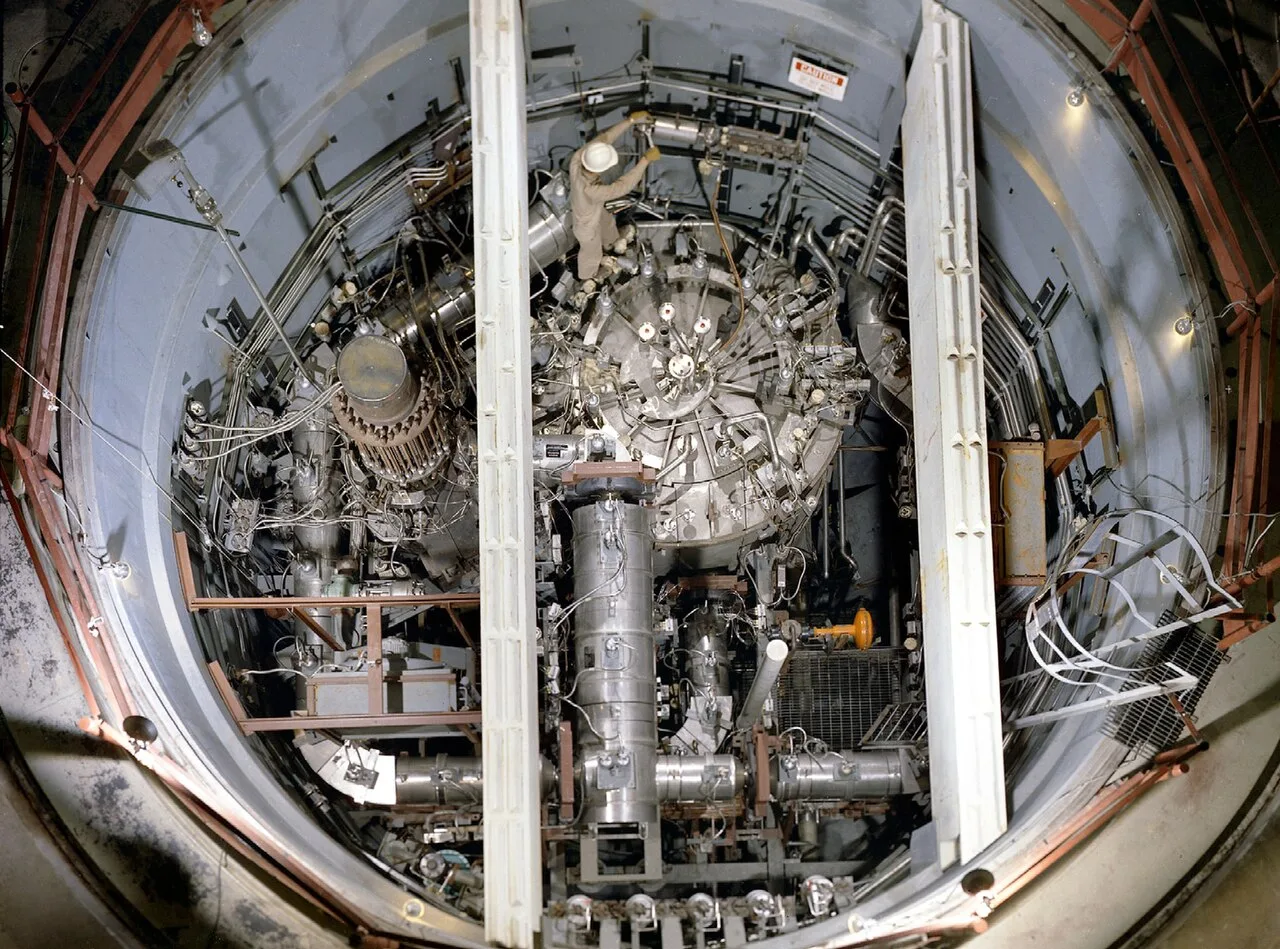

Design and Engineering Challenges

The Molten-Salt Reactor Experiment (MSRE) utilized a distinct core design optimized for the fluid fuel medium, departing from traditional solid-fuel lattice arrangements. The reactor core was constructed primarily from Hastelloy-N, a nickel-based superalloy selected for its resistance to corrosion by the fluoride salt mixture at high temperatures. This structural integrity was critical, as the fuel itself was dissolved directly into the coolant, creating a dual role for the salt that simplified heat transfer but introduced complex material science challenges.

Fuel Salt Composition

The fuel salt was a eutectic mixture of lithium fluoride (LiF), beryllium fluoride (BeF2), zirconium tetrafluoride (ZrF4), and uranium tetrafluoride (UF4). This specific LiF-BeF2-ZrF4-UF4 composition provided a low melting point and high thermal stability. The uranium was typically enriched to approximately 8.5% U-235, allowing for criticality in a relatively small core volume. The use of beryllium fluoride served as a neutron moderator, while zirconium tetrafluoride helped stabilize the salt's physical properties. This homogeneous mixture allowed for continuous online processing of the fuel, a key feature of molten-salt reactor technology.

Heat Exchange System

Unlike many pressurized water reactors that rely on large containment buildings with water cooling, the MSRE employed an air-cooled heat exchanger system. This design choice was driven by the relatively low thermal output of the 8 MW experimental unit. The primary heat exchangers transferred thermal energy from the fuel salt to a secondary coolant loop, which then dissipated heat through large air-cooled condensers. This configuration allowed for a more compact and flexible layout, suitable for the research environment at Oak Ridge National Laboratory.

The engineering challenges associated with the MSRE were significant, particularly regarding the corrosion of the Hastelloy-N stack and the management of fission products within the salt. The cleanup costs were later estimated at $130 million, reflecting the complexity of decommissioning the first operational molten-salt reactor. These early insights laid the groundwork for subsequent molten-salt reactor designs, highlighting both the potential and the technical hurdles of this nuclear technology.

How did the MSRE manage fuel and neutronics?

The Molten-Salt Reactor Experiment (MSRE) utilized a fluid fuel system that fundamentally altered fuel management compared to traditional solid-fuel reactors. The reactor core contained a graphite moderator through which the uranium-bearing molten salt circulated. This design allowed for continuous chemical processing of the fuel while the reactor remained critical. The fuel salt flowed through the core and into external loops, enabling the removal of fission products and the addition of fresh fuel without shutting down the entire system. This circulation was managed by a complex network of pumps and heat exchangers located outside the primary core vessel.

Xenon-135 Removal and Pump Bowl Spray

A significant challenge in nuclear neutronics is the management of Xenon-135, a potent neutron-absorbing fission product that can cause reactor instability. In the MSRE, the fuel salt was continuously circulated through a pump bowl spray system designed to strip volatile fission products from the liquid fuel. As the salt passed through the pump bowl, helium gas was bubbled through the fluid, carrying away gaseous fission products, including Xenon-135 and Krypton-85. This continuous removal mechanism prevented the accumulation of Xenon-135 in the core, which is a common source of reactivity swings in solid-fuel reactors. The efficiency of this spray system was critical for maintaining stable neutron flux and preventing the "iodine pit" phenomenon often observed in light water reactors.

Neutronic Stability and Graphite Moderation

The neutronic stability of the MSRE was largely attributed to its graphite moderator and the thermal expansion properties of the fluid fuel. The graphite blocks provided a large thermal mass, which helped to smooth out temperature fluctuations within the core. Additionally, the molten salt fuel itself exhibited a negative temperature coefficient of reactivity. As the temperature of the fuel salt increased, the fluid expanded, reducing the density of uranium atoms in the core. This expansion led to a decrease in reactivity, providing a natural feedback mechanism that helped to stabilize the reactor power level. The combination of the graphite moderator's thermal inertia and the fuel salt's density-dependent reactivity created a robust neutronic environment that enhanced the operational safety and control of the experimental reactor.

Operational History and Fuel Cycles

The reactor achieved criticality in 1965, marking the beginning of its operational life. It remained in operation until 1969, serving as a key research facility for molten-salt reactor technology during the 1960s. The experiment was designed to validate the feasibility of using molten salts as both fuel and coolant in a nuclear reactor core.

Fuel Cycle Transitions

The MSRE initially operated using a uranium-235 (U-235) fuel cycle. This initial phase allowed researchers to test the basic performance and stability of the molten salt system under controlled conditions. In 1968, the reactor switched to a uranium-233 (U-233) fuel cycle. This transition was a significant experimental objective, demonstrating the reactor's ability to utilize different isotopes and validating the potential for thorium-based fuel breeding in future designs. The successful operation with both fuel types provided critical data on fuel behavior, corrosion, and neutron economy in molten salt environments.

Operational Statistics

The experiment concluded in 1969, having achieved its primary experimental objectives. The data collected during these years contributed significantly to the understanding of molten-salt reactor technology. Following decommissioning, the costs associated with the cleanup project were estimated at $130 million, reflecting the complexity of handling the molten salt fuel and the reactor components. The MSRE remains a foundational study in the development of advanced nuclear reactor designs.

What were the key scientific findings?

The Molten-Salt Reactor Experiment (MSRE) at Oak Ridge National Laboratory (ORNL) yielded critical data on the behavior of molten-salt fuels under operational conditions, validating the viability of the technology for future nuclear applications. The experiment, which operated from 1965 to 1969, focused on analyzing corrosion mechanisms, tritium production, and material integrity in high-temperature environments. These findings were essential for understanding how molten salts interact with structural materials, providing insights that influenced subsequent reactor designs and fuel cycle strategies.

Corrosion Data and Material Performance

One of the primary objectives of the MSRE was to evaluate the corrosion rates of various metals exposed to molten fluoride salts. The experiment demonstrated that stainless steel and nickel-based alloys exhibited acceptable corrosion rates under controlled conditions. However, the presence of oxidizers such as uranium tetrafluoride (UF4) and plutonium tetrafluoride (PuF4) in the salt mixture accelerated corrosion in certain components. This data highlighted the importance of maintaining precise chemical composition within the salt to minimize degradation of structural materials. The findings suggested that careful selection of alloys and control of oxygen potential could mitigate corrosion effects, a crucial consideration for long-term reactor operation.

Tritium Behavior and Production

Tritium production was another significant focus of the MSRE. The experiment confirmed that lithium-6, a key isotope in the molten salt mixture, undergoes neutron capture to produce tritium. This process resulted in substantial tritium accumulation within the reactor core, necessitating effective management strategies to prevent leakage and optimize utilization. The MSRE data provided valuable insights into tritium behavior, including its diffusion through metal surfaces and its interaction with other elements in the salt. These observations were critical for designing containment systems and evaluating the radiological impact of molten-salt reactors.

Tellurium-Induced Inter-Granular Cracking

An unexpected discovery during the MSRE was the occurrence of tellurium-induced inter-granular cracking in metal surfaces. Tellurium, a byproduct of uranium fission, accumulated in the molten salt and migrated to the grain boundaries of structural materials, leading to embrittlement and cracking. This phenomenon posed a significant challenge for reactor design, as it affected the mechanical integrity of key components such as heat exchangers and piping. The identification of this issue prompted further research into alloy compositions and operational parameters to minimize tellurium's impact, contributing to the refinement of material selection criteria for molten-salt reactors.

The scientific findings from the MSRE laid the groundwork for future advancements in molten-salt reactor technology. By addressing corrosion, tritium management, and material durability, the experiment provided a robust foundation for optimizing reactor performance and enhancing the economic viability of molten-salt systems. These insights continue to influence ongoing research and development efforts in the field.

Decommissioning and Long-Term Storage

The decommissioning of the Molten-Salt Reactor Experiment (MSRE) presents significant technical and financial challenges, primarily due to the unique properties of the molten salt fuel and the reactor's extended operational history. The reactor was operated until 1969, after which it entered a long period of storage and monitoring. As of 2019, the MSRE remained in a status known as SAFESTOR, a phase of decommissioning where the reactor is safe from criticality and radiation hazards but requires ongoing maintenance and monitoring before final dismantling. This prolonged status reflects the complexity of handling the residual fuel and structural components.

Technical Challenges

One of the primary technical hurdles in decommissioning the MSRE is the management of fluorine gas buildup. The molten salt mixture, which served as both fuel and coolant, contains fluorine compounds that can release fluorine gas over time as the salt degrades or reacts with residual moisture and structural materials. This gas buildup poses corrosion risks to the reactor vessel and surrounding containment structures, necessitating careful atmospheric control and monitoring. Additionally, the residual uranium in the salt mixture presents criticality risks. Although the reactor has been subcritical since 1969, the concentration and geometry of the remaining uranium must be carefully managed to prevent accidental criticality during handling or dismantling operations. These risks require specialized engineering solutions and rigorous safety protocols.

Financial Implications

The financial burden of decommissioning the MSRE is substantial. The costs of a cleanup project were estimated at 130million,reflectingtheextensiveworkrequiredtosafelyremovethereactorcomponents,treatthemoltensaltfuel,andrestorethesiteatOakRidgeNationalLaboratory.Thisestimateincludesexpensesforspecializedlabor,equipment,wastedisposal,andlong−termmonitoring.Thehighcostunderscoresthecomplexityofdecommissioningexperimentalnuclearreactors,whichoftenlackthestandardizedproceduresandeconomiesofscaleavailableforcommercialnuclearpowerplants.The130 million figure highlights the need for careful financial planning and resource allocation to ensure the successful completion of the decommissioning process.

Why it matters

The Molten-Salt Reactor Experiment (MSRE) holds a distinct position in nuclear engineering history as the first operational proof-of-concept for molten-salt reactor technology. Conducted at the Oak Ridge National Laboratory (ORNL) in Oak Ridge, Tennessee, the project validated the fundamental thermodynamic and neutronic principles that differentiate molten-salt systems from traditional light-water reactors. The reactor, which had a capacity of 8 MW and used uranium as its primary fuel source, went critical in 1965 and was operated until 1969. This operational window provided engineers with the first empirical data on the behavior of liquid fuel under criticality, a critical milestone for a technology that had previously existed largely on paper.

The significance of the MSRE extends beyond its immediate operational success. It served as the foundational reference design for subsequent generations of molten-salt reactors, particularly those focusing on thorium breeder cycles. The experiment demonstrated the feasibility of using a fluoride salt mixture as both the coolant and the fuel carrier, allowing for continuous online processing and high thermal efficiency. These characteristics are central to the modern appeal of Generation IV nuclear systems, which promise enhanced safety profiles and improved fuel utilization compared to conventional pressurized water reactors.

The legacy of the MSRE is also defined by the complexities of its decommissioning, which highlighted both the advantages and challenges of the technology. The cleanup project costs were estimated at $130 million, a figure that underscores the material compatibility issues and corrosion challenges inherent in high-temperature salt environments. Despite these engineering hurdles, the data collected during the MSRE's operation from 1965 to 1969 remains a vital resource for nuclear researchers. It provides a benchmark for thermal-hydraulic modeling and materials science, influencing contemporary designs that aim to revitalize molten-salt technology for next-generation energy infrastructure.
