Overview

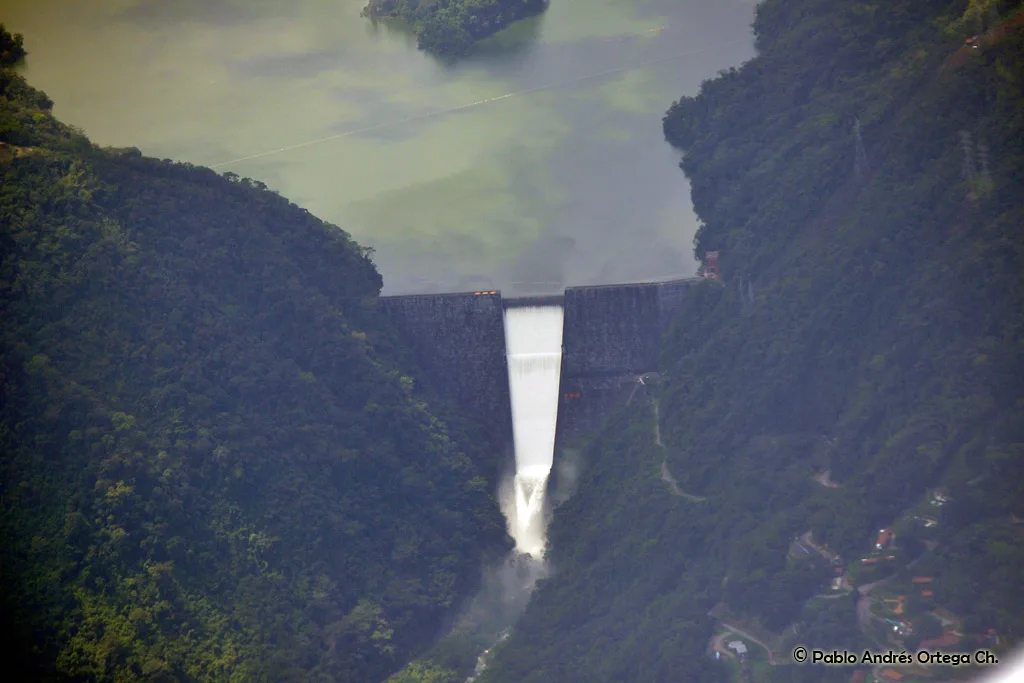

The Miel I Hydroelectric Station, centered on the Patángoras Dam, is a major hydroelectric power facility located on the La Miel River in the Caldas Department of Colombia. Situated just south of the municipality of Norcasia, the station serves as a critical component of the region's energy infrastructure, leveraging the hydraulic potential of the La Miel River for power generation. The dam is officially designated as the Patángoras Dam and operates as a gravity dam, a structural design that relies on its own weight to resist the horizontal force of the water it holds back. The facility is currently operational and contributes 396 MW of installed capacity to the Colombian power grid.
Construction of the Patángoras Dam took place between 1997 and 2002, culminating in its official commissioning in 2002. The project utilized roller-compacted concrete (RCC) technology, a construction method that allows for efficient placement and compaction of concrete, similar to earth-fill techniques but with the structural integrity of conventional concrete. At the time of its completion in 2002, the Patángoras Dam held the distinction of being the tallest roller-compacted concrete dam in the world. This record was later surpassed in 2009 by the Longtan Dam, but the Miel I structure remains a significant engineering achievement in South American hydroelectric development.
The physical scale of the dam is substantial, reflecting the engineering demands of the La Miel River's topography. The structure spans 340 m in length and incorporates approximately 1,750,000 cubic metres of concrete in its construction. These dimensions underscore the magnitude of the earthworks and material logistics required to complete the project within the five-year construction window. The use of roller-compacted concrete was a strategic choice that facilitated the rapid construction schedule while maintaining the structural robustness necessary for a gravity dam of this height and capacity. The station continues to operate as a key asset in the Caldas Department's energy portfolio, utilizing the water flow of the La Miel River to generate consistent hydroelectric power.
History and Construction Timeline
The construction of the Miel I Hydroelectric Station, officially designated as the Patángoras Dam, represents a significant engineering achievement in Colombia's energy infrastructure. Located on the La Miel River just south of Norcasia in the Caldas Department, this gravity dam was built specifically for hydroelectric power generation. The project's development spanned from 1997 to 2002, culminating in a facility with an installed capacity of 396 MW. At the time of its completion in 2002, the structure held the distinction of being the tallest roller-compacted concrete (RCC) dam in the world, a record that stood until the Longtan Dam surpassed it in 2009.
Construction Timeline and Engineering
The physical construction phase lasted 59 months, a duration that allowed the project to finish seven months ahead of its original schedule. This efficiency was critical for the operational timeline of the Miel I station, which was commissioned in 2002. The engineering process involved rigorous quality control measures, particularly regarding the roller-compacted concrete technology that defined the dam's structural integrity. The U.S. Army Corps of Engineers played a notable role in the project, contributing specialized expertise in concrete testing to ensure the RCC met the necessary standards for such a tall gravity dam.
The decision to utilize roller-compacted concrete was pivotal for the Patángoras Dam's design. This technology allowed for faster construction cycles compared to traditional cast-in-place concrete methods, contributing to the project's ability to meet its aggressive timeline. The dam's location in the Caldas Department required careful geological assessment, given the river's flow characteristics and the surrounding terrain south of Norcasia. The successful completion of the Miel I station marked a milestone in Colombian hydroelectric development, demonstrating the viability of large-scale RCC dams in the region's topography.
Funding for the project was secured in 1997, aligning with the start of the main construction activities. This financial backing enabled the procurement of materials and the mobilization of the engineering teams necessary to execute the 59-month build phase. The operational status of the plant remains active, continuing to contribute to Colombia's power grid with its 396 MW capacity. The legacy of the Miel I Dam extends beyond its immediate power output, serving as a reference point for subsequent RCC dam projects globally, even after losing its height record to the Longtan Dam in 2009.
Dam Structure and Spillway Capacity
The Miel I Hydroelectric Station relies on the Patángoras Dam, a gravity structure situated on the La Miel River just south of Norcasia in the Caldas Department of Colombia. This facility was constructed between 1997 and 2002, serving as the primary infrastructure for the plant’s hydroelectric power generation capabilities. The dam is engineered using roller-compacted concrete (RCC), a construction technique that contributed to its significant vertical scale.
Physical Dimensions and Structural Specifications
The structural design of the Patángoras Dam emphasizes stability and height, characteristic of gravity dams that rely on their mass to resist the horizontal force of the water. The dam extends for a total length of 340 m along the river valley. Its crest elevation reaches 454 m above sea level, providing the necessary head for the hydroelectric turbines located downstream. The use of roller-compacted concrete allowed for efficient construction and thermal management during the five-year building period. These dimensions support the operational requirements of the Miel I station, which has a total installed capacity of 396 MW. The structural integrity of the dam is critical for maintaining the reservoir levels required for consistent power output and flood control in the La Miel River basin.
| Structural Parameter | Value |
|---|---|
| Dam Type | Gravity (Roller-Compacted Concrete) |
| Length | 340 m |
| Crest Elevation | 454 m |
| River | La Miel River |
| Location | Norcasia, Caldas Department, Colombia |
| Construction Period | 1997–2002 |
Spillway and Discharge Capacities
The dam incorporates a sophisticated spillway system designed to manage variable flow rates in the La Miel River, ensuring the safety of the RCC structure during peak inflow periods. The nominal spillway capacity is rated at 1720 m³/s, which handles typical seasonal variations and moderate flood events. For extreme hydrological conditions, the maximum spillway capacity reaches 3600 m³/s, providing a substantial safety margin against overflow. In addition to the main spillway, the structure includes a discharge tunnel with a capacity of 250 m³/s. This tunnel facilitates controlled water release for downstream flow regulation and sediment management. The combined hydraulic infrastructure ensures that the Miel I Hydroelectric Station can maintain operational efficiency while mitigating flood risks in the surrounding Caldas Department region. The precise engineering of these discharge mechanisms is essential for the long-term reliability of the 396 MW power generation facility.
Amani Reservoir and Water Management
The Miel I Hydroelectric Station is supported by the Amani Reservoir, which provides the critical water storage necessary for consistent power generation. The reservoir has a total storage capacity of 571 million cubic metres, allowing for significant regulation of the La Miel River's flow. This volume is contained within a surface area of 1220 hectares, situated at an elevation of 445.5 m. These physical dimensions enable the plant to maintain a steady head for the turbines, optimizing the output of the 396 MW installed capacity. The reservoir's size is particularly important for balancing seasonal variations in rainfall in the Caldas Department, ensuring that the gravity dam can release water at a controlled rate rather than relying solely on immediate runoff.
Integration with Regional Diversion Dumps
The hydrological management of the Miel I station is not isolated but is increasingly integrated with neighboring infrastructure to maximize efficiency. In 2010, the system was linked with the Guarinó diversion dam. This connection allows for the strategic transfer of water between catchments, enhancing the flexibility of water usage for power generation. Subsequently, in 2013, the Manso diversion dam was integrated into the network. These connections are part of a broader strategy to optimize the use of water resources in the region, allowing operators to balance the loads across different hydroelectric facilities. By linking the Miel I reservoir with the Guarinó and Manso systems, the overall energy yield from the La Miel River basin is improved, reducing the dependency on any single source of inflow.
The construction of the Patángoras Dam, which creates the Amani Reservoir, was completed in 2002. At the time, it was recognized as the tallest roller-compacted concrete (RCC) dam in the world. The structural integrity of the RCC design contributes to the reservoir's ability to hold the 571 million cubic metres of water with minimal seepage, which is crucial for maintaining the 445.5 m elevation. The integration with the Guarinó and Manso dams demonstrates a shift towards a more interconnected approach to hydroelectric management in Colombia, where water is treated as a shared resource across multiple generation sites. This interconnection helps to mitigate the impact of droughts or excessive rainfall, providing a more stable power output for the grid.
Power Plant Infrastructure and Turbines
The infrastructure was constructed between 1997 and 2002, achieving operational status in 2002. The facility is designed primarily for hydroelectric power generation, harnessing the water flow of the La Miel River to drive its turbine units.
Underground Powerhouse and Water Conveyance
The power plant’s mechanical infrastructure is housed within an underground powerhouse, optimizing the spatial layout and structural integrity of the installation. Water is conveyed from the reservoir to the turbine units through a specific network of tunnels and penstocks. The main water intake system includes a tunnel with a diameter of 6.5 meters. This tunnel channels the water toward the powerhouse, where it is distributed through three individual penstocks. Each of these penstocks has a diameter of 3.35 meters, ensuring efficient flow regulation to the turbine runners. This configuration supports the hydraulic head required for the Francis turbine units, which are well-suited for medium-head hydroelectric applications.
Turbine Specifications and Capacity
The generating capacity of the Miel I station is derived from three identical Francis turbine-generator sets. Each unit has an installed capacity of 132 MW, contributing to a total installed capacity of 396 MW for the entire plant. The Francis turbine design is characterized by its radial-flow reaction mechanism, making it highly efficient for the specific hydraulic conditions of the La Miel River. The total output of 396 MW represents the combined nominal power of the three operational units. The following table summarizes the technical specifications of the turbine infrastructure.
| Component | Specification |
|---|---|
| Turbine Type | Francis |
| Number of Units | 3 |
| Capacity per Unit | 132 MW |
| Total Installed Capacity | 396 MW |
| Main Tunnel Diameter | 6.5 m |
| Penstock Diameter | 3.35 m |
| Number of Penstocks | 3 |
The integration of the 6.5-meter tunnel and the three 3.35-meter penstocks allows for balanced water distribution to each of the three 132 MW Francis turbines. This design ensures that the plant can maintain stable power output, leveraging the hydraulic potential of the Patángoras Dam’s reservoir. The operational status of the plant remains active, continuing to contribute to the energy grid of Colombia since its commissioning in 2002.
What distinguishes the Patángoras Dam from other RCC dams?
The Miel I Hydroelectric Station, centered on the Patángoras Dam, holds a distinct place in the history of civil engineering and hydroelectric infrastructure due to its construction methodology. The structure is a gravity dam built using roller-compacted concrete (RCC), a technique that significantly accelerated construction timelines compared to traditional mass concrete pours. When the dam was completed in 2002, it stood as the tallest RCC dam in the world, marking a major milestone for this specific technology in large-scale hydroelectric projects.
Engineering Significance of Roller-Compacted Concrete
Roller-compacted concrete represents a hybrid between earth-fill and mass concrete dam construction. The technology involves placing thin layers of low-slump concrete and compacting them with heavy rollers, similar to how earth-fill dams are constructed. This method allows for faster placement rates and reduced curing times, which was critical for the Patángoras Dam, which was constructed between 1997 and 2002. The use of RCC enabled the rapid development of the 396 MW hydroelectric capacity on La Miel River, just south of Norcasia in Caldas Department, Colombia.
Historical Height Record
The primary distinction of the Patángoras Dam was its height relative to other RCC structures at the time of its inauguration. Upon completion in 2002, the dam held the global record for the tallest roller-compacted concrete dam. This record highlighted the structural integrity and scalability of RCC technology for high-head hydroelectric schemes. However, this distinction was temporary. In 2009, the Longtan Dam surpassed the Patángoras Dam in height, ending its reign as the world's tallest RCC dam.
The transition of the height record from Patángoras to Longtan illustrates the rapid advancement of dam engineering in the early 21st century. While the Patángoras Dam is no longer the tallest, its successful operation since 2002 validates the long-term performance of RCC gravity dams in tropical river environments. The dam continues to serve as a key component of Colombia's hydroelectric grid, demonstrating the enduring utility of the technology that defined its initial construction phase.
Why it matters
The Miel I Hydroelectric Station represents a significant milestone in Colombia's energy infrastructure, particularly within the Caldas Department. As an operational facility with a capacity of 396 MW, the plant contributes substantially to the regional power grid, leveraging the water resources of the La Miel River. Its strategic location just south of Norcasia allows for efficient energy transmission, supporting the industrial and residential demands of the area. The commissioning of the station in 2002 marked the culmination of a five-year construction period, spanning from 1997 to 2002, which was critical for stabilizing hydroelectric output in the region.
From an engineering perspective, the project is distinguished by the construction of the Patángoras Dam, a gravity dam built using roller-compacted concrete (RCC) technology. This achievement highlighted the effectiveness of RCC construction methods, which offer advantages in speed and cost-efficiency compared to traditional concrete pouring techniques. The use of RCC allowed for the rapid formation of the dam structure, which was essential for meeting the project's tight timeline. Although the dam was later surpassed in height by the Longtan Dam in 2009, the Miel I project remains a benchmark for RCC applications in hydroelectric engineering.
The success of the Miel I project has had a lasting impact on regional hydroelectric development in Caldas. It demonstrated the viability of large-scale RCC dams in the Colombian terrain, encouraging further investments in similar technologies for subsequent projects. The plant's operational status continues to provide a reliable source of renewable energy, reducing the region's dependence on thermal power and contributing to the national energy mix. The integration of the Miel I station into the broader Colombian grid underscores the importance of strategic infrastructure planning in maximizing the potential of water resources for sustainable power generation.
