Overview

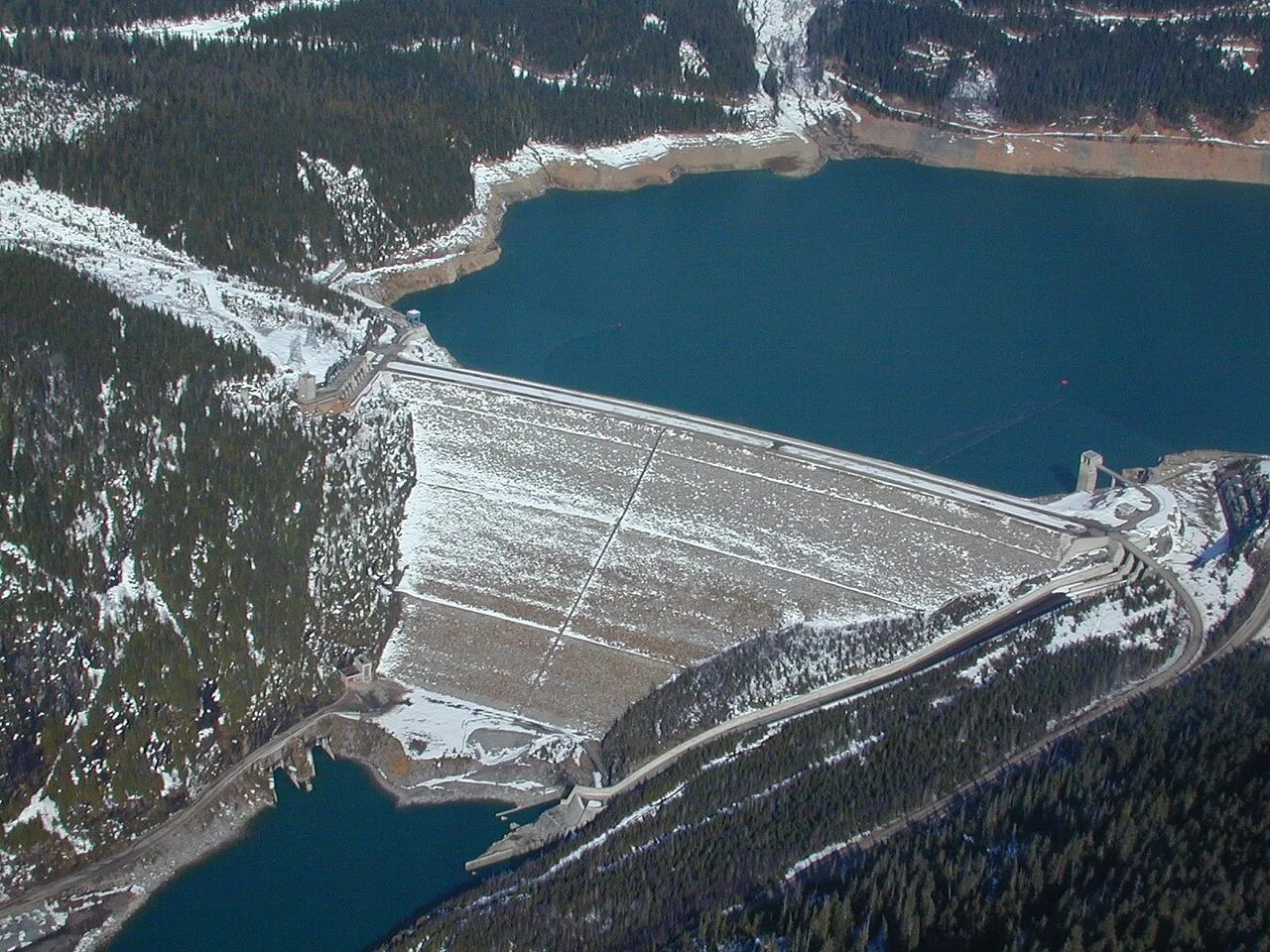

Mica Dam is a major hydroelectric embankment dam located on the Columbia River, approximately 135 kilometres north of Revelstoke in British Columbia, Canada. It is operated by BC Hydro and has been operational since its completion in 1973. The facility was constructed as one of three Canadian projects mandated by the 1964 Columbia River Treaty, serving as a critical component of the transboundary water management agreement between Canada and the United States.
The dam is recognized as the tallest dam in Canada and the second tallest in North America, surpassed only by the Chicoasén Dam in Mexico. It is also the farthest upstream dam on the Columbia River system. The structure is an earthfill dam, making it one of the largest of its type in the world. The reservoir formed by the dam is known as Kinbasket Lake. Water released from Mica Dam flows southward directly into Revelstoke Lake, which serves as the reservoir for the downstream Revelstoke Dam.
The Mica powerhouse features an underground design that was the second largest in the world at the time of its construction. The facility originally had a generating capacity of 1,805 megawatts (MW). The dam is named after the nearby settlement of Mica Creek, which derives its name from the abundance of mica minerals found in the local geology. The project represents a significant engineering achievement in North American hydroelectric infrastructure.
History and Construction
Mica Dam was constructed as a cornerstone project under the 1964 Columbia River Treaty, an international agreement between Canada and the United States designed to optimize power generation and flood control along the Columbia River basin. As one of three major Canadian initiatives authorized by the treaty, the dam was developed to harness the hydroelectric potential of the river far upstream from existing developments. The project was assigned to BC Hydro, which remains the primary operator of the facility. The dam is situated 135 kilometres north of Revelstoke, British Columbia, making it the farthest upstream dam on the Columbia River system.
Construction and Engineering Milestones
Construction of the Mica Dam and its associated infrastructure took place between 1967 and 1973. The project involved the creation of a massive earthfill embankment, which, upon completion, became the tallest dam in Canada and the second tallest in North America, trailing only the Chicoasén Dam in Mexico. The engineering effort also included the development of a large underground powerhouse, which was recognized as the second largest in the world at the time of its construction in 1973.
The technical specifications of the Mica Dam included significant innovations in electrical engineering. The facility featured the world’s first 500 kV installation of sulphur hexafluoride (SF6) insulated switchgear, a technology that improved the efficiency and reliability of power transmission from the remote location. The original generating capacity of the Mica powerhouse was established at 1,805 megawatts (MW), contributing significantly to the regional grid. The dam creates Kinbasket Lake, a large reservoir that stores water which subsequently flows south into Revelstoke Lake, the reservoir for the downstream Revelstoke Dam.
Naming and Geographical Context
The dam is named after the nearby settlement of Mica Creek and its associated stream. The name "Mica" itself derives from the abundance of mica minerals found in the local geological formations. In 1980, the reservoir was officially renamed Kinbasket Lake. The facility remains operational and continues to serve as a critical component of British Columbia’s hydroelectric infrastructure, managed by BC Hydro.
Technical Specifications and Engineering
The structure spans the Columbia River, located 135 kilometres north of Revelstoke, British Columbia, Canada.
| Parameter | Value |
|---|---|
| Dam Type | Earthfill embankment |
| Height Status | Tallest in Canada; 2nd tallest in North America |
| Location | Columbia River, 135 km north of Revelstoke, BC |
| Reservoir | Kinbasket Lake |
| Downstream Flow | Revelstoke Lake |
Powerhouse and Electrical Infrastructure
The original generating capacity of the powerhouse was 1,805 megawatts (MW). The installation featured significant electrical engineering innovations, including the first 500 kV installation of sulphur hexafluoride (SF6) insulated switchgear in the world. The dam is operated by BC Hydro and was built as one of three Canadian projects under the terms of the 1964 Columbia River Treaty.
Power Generation and Transmission
The Mica Dam powerhouse contains an installed generating capacity of 2805 MW (BC Hydro). The facility was originally commissioned in 1973 with a generating capacity of 1,805 MW. The expansion of the generating capacity to the current total occurred through subsequent additions to the underground powerhouse (BC Hydro). The commissioning of additional generators took place in 1976 and 1977 (BC Hydro). Further modernization and capacity adjustments were completed in 2014 and 2015 (BC Hydro). These additions increased the total output from the original 1,805 MW to the current 2805 MW (BC Hydro).
Transmission Infrastructure
The electricity generated at Mica Dam is transmitted via 500 kV lines to the Nicola and Meridian substations (BC Hydro). The transmission system was designed to handle the high voltage output of the underground powerhouse (BC Hydro). The 500 kV lines connect the Mica powerhouse to the broader BC Hydro grid, facilitating the movement of power from the Columbia River basin to load centers in British Columbia (BC Hydro). The Nicola substation serves as a key node in the southern part of the grid, while the Meridian substation provides connectivity to other major transmission corridors (BC Hydro).
SF6 Insulated Switchgear
This technological innovation allowed for compact and efficient electrical switching within the confined space of the underground facility. The use of SF6 insulated switchgear at Mica set a precedent for future large-scale hydroelectric projects, demonstrating the reliability of the technology at high voltages. The switchgear system plays a critical role in managing the flow of electricity from the generators to the transmission lines (BC Hydro).
Impact on Regional Infrastructure
The construction of Mica Dam fundamentally altered the geography and infrastructure of the Big Bend Country region in British Columbia. The creation of Kinbasket Lake, the reservoir formed by the dam, submerged significant portions of the surrounding landscape. This hydrological change necessitated major adjustments to local communities and transportation networks, particularly the Canadian Pacific Railway line. The railway, a critical artery for regional transport, required extensive engineering works to accommodate the rising water levels. These works included the construction of new bridges and tunnels to maintain connectivity across the flooded terrain.
Transportation Adjustments
The Canadian Pacific Railway line faced direct impacts from the inundation caused by Kinbasket Lake. To ensure the line remained operational, engineers constructed specific infrastructure elements such as bridges and tunnels. These structures allowed the railway to traverse the new lake boundaries and the altered riverbed. The integration of these transportation features was essential for maintaining the flow of goods and passengers through the region. The dam's location, 135 kilometres north of Revelstoke, meant that the railway adjustments were concentrated in this specific stretch of the Columbia River valley.
Community and Geographic Impact
The formation of Kinbasket Lake affected the local settlement patterns in the Big Bend Country. The dam is named after the nearby settlement of Mica Creek, which was itself named for the abundance of mica minerals in the area. The creation of the reservoir likely influenced the visibility and accessibility of these geological features. As the farthest upstream dam on the Columbia River, Mica Dam's impact extends downstream, with water flowing directly into Revelstoke Lake, the reservoir for the Revelstoke Dam. This interconnected system highlights the dam's role in the broader regional water management and infrastructure network. The dam's status as one of the largest earthfill dams in the world underscores the scale of the geographic transformation it initiated.
Water Management and Treaty Obligations
Mica Dam’s operational framework is fundamentally defined by the 1964 Columbia River Treaty, an international agreement between Canada and the United States that governs water flow and power generation along the river system. As one of the three major Canadian projects constructed under this treaty, the dam plays a critical role in managing reservoir levels to optimize hydroelectric output for both nations. The reservoir created by the dam is Kinbasket Lake, which serves as a primary storage basin. Water released from Mica flows south directly into Revelstoke Lake, the reservoir for the downstream Revelstoke Dam, creating a cascading effect that influences power generation further along the river.
Treaty Storage and Flow Management
The Columbia River Treaty establishes specific obligations for Canadian storage, distinguishing between treaty and non-treaty storage volumes. Treaty storage refers to the water held in Canadian reservoirs, such as Kinbasket Lake, that is released to benefit downstream U.S. power generation, particularly in the Pacific Northwest. Non-treaty storage consists of water retained primarily for Canadian power production. The management of these volumes requires precise coordination to balance the generating capacity of Mica’s powerhouse, which had an original capacity of 1,805 MW, with the flow requirements of downstream projects.
Agreements with the Bonneville Power Administration
Coordination with the Bonneville Power Administration (BPA) is essential for the efficient operation of the Columbia River system. The BPA, a major power marketing agency in the Pacific Northwest, relies on the regulated flows from Canadian dams like Mica to stabilize and maximize hydroelectric generation. The treaty framework facilitates this cooperation, allowing for the exchange of power and the sharing of benefits derived from the river’s flow. The dam’s infrastructure, including the first 500 kV installation of sulphur hexafluoride insulated switchgear in the world, supports the high-voltage transmission required for these cross-border energy exchanges.
Long-Term Negotiations
Negotiations for long-term agreements to update the Columbia River Treaty began in 2011. These discussions aimed to address evolving energy markets, climate change impacts, and the need for greater flexibility in water management. The negotiations sought to redefine the terms of cooperation between Canada and the United States, potentially altering how storage volumes are allocated and how benefits are shared. The outcome of these long-term agreements continues to influence the operational strategies of BC Hydro and the broader management of the Columbia River basin.
Why it matters
Mica Dam holds a prominent position in North American energy infrastructure as the tallest dam in Canada and the second tallest on the continent, surpassed only by the Chicoasén Dam in Mexico. Its structural height and scale are not merely geographic distinctions but reflect its critical engineering role in managing the Columbia River's flow. As the farthest upstream dam on the Columbia River, Mica serves as the primary headwater control point for the entire Canadian section of the river system. This sequential arrangement is fundamental to the hydroelectric cascade, ensuring consistent water delivery for power generation further downriver.
Treaty Framework and Regional Impact
The dam was constructed as one of three major Canadian projects mandated by the 1964 Columbia River Treaty, an international agreement between Canada and the United States designed to optimize hydropower production and flood control. Operated by BC Hydro, Mica was completed in 1973 and originally commissioned with a generating capacity of 1,805 megawatts. This initial capacity established it as a cornerstone of British Columbia's power grid, providing substantial baseload power to the province. The treaty framework required significant infrastructure investment to regulate the river's seasonal fluctuations, and Mica's earthfill embankment design was chosen to handle the vast volume of water in the upper Columbia basin. The dam's operation is integral to the treaty's objectives, balancing energy production for Canadian consumers with flow regulation benefits for American utilities downstream.
Engineering Innovations
Beyond its height, Mica Dam introduced significant technical advancements to hydroelectric engineering. Its underground powerhouse was the second largest in the world at the time of its construction, a feat that allowed for efficient integration with the surrounding terrain and minimized surface footprint. The facility also marked a milestone in electrical engineering as the first installation in the world to utilize 500 kV sulphur hexafluoride (SF6) insulated switchgear. This innovation improved the reliability and compactness of the electrical transmission infrastructure, supporting the efficient export of power from the remote location.
Proposed Pumped Storage Expansion
In 2017, BC Hydro advanced a proposal to integrate pumped storage capabilities into the Mica Dam complex, aiming to enhance grid flexibility and leverage the existing infrastructure of Kinbasket Lake and the downstream Revelstoke Lake. This initiative sought to capitalize on the significant elevation difference between the two reservoirs, which are already hydraulically connected, to create a large-scale energy storage solution. The proposal emerged during a period of strategic reassessment of British Columbia's power generation portfolio, particularly concerning the potential cancellation of the John Horgan Dam project on the Nechako River.
Strategic Context and Wind Integration
The pumped storage expansion was closely tied to the broader energy mix of the province, specifically the integration of variable renewable energy sources such as wind power. If the John Horgan Dam was to be cancelled, the resulting capacity gap and the need for additional peaking power could be partially offset by utilizing Mica's reservoirs for storage. Wind farms in the region could generate excess power during peak wind periods, pumping water from the lower Revelstoke Lake up to Kinbasket Lake, effectively storing energy as gravitational potential. This stored water could then be released through the Mica turbines during periods of high demand or low wind output, providing a reliable baseload or peaking supplement.
The technical feasibility of this integration relies on the existing earthfill dam structure and the underground powerhouse, which was noted for its scale and advanced switchgear at the time of its 1973 completion. By adding pumping capabilities, the facility could transition from a primarily run-of-river or storage-release model to a hybrid pumped-storage system, increasing the operational value of the 2805 MW installed capacity. This approach aligns with global trends in hydroelectric modernization, where existing dams are retrofitted to serve as batteries for the grid, balancing the intermittency of wind and solar inputs.
The proposal highlights the strategic importance of the Columbia River Treaty projects, which include Mica, in maintaining regional energy security. By enhancing the storage capacity of Kinbasket Lake, BC Hydro aims to maximize the efficiency of water usage across the three Canadian projects under the treaty. The integration of pumped storage at Mica represents a significant investment in infrastructure that could extend the operational relevance of the dam well into the mid-21st century, adapting to the evolving demands of the North American power grid.
