Overview
Metal stitching is an established industrial technique designed for the repair of cracked and broken structures fabricated from cast iron, steel, bronze, or aluminium. As a cold repair method, the process is executed without the application of welding heat, distinguishing it from traditional thermal joining or restoration procedures. The technique has been in operational use since 1937, providing a long-standing solution for maintaining the structural integrity of metallic components across various engineering disciplines. Its primary application involves the restoration of cast iron and cast steel elements, which are particularly susceptible to fracture due to their inherent brittleness and susceptibility to thermal stress. However, the versatility of metal stitching extends to other metals, including bronze and aluminium, allowing for a broad range of industrial repairs where conventional welding may introduce complications.
The fundamental advantage of metal stitching lies in its ability to achieve robust repairs without inducing the distortion and residual stresses commonly associated with welding. Welding processes require significant localized heating, which can lead to thermal expansion and subsequent contraction, often resulting in warping or dimensional changes in the repaired component. This thermal distortion can be particularly problematic in precision-engineered parts or large-scale structures where maintaining exact geometries is critical. By operating as a cold process, metal stitching eliminates these thermal variables, ensuring that the repaired structure retains its original shape and dimensional accuracy. This characteristic makes the technique especially valuable for in-situ repairs, where removing the component for workshop welding might be logistically challenging or economically inefficient.
In situations where heat application is restricted or undesirable, metal stitching offers a reliable alternative for achieving structural continuity. For instance, in environments with heat-sensitive materials adjacent to the repair site, or where the risk of hydrogen embrittlement in steel is a concern, the cold nature of the stitching process mitigates potential secondary defects. The technique allows engineers to address fractures and breaks effectively, restoring load-bearing capacity without the need for extensive heat input. This capability supports the longevity of industrial assets, reducing downtime and maintenance costs while preserving the mechanical properties of the base materials. The method’s adaptability to various metals and its efficiency in both workshop and field settings underscore its continued relevance in modern industrial maintenance and repair strategies.
History and development
Metal stitching emerged as a distinct industrial repair technique in the late 1930s, originating in the oil fields of Texas. The method was developed to address the specific challenges of repairing cracked and broken cast iron, steel, bronze, and aluminium structures without the thermal distortion often caused by traditional welding. This cold process allowed for in-situ repairs where heat application was either impractical or detrimental to the structural integrity of the component.
Founding and Early Patents
The foundational work for metal stitching is attributed to key figures Hal W. Harman, Lawrence B. Scott, Fred Lewis, and Earl Reynolds. These pioneers filed critical patent applications in 1937 and 1938, formalizing the technique’s mechanical approach to structural repair. The commercialization of the technology led to the formation of the Metalock Corporation, which established a franchise model to expand the reach of the stitching method across various industrial sectors. This early organizational structure helped standardize the application of the technique, ensuring consistent quality in repairs for cast iron and cast steel components.
International Expansion
Following its establishment in North America, the technique expanded globally. In 1947, Major Edward Peckham played a pivotal role in introducing metal stitching to Europe, facilitating its adoption in post-war industrial reconstruction efforts. The growing international presence of the technology culminated in the establishment of the Metalock International Association in 1953. This organization served to coordinate standards and share best practices among practitioners across different regions.
Research and Refinement
From 1953 through the 1970s, significant research and improvements to the metal stitching process were conducted in Sweden, Germany, and the United Kingdom. These efforts focused on refining the mechanical properties of the stitches and optimizing the technique for a broader range of materials and environmental conditions. The research during this period solidified metal stitching as a reliable, cold-repair solution for critical infrastructure, distinguishing it from heat-dependent welding methods.
How does metal stitching work?
Metal stitching is a cold repair technique used to join fractured cast iron, steel, bronze, or aluminium components without the application of significant heat. This method is particularly valuable for cast iron, which can be prone to distortion and cracking when subjected to the thermal stresses of traditional welding. The process mimics the mechanics of sewing fabric, using interlocking metal keys to pull the two sides of a break together and secure them firmly.
Process Overview

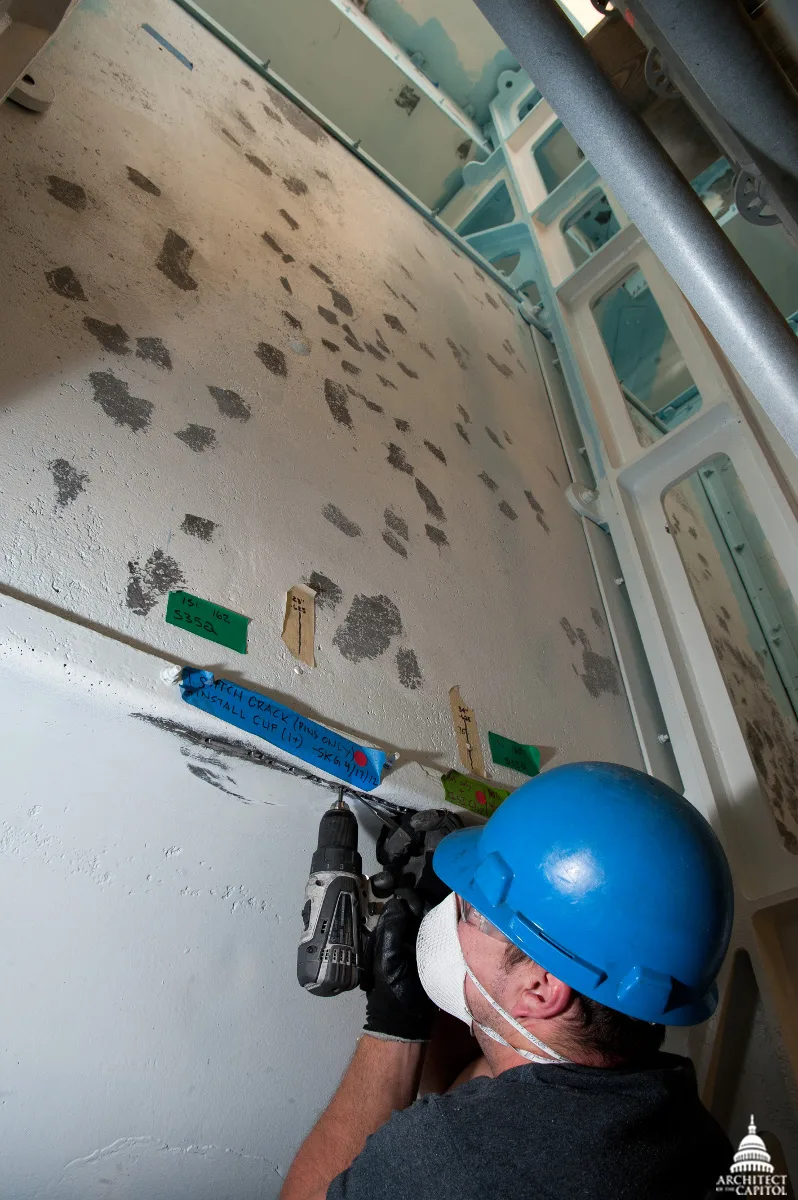

The procedure begins with the preparation of the fracture site. The two broken surfaces are cleaned and aligned to ensure a tight fit. Once the parts are positioned, a series of holes are drilled through the material on either side of the crack. These holes are typically arranged in a staggered pattern to distribute the stress evenly across the repair area.
| Step | Action | Detail |
|---|---|---|
| 1 | Preparation | Clean and align the fractured surfaces to minimize gaps. |
| 2 | Drilling | Drill staggered holes through the material on both sides of the crack. |
| 3 | Key Insertion | Insert metal alloy locks or keys into the holes at right angles to the fracture. |
| 4 | Hammering | Hammer the keys to expand them, pulling the fracture edges tightly together. |
| 5 | Finishing | Trim or file the keys to create the characteristic visual 'stitch' appearance. |
The core of the technique involves inserting specialized metal alloy locks or keys into the drilled holes. These keys are oriented at right angles to the direction of the fracture. As the keys are hammered into place, they expand within the holes, creating a mechanical interlock that pulls the two sides of the break together. This action generates significant clamping force, holding the components in compression. The result is a strong, durable joint that can withstand operational stresses without the need for welding heat, making it ideal for in-situ repairs where thermal distortion must be avoided. The final appearance resembles a row of stitches, hence the name "metal stitching."
What distinguishes metal stitching from welding?
Metal stitching serves as a distinct alternative to welding, primarily defined by its cold-working nature. While welding relies on localized heat fusion to join or repair materials, metal stitching achieves structural integrity without introducing significant thermal energy to the parent metal. This fundamental difference addresses several critical limitations inherent in traditional welding processes, particularly when repairing cast iron, steel, bronze, or aluminum structures.
Thermal Stress and Grain Structure
Welding introduces intense thermal stresses that can alter the metallurgical properties of the base material. The rapid heating and cooling cycles during welding change the grain structure, potentially leading to brittleness or residual stresses within the component. In contrast, metal stitching maintains the original grain structure of the parent metal. By avoiding high temperatures, the technique prevents the thermal shock that often weakens cast iron and other sensitive alloys. This preservation of metallurgical integrity is crucial for components where the parent metal's strength must remain uncompromised.
Alignment and Distortion
Heat-induced distortion is a common challenge in welding, especially for large or complex structures. The expansion and contraction of metal during the welding process can shift alignment, requiring additional machining or adjustment to restore precision. Metal stitching avoids this issue by maintaining the original alignment of the components. The cold process ensures that the repaired structure retains its dimensional accuracy, which is essential for in-situ repairs where disassembly is costly or time-consuming. This stability is particularly valuable in industrial settings where minimal downtime is critical.
Stress Distribution and Expansion
Metal stitching effectively manages mechanical stresses by acting as an expansion joint. The technique dampens compression stresses and distributes tensional loads across the repaired area. This distribution helps prevent stress concentration points that could lead to further cracking or failure. Unlike welding, which can create rigid joints that may crack under cyclic loading, metal stitching provides a more flexible connection that accommodates minor movements. This flexibility enhances the durability of the repair, especially in dynamic environments where components are subjected to varying loads.
Sealing Capabilities
In addition to structural reinforcement, metal stitching offers effective sealing capabilities for pressurized interfaces. The technique can create tight seals that prevent leaks in pipes, tanks, and other pressurized components. This sealing function is achieved through the precise placement of stitching elements that compress against the parent metal, forming a barrier to fluid or gas escape. This dual function of structural repair and sealing makes metal stitching a versatile solution for maintaining the integrity of pressurized systems without the need for extensive disassembly or heat application.
Applications and use cases
Metal stitching is primarily utilized in industrial environments where the application of heat poses significant risks to structural integrity or operational safety. The technique is particularly valuable for repairing cracked and broken cast iron, steel, bronze, or aluminium structures and their components. Because the process is carried out cold, without welding, it allows the repair of cast iron and cast steel, often in-situ, without the distortion from welding, and can be used in other situations where heat cannot be used to achieve a repair. This characteristic makes it indispensable in hazardous environments.
Oil and Gas Installations
In oil installations, engine rooms, and hazardous oilfields, the presence of flammable vapors and pressurized fluids often renders traditional welding dangerous. The heat generated by welding can ignite surrounding fuels or cause thermal stress in already compromised metal. Metal stitching provides a cold repair solution that minimizes the risk of ignition and structural distortion. These in-situ repairs with minimal dismantling allow for faster return to service compared to hot-work methods that require extensive purging and cooling periods.
Marine and Naval Applications
The technique has a documented history of use on US Naval vessels during and after WWII. Ship propellers, which are often large cast components, can be repaired using metal stitching to restore structural continuity without the need for extensive machining or welding that might alter the metallurgical properties of the bronze or steel. Underwater repairs also benefit from this cold process, allowing for the stabilization of hull breaches or component failures without the immediate introduction of heat into the marine environment, which can affect surrounding systems and materials.
Mining and Heavy Industry
Large mining equipment operating underground often faces challenges with access and heat dissipation. Metal stitching enables the repair of critical components in these confined spaces. The ability to perform in-situ repairs with minimal dismantling reduces downtime for heavy machinery. This is particularly relevant for cast iron and cast steel components that are prone to cracking under cyclic loading. The cold nature of the process ensures that the surrounding structure remains stable, preventing further fractures that might be induced by thermal expansion and contraction.
Variations and related techniques
Metal stitching is recognized under several proprietary and descriptive trade names, reflecting the evolution of the technique and the specific mechanical implementations used by different manufacturers. The most widely recognized commercial variation is Metalock, a brand name that has become almost synonymous with the cold-repair process for cast iron and steel structures. Other common designations include Metal Locking and Metal Stitch, which emphasize the mechanical interlocking nature of the repair. Specific patented systems have introduced their own nomenclature to distinguish their mechanical advantages and proprietary hardware.
Proprietary Systems and Inventors
One notable variation is the Chainlock system, attributed to Hal Harman. This approach utilizes a specific configuration of stitching elements to secure cracked components, offering a distinct mechanical profile compared to standard flat-stitch methods. Another significant commercial iteration is Lock-N-Stitch, developed by Gary J Reed. This system represents a modern adaptation of the cold-repair concept, often incorporating updated materials and installation tools to enhance efficiency in industrial settings. These proprietary systems compete in the market by offering specialized solutions for different structural geometries and load-bearing requirements.
Historical Competition and Patent Disputes
The development of metal stitching was not without significant industrial rivalry, particularly during the mid-20th century. Historical records indicate notable competition and patent disputes between key figures in the field, specifically between Harman and Scott. These disputes centered on the fundamental mechanical designs of the stitching elements and the methods of installation. The rivalry between Harman and Scott influenced the standardization of the technique, as each party sought to protect their intellectual property and establish dominance in the repair market for cast iron and steel infrastructure. These legal and technical battles helped define the boundaries of the technology, leading to the diverse range of systems available today.
The existence of multiple trade names and competing systems underscores the versatility of the metal stitching concept. While the core principle remains the cold repair of cracked structures without welding, the specific implementation varies significantly depending on the chosen proprietary method. Engineers selecting a repair technique must consider the specific advantages of systems like Metalock, Chainlock, or Lock-N-Stitch, as well as the historical precedents set by the competitive landscape between inventors like Harman and Scott. This diversity ensures that there is a suitable cold-repair solution for a wide array of industrial challenges, from large-scale bridge components to intricate engine blocks.
Significance in industrial maintenance
Metal stitching serves as a critical alternative to traditional welding in industrial maintenance, particularly for cast iron, steel, bronze, and aluminium structures. The primary advantage of this technique is its ability to repair components cold, eliminating the thermal distortion often associated with welding processes. This characteristic makes it indispensable for maintaining the original equipment strength design patterns, ensuring that repaired components retain their structural integrity without the stress induced by heat. Consequently, metal stitching has been recognized as a standard repair method approved by the US Navy, highlighting its reliability and effectiveness in demanding environments.
Advantages Over Welding
The decision to use metal stitching over welding is often driven by the need to minimize heat input. In many industrial applications, excessive heat can lead to warping, cracking, or changes in the metallurgical properties of the material. Metal stitching avoids these issues by using a mechanical interlocking process, which allows for in-situ repairs without the need for extensive preparation or post-repair machining. This makes it particularly useful for large structures where removing the component for welding might be cumbersome or costly.
Historical Context and Popularity
Since its commissioning in 1937, metal stitching has gained significant popularity among engineers and manufacturing sectors. During the mid-20th century, as industrial production expanded, the need for efficient and reliable repair methods became increasingly important. Metal stitching provided a solution that could be applied quickly and effectively, reducing downtime and extending the lifespan of critical components. Its adoption by various industries, including the US Navy, further cemented its status as a credible and trusted repair technique.
The technique's ability to maintain the original design strength of equipment is a key factor in its enduring popularity. Engineers appreciate the precision and control offered by metal stitching, which allows for repairs that are both durable and aesthetically pleasing. This has made it a preferred choice for maintaining the performance and appearance of industrial assets, contributing to its widespread use across different sectors.
