Overview
The Megawatt Charging System (MCS) represents a specialized charging connector concept designed specifically for large battery electric vehicles. Unlike standard charging solutions often utilized by passenger cars, MCS targets the higher power demands of heavy-duty transport and large-scale electric mobility. The system is currently under development and is positioned as a worldwide standard, driven by the efforts of CharIN. CharIN serves as the primary operator and driving force behind this initiative, aiming to unify charging infrastructure for high-capacity electric vehicles globally.
The technical specifications of MCS are defined by a maximum charging rate of 3.75 megawatts. This capacity is achieved through a direct current (DC) configuration, specifically rated at 3000 amps at 1250 volts. The relationship between power, voltage, and current is fundamental to this design, expressed as P=V×I, where the 3.75 MW output results from the 1250 V and 3000 A parameters. This high-voltage, high-current approach distinguishes MCS from lower-capacity alternatives, enabling faster energy transfer essential for minimizing downtime in commercial and large-scale electric vehicle operations.
Commissioned in 2018, the MCS project has progressed through various stages of development to establish its technical parameters and market relevance. The focus on a 3.75 MW rating reflects the growing need for efficient energy infrastructure capable of supporting the increasing weight and battery sizes of modern electric vehicles. By standardizing this connector, CharIN aims to reduce fragmentation in the charging market, providing a consistent interface for manufacturers and operators. The system’s design prioritizes reliability and efficiency, ensuring that large battery electric vehicles can access high-power charging with minimal infrastructure complexity.
The development of MCS underscores a strategic shift in energy infrastructure planning, where charging speed and capacity are critical factors for the adoption of electric vehicles in sectors beyond personal transportation. The 3.75 MW capability allows for significant reductions in charging time, which is particularly beneficial for fleet operations and long-haul transport. As the system continues to evolve, its role in shaping the global charging landscape remains pivotal, offering a robust solution for the next generation of large battery electric vehicles.
History of the MCS Standard
The Megawatt Charging System (MCS) standardization process was initiated by CharIN in 2018, establishing the High Power Charging for Commercial Vehicles (HPCCV) task force to address the electrical interface needs of large battery electric vehicles. This foundational work aimed to define a connector rated for a maximum charging rate of 3.75 megawatts, a significant increase over previous standards to accommodate trucks and buses. The development trajectory moved from initial concept validation to formal international recognition, culminating in the release of IEC 63379 version 1.0 in 2026. This timeline reflects a coordinated effort to harmonize technical specifications across global markets, ensuring interoperability for heavy-duty electric transport.Standardization Timeline
The evolution of the MCS standard is documented through a series of version releases and key milestones. The following table outlines the chronological development from the initial task force formation to the recent IEC publication.| Year | Event / Version |
|---|---|
| 2018 | CharIN establishes the HPCCV task force; MCS concept initiation |
| 2018 | Initial technical specifications for 3.75 MW rating defined |
| 2019–2025 | Iterative development of MCS versions (1.0 through 3.2) |
| 2026 | Release of IEC 63379 version 1.0 |

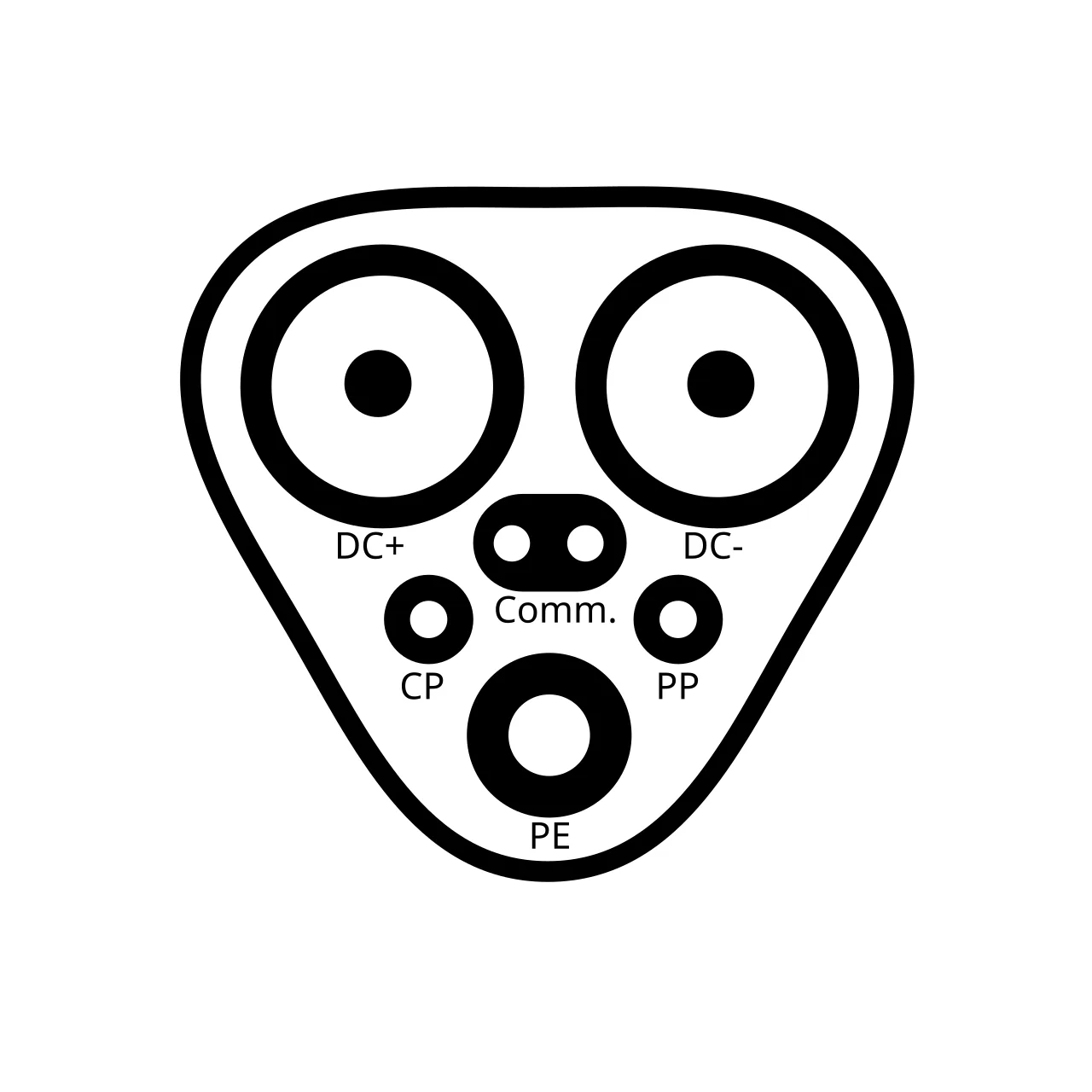

How does the MCS connector design work?
The Megawatt Charging System (MCS) is engineered as a single conductive plug solution designed to streamline the charging infrastructure for large battery electric vehicles, particularly heavy-duty trucks and buses. The system is rated for a maximum charging rate of 3.75 megawatts, enabling rapid energy replenishment that significantly reduces downtime in commercial logistics operations. This high-power capability is achieved through a robust electrical architecture that supports direct current (DC) transmission at elevated voltage and current levels.
Electrical Specifications and Limits
The MCS connector is designed to handle a maximum voltage of 1250 V DC and a current of 3000 A. These parameters allow for the high power delivery required by large battery packs. At the upper limits of the system, the power output reaches 3.75 MW, calculated as 1250 V×3000 A. This high-current design necessitates precise thermal management and robust conductor sizing to minimize resistive losses and heat generation during extended charging sessions.
| Parameter | Specification |
|---|---|
| Maximum Power | 3.75 MW |
| Maximum Voltage | 1250 V DC |
| Maximum Current | 3000 A |
| Connector Type | Single conductive plug |
| Communication Protocol | ISO 15118-20, Single-pair Ethernet |
Ergonomics and Safety Features
Given the high currents involved, safety is a critical aspect of the MCS design. The connector incorporates touch-safe features to protect users from electric shock, even when the plug is partially inserted or withdrawn. The ergonomic placement of the connector on the vehicle is optimized for ease of access, typically positioned at a height that minimizes bending for drivers and operators. The single-plug design simplifies the physical interface compared to earlier multi-plug systems, reducing the complexity of the charging process and enhancing user experience.
Communication Protocols
Efficient communication between the vehicle and the charging station is essential for managing the high power flow. The MCS utilizes the ISO 15118-20 standard, which enables bidirectional communication and supports features such as plug-and-charge functionality. This protocol allows the vehicle to automatically authenticate and negotiate charging parameters with the station, streamlining the user experience. Additionally, the system employs Single-pair Ethernet (SPE) for data transmission, providing a reliable and high-speed communication link that can handle the increased data throughput required for advanced charging management and future-proofing the system for emerging technologies.
What are the main applications of MCS?
The Megawatt Charging System (MCS) is specifically engineered to address the rapid charging demands of large battery electric vehicles (BEVs) that exceed the capabilities of standard passenger car connectors. The primary target applications include heavy-duty commercial transport, particularly Class 6, Class 7, and Class 8 trucks, as well as electric buses operating in urban and intercity routes. These vehicle classes require high power throughput to minimize downtime during shift changes and long-haul stops, making the MCS rating of 3.75 megawatts a critical specification for operational efficiency (CharIN). The system is currently under development and was commissioned in 2018, positioning it as a foundational technology for the electrification of heavy transport sectors (CharIN).
Compatibility with Existing Standards
One of the strategic advantages of the MCS is its compatibility with existing charging infrastructure standards, specifically CCS (Combined Charging System) and ChaoJi. This design choice facilitates a smoother transition for fleet operators who may not immediately replace their entire charging ecosystem. The MCS connector can utilize the pins of the CCS1 and CCS2 connectors, allowing for backward compatibility while introducing additional pins for higher current and voltage requirements. This interoperability ensures that vehicles equipped with MCS can leverage existing DC fast-charging networks, reducing capital expenditure for early adopters. The alignment with ChaoJi, a prominent Asian standard, further enhances its global applicability, supporting international fleet operations and standardization efforts.
Automated Charging Capabilities
The MCS is designed to support automated charging, a feature particularly beneficial for buses and trucks with predictable routing and stop patterns. Automated charging systems can reduce the time required for connection and disconnection, further enhancing operational efficiency. This capability is crucial for high-frequency routes where manual plugging and unplugging can become a bottleneck. The robust design of the MCS connector ensures durability under frequent automated mating cycles, maintaining reliable electrical contact and minimizing wear and tear. As the MCS continues to evolve, its integration with automated charging solutions is expected to play a significant role in the widespread adoption of electric heavy-duty vehicles.
Global Implementation and Pilot Projects
The Megawatt Charging System (MCS) is currently under construction as a standardized charging connector for large battery electric vehicles, with a maximum rated charging rate of 3.75 megawatts (per CharIN). The system is operated by CharIN and was commissioned in 2018. Global implementation efforts focus on pilot projects in key European markets, including Sweden, Germany, and broader European partnerships involving Shell, E.On, and MAN. These initiatives aim to validate the MCS technology in real-world conditions, supporting the transition to high-power charging infrastructure for heavy-duty electric vehicles.
Sweden: E-Charge Pilot
In Sweden, the E-Charge project serves as a prominent pilot for MCS implementation. This initiative demonstrates the practical application of 3.75 MW charging rates for large electric vehicles, leveraging the country's robust energy infrastructure. The project highlights the integration of high-power charging stations into existing transport networks, providing valuable data on efficiency and user experience.
Germany: HoLa and BMV Program
Germany hosts significant MCS pilot projects under the HoLa (High Power Charging) initiative and the BMV (Bundesministerium für Verkehr) program. These projects focus on deploying MCS connectors across major highways and urban hubs, testing the 3.75 MW capacity in diverse operational environments. The German pilots emphasize interoperability and grid integration, crucial for scaling MCS adoption nationwide.
Europe: Shell, E.On, and MAN Collaboration
Across Europe, collaborations between Shell, E.On, and MAN drive further MCS pilot projects. These partnerships combine energy supply, grid management, and vehicle manufacturing expertise to optimize MCS deployment. The projects explore commercial viability and technical performance, supporting the broader European goal of standardizing high-power charging for electric mobility.
| Location | Partners | Power Rating |
|---|---|---|
| Sweden | E-Charge | 3.75 MW |
| Germany | HoLa, BMV | 3.75 MW |
| Europe | Shell, E.On, MAN | 3.75 MW |
Significance for Commercial Electric Mobility
The development of the Megawatt Charging System (MCS) represents a critical infrastructure shift for heavy-duty electric mobility, addressing the specific power density requirements of commercial logistics fleets. Unlike passenger vehicles, heavy trucks and buses require rapid energy replenishment to minimize downtime, a key operational cost driver. The MCS connector, rated for a maximum charging rate of 3.75 megawatts, enables these vehicles to recover significant range in short intervals, facilitating continuous operation on long-haul routes (CharIN). This high-power capability is essential for transitioning sectors such as freight transport and public transit from diesel to battery electric vehicles (BEVs) without sacrificing logistical efficiency.
Standardization and Global Interoperability
Interoperability is paramount for the widespread adoption of MCS across global markets. The standardization efforts are primarily driven by CharIN, the operator of the MCS concept, which has worked to align technical specifications with international standards bodies. The SAE J3271 standard, developed by the Society of Automotive Engineers, defines the electrical and mechanical characteristics of the MCS connector, ensuring compatibility between vehicles and charging infrastructure. Similarly, the IEC 63379 standard provides an international framework for MCS implementation, facilitating cross-border consistency in charging protocols. These standards ensure that manufacturers of heavy-duty electric vehicles and charging station providers can integrate MCS technology seamlessly, reducing fragmentation in the emerging market for high-power charging.
The alignment of SAE J3271 and IEC 63379 supports a unified global approach to MCS deployment. By establishing common technical requirements, these standards reduce barriers to entry for new market participants and encourage investment in MCS-compatible infrastructure. This standardization is particularly important for international logistics networks, where vehicles may operate across multiple regions with varying charging infrastructure. The MCS standard thus serves as a foundational element for the global commercial electric mobility ecosystem, enabling scalable and interoperable high-power charging solutions for heavy-duty applications.
