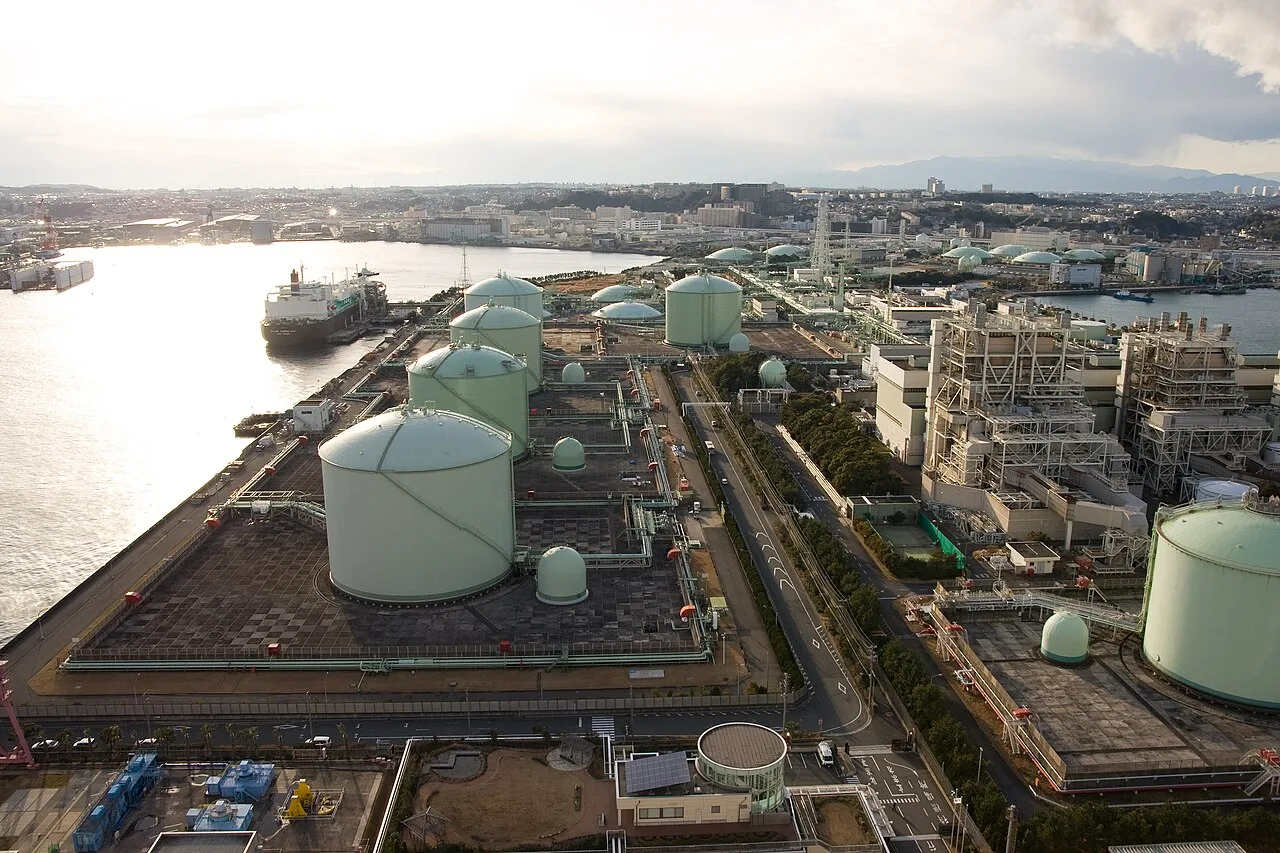

Liquefied natural gas terminal: Infrastructure, processes and operations

Overview

A liquefied natural gas terminal is a specialized industrial facility designed for the management of the import and/or export of liquefied natural gas (LNG). These terminals serve as critical nodes in the global energy infrastructure, enabling the efficient transport of natural gas over long distances, primarily by sea. The conversion of natural gas into a liquid state significantly reduces its volume, making maritime transportation the most efficient method for moving the fuel across continents. As a concept, the LNG terminal encompasses a complex array of equipment and processes required to handle the cryogenic fluid from the moment it arrives on an ocean-going tanker until it is delivered into the receiving pipeline network or prepared for export.

Core Operational Functions

The primary function of an LNG terminal is to facilitate the seamless transition of natural gas between its liquid and gaseous states, depending on whether the facility is focused on import or export. This involves a series of intricate operations including the loading and unloading of LNG cargo to and from ocean-going tankers. The terminal infrastructure must accommodate the transfer of the cargo across the site, utilizing specialized pumping and compression systems to move the cryogenic liquid efficiently. Key processes include liquefaction, where natural gas is cooled to approximately -162°C to become a liquid, and re-gasification, where the LNG is warmed and returned to its gaseous state for distribution. Additionally, terminals manage the storage, processing, and precise metering of LNG, ensuring that the fuel meets quality standards before entering the broader energy grid. The operational status of these facilities is generally maintained as active, supporting the continuous flow of natural gas in the global market.

What are the main types of LNG terminals?

Liquefied natural gas terminals are categorized by their primary function in the global LNG supply chain: exporting gas from production basins or importing gas into consuming markets. The fundamental distinction lies in whether the terminal's main process is liquefaction, which converts natural gas into liquid form for transport, or regasification, which returns the liquid to its gaseous state for distribution via pipeline. These facilities manage the import and/or export of liquefied natural gas, comprising equipment for loading and unloading of LNG cargo to/from ocean-going tankers, for transfer across the site, liquefaction, re-gasification, processing, storage, pumping, compression, and metering of LNG. The choice of terminal type depends on the geographic location of the gas field relative to the end-user and the efficiency of sea transport for long distances.

Export and Import Terminals

Export terminals, known as liquefaction terminals, are typically located near major natural gas fields. Their primary role is to process raw natural gas, removing impurities before cooling it to approximately -162°C to become LNG. This liquid state allows for efficient transport over long distances, usually by sea. These facilities feature extensive processing and liquefaction equipment, along with storage tanks and loading arms for ocean-going tankers.

Import terminals, or regasification terminals, are situated in consuming regions. They receive LNG via tankers, store the liquid, and then warm it back into natural gas for injection into the local pipeline network. These terminals focus on storage, pumping, compression, and metering, with the core technology being the heat exchangers used for re-gasification. They enable countries without domestic gas production to secure energy supplies through global trade.

Comparison of Terminal Types

Feature	Liquefaction (Export)	Regasification (Import)
Primary Process	Liquefaction	Re-gasification
Location	Near gas production fields	Near consuming markets
Key Equipment	Processing, liquefaction units	Storage, heat exchangers
Transport Role	Loading onto tankers	Unloading from tankers

Some facilities are combined terminals, performing both liquefaction and regasification. These hybrid sites offer flexibility, allowing for the export of surplus gas and the import of additional volumes during peak demand. This dual capability enhances the resilience of the energy infrastructure, integrating processing, storage, pumping, compression, and metering of LNG in a single operational footprint. The efficiency of LNG as a liquid makes it the most efficient way to transport natural gas over long distances, supporting the diverse configurations of these critical energy nodes.

Floating storage and regasification units (FSRU)

Floating storage and regasification units (FSRU) represent a specialized category of liquefied natural gas terminal infrastructure, designed primarily as ship-based facilities moored in proximity to coastal ports. Unlike fixed onshore terminals that require extensive civil engineering works including large storage tanks and dedicated jetty structures, FSRUs integrate the core functions of LNG storage, regasification, and sometimes initial processing directly onto a modified ocean-going tanker vessel. This configuration allows for greater flexibility in deployment, enabling energy operators to bring LNG receiving capacity online with reduced lead times compared to traditional greenfield terminal projects. The FSRU typically arrives at the designated port, is moored to a floating jetty or a fixed quay, and connects via subsea pipelines or flexible hoses to the onshore gas distribution network. The vessel itself serves as the primary storage vessel, utilizing insulated cargo tanks to maintain the natural gas in its liquefied state at approximately -162 °C before it is pumped through heat exchangers to convert it back into gaseous form for injection into the grid.

The operational footprint of FSRU technology expanded significantly in the early 2010s, reflecting the global energy sector's demand for modular and adaptable LNG infrastructure. As of January 2014, FSRU terminals were actively operating in a diverse range of geographic markets across multiple continents. In South America, Brazil and Argentina utilized FSRUs to enhance their import capabilities, allowing for more competitive gas pricing and reduced dependency on pipeline imports from neighboring countries. In the Middle East, Kuwait and the United Arab Emirates deployed FSRU units to manage both import and export flows, leveraging the technology to optimize their existing gas reserves and meet growing regional demand. Israel also operated an FSRU terminal, which played a crucial role in its energy security strategy by providing a flexible import option alongside its domestic offshore gas fields.

In Europe, Italy and Lithuania maintained operational FSRU terminals. For Lithuania, the FSRU represented a strategic milestone in its quest for energy independence, allowing the Baltic nation to receive LNG directly via the sea, thereby reducing reliance on pipeline gas from eastern neighbors. In Asia, Indonesia and China operated FSRU units to support their rapidly growing natural gas consumption. Indonesia, being both a major producer and consumer, used FSRUs to balance domestic supply and export commitments, while China utilized the technology to accelerate the development of its LNG receiving infrastructure in key coastal provinces. Turkey also operated an FSRU terminal, which served as a critical node in its strategy to become a regional energy hub, facilitating the import of LNG to meet domestic heating and power generation needs while potentially transiting gas to European markets. These locations demonstrate the versatility of FSRU technology in adapting to diverse geographic, economic, and geopolitical contexts, providing a scalable solution for natural gas import and export operations worldwide.

How do LNG unloading and loading systems work?

Liquefied natural gas (LNG) terminals are critical infrastructure nodes designed to manage the import and export of natural gas in its liquid state. The core function of these facilities involves the efficient transfer of LNG cargo between ocean-going tankers and onshore storage or processing units. This process relies on specialized unloading and loading systems, which must withstand extreme cryogenic conditions while maintaining operational continuity.

Infrastructure and Articulated Loading Arms

The interface between the terminal and the tanker is typically established via jetties or piers that extend into the water. These structures can reach lengths of up to 4,000 feet (1,200 m) to accommodate deep-water docking requirements, allowing large vessels to anchor close to the shore or offshore storage tanks. The connection is facilitated by articulated loading arms, which are flexible piping systems that bridge the gap between the fixed pier infrastructure and the moving tanker. These arms must handle the relative motion caused by tides, currents, and vessel heave, ensuring a leak-tight seal during the transfer process.

Cryogenic Materials and Insulation

LNG is stored and transported at a cryogenic temperature of approximately −162 °C. This extreme cold imposes stringent material requirements for the piping and loading arms. Standard carbon steel becomes brittle at these temperatures, necessitating the use of specialized alloys. Common materials include aluminium alloys containing 3 to 5 percent magnesium and high nickel steels with 9 percent nickel content. These materials maintain ductility and strength under cryogenic stress. Additionally, extensive insulation is applied to the piping systems to minimize heat ingress, which could cause the LNG to re-gasify prematurely or create vapor lock in the lines.

Tanker Capacities and System Sizing

The design of the unloading and loading systems is directly influenced by the capacity of the LNG carriers. Modern terminals are engineered to handle a wide range of vessel sizes. For example, Q-Flex tankers typically have capacities ranging from 70,000 to 217,000 m³, while the larger Q-Max tankers can hold between 125,000 to 266,000 m³. The piping diameter, pumping compression, and metering equipment must be sized to efficiently move these volumes within acceptable turnaround times, ensuring that the terminal can maintain high throughput for global energy supply chains.

LNG storage infrastructure and containment

LNG storage infrastructure is a critical component of any liquefied natural gas terminal, designed to maintain the cryogenic state of natural gas at approximately -162 °C. The primary storage solution for large-scale terminals is the double-wall tank. This design features an inner tank constructed from low-temperature alloys, such as 9% nickel steel or aluminum, which directly contacts the LNG. This inner vessel is surrounded by a thick layer of insulation, typically perlite or vacuum-insulated panels, which minimizes heat ingress. The outer tank, made of carbon steel or prestressed concrete, provides structural support and secondary containment.

Containment and Insulation Technologies

The integrity of the inner tank is paramount. The insulation layer must be meticulously maintained to prevent thermal bridging, which can lead to increased boil-off rates. In some designs, the space between the inner and outer tanks is filled with dry air or nitrogen to further enhance thermal performance. The outer concrete tank is often coated with a waterproofing membrane to protect the insulation from moisture, which can significantly reduce its insulating properties over time.

Historical Challenges: In-Ground and Unlined Tanks

Historically, some terminals utilized in-ground tanks or unlined concrete tanks. These designs presented significant challenges. Unlined concrete tanks were susceptible to fissures caused by the extreme cold, leading to potential leaks. In-ground tanks relied on the surrounding soil for insulation and support. However, the cryogenic temperatures could cause soil freezing, leading to ice heave, which could distort the tank structure and compromise its integrity. These issues have largely driven the industry toward the more robust double-wall above-ground tank designs.

Bund Walls and Boil-Off Gas Management

Secondary containment is provided by bund walls, which are essentially large, impermeable walls surrounding the storage tanks. In the event of a leak from the inner tank, the LNG would spill into the bund, preventing it from spreading across the terminal site and potentially reaching the outer tank or other infrastructure. Boil-off gas (BOG) is an inevitable byproduct of LNG storage, resulting from heat ingress through the insulation. This gas must be managed to maintain pressure within the tanks. BOG is typically compressed and either re-liquefied, used as fuel for terminal operations, or fed back into the natural gas pipeline network.

Regasification processes and equipment

Regasification is the core function of an LNG import terminal, converting cryogenic liquid natural gas back into gaseous form for pipeline distribution. The process involves heating LNG from approximately -162 °C to a typical pipeline inlet temperature of 0 to 10 °C. This phase change requires significant energy input and precise pressure management to ensure seamless integration with the receiving grid.

Heat Exchanger Technologies

Terminals utilize specialized heat exchangers to transfer thermal energy to the LNG. Submerged combustion heaters involve immersing LNG pipes directly into seawater, where gas burners heat the surrounding water mass. This method is widely used in coastal locations with stable water temperatures. Intermediate fluid systems use a secondary medium, such as glycol or warm seawater, to transfer heat to the LNG, offering greater flexibility in temperature control and reducing the risk of thermal shock to the piping network. Waste heat recovery systems leverage excess thermal energy from adjacent industrial processes or power generation units, enhancing overall terminal efficiency by utilizing heat that would otherwise be lost to the atmosphere.

Pressure and Gas Quality Adjustments

During regasification, the natural gas expands significantly in volume, requiring precise pressure management. The gas is typically pressurized to between 70 and 100 bar to overcome pipeline friction and elevation changes, ensuring consistent flow rates to end-users. Pressure regulation is achieved through a combination of pumping the liquid LNG before vaporization and using gas compressors after the heat exchanger. Gas quality adjustments are critical to match the specific heating value and composition of the receiving pipeline network. Propane enrichment may be applied to increase the calorific value of the gas, while nitrogen dilution is used to lower it. Odorizing agents, such as tetrahydrothiomethane, are added to the otherwise odorless natural gas to facilitate leak detection in domestic and industrial applications. These adjustments ensure the regasified LNG meets strict commercial specifications for pressure, composition, and sensory detection.

Liquefaction and gas withdrawal

Liquefied natural gas terminals serve as critical nodes in the global energy infrastructure, facilitating the efficient transport of natural gas over long distances, primarily by sea. The core function of these facilities involves the complex process of liquefaction, where natural gas is converted into a liquid state to significantly reduce its volume, thereby optimizing storage and transportation logistics. This conversion is essential for managing supply and demand dynamics, particularly during periods of low transmission system demand.

Gas Withdrawal and Storage Dynamics

The operational strategy of LNG terminals often involves withdrawing gas from transmission systems during times of low demand. This process allows for the strategic storage of natural gas, ensuring a steady supply during peak consumption periods. By leveraging the efficiency of liquefied natural gas, terminals can effectively balance the grid, reducing pressure on transmission lines and enhancing overall system reliability. The withdrawal process is carefully managed to optimize energy usage and minimize operational costs, making it a vital component of modern energy infrastructure.

Proprietary Liquefaction Systems

The transformation of natural gas into LNG relies on proprietary systems designed to handle the intricate requirements of the liquefaction process. These systems are engineered to manage the cooling, compression, and storage of natural gas, ensuring that it reaches the necessary temperature and pressure levels to become a liquid. The efficiency of these proprietary technologies is crucial for the overall performance of the LNG terminal, impacting everything from energy consumption to the quality of the final product.

Liquefaction processes typically involve multiple stages, including purification, compression, and cooling. Each stage is critical for removing impurities and reducing the temperature of the natural gas to approximately -161.5°C, the boiling point of methane at atmospheric pressure. The use of advanced proprietary systems allows for greater control over these stages, leading to higher efficiency and reduced operational costs. These systems are often tailored to the specific characteristics of the natural gas being processed, ensuring optimal performance and reliability.

The design and implementation of these proprietary systems require a deep understanding of thermodynamics, fluid mechanics, and materials science. Engineers must consider factors such as heat exchange efficiency, compressor performance, and the thermal properties of the natural gas. By optimizing these elements, LNG terminals can achieve higher throughput and better energy efficiency, making the liquefaction process more sustainable and cost-effective.

In addition to the technical aspects, the operational management of these systems is crucial for maintaining the efficiency of the LNG terminal. Regular maintenance, monitoring, and optimization are necessary to ensure that the proprietary systems continue to perform at their best. This includes monitoring key performance indicators, such as energy consumption, throughput, and product quality, to identify areas for improvement and implement necessary adjustments.

The integration of these proprietary systems into the broader LNG terminal infrastructure requires careful planning and coordination. This includes ensuring that the systems are compatible with other components of the terminal, such as storage tanks, pumping stations, and loading arms. By achieving seamless integration, LNG terminals can maximize their operational efficiency and minimize downtime, ensuring a reliable supply of liquefied natural gas to meet market demands.

Overall, the process of withdrawing gas from transmission systems and utilizing proprietary liquefaction systems is a complex but essential aspect of LNG terminal operations. By effectively managing these processes, terminals can play a crucial role in the global energy landscape, providing a flexible and efficient solution for transporting natural gas over long distances.
