Overview
Linton Lock Hydro is an operational hydroelectric power station situated on the River Ouse in North Yorkshire, England. The facility is located between the villages of Linton-on-Ouse and Nun Monkton, leveraging the natural flow of the river to generate renewable energy. The plant is operated by Linton Hydro and represents a multi-generational approach to small-scale hydroelectricity in the region. The current infrastructure combines elements from two distinct development phases, integrating a modern installation commissioned in 2011 with an additional generating unit that came on stream in 2017. This combined output provides a total capacity of 380 kW, which is sufficient to power approximately 450 homes, contributing to the local energy mix and grid stability in North Yorkshire.
Historical Context and Development
The site at Linton Lock has a long history of hydroelectric utilization, dating back to the early 20th century. The first hydroelectric scheme was constructed at this location in 1923, marking an early adoption of water power technology in the area. However, this initial installation was not permanent; it was abandoned in the early 1960s, leaving the site without active generation for several decades. The revival of hydroelectric power at Linton Lock began with the second scheme, which was sited at the same location and installed in 2011. This modern iteration replaced the earlier infrastructure and established the foundation for the current operational capacity. The project was further enhanced with the addition of a new generating unit in 2017, which expanded the plant's output and efficiency. These developments reflect a strategic approach to maximizing the energy potential of the River Ouse at this specific geographic point, building upon the historical precedent set by the 1923 scheme while incorporating contemporary engineering standards.
Operational Characteristics
The current operational status of Linton Lock Hydro is active, with the plant continuously generating electricity from the water flow of the River Ouse. The combined output of the second and third generation plants totals 380 kW, a figure that underscores the plant's role as a significant small-scale hydroelectric facility. This capacity is directly translated into practical energy supply, with the output being enough to power 450 homes, highlighting the tangible impact of the plant on local residential energy consumption. The operator, Linton Hydro, manages the facility to ensure consistent performance and integration with the broader energy infrastructure in England. The plant's location between Linton-on-Ouse and Nun Monkton provides a strategic advantage, utilizing the natural gradient and flow characteristics of the River Ouse to drive the generating units. The integration of the 2011 installation and the 2017 addition demonstrates a phased development strategy, allowing for gradual expansion and optimization of the hydroelectric resources available at the site.
History of the Linton Lock Scheme
The development of hydroelectric power at Linton Lock spans nearly three centuries, evolving from civil engineering foundations to modern renewable energy generation. The site's strategic location on the River Ouse in North Yorkshire, England, between the villages of Linton-on-Ouse and Nun Monkton, has made it a focal point for water management and energy production. The infrastructure history begins with the construction of the lock itself in 1767 by John Smeaton, establishing the hydraulic head necessary for future power schemes.
Early Hydroelectric Attempts
The first hydroelectric scheme at Linton Lock was established in 1923. This initial installation marked an early adoption of water power in the region, leveraging the existing lock infrastructure. However, this first generation plant did not remain in service indefinitely. The scheme was abandoned in 1962, leaving the site without active hydroelectric generation for several decades. The reasons for this mid-century hiatus are part of the site's operational history, reflecting the economic and technical challenges of early 20th-century hydro projects.
Modern Revival
The site was redeveloped in the 21st century with a new hydroelectric installation commissioned in 2011. This second scheme, operated by Linton Hydro, restored power generation capabilities at the lock. The project was further expanded with the addition of a new generating unit that came on stream in 2017. This third-generation addition enhanced the site's output, contributing to the combined capacity of the modern plant. The current operational status is active, with the facility producing 380 kW of electricity. This output is sufficient to power approximately 450 homes, demonstrating the continued viability of small-scale hydroelectric power on the River Ouse.
| Year | Event |
|---|---|
| 1767 | Construction of Linton Lock by John Smeaton |
| 1923 | First hydroelectric scheme built at Linton Lock |
| 1962 | Abandonment of the first hydroelectric scheme |
| 2011 | Commissioning of the second hydroelectric scheme |
| 2017 | New generating unit (third generation) comes on stream |
How do Archimedes Screw turbines work at Linton Lock?
The Linton Lock Hydro facility utilizes Archimedes Screw technology to convert the potential energy of falling water into electricity. This method is particularly suited to low-head, high-flow sites like the River Ouse in North Yorkshire. The system operates on a principle where water enters the top of a helical screw and is carried down by the rotation of the screw, which is driven by the water's weight. As the screw turns, it drives a generator to produce power. This technology offers high efficiency and allows for a continuous flow of water, minimizing the impact on river ecology compared to traditional turbine systems.
Technical Specifications of the Screw Units
The modern installation at Linton Lock features specific dimensional characteristics that optimize energy capture from the river's flow. The Archimedes Screw units employed at this site have a length of 8.5 meters (28 feet) and a diameter of 3 meters (9.8 feet). These dimensions are critical for managing the volume of water passing through the lock gates while maintaining rotational speed sufficient for efficient power generation. The design allows the screw to handle variable flow rates, which is essential for a river-based hydroelectric scheme that must adapt to seasonal changes in water levels.
The first modern screw unit installed in 2011 has a capacity of 101 kW. This initial unit marked the revival of hydroelectric power generation at Linton Lock after the abandonment of the original 1923 scheme in the early 1960s. The 101 kW output represents a significant portion of the site's total generation capability, contributing to the combined output of 380 kW achieved with the addition of a new generating unit in 2017. The 380 kW total capacity is sufficient to power approximately 450 homes, demonstrating the scalability of screw turbine technology for small to medium-scale hydroelectric projects. The operator, Linton Hydro, maintains these units to ensure consistent operational status since the 2011 commissioning date.
The choice of Archimedes Screw technology at Linton Lock reflects a strategic decision to leverage existing infrastructure—the lock gates—while minimizing environmental disruption. The screw's ability to operate efficiently at low head heights makes it an ideal solution for the River Ouse location between Linton-on-Ouse and Nun Monkton. This technical approach has allowed Linton Lock Hydro to become a reliable source of renewable energy in the region, combining historical significance with modern engineering efficiency.
What distinguishes the 2017 expansion project?
The expansion of the Linton Lock Hydro facility in 2017 introduced a distinct technological approach to hydroelectric generation on the River Ouse. This project, approved in 2016, featured the installation of what was described as the world’s largest Archimedes Screw for hydroelectric purposes. This specific technology choice marked a shift from the earlier turbine-based systems that had characterized the site's previous operational phases. The integration of this large-scale screw mechanism allowed for a new generating unit to come on stream, adding to the existing infrastructure established during the 2011 commissioning of the second scheme. The combined output from these second and third-generation plants reached a total capacity of 380 kW, a figure sufficient to power approximately 450 homes in the surrounding area of North Yorkshire.
Financial and operational consolidation was a key component of the 2017 expansion. The operators responsible for the new Archimedes Screw unit acquired 100% of the rights to the scheme originally installed in 2011. This acquisition streamlined the ownership structure of the hydroelectric assets located between the villages of Linton-on-Ouse and Nun Monkton. By securing full rights to the earlier installation, the 2017 operators were able to integrate the new generating capacity more effectively with the existing infrastructure. The new unit contributed significantly to the site's annual energy production, generating 1250 MWh per year. This output helped maximize the utilization of the water flow from the River Ouse, building upon the historical precedent set by the first hydroelectric scheme at Linton Lock, which had been constructed in 1923 before being abandoned in the early 1960s.
The adoption of the Archimedes Screw technology provided specific advantages for the site's hydrological conditions. Unlike traditional turbine systems, the screw mechanism is known for its efficiency in handling variable water flows and its relative gentleness on passing fish, a consideration often relevant for riverine installations in England. The 2016 approval process for this second scheme reflected a strategic decision to leverage this technology to enhance the site's overall energy yield. The successful commissioning of the unit in 2017 demonstrated the viability of large-scale screw turbines in the region's hydroelectric landscape. This expansion not only increased the immediate power output but also secured the long-term operational status of the Linton Lock Hydro plant, ensuring its continued contribution to the local energy grid. The project stands as a modern example of adapting historical hydroelectric sites with contemporary engineering solutions to meet current energy demands.
Environmental and Recreational Impact
The development of the Linton Lock Hydro plant involved significant consultation regarding its environmental footprint and impact on local recreational activities, particularly for the British Canoe Union. The site is located on the River Ouse in North Yorkshire, a waterway heavily utilized for canoeing and rowing. Initial proposals faced objections centered on visual impact and potential disruptions to the flow of the river, which could affect the experience of downstream paddlers. Stakeholders were concerned that the infrastructure, including the turbine housings and access roads, might detract from the natural landscape of the area between Linton-on-Ouse and Nun Monkton.
Fish Passage and Ecological Mitigation
To address ecological concerns, specific mitigation measures were implemented to ensure the continuity of fish migration along the River Ouse. The project included the installation of a new adjacent fish ladder designed to accommodate various species. Additionally, efforts were made to recondition existing fish passage structures to improve their efficiency. These measures were critical in securing approval for the hydroelectric scheme, balancing energy generation with the preservation of local aquatic biodiversity. The integration of these ecological features demonstrates a commitment to minimizing the operational impact of the plant on the river's ecosystem.
Recreational Enhancements and Funding
Far from merely mitigating negative impacts, the project also sought to enhance the recreational value of the site. A new slalom canoe course was developed as part of the initiative. This course was funded through a partnership between Canoe England and Linton Hydro. Each entity contributed 200000 pounds towards the development of this facility. The new slalom course provides a dedicated space for canoeists, improving the infrastructure available for both training and competition. This collaboration helped to alleviate some of the initial objections from the British Canoe Union by directly investing in the sport that uses the river. The funding structure highlights a shared interest in maintaining the River Ouse as a premier location for water sports while generating renewable energy.
Infrastructure of the Weir and Salmon Ladder

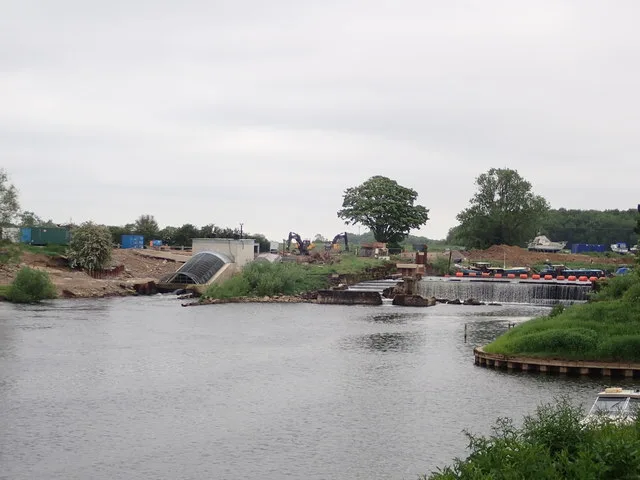

The infrastructure at Linton Lock Hydro is anchored by a historic weir constructed in 1767, which serves as the primary headworks for the facility. This structure is built from limestone and features an overflow channel designed to manage water flow from the River Ouse. The weir is a significant engineering landmark, having been designated as a Grade II* listed building in 1986. This listing recognizes its architectural and historical importance within the North Yorkshire landscape, preserving the original masonry and hydraulic design elements that have defined the site for centuries.
A key component of the weir system is the salmon ladder, which facilitates the migration of fish upstream past the 12-foot (3.7 m) drop created by the structure. The ladder employs a series of stepped basins to break the fall of the water, allowing salmon to navigate the elevation change with relative ease. This design not only supports local biodiversity but also integrates seamlessly with the hydroelectric operations, ensuring that the generation of power does not entirely obstruct the natural flow and ecological functions of the River Ouse.
In the 1970s, the unique hydraulic characteristics of the weir and its stepped basins attracted attention from the sporting world. The site was used for experimental canoe slalom competitions, leveraging the consistent flow and defined drops to test early slalom course designs. This historical use highlights the versatility of the Linton Lock infrastructure, demonstrating how the interplay between the limestone weir, the overflow channel, and the salmon ladder created a natural amphitheater for water sports before the modern hydroelectric schemes were fully established. The legacy of these experiments remains a part of the site's operational history, illustrating the multifaceted role the weir plays in both energy production and local recreation.
Why it matters
The Linton Lock Hydro plant demonstrates a pragmatic approach to integrating renewable energy generation within established heritage and recreational corridors. Situated on the River Ouse in North Yorkshire, the facility operates in a landscape defined by historic navigation infrastructure and rural character. The project’s significance lies not in the scale of its output, but in its ability to extract consistent power from a low-head, run-of-river environment without imposing significant visual or hydraulic disruption to the surrounding area. This model is increasingly relevant for regions seeking to decentralize energy production while preserving the aesthetic and functional integrity of waterways used for transport and leisure.
The technology employed at Linton Lock offers a comparative advantage in listed environments. The use of Archimedes Screws for hydroelectric generation allows for a gentle, gravity-fed flow of water and fish, which is particularly suited to the moderate head and flow rates typical of the River Ouse at this location. Unlike traditional turbine systems that may require more extensive civil works or create higher velocity differentials, the screw mechanism integrates seamlessly with the existing lock structure. This technical choice supports the dual mandate of energy production and environmental stewardship, ensuring that the plant’s operation complements rather than competes with the river’s ecological and recreational functions.
Historical Continuity and Modernization
The site’s energy production history underscores its long-term viability. The first hydroelectric scheme at Linton Lock was established in 1923, demonstrating that the location has been recognized for its energy potential for over a century. Although that initial installation was abandoned in the early 1960s, the decision to revive the site reflects a renewed interest in localized, low-impact hydro power. The second scheme, commissioned in 2011, marked a significant modernization of the infrastructure, introducing more efficient generation units tailored to contemporary grid requirements.
While this figure is modest compared to large-scale reservoir hydroelectric stations, it represents a stable, predictable source of renewable energy that contributes to the local grid’s diversity. The plant’s operational status as a fully functional facility under the management of Linton Hydro highlights the economic and technical feasibility of retrofitting heritage waterways with modern energy solutions. This approach provides a replicable template for other river systems in the UK and beyond, where the balance between historical preservation and renewable energy expansion is a critical planning consideration.
