Kilopower: NASA's Nuclear Reactor for Deep Space Exploration

Overview

Kilopower is an experimental United States initiative designed to develop compact nuclear reactors for space exploration. The project was launched in October 2015 under the joint leadership of the National Aeronautics and Space Administration (NASA) and the Department of Energy’s National Nuclear Security Administration (NNSA). The primary objective of the Kilopower program is to provide reliable, long-duration electrical power for future missions to the Moon, Mars, and other deep-space destinations. Unlike traditional large-scale nuclear systems, Kilopower focuses on modular, lightweight designs capable of operating continuously for twelve to fifteen years with minimal maintenance.

Technical Specifications and Fuel Source

The Kilopower reactors utilize uranium-235 as their primary nuclear fuel. The fission process generates thermal energy, which is then converted into electricity using Stirling converters. Heat transfer within the system is managed through passive sodium heat pipes, a technology chosen for its reliability and simplicity in the vacuum of space. The project aims to produce reactor units in four distinct sizes, with electrical power outputs ranging from one to ten kilowatts (1–10 kWe). This modular approach allows mission planners to scale power generation based on specific mission requirements, from small lunar outposts to larger Martian habitats.

Demonstration and Testing

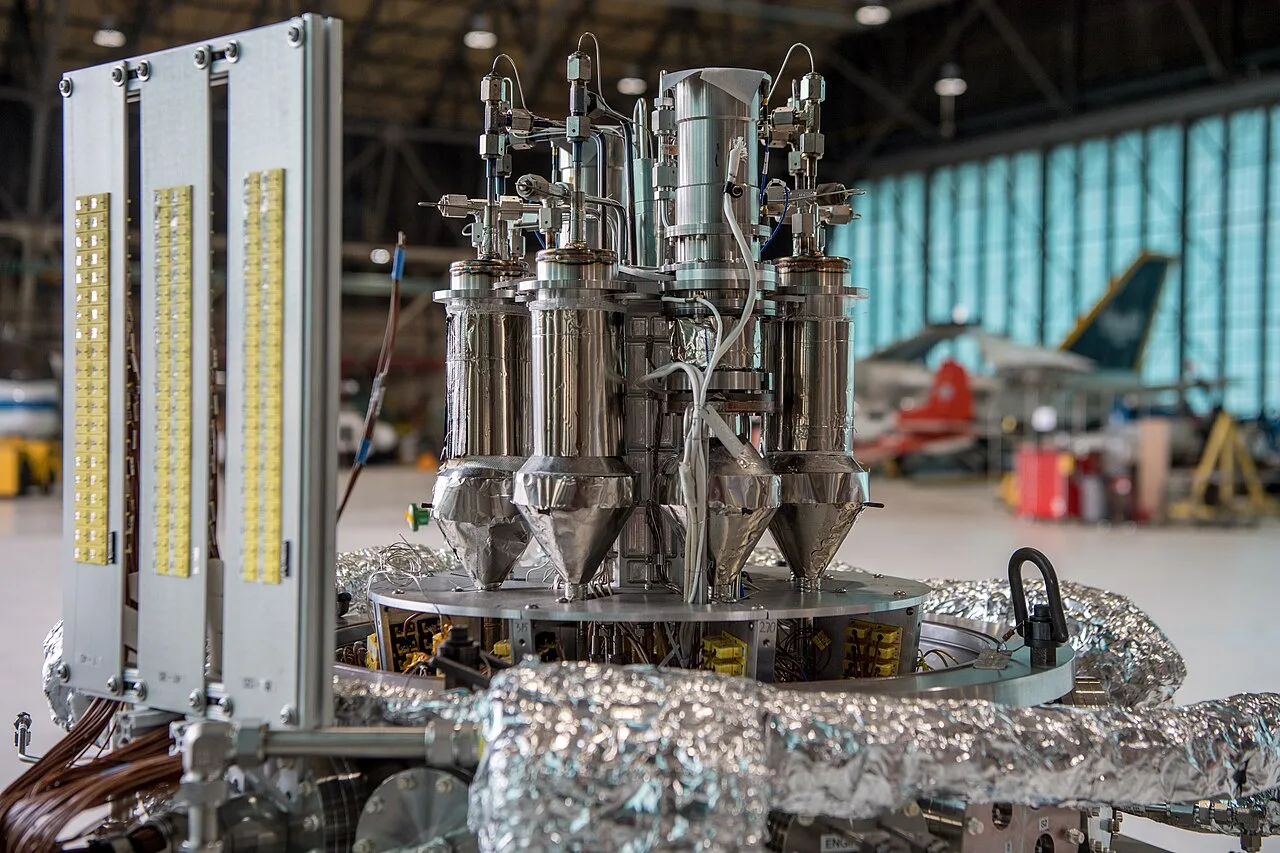

In 2018, the project achieved a significant milestone with the announcement of positive test results for the Kilopower Reactor Using Stirling Technology (KRUSTY) demonstration reactor. These tests validated the core design principles, confirming that the passive cooling systems and Stirling converters could effectively manage heat and generate steady electrical output. The success of the KRUSTY demonstration provided critical data for subsequent phases of development, reinforcing the viability of nuclear fission as a primary power source for long-term space travel. The project remains in the proposed and developmental stage, with ongoing efforts to refine the reactor designs for eventual deployment.

How does the Kilopower reactor work?

Kilopower utilizes a compact fission reactor design optimized for space environments, employing uranium-235 as the primary fuel source. The core structure integrates uranium and molybdenum, forming a fuel element that generates heat through nuclear fission. This heat is transferred to Stirling converters using passive sodium heat pipes, enabling continuous electrical power generation ranging from one to ten kilowatts (1–10 kWe) over a lifespan of twelve to fifteen years. The system relies on a beryllium oxide reflector to optimize neutron economy within the compact core geometry.

Technical Specifications

Parameter	Value
Fuel Type	Uranium-235
Electrical Output	1–10 kWe
Operational Lifespan	12–15 years
Heat Transfer Medium	Sodium heat pipes
Conversion Technology	Stirling converters
Reflector Material	Beryllium oxide

The KRUSTY (Kilopower Reactor Using Stirling Technology) demonstration reactor provided positive test results in 2018, validating the passive cooling and power conversion mechanisms. The design emphasizes reliability and minimal moving parts, critical for long-duration space missions where maintenance access is limited. The sodium heat pipes efficiently transport thermal energy from the uranium-molybdenum core to the Stirling engines, which convert the heat into electricity with high efficiency relative to traditional photovoltaic systems in deep space environments.

History of Kilopower development

The development of the Kilopower concept is rooted in earlier experimental work, specifically the 2012 DUFF (Demonstration Unit for Fission Power) experiment. This precursor study helped validate the core thermal and electrical conversion principles that would later define the project’s technical approach. Building on these findings, the formal Kilopower project was initiated in October 2015. The initiative was established as a collaborative effort between the National Aeronautics and Space Administration (NASA) and the Department of Energy’s National Nuclear Security Administration (NNSA). The primary objective was to develop compact, scalable nuclear fission reactors designed specifically for space travel and surface exploration.

From its inception, the project aimed to produce reactor units capable of delivering between one and ten kilowatts of electrical power (1–10 kWe). These units were designed for continuous operation over a lifespan of twelve to fifteen years. The core technology relies on uranium-235 as the primary fuel source. The heat generated by the fission process is transferred to Stirling converters using passive sodium heat pipes, a design choice that minimizes moving parts and enhances reliability in the vacuum of space.

By 2017, the project had defined four distinct reactor sizes to accommodate varying mission requirements. The development process moved into critical demonstration phases shortly thereafter. In 2018, the project team announced positive test results for the Kilopower Reactor Using Stirling Technology (KRUSTY). This demonstration reactor was tested at the Nevada National Security Site. The KRUSTY tests successfully validated the reactor’s ability to maintain stable power output and efficient thermal conversion, marking a significant milestone in the transition from theoretical design to operational readiness for future space missions.

What distinguishes Kilopower from other space power sources?

Kilopower distinguishes itself from other space power sources by addressing specific limitations of Radioisotope Thermoelectric Generators (RTGs) and solar arrays through its use of uranium-235 and passive thermal management. Unlike RTGs, which rely on the decay heat of plutonium-238, Kilopower utilizes a fission reactor core fueled by uranium-235. This fuel choice offers significant supply chain advantages, as uranium-235 is more abundant and historically more certain in supply than the often-bottlenecked plutonium-238 required for traditional RTGs. The project, led by NASA and the Department of Energy’s National Nuclear Security Administration (NNSA), aims to produce between one to ten kilowatts of electrical power (1–10 kWe) continuously for twelve to fifteen years.

Passive Safety and Thermal Management

A key technical differentiator is Kilopower’s passive safety architecture. The system uses passive sodium heat pipes to carry heat from the uranium-235 fission core to Stirling converters. This design minimizes moving parts and mechanical complexity compared to active cooling systems, enhancing reliability for long-duration missions. The passive nature of the heat transfer means that in the event of a power loss, the system can continue to operate or safely decay without immediate active intervention, a critical feature for deep-space or lunar environments where maintenance access is limited.

Comparison with Solar Power

Compared to solar power, Kilopower offers greater energy density and consistency, particularly in shadowed regions or during long lunar nights. While solar arrays are lightweight and mature, their output is variable and requires significant storage capacity. Kilopower’s ability to deliver continuous power for up to fifteen years provides a stable baseline for surface habitats or rovers. The project started in October 2015 with the goal of creating scalable nuclear reactors for space travel, offering a middle ground between the low power of RTGs and the high mass of solar arrays for missions requiring 1–10 kWe. This scalability allows mission planners to tailor the power source to specific payload requirements without the exponential mass penalties often associated with solar infrastructure in low-light environments.

Applications in deep space missions

Kilopower is designed to provide continuous electrical power for deep space missions, particularly to Mars, where solar irradiance is significantly lower than at Earth. The system is intended to support life support systems and oxygen production from the Martian atmosphere for crews of four to six astronauts. The nuclear electric propulsion capability enables efficient travel and surface operations over extended periods.

Power requirements for Mars missions

The Kilopower reactors are specified to produce 1–10 kWe continuously for 12–15 years (per project documentation). This output range addresses the power needs of surface habitats and scientific instruments. The uranium-235 fuel source provides a high energy density compared to solar arrays, which are affected by dust storms and the greater distance from the Sun. The passive sodium heat pipes transfer thermal energy to Stirling converters, enabling reliable electricity generation with minimal moving parts.

Life support and oxygen production

For a crew of four to six astronauts, life support systems require stable power for air revitalization, water recycling, and thermal control. Oxygen production from the Martian atmosphere involves extracting carbon dioxide and converting it into breathable oxygen. The Kilopower system provides the electrical energy needed for these processes, ensuring crew sustainability during long-duration surface stays. The 12–15 year operational lifespan aligns with the projected duration of initial Mars exploration missions.

Nuclear electric propulsion

Nuclear electric propulsion uses the electrical power from the Kilopower reactor to drive ion or Hall-effect thrusters. This propulsion method offers higher specific impulse than chemical rockets, enabling faster transit times and greater payload capacities. The 1–10 kWe output range supports various propulsion configurations, allowing for flexible mission architectures. The continuous power generation is critical for maintaining thrust over extended periods, reducing the overall mission duration and exposure to cosmic radiation.

Why it matters

Kilopower represents a pivotal advancement in nuclear space power systems, marking the first U.S. ground test of a space reactor since the SNAP-10A mission in 1965. This project, initiated in October 2015 under the leadership of NASA and the Department of Energy’s National Nuclear Security Administration (NNSA), aims to develop compact nuclear reactors for space travel. The significance of Kilopower lies in its potential to enable long-duration crewed missions by providing continuous electrical power ranging from one to ten kilowatts (1–10 kWe) over twelve to fifteen years.

Technical Innovation and Mission Enablement

The Kilopower reactor utilizes uranium-235 as its primary fuel source, generating heat that is transferred to Stirling converters via passive sodium heat pipes. This design choice reflects a strategic focus on reliability and efficiency, critical factors for sustained operations in space environments. These achievements underscore Kilopower's role in advancing nuclear propulsion technologies essential for future exploration endeavors.

By offering a scalable power solution, Kilopower addresses key challenges associated with long-duration space missions, including energy consistency and weight optimization. The ability to produce up to 10 kWe continuously for over a decade makes it an attractive option for lunar bases, Mars expeditions, and deep-space probes. This innovation not only enhances mission capabilities but also paves the way for more ambitious goals in human space exploration, such as establishing permanent settlements beyond Earth's orbit.

Worked examples

The Kilopower project’s technical viability was demonstrated through the Kilopower Reactor Using Stirling Technology (KRUSTY) experiment. This section provides worked examples illustrating the thermal and electrical performance metrics achieved during the 2018 testing phase, based on the project’s design parameters and reported results.

Example 1: Thermal Performance and Temperature Stability

The KRUSTY demonstration reactor utilized uranium-235 as its primary fuel source to generate heat. This thermal energy was transferred to Stirling converters using passive sodium heat pipes. During the full-power run, the system achieved a stable core temperature of 850 °C. This temperature was maintained continuously for a duration of 28 hours. The use of passive heat pipes allowed for efficient heat transfer without active mechanical pumping, a critical feature for long-term space missions where reliability is paramount. The 850 °C operating point represents a key design target for the Stirling converter efficiency.

Example 2: Electrical Power Output Verification

One of the primary goals of the Kilopower project was to produce between one and ten kilowatts of electrical power (1–10 kWe). The KRUSTY test results confirmed this range. During the 28-hour full-power run, the reactor delivered a continuous electrical output of 5.5 kW. This output falls squarely within the intended 1–10 kWe design envelope. The 5.5 kW figure demonstrates the system’s ability to provide stable power for small-scale space habitats or lunar bases. The consistency of this output over the 28-hour period validated the integration of the fission reactor with the Stirling conversion technology.

Example 3: Mission Duration and Power Density

The Kilopower reactors were designed to operate continuously for twelve to fifteen years. The KRUSTY test, while only lasting 28 hours, provided critical data on the system’s stability over time. The 5.5 kW output at 850 °C suggests that the system can maintain performance under thermal stress. For a mission requiring 5.5 kWe, the Kilopower system offers a compact solution compared to traditional solar arrays or radioisotope thermoelectric generators. The 1 MW capacity mentioned in some contexts likely refers to the thermal power output, which is then converted to the 5.5 kWe electrical output. This conversion efficiency is a key metric for future space nuclear power systems.
