Overview
The Kastraki Dam is a significant hydroelectric infrastructure project located on the Achelous River in the Aitoloakarnania region of Greece. Constructed as an earth-fill embankment dam, the facility stands near the village of Kastraki and serves as a critical node in the regional energy and water management systems. The dam was completed in 1969, marking a major development in the hydroelectric potential of the Achelous basin. Its design integrates multiple functional objectives, primarily focusing on hydroelectric power generation, flood control, and agricultural irrigation, thereby supporting both the energy grid and local economic activities in western Greece.
The power station associated with the Kastraki Dam is operated by Terna, the national transmission system operator of Greece. The facility has an installed capacity of 320 MW, which is generated by four Francis turbine-generators, each rated at 80 MW. This configuration allows for efficient energy production from the water flow of the Achelous River, contributing to the stability and output of the Greek power grid. The operational status of the dam remains active, continuing to play a vital role in the country's renewable energy mix and water resource management.

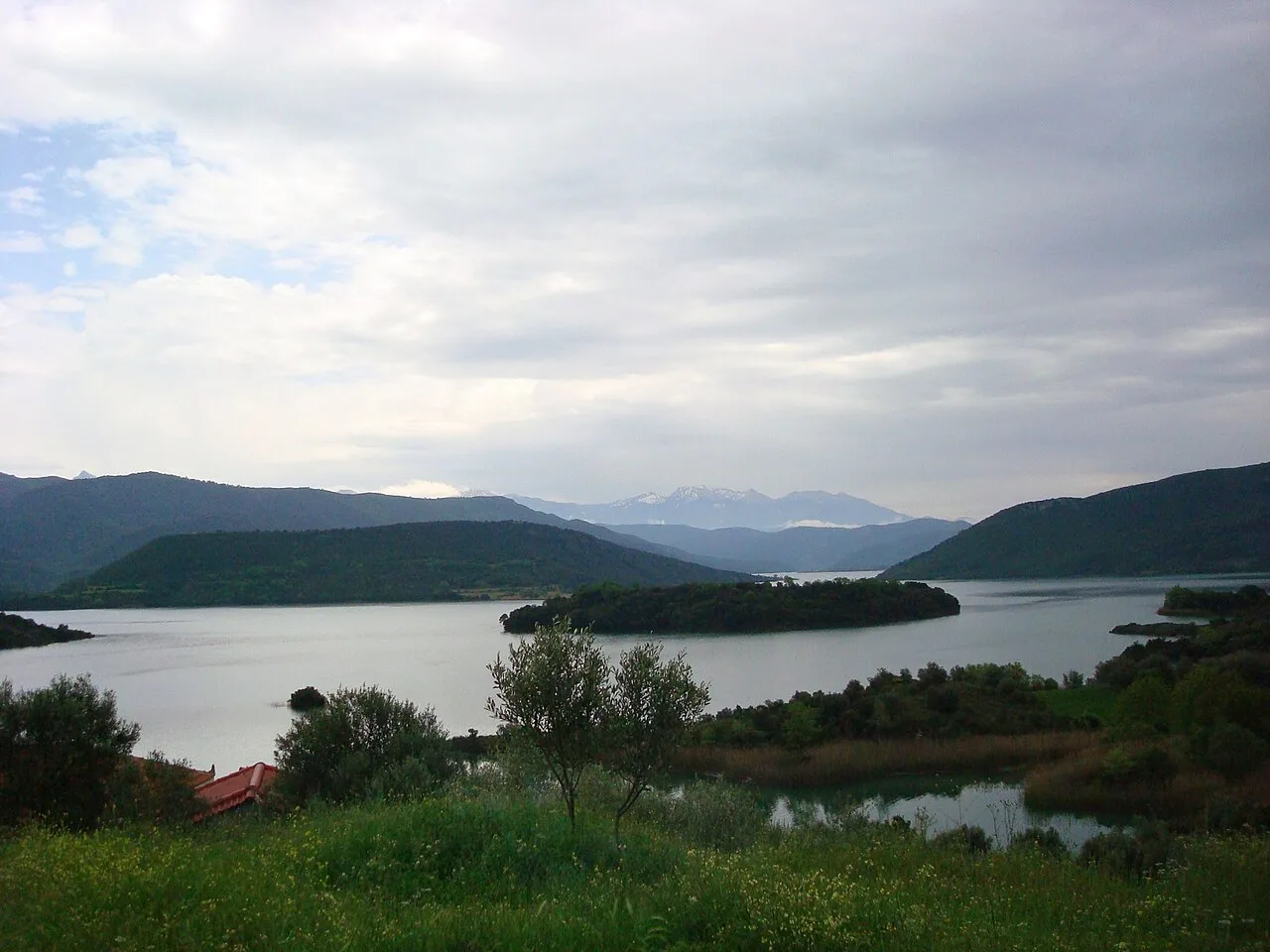

In addition to its primary role in power generation, the Kastraki Dam provides essential flood control and irrigation services. The reservoir formed by the dam, known as Lake Kastraki, helps regulate the flow of the Achelous River, mitigating flood risks for downstream communities and ensuring a consistent water supply for agricultural use in the surrounding areas. The strategic location of the dam on the Achelous River allows for effective water storage and distribution, enhancing the resilience of the region's infrastructure against hydrological variations.
History and Construction
The Kastraki Dam is an earth-fill embankment structure located on the Achelous River in Aitoloakarnania, Greece, situated near the village of Kastraki. The facility was completed in 1969 to serve as a multi-purpose hydroelectric power generator, flood control mechanism, and irrigation source. This construction marked a significant development in the region's energy infrastructure, integrating water management with power generation capabilities.
Initial Design and Geographical Context
The dam's location on the Achelous River was chosen to leverage the natural water flow for energy production and agricultural support. The earth-fill embankment design provided stability and efficiency for the reservoir, known as Lake Kastraki. The proximity to the village of Kastraki facilitated operational access and local integration. The initial design purposes included generating hydroelectric power, controlling seasonal floods, and providing consistent irrigation water for the surrounding agricultural lands. This multi-functional approach ensured that the dam would deliver economic and environmental benefits to the Aitoloakarnania region.
Construction and Completion
The construction of the Kastraki Dam culminated in its completion in 1969. The project involved building the earth-fill embankment and installing the necessary infrastructure for water storage and power generation. The completion date marked the start of operational service for the facility. The dam's power station was equipped with four 80 MW Francis turbine-generators, providing an installed capacity of 320 MW. This capacity was designed to meet the regional energy demands while supporting flood control and irrigation functions. The successful completion in 1969 established the Kastraki Dam as a key component of Greece's hydroelectric network.
Technical Specifications and Power Generation
The Kastraki Dam functions as a critical hydroelectric infrastructure asset on the Achelous River in Aitoloakarnania, Greece. Completed in 1969, the facility was engineered to serve multiple purposes, including hydroelectric power generation, flood control, and irrigation. The power station is operated by Terna and remains operational, contributing significantly to the regional energy mix with a total installed capacity of 320 MW.
Hydroelectric Power Generation Mechanism
The power generation system relies on an earth-fill embankment dam structure that creates Lake Kastraki reservoir. Water from the Achelous River is channeled through the dam to drive four Francis turbine-generators. Each turbine-generator unit has a rated capacity of 80 MW, resulting in a combined installed capacity of 320 MW. The Francis turbine is a type of reaction turbine widely used in hydroelectric plants for its efficiency across a range of head and flow conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Entity Type | Hydroelectric Power Plant |
| Primary Fuel/Source | Water |
| Country | Greece (GR) |
| Operator | Terna |
| Commissioned Year | 1969 |
| Operational Status | Operational |
| Total Installed Capacity | 320 MW |
| Turbine Type | Francis turbine-generators |
| Number of Turbines | 4 |
| Capacity per Turbine | 80 MW |
| Dam Type | Earth-fill embankment |
| River | Achelous River |
| Location | Near Kastraki village, Aitoloakarnania |
| Reservoir | Lake Kastraki |
| Reservoir Height Increase (2010) | 1.93 m (6.3 ft) |
| Storage Capacity Increase (2010) | 44,000,000 m3 (36,000 acre⋅ft) |
In 2010, the dam underwent a significant upgrade to its overflow chute spillway. This improvement involved the installation of 20 fuse plugs, which increased the maximum height of the Lake Kastraki reservoir by 1.93 m (6.3 ft) and enhanced its storage capacity by 44,000,000 m3 (36,000 acre⋅ft). These modifications improved the dam's flood control capabilities and optimized water storage for both irrigation and power generation purposes.
Reservoir Management and Upgrades
The Kastraki Dam serves multiple critical functions within the regional energy and agricultural infrastructure, including hydroelectric power generation, flood control, and irrigation. The reservoir, known as Lake Kastraki, is formed by the earth-fill embankment structure on the Achelous River. Effective management of this reservoir is essential for balancing the hydraulic head required for the power station’s turbines against the storage needs of downstream agricultural zones and flood mitigation strategies.
2010 Spillway Upgrade
A significant modernization project was undertaken in 2010 to enhance the operational flexibility and storage capacity of the reservoir. The upgrade focused on the dam’s overflow chute spillway, where 20 fuse plugs were installed. This engineering modification allowed for a more precise control of water levels, effectively raising the maximum height of Lake Kastraki. According to the project specifications, this adjustment increased the reservoir’s maximum height by 1.93 m (6.3 ft). The addition of these fuse plugs represents a key intervention in the dam’s post-commissioning history, optimizing the use of the existing embankment structure.
| Reservoir Parameter | Change Value |
|---|---|
| Maximum Height Increase | 1.93 m (6.3 ft) |
| Storage Capacity Increase | 44,000,000 m3 (36,000 acre⋅ft) |
The structural modifications resulted in a substantial increase in the total storage volume of Lake Kastraki. The upgrade added 44,000,000 m3 (36,000 acre⋅ft) to the reservoir’s storage capacity. This expanded volume provides greater buffer capacity during periods of high inflow from the Achelous River, thereby improving flood control effectiveness for the Aitoloakarnania region. Additionally, the increased storage supports more consistent water availability for irrigation purposes and ensures a stable water supply for the hydroelectric power station’s four Francis turbine-generators. The integration of these 20 fuse plugs into the spillway system demonstrates a targeted approach to maximizing the utility of the 1969-commissioned infrastructure without requiring a complete reconstruction of the earth-fill dam.
Future Developments: Amphilochia Pumped-Storage Facility
Terna has outlined plans for the Amphilochia Pumped-Storage Hydroelectricity Facility, a major expansion project designed to leverage the existing Kastraki Dam infrastructure. This initiative aims to add significant flexible capacity to the Greek power grid by utilizing the Kastraki reservoir as the lower basin for a new pumped-storage system.
| Project Detail | Specification |
|---|---|
| Project Name | Amphilochia Pumped-Storage Facility |
| Operator | Terna |
| Installed Capacity | 680 MW |
| Energy Storage | 5,872 MWh |
| Lower Reservoir | Lake Kastraki |
| Upper Reservoirs | Two proposed basins |
The proposed facility is designed with a total installed capacity of 680 MW and a storage capability of 5,872 MWh. This configuration positions the Amphilochia project as a significant asset for grid stability, offering substantial energy storage to balance variable renewable inputs and peak demand periods in the Aitoloakarnania region.
Reservoir Configuration
The engineering design relies on the existing Lake Kastraki, formed by the earth-fill embankment dam on the Achelous River, to serve as the lower reservoir. This integration minimizes the need for extensive new civil works for the lower basin, capitalizing on the 1969 completion of the original dam and its subsequent 2010 spillway upgrades.
The system requires the creation of new upper reservoirs to capture potential energy. The plan specifies two distinct upper reservoirs with storage volumes of 5 million cubic metres and 2 million cubic metres, respectively. These basins will be situated at higher elevations within the Amphilochia area, allowing water to be pumped up during periods of low electricity demand and released through turbines during peak hours.
This pumped-storage mechanism complements the existing 320 MW Francis turbine-generators at the Kastraki power station. While the original plant focuses on run-of-river and flood-control hydroelectric generation, the Amphilochia facility introduces dynamic storage capabilities. The combination of the original 320 MW capacity and the new 680 MW pumped-storage units significantly enhances the total energy output potential of the Kastraki complex, supporting Greece's broader energy infrastructure goals.
Why it matters
The Kastraki Dam serves as a critical node in Greece's energy infrastructure, functioning not merely as a hydroelectric power plant but as a multi-purpose asset essential to the stability of the western Greek grid. As an operational facility with an installed capacity of 320 MW, it provides significant baseload and peaking power, contributing directly to the national renewable energy mix. The plant's four 80 MW Francis turbine-generators offer flexibility that is increasingly valuable in a grid integrating variable renewables, allowing for rapid adjustments in output to balance supply and demand. This operational reliability, established since its commissioning in 1969, underscores its enduring relevance in a modernizing energy landscape.
Hydrological and Agricultural Impact
Beyond electricity generation, the dam plays a vital role in the Achelous River basin's water management strategy. The infrastructure provides essential flood control, mitigating the historical volatility of the Achelous River, which is Greece's longest river. The 2010 upgrade to the overflow chute spillway, which introduced 20 fuse plugs, enhanced this capability by increasing the maximum height of the Lake Kastraki reservoir by 1.93 m and expanding storage capacity by 44,000,000 m3. This increased storage is crucial for irrigation systems in the Aitoloakarnania region, supporting agricultural productivity by ensuring consistent water availability during dry periods. The integration of flood control, irrigation, and power generation makes the Kastraki Dam a model of integrated resource management in the region.
Future Role in Pumped-Storage Expansion
The Kastraki Dam is positioned to become a key component of future energy storage solutions in Greece. It is identified as a potential site for the Amphilochia pumped-storage project, which aims to enhance grid flexibility through large-scale energy storage. Pumped-storage hydroelectricity (PSH) is critical for balancing intermittent renewable sources like wind and solar, and the existing infrastructure at Kastraki offers a strategic advantage for such expansion. By leveraging the existing reservoir and dam structure, the Amphilochia project could significantly increase the region's storage capacity, further solidifying Kastraki's role in Greece's transition to a more resilient and renewable-heavy energy system. This potential development highlights the dam's evolving significance from a primary power generator to a foundational element of advanced grid storage infrastructure.
What is the role of Kastraki Dam in regional flood control?
The Kastraki Dam serves as a critical infrastructure asset for flood control within the Aitoloakarnania region, managing the flow of the Achelous River. As an earth-fill embankment structure, the dam was designed from its inception in 1969 to mitigate the hydrological variability of the Achelous, which is vital for protecting downstream communities and agricultural lands. The dam's operational role extends beyond power generation, functioning as a strategic buffer against peak river flows that characterize the region's hydrology.
2010 Spillway Upgrades and Enhanced Capacity
Flood control capabilities were significantly enhanced through a major infrastructure upgrade completed in 2010. The dam's overflow chute spillway was modified with the installation of 20 fuse plugs, a technical improvement designed to optimize water release during high-flow events. This modification allowed for a precise increase in the maximum height of the Lake Kastraki reservoir by 1.93 m (6.3 ft). Consequently, the storage capacity of the reservoir increased by 44,000,000 m3 (36,000 acre⋅ft). These additions provide a larger volume for capturing excess water during heavy rainfall or snowmelt periods, reducing the immediate pressure on downstream river channels.
Regional Hydrological Management
The management of the Achelous River is essential for the stability of the Aitoloakarnania region. By regulating the river's discharge, the Kastraki Dam helps prevent sudden surges that can overwhelm local drainage systems and flood plains. The integration of flood control with hydroelectric generation allows for dynamic operation; water stored for power generation can be strategically released to lower reservoir levels before anticipated flood peaks. This dual-purpose design ensures that the 320 MW power station operated by Terna can maintain energy output while simultaneously serving as a primary defense mechanism against regional flooding. The 2010 upgrades specifically targeted the efficiency of this balance, ensuring that the increased storage volume can be effectively utilized to absorb hydrological shocks.
