Jablanica Dam: Hydroelectric Infrastructure on the Neretva River

Overview

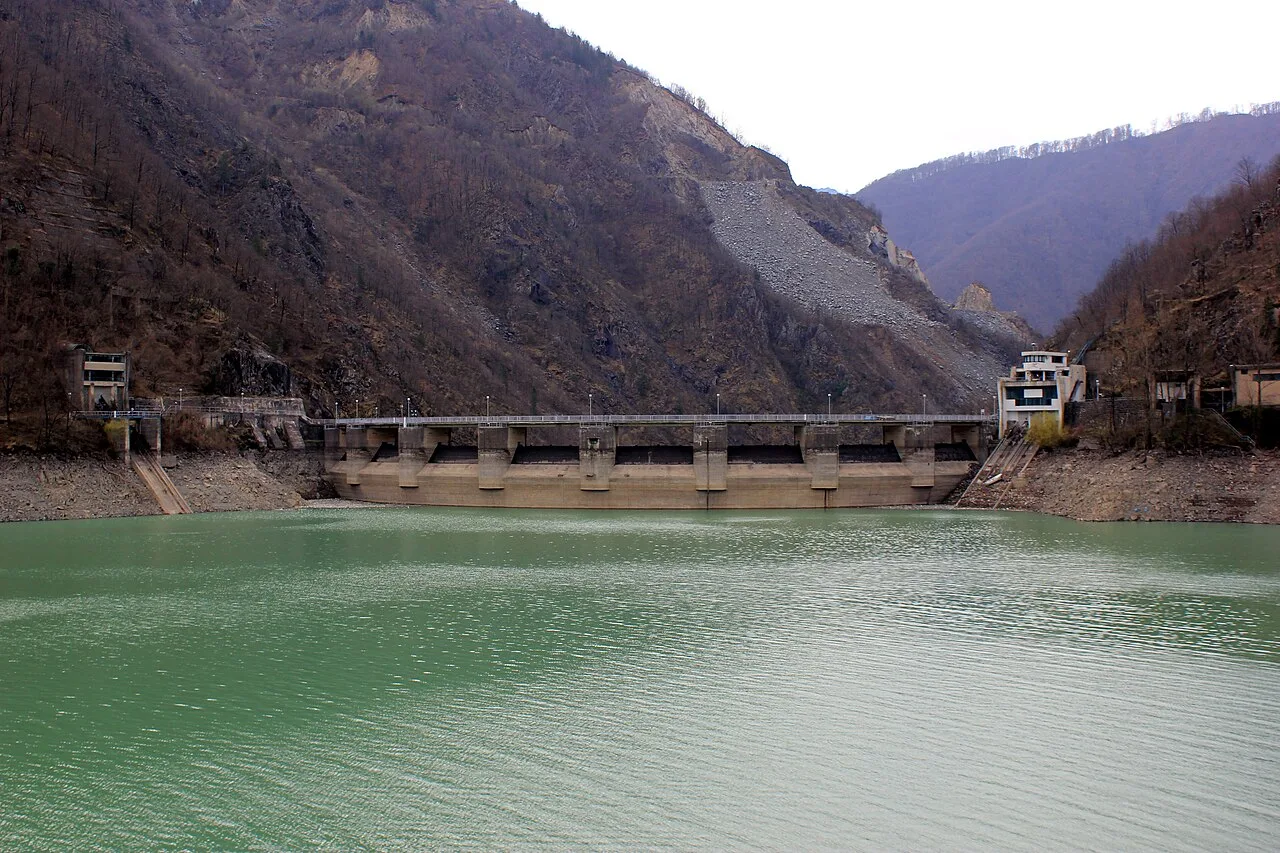

The Jablanica Dam is an arch-gravity dam situated on the Neretva River, approximately 4 km northwest of the town of Jablanica in the Herzegovina-Neretva Canton of Bosnia and Herzegovina. The structure serves as a critical component of the regional hydroelectric infrastructure, primarily designed for power production. The dam creates the Jablanica Lake reservoir and stands 85 m tall, forming a significant hydraulic barrier along the river's course.

The facility is owned and operated by Elektroprivreda Bosne i Hercegovine. Construction of the dam commenced in 1947 and was completed in 1955. The associated power station was commissioned in two distinct stages, spanning from 1955 to 1958. The first generator began operation in February 1955, marking the initial phase of energy output for the region. The power station itself is located approximately 4.4 km to the southeast of the dam structure, near Jablanica, and discharges water back into the Neretva River.

The Jablanica power station has an installed capacity of 180 MW. This capacity was achieved through an upgrade in 2008, which increased the installed capacity from an original 150 MW to the current 180 MW. The station utilizes six Francis turbine-generators, each with a capacity of 30 MW. The hydraulic head available for power generation is 111 m, resulting from the elevation difference between the reservoir and the power station. The facility remains operational and continues to contribute to the energy mix of Bosnia and Herzegovina.

Engineering and Technical Specifications

The Jablanica Dam utilizes an arch-gravity structural design, a configuration that combines the radial curvature of an arch dam with the mass of a gravity dam to efficiently distribute hydrostatic pressure. This engineering approach allows the structure to withstand the significant water pressure of the Neretva River while maintaining stability on the riverbed foundation. The dam stands at a height of 85 m (279 ft) and serves as the primary barrier creating Jablanica Lake, the reservoir that stores the potential energy required for power generation.

Hydroelectric Power Station Mechanics

The associated hydroelectric power station is situated approximately 4.4 km (2.7 mi) southeast of the dam structure. This spatial separation between the intake and the turbine hall is critical to the plant’s hydraulic efficiency. The layout leverages a significant elevation difference, providing a hydraulic head of 111 m (364 ft). This head drives the water through penstocks to the turbine-generators, converting potential energy into kinetic energy and subsequently into electricity. The system is a run-of-the-river configuration with storage, discharging the water back into the Neretva River downstream of the station.

The power station houses six Francis turbine-generators. The Francis turbine is a type of reaction turbine that combines radial and axial flow concepts, making it highly efficient for medium-head applications like Jablanica. Each of the six units has a rated capacity of 30 MW, contributing to the plant’s total installed capacity of 180 MW. The station was originally commissioned in stages between 1955 and 1958. A significant technical upgrade was completed in 2008, which increased the installed capacity from the original 150 MW to the current 180 MW, enhancing the output of the existing turbine infrastructure.

History of Construction and Operation

Construction of the Jablanica Dam began in 1947, establishing a major infrastructure project on the Neretva River in the Herzegovina-Neretva Canton of Bosnia and Herzegovina. The engineering effort focused on creating an arch-gravity structure designed primarily for hydroelectric power production. The construction phase concluded in 1955, resulting in a dam that stands 85 m (279 ft) tall and creates the Jablanica lake reservoir.

The first generator was officially commissioned in February 1955, marking the initial operational milestone for the facility. This phased approach allowed for the gradual integration of the six 30 MW Francis turbine-generators that comprise the installed capacity of 180 MW.

2008 Capacity Upgrade

Decades after its initial commissioning, the Jablanica Dam underwent a significant technical upgrade in 2008. This modernization effort increased the installed capacity of the power station from 150 MW to 180 MW, enhancing its output efficiency. The upgrade maintained the existing configuration of six Francis turbine-generators, each rated at 30 MW.

The facility discharges water back into the Neretva River, utilizing a hydraulic head of 111 m (364 ft) created by the elevation difference between the reservoir and the power station. The dam and power station remain owned and operated by Elektroprivreda Bosne i Hercegovine, ensuring continued operational status.

How does the Jablanica power station generate electricity?

The Jablanica power station generates electricity using six Francis turbine-generators, each rated at 30 MW, for a total installed capacity of 180 MW. The Francis turbine is a type of reaction turbine that extracts energy from the pressure and velocity of water. In the Jablanica system, water from the reservoir created by the 85 m tall arch-gravity dam flows through penstocks to the power station located about 4.4 km southeast of the dam site. The elevation difference between the reservoir and the power station provides a hydraulic head of 111 m, which drives the turbines. As water passes through the spiral casing and guide vanes, it strikes the runner blades, causing rotation that spins the generator rotor within a magnetic field to produce electrical energy.

The discharge process returns water to the Neretva River downstream of the power station. After passing through the Francis turbines, the water exits through draft tubes and is channeled back into the river, completing the hydroelectric cycle. The dam was constructed between 1947 and 1955, with the primary purpose of hydroelectric power production on the Neretva River in the Herzegovina-Neretva Canton of Bosnia and Herzegovina.

Why it matters

The Jablanica Dam represents a foundational component of the hydroelectric infrastructure along the Neretva River in Bosnia and Herzegovina. Constructed between 1947 and 1955, the facility was among the earliest major hydroelectric developments in the region, establishing the Neretva as a critical energy corridor. The dam is an arch-gravity structure that stands 85 m tall and creates the Jablanica lake reservoir, serving as the uppermost major retention point in the cascading Neretva hydroelectric system. Its strategic location in the Herzegovina-Neretva Canton allows for significant hydraulic head utilization, with a difference in elevation of 111 m between the reservoir and the power station located approximately 4.4 km to the southeast. This topographical advantage enables efficient energy conversion, which has been central to the operational strategy of Elektroprivreda Bosne i Hercegovine (EBH) for decades.

Role in the Neretva Cascade

Within the broader Neretva River system, the Jablanica Dam functions as the primary upstream regulator for subsequent power stations. The discharge from the Jablanica power station flows back into the Neretva River, feeding downstream facilities and influencing the flow regimes for the entire cascade. The dam’s operation is critical for balancing energy production with water management in the Herzegovina-Neretva Canton. The facility’s design, featuring six 30 MW Francis turbine-generators, allows for flexible output adjustments, which is essential for managing the variable flow of the Neretva. The upgrade completed in 2008, which increased the installed capacity from 150 MW to 180 MW, enhanced the dam’s contribution to the national grid, ensuring that this historic asset remains competitive in the modern energy mix of Bosnia and Herzegovina.

Historical and Operational Significance

The commissioning of the first generator in February 1955 marked a significant milestone in the post-war industrialization of Bosnia and Herzegovina. The phased commissioning, which continued until 1958, reflected the strategic importance of rapid energy deployment to support regional economic recovery. As one of the oldest operating hydroelectric plants in the country, the Jablanica Dam has provided long-term energy security for the Herzegovina region. Its continued operation by EBH underscores the durability of the arch-gravity design and the sustained value of the Neretva River’s hydrological potential. The dam’s role extends beyond mere electricity generation; it serves as a key infrastructural landmark that supports the energy independence and grid stability of the Herzegovina-Neretva Canton, integrating historical engineering with ongoing operational needs.

Cultural Impact and Media

The Jablanica Dam holds a distinct place in popular culture, most notably through its prominent feature in the 1978 British war film Force 10 from Navarone. This cinematic appearance has contributed significantly to the dam's international recognition, transforming a key piece of Bosnian hydroelectric infrastructure into a recognizable landmark for film enthusiasts and travelers alike. The dam's dramatic arch-gravity structure, rising 85 m (279 ft) above the Neretva River, provided a compelling visual backdrop that utilized the natural grandeur of the Herzegovina-Neretva Canton.

In Force 10 from Navarone, the second installment of the From Russia with Love-era Navarone trilogy, the Jablanica Dam serves as a central plot device. The film, directed by Guy Hamilton and starring Roger Moore and Anthony Hopkins, is set during the final days of World War II in the Balkans. The narrative revolves around an Allied commando mission tasked with destroying the dam to divert the flow of the Neretva River, thereby halting the advance of German forces. The choice of the Jablanica Dam for this role was driven by its imposing physical characteristics and strategic location along the river, which offered the necessary visual scale and geographic logic for the film's military engineering plot.

The production utilized the dam's actual geography, including the surrounding landscape and the reservoir known as Jablanica Lake, to create an authentic wartime setting. The film's depiction highlights the dam's role not just as a source of energy—producing 180 MW of power through its six Francis turbine-generators—but as a strategic chokepoint in the region's topography. This cultural representation has since influenced tourism in the area, with visitors often referencing the film when exploring the site northwest of the town of Jablanica.

Beyond its cinematic fame, the dam's integration into the local cultural landscape is evident in how it is perceived by the residents of the Herzegovina-Neretva Canton. As a major infrastructure project completed in the mid-20th century, with its first generator commissioned in February 1955 and full capacity reached by 1958, the dam represents a significant era of modernization in Bosnia and Herzegovina. The 2008 upgrade, which increased the installed capacity from 150 MW to 180 MW, further cemented its status as a vital, evolving asset. The combination of its functional importance, operated by Elektroprivreda Bosne i Hercegovine, and its media presence creates a multifaceted identity for the Jablanica Dam, bridging engineering achievement with cultural memory.

What are the environmental and geographical features of the Jablanica Reservoir?

The Jablanica Dam creates Jablanica Lake, a significant reservoir situated on the Neretva River in the Herzegovina-Neretva Canton of Bosnia and Herzegovina. The dam is located approximately 4 km northwest of the town of Jablanica. The structure is an arch-gravity dam standing 85 m tall. This elevation allows for the creation of a substantial body of water that serves as the primary source for the hydroelectric power station. The reservoir is integral to the energy infrastructure of the region, providing the necessary water volume and hydraulic head for power generation.

Geographical Location and Topography

The Jablanica Dam is positioned in a distinct geographical setting within the Herzegovina-Neretva Canton. The Neretva River flows through this area, providing the natural water source for the reservoir. The dam's location, about 4 km northwest of Jablanica, places it in a strategic position for capturing water from the upper reaches of the river. The surrounding landscape is characterized by the topography of the Neretva Valley, which has been modified by the creation of the lake. The reservoir extends along the river, creating a long, narrow body of water that reflects the shape of the valley. The elevation difference between the reservoir and the power station is a key geographical feature. This difference in elevation affords a hydraulic head of 111 m. This significant drop in height is crucial for the efficiency of the hydroelectric generation process. The water flows from the reservoir, through the turbines, and discharges back into the Neretva River. The power station is located about 4.4 km to the southeast of the dam, near Jablanica. This separation between the dam and the power station is a common feature in hydroelectric projects, allowing for the optimization of the hydraulic head and the layout of the infrastructure.

Reservoir Characteristics

Jablanica Lake is the result of the damming of the Neretva River. The lake serves as the storage reservoir for the hydroelectric power plant. The volume and surface area of the lake are determined by the capacity of the dam and the flow of the Neretva River. The reservoir plays a vital role in regulating the water flow downstream. This regulation helps to manage the water levels in the Neretva River, which can be beneficial for various uses, including further hydroelectric generation, irrigation, and water supply. The creation of the lake has also had an impact on the local environment and geography. The shoreline of the lake follows the contours of the surrounding land, creating a varied coastline. The water in the reservoir is drawn from the Neretva River, which is a major river in Bosnia and Herzegovina. The quality and quantity of the water in the reservoir are influenced by the upstream conditions of the river and the surrounding watershed. The reservoir is a key component of the Jablanica Hydroelectric Power Plant, providing the necessary water for the operation of the turbines. The dam's height of 85 m allows for the creation of a deep reservoir, which can store a significant amount of water. This storage capacity is important for ensuring a consistent supply of water for power generation, especially during periods of varying river flow.

Environmental Context

The Jablanica Reservoir is situated within the natural environment of the Herzegovina-Neretva Canton. The Neretva River is a significant waterway in the region, and the creation of the reservoir has altered the local ecosystem. The lake provides a habitat for various aquatic species and influences the surrounding terrestrial environment. The dam and the reservoir are part of the broader energy infrastructure of Bosnia and Herzegovina. The operation of the hydroelectric power plant involves the management of water resources, which can have environmental implications. The discharge of water from the power station back into the Neretva River helps to maintain the flow of the river downstream. The geographical features of the area, including the elevation and the topography of the valley, have been shaped by the construction of the dam and the creation of the lake. The reservoir is a prominent feature of the local landscape, visible from the town of Jablanica and the surrounding areas. The environmental impact of the reservoir includes changes in water levels, temperature, and flow patterns in the Neretva River. These changes can affect the biodiversity of the river and the lake. The management of the reservoir involves balancing the needs for hydroelectric power generation with the environmental characteristics of the Neretva River and Jablanica Lake. The dam is an operational structure, having been commissioned in stages between 1955 and 1958. The ongoing operation of the dam and the reservoir continues to influence the geographical and environmental features of the area.

Ownership and Management

The Jablanica Dam and its associated hydroelectric power station are owned and operated by Elektroprivreda Bosne i Hercegovine. This entity serves as the primary utility responsible for the management, maintenance, and operational oversight of the infrastructure located on the Neretva River in the Herzegovina-Neretva Canton of Bosnia and Herzegovina. The ownership structure places the asset under the direct control of this national electricity company, which manages the facility as a key component of the regional hydroelectric grid.

Elektroprivreda Bosne i Hercegovine has maintained continuous operational responsibility for the dam since its initial commissioning phases. The power station was commissioned in two stages, from 1955 until 1958, with the first generator coming online in February 1955. The operator has managed the facility through various operational eras, including significant modernization efforts. A notable example of this ongoing management is the upgrade completed in 2008, during which the operator increased the installed capacity of the power station from 150 MW to 180 MW. This enhancement reflects the operator's role in optimizing the output of the six 30 MW Francis turbine-generators that comprise the station's core mechanical infrastructure.

The operational scope of Elektroprivreda Bosne i Hercegovine includes the management of the dam's structural integrity and hydraulic performance. The dam, which is 85 m (279 ft) tall, creates the Jablanica lake reservoir, and the operator manages the water discharge back into the Neretva River from the power station located about 4.4 km (2.7 mi) to the southeast of the dam structure. The hydraulic head of 111 m (364 ft) is a critical operational parameter that the operator monitors to ensure efficient energy production. The facility remains in operational status, continuing to serve as a functional hydroelectric powerplant with a primary fuel source of water, contributing 180 MW of capacity to the energy mix of Bosnia and Herzegovina.
