Overview

The Irganai Dam constitutes a significant hydroelectric infrastructure asset located in the Untskul region of Dagestan, Russia. Situated on the Avar Koisu river, this facility operates as a major source of renewable energy generation within the North Caucasus region. The plant is classified as a hydroelectric powerplant, utilizing water as its primary fuel source to drive turbine generators. It is currently operational, contributing to the regional and national power grid stability in Russia.

Under the ownership and management of RusHydro, the Irganai Dam represents a key component of the Russian Federation's hydropower portfolio. The facility has a total installed capacity of 400 MW, providing substantial baseload and peaking power depending on seasonal water flow variations in the Avar Koisu river basin. The plant was commissioned in 1998, marking the culmination of construction efforts aimed at harnessing the hydraulic potential of the region. Since its entry into service, the Irganai Dam has maintained continuous operation, serving as a critical node in the energy infrastructure of Dagestan.

Notably, the Irganai Dam is recognized as the largest derivational hydroelectric power station in Russia. This classification highlights its specific engineering design, which likely involves a significant diversion of water from the Avar Koisu river through penstocks to a power house located at a different elevation, maximizing the hydraulic head for efficient energy conversion. The derivational nature of the plant distinguishes it from run-of-the-river or reservoir-heavy schemes, emphasizing the strategic use of topographical gradients in the Untskul region. This technical distinction underscores the engineering complexity and the specific geographical advantages exploited during the plant's development in the late 1990s.

History and Construction Timeline

Located on the Avar Koisu river, the hydroelectric powerplant was developed to harness water resources for energy generation. The project's chronological development spans from its initial inception in 1977 through the operational launch of its units in the late 1990s and early 2000s.

Project Inception and Construction Start

The conceptual phase of the Irganai Dam began in 1977, marking the official inception date of the project. This early stage involved preliminary assessments of the Avar Koisu river's hydrological potential and the strategic planning required for dam construction in the Dagestan region. Following the inception phase, physical construction commenced in 1979. This two-year gap between inception and ground-breaking is typical for large-scale hydroelectric projects, allowing for geological surveys, engineering design, and resource allocation. The construction phase laid the foundational infrastructure necessary to support the dam structure and the subsequent installation of hydroelectric generating units.

Operational Launch and Unit Commissioning

The Irganai Dam reached its first major operational milestone in 1998. This year marks the official commissioning of the powerplant, with the launch of the first generating unit. The 1998 commissioning date signifies the transition from construction to active energy production, contributing to the regional grid in Dagestan. The powerplant, operated by RusHydro, achieved a total installed capacity of 400 MW. The operational status of the dam remains active, continuing to provide hydroelectric power from the Avar Koisu river.

The completion of the Irganai Dam's generating capacity was finalized with the launch of the second unit in 2001. This event marked the full realization of the project's initial power generation goals. The period between the first unit's launch in 1998 and the second unit's launch in 2001 represents the final phase of the operational rollout for the Irganai hydroelectric powerplant.

Year Event
1977 Project inception date
1979 Construction start
1998 First unit launched / Official commissioning
2001 Second unit launched

Technical Specifications and Engineering

The Irganai Dam is a major hydraulic structure located in the Untskul region of Dagestan, Russia, situated on the Avar Koisu river. The facility operates as a hydroelectric powerplant with an installed capacity of 400 MW. The dam was commissioned in 1998 and remains operational under the management of RusHydro. The engineering design incorporates a gravel embankment reinforced with an asphalt-concrete diaphragm, providing structural integrity for the reservoir and downstream flow regulation.

Dam Structure

The dam structure is characterized by a height of 111 m and a crest length of 317 m. The construction utilizes a gravel fill material, which is central to the embankment's stability. An asphalt-concrete diaphragm serves as the primary waterproofing element, separating the upstream water pressure from the downstream gravel core. This design choice allows for flexibility in the foundation while maintaining a robust barrier against seepage. The location on the Avar Koisu river necessitates specific geological considerations, which the gravel and asphalt-concrete combination addresses effectively.

Powerhouse and Hydraulic Units

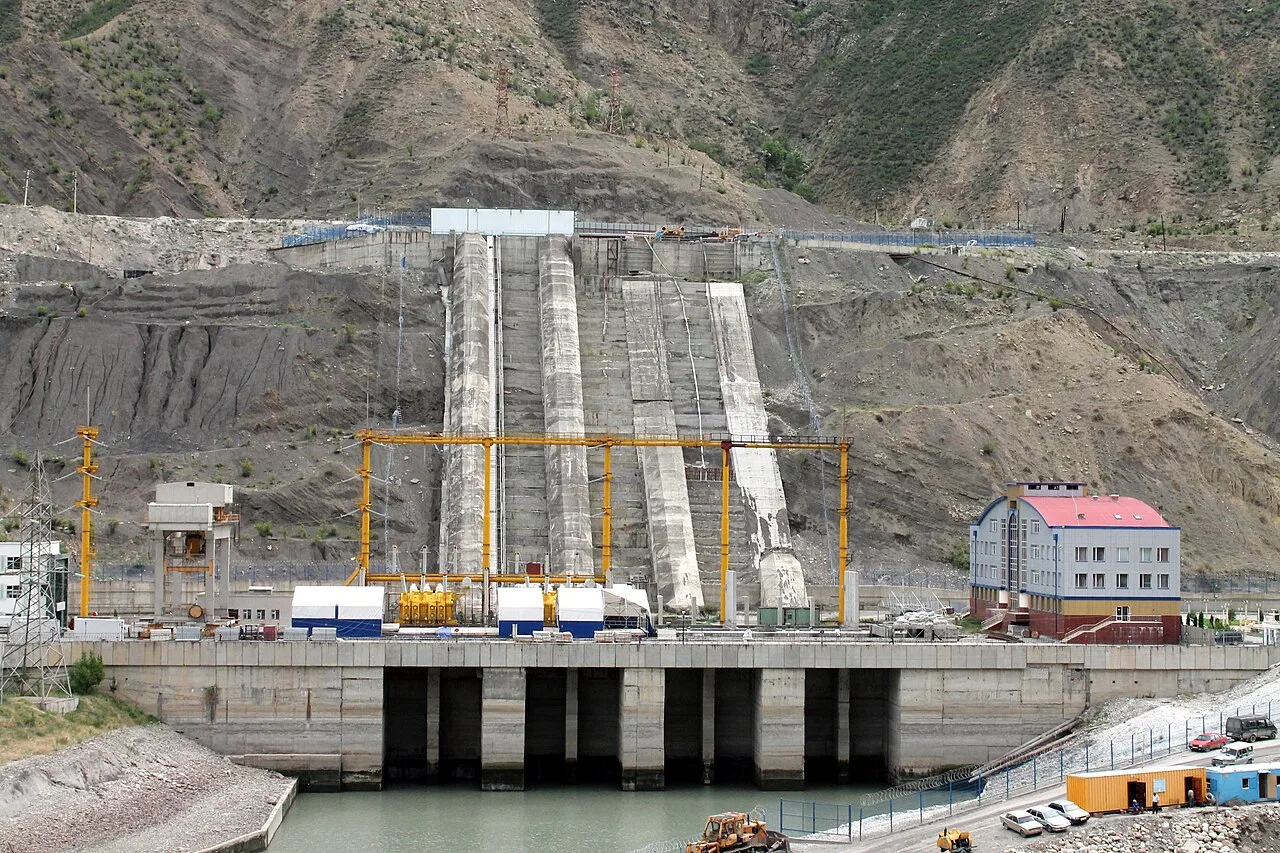

The powerhouse houses the hydraulic units responsible for converting the potential energy of the stored water into electrical power. The total installed capacity of the plant is 400 MW. The hydraulic system is designed to manage the flow from the Avar Koisu river, directing water through the turbines to generate electricity for the regional grid. RusHydro operates the facility, ensuring the maintenance of the hydraulic units and the overall efficiency of the power generation process. The operational status of the plant has been maintained since its commissioning in 1998.

Parameter Value
Entity Type Hydroelectric Powerplant
Country Russia (RU)
Region Untskul, Dagestan
River Avar Koisu
Operator RusHydro
Commissioned 1998
Status Operational
Installed Capacity 400 MW
Dam Height 111 m
Dam Length 317 m
Dam Type Gravel with asphalt-concrete diaphragm
