Hand pump: Design, history and rural water supply applications

Overview

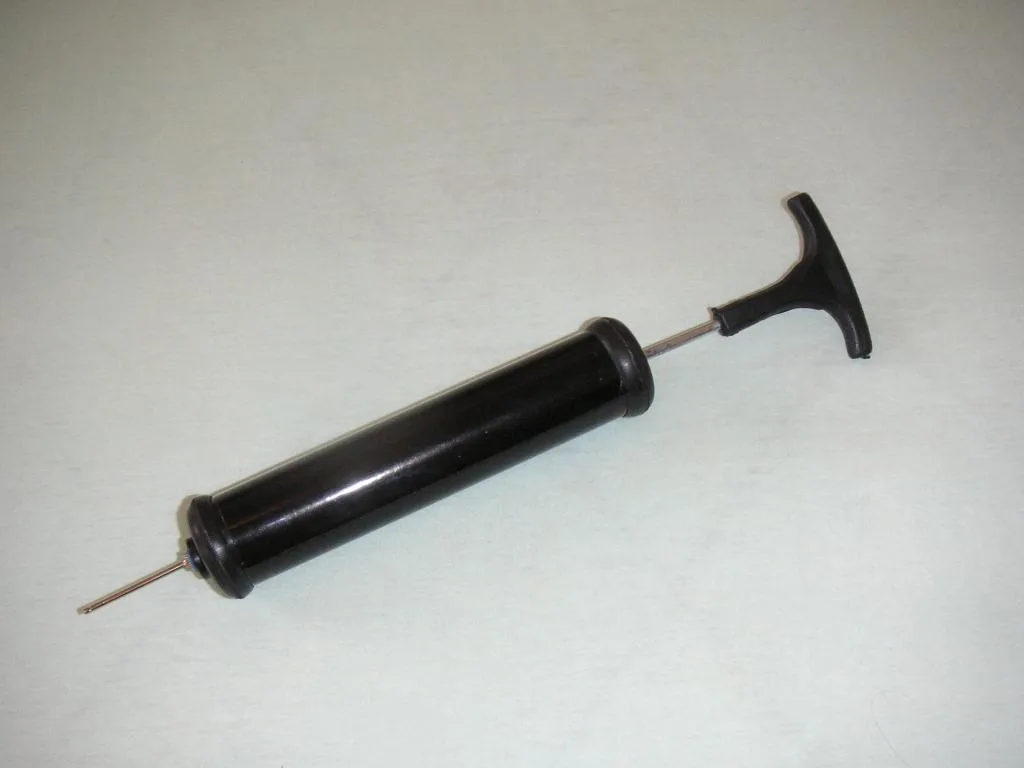

Hand pumps are manually operated mechanical devices designed to move fluids or air from one location to another using human power and mechanical advantage. These systems are classified as positive displacement pumps, meaning they move a fixed volume of fluid with each cycle of operation. The fundamental mechanism relies on creating a pressure differential within a chamber, forcing the medium to flow through entry and exit ports equipped with check valves. These valves operate in opposing directions to ensure unidirectional flow, preventing backflow and maintaining efficiency during the pumping cycle.

Operational Principles and Types

The majority of hand pumps operate on one of three primary mechanical principles: piston, diaphragm, or rotary vane. Piston and plunger pumps are the most common configurations. In these designs, a cylindrical piston moves within a cylinder, compressing the fluid or air to push it through the discharge port. Diaphragm pumps utilize a flexible membrane that flexes to create suction and pressure, making them particularly effective for handling viscous fluids or solids. Rotary vane pumps employ a rotor with sliding vanes that trap and move fluid between the inlet and outlet. Each type offers distinct advantages depending on the viscosity, pressure requirements, and specific application of the fluid being moved.

Global Applications

Hand pumps are ubiquitous tools found in every country in the world. Their simplicity, reliability, and independence from external power sources make them essential across multiple sectors. In industrial settings, they are used for precise fluid transfer, lubrication, and pressure testing. Marine applications include bilge pumping, ballast management, and deck washing, where electrical power may be intermittent or where manual control is preferred. In agriculture, hand pumps are critical for small-scale irrigation, drawing water from wells, rivers, or storage tanks. They are also widely used in leisure activities, such as inflating air mattresses, tires, and sports equipment, as well as in domestic water supply systems in regions with intermittent mains pressure. The versatility of hand pumps ensures their continued relevance in both developed and developing economies.

History of hand pumps and public health

Hand pumps have served as a fundamental technology for fluid displacement across centuries, relying on human power and mechanical advantage to move water or air. Historically, these devices were categorized into distinct types such as the pitcher pump and the parish pump, which became ubiquitous in domestic and communal settings before the widespread adoption of motorized systems. The parish pump, in particular, served as a central gathering point in many communities, providing a reliable source of water through manual operation. These early designs laid the groundwork for the diverse array of hand pumps used today, which continue to operate on principles of piston, diaphragm, or rotary vane mechanisms with check valves regulating flow direction.

The Broad Street Cholera Outbreak and John Snow

The critical role of hand pumps in public health was dramatically illustrated during the 1854 Broad Street cholera outbreak in London. Dr. John Snow’s investigation into this epidemic highlighted the connection between water quality and disease transmission, with the Broad Street pump serving as the primary source of contaminated water for many residents. Snow’s meticulous mapping of cases around the pump provided compelling evidence that cholera was waterborne, challenging the prevailing miasma theory of the time. This landmark study not only identified the specific hand pump as the vector for the outbreak but also established foundational principles for epidemiology and urban water management. The removal of the pump’s handle is often cited as a decisive intervention that helped curb the spread of the disease, underscoring the importance of accessible and clean water sources.

Transition to Modern Sustainable Options

In contemporary applications, hand pumps remain vital for sustainable and low-cost water supply solutions, particularly in regions where electricity and infrastructure are variable. Modern designs have evolved to incorporate durable materials and improved mechanical efficiency, ensuring longevity and ease of maintenance. These pumps are widely used in industrial, marine, irrigation, and leisure activities, reflecting their versatility and reliability. The continued reliance on hand pumps in various sectors highlights their enduring value in providing safe and accessible water. As global efforts focus on sustainable development, hand pumps offer a practical and cost-effective means of enhancing water security, supporting both rural and urban communities in their quest for improved public health and resource management.

What are the main types of hand pumps?

They are classified primarily by their internal mechanism, with piston, plunger, diaphragm, and rotary vane designs being the most prevalent. These systems are generally positive displacement pumps, utilizing check valves at the entry and exit ports to control flow direction. The specific configuration determines the pump’s suitability for industrial, marine, irrigation, or leisure applications.

Mechanical Configurations

Most hand pumps operate as piston or plunger pumps. Suction and lift pumps rely on atmospheric pressure to draw fluid into a chamber, while force pumps use a piston to push fluid through a discharge line. Deep well pumps are designed to reach greater depths, often employing a rod system to drive the piston. Chain pumps, also known as bucket pumps, use a continuous chain with attached buckets to lift water from a source. Direct action pumps typically feature a lever mechanism that moves the piston directly, providing a simple and robust solution for shallow wells. Diaphragm pumps use a flexible membrane to displace fluid, making them ideal for handling viscous liquids or solids. Progressive cavity pumps utilize a rotating helical rotor within a stator to move fluid, offering smooth flow with minimal pulsation.

Pump Type	Mechanism	Typical Lift Range
Suction/Lift Pump	Piston/Plunger	Shallow to Moderate
Force Pump	Piston	Moderate to High
Chain Pump	Bucket/Chain	Shallow
Deep Well Pump	Rod-driven Piston	Deep
Diaphragm Pump	Flexible Membrane	Variable
Progressive Cavity	Rotor/Stator	Variable

The performance of these pumps is governed by basic fluid dynamics. For a piston pump, the volume displaced per stroke V = A * L, where A is the cross-sectional area of the piston and L is the stroke length. The theoretical maximum lift height H for a suction pump is determined by atmospheric pressure P_atm, fluid density ρ, and gravity g, expressed as H = P_atm / (ρ * g). This principle limits suction pumps to approximately 10 meters for water under standard conditions. Force pumps can achieve greater heights by converting mechanical work into pressure head, allowing for more versatile deployment across diverse terrains and industrial needs.

How do hand pumps improve rural water access?

Hand pumps play a critical role in improving rural water access, particularly in developing countries where infrastructure density varies significantly. These manually operated devices utilize human power and mechanical advantage to move fluids, making them a resilient solution for decentralized water supply systems. In many rural contexts, hand pumps are preferred over traditional bucket and rope systems due to superior hygiene and operational efficiency. The design of most hand pumps, which are primarily piston or plunger types, allows for integration with cover slabs. This compatibility helps protect the water source from surface runoff and contamination, a significant advantage over open wells accessed by ropes and buckets.

Human Right to Water and Infrastructure

The significance of hand pumps extends beyond mechanical utility to the broader framework of water rights. In 2002, the UN Committee on Economic, Social and Cultural Rights made a notable assertion regarding the human right to water. This assertion highlighted the importance of accessible and sustainable water infrastructure in fulfilling basic human needs. Hand pumps contribute to this goal by providing a reliable means of water extraction without dependence on continuous electrical grids or complex fuel supplies. Their operational status remains active globally, supporting irrigation, marine activities, and leisure uses in addition to domestic water access.

Manufacturers and Development

Various manufacturers contribute to the availability and diversity of hand pumps. For instance, GOAZ Development is one of the entities involved in producing these devices. The market offers many different types of hand pumps, mainly operating on piston, diaphragm, or rotary vane principles. These systems incorporate check valves on entry and exit ports to ensure positive displacement. The mechanical advantage provided by these designs allows users to extract water from varying depths, enhancing the versatility of hand pumps in different geographical and geological conditions. This variety supports the widespread use of hand pumps across every country in the world, adapting to local needs and resource availability.

Village Level Operation and Maintenance (VLOM)

The Village Level Operation and Maintenance (VLOM) framework emerged as a critical strategy for sustaining hand pump infrastructure in rural areas, shifting responsibility from centralized agencies to local communities. This approach was significantly advanced by the UNDP and World Bank Rural Water Supply Hand Pumps Project, which operated from 1981 to 1991. The initiative aimed to improve the reliability of manually operated pumps by analyzing field performance data and standardizing maintenance protocols across diverse geographic and technical contexts.

Field Analysis and Technical Evaluation

During the project period, extensive field studies were conducted to evaluate the performance of various hand pump models. The analysis covered 40 distinct kinds of pumps, assessing their mechanical efficiency, durability, and ease of repair. Data from 2700 field performances provided empirical evidence on the operational lifespan of different pump types, including piston, diaphragm, and rotary vane mechanisms. These findings highlighted the importance of selecting appropriate pump designs based on local water quality, groundwater depth, and user preferences.

The evaluation also identified common failure points in hand pump systems, such as check valve degradation and piston seal wear. By understanding these technical challenges, the project developed standardized maintenance guidelines that could be implemented at the village level. This data-driven approach helped reduce downtime and improved the overall reliability of rural water supply systems.

Decentralized Maintenance Management

A key outcome of the VLOM framework was the shift from centralized to village-level maintenance management. Traditionally, hand pump repairs were managed by regional water authorities, often resulting in delayed responses and high operational costs. Under the VLOM model, local communities were empowered to take ownership of their water infrastructure, with trained village mechanics responsible for routine inspections and minor repairs.

This decentralized approach required the establishment of local supply chains for spare parts and the development of training programs for village-level operators. The role of organizations such as Skat and the Rural Water Supply Network (RWSN) was instrumental in coordinating these efforts. Skat, a Swiss-based research and development agency, contributed technical expertise and field testing methodologies, while RWSN facilitated knowledge sharing and policy advocacy across global rural water supply initiatives.

The success of VLOM depended on the integration of technical, social, and economic factors. Communities needed access to affordable spare parts, clear maintenance schedules, and financial mechanisms to fund ongoing repairs. By aligning these elements, the VLOM framework improved the sustainability of hand pump systems and enhanced water access for millions of rural users.

Case studies in hand pump development projects

Development projects have historically sought to standardize hand pump deployment to improve rural water access. The 1992 Mali Rural Supply Project serves as a prominent case study, aiming to extend service to 230 villages and benefit approximately 228000 people. While the initiative successfully expanded infrastructure, it highlighted significant operational challenges related to pump complexity and the availability of spare parts. These factors often dictated the long-term sustainability of the installations more than the initial capital expenditure.

Regional assessments have quantified the variability in hand pump functionality. A 1994 study indicated that functionality rates in Africa ranged between 41 and 51 percent. These figures underscore the impact of maintenance regimes and local technical capacity on the reliability of manually operated pumps. The data suggests that without robust logistical support, a significant portion of the installed base can fall into disrepair within a few years of commissioning.

Subsequent reviews have analyzed the allocation of resources for upkeep. A 2008 World Bank review of India found that 45 percent of efforts were focused on breakdown maintenance. This statistic reflects a reactive approach to hand pump management, where repairs are often initiated after failure rather than through preventive scheduling. The reliance on breakdown maintenance can lead to longer periods of downtime for end-users, particularly in areas where the mechanical advantage of the piston or diaphragm principles is critical for extracting water from varying depths.

What are the affordability challenges for rural hand pumps?

The economic viability of rural hand pump deployment is frequently constrained by the disparity between unit capital costs and local per capita income. A 1992 aid project in Ethiopia illustrates this challenge: the initiative deployed 165 Afridev hand pumps, with each unit costing US700.Thesepumpsweredesignedtoserveapproximately55householdsperunit.Whencomparedtotheaveragepercapitaincomeof120 in the region at that time, the capital expenditure represented a significant financial burden for individual households or small community groups.

Cost analysis for rural water infrastructure often utilizes income thresholds to determine affordability. In this context, the cost of alternative hand pump designs ranged from 160to300. Researchers have identified that when the cost of a water access solution exceeds 11 percent of a household's income, it is considered a heavy burden, whereas costs below 5 percent are generally deemed affordable. The 700Afridevpump,whenamortizedorcomparedagainstthe120 per capita income, highlights the difficulty of maintaining these systems without external subsidies or communal funding mechanisms.

The affordability challenge is not solely about the initial purchase price but also involves the ongoing maintenance costs relative to income. The mechanical advantage provided by piston, diaphragm, or rotary vane principles ensures efficient fluid movement, but the durability of these positive displacement pumps varies. If the cost of repairs or replacement parts pushes the total cost of ownership above the 11 percent income threshold, households may revert to less reliable water sources, undermining the initial investment.

Alternative designs costing between 160and300 offer a more accessible entry point for rural communities. These lower-cost options can help keep the financial impact within the 5 percent affordability threshold for a larger portion of the population. However, the trade-off often involves a balance between initial capital expenditure and long-term durability. The 1992 Ethiopia example demonstrates that without careful cost-benefit analysis, even well-designed pumps like the Afridev can become economically unsustainable for the very households they aim to serve.
