Gridiron pendulum: Temperature compensation in precision clocks

Overview

The gridiron pendulum represents a significant advancement in the history of precision timekeeping, functioning as a temperature-compensated clock mechanism designed to mitigate the effects of thermal expansion on timekeeping accuracy. Invented by British clockmaker John Harrison around 1726, this device addressed a fundamental challenge in horology: the sensitivity of a pendulum’s period to ambient temperature fluctuations. In standard clock pendulums, the rod expands and contracts with changes in temperature, directly altering its effective length. Since the period of the pendulum's swing is dependent on its length, these thermal variations caused the clock’s rate to vary, leading to inaccurate timekeeping. The gridiron pendulum was developed to maintain a constant overall length, and thus a constant period, regardless of temperature changes.

The mechanism operates through the use of alternating parallel rods composed of two different metals with distinct thermal expansion coefficients, such as steel and brass. These rods are interconnected by a frame arranged so that their differing thermal expansions compensate for one another. As temperature rises, the expansion of one metal counteracts the expansion of the other, ensuring that the net change in the pendulum’s length is minimized. This compensation allows the pendulum to maintain a consistent swing period, thereby enhancing the precision of the clock. The gridiron pendulum was primarily used in precision clocks where accurate time measurement was critical, particularly in scientific and navigational contexts during the 18th century and beyond.

John Harrison’s invention emerged during a period of intense interest in improving timekeeping accuracy, driven by the need for precise navigation at sea and advancements in astronomical observations. The gridiron pendulum became a standard feature in high-quality clocks, including those used in observatories and marine chronometers, until the development of more advanced compensation methods and materials. Its design exemplifies the ingenuity of early modern engineering, combining simple materials with clever mechanical arrangement to solve a complex physical problem. The concept remains a classic example of thermal compensation in mechanical systems.

How does the gridiron pendulum work?

The gridiron pendulum operates on the principle of thermal compensation using alternating rods of metals with distinct coefficients of linear thermal expansion. In a standard pendulum clock, the period of oscillation is directly proportional to the square root of the pendulum's effective length. As temperature rises, the pendulum rod expands, increasing its length and causing the clock to run slower. Conversely, cooling causes contraction and speeds up the timekeeping. John Harrison’s design, commissioned in 1726, neutralizes this effect by arranging rods of two different metals—typically steel and brass—in a specific geometric configuration.

Mechanical Compensation Principle

The mechanism consists of a vertical frame holding alternating rods of high-expansion metal (such as brass or zinc) and low-expansion metal (such as steel). The rods are connected by cross-pieces or frames such that the expansion of one set of rods pushes the bob downward, while the expansion of the other set pulls it upward. By carefully selecting the lengths and materials, the downward thermal expansion of the brass rods is counteracted by the upward expansion of the steel rods. This ensures that the center of oscillation remains at a constant distance from the pivot point, regardless of ambient temperature fluctuations.

The relationship between the lengths of the rods and their expansion coefficients determines the compensation. If Ls and Lb represent the total lengths of the steel and brass rods, and αs and αb are their respective coefficients of linear expansion, the condition for compensation is approximately Lsαs≈Lbαb. This mathematical balance allows the overall effective length to remain stable.

Material Specifications

The following table outlines the typical materials used in gridiron pendulums and their thermal properties. The choice of metals dictates the number of rods required to achieve precise compensation.

Metal Type	Role in Mechanism	Typical Rod Count (per side)	Thermal Expansion Coefficient
Steel	Low expansion (pulls up)	3	~11 × 10⁻⁶ /°C
Brass	High expansion (pushes down)	2	~19 × 10⁻⁶ /°C
Zinc	Very high expansion (alternative)	1	~30 × 10⁻⁶ /°C

In a classic five-rod gridiron pendulum, three steel rods and two brass rods are arranged alternately. The steel rods are longer because steel expands less than brass for the same temperature change. When zinc is used, fewer rods are needed due to its higher expansion coefficient. This design was critical for precision timekeeping in marine chronometers and astronomical clocks before the invention of invar alloys.

History and development

The gridiron pendulum represents a significant advancement in horological precision, addressing the thermal expansion challenges inherent in ordinary clock mechanisms. In standard pendulums, the rod expands and contracts with ambient temperature changes, altering the pendulum's effective length and thus its period, leading to timekeeping inaccuracies. John Harrison, a British clockmaker, invented this temperature-compensated system around 1726. His design utilized alternating parallel rods of two metals with different thermal expansion coefficients, typically steel and brass. These rods were connected by a frame arranged so that their differential expansions counteracted each other, maintaining a constant overall length and period regardless of temperature fluctuations.

Harrison’s original configuration featured nine rods, combining brass and steel to achieve precise compensation. This complex arrangement required careful engineering to balance the thermal properties of the metals. Around the 1730s, George Ellicott introduced a simplified three-rod lever design. This variation reduced mechanical complexity while maintaining effective temperature compensation, offering an alternative to Harrison’s nine-rod structure. Ellicott’s approach demonstrated that fewer components could achieve similar precision if the lever mechanism was properly calibrated.

Smeaton’s Improvement

By approximately 1750, John Smeaton further refined the gridiron pendulum concept. He introduced a five-rod design that utilized zinc and steel instead of brass and steel. Zinc’s higher coefficient of thermal expansion allowed for a more compact and efficient arrangement. This modification improved the pendulum’s responsiveness to temperature changes and simplified the manufacturing process. Smeaton’s five-rod zinc/steel configuration became a notable improvement over Harrison’s original nine-rod brass/steel model, enhancing both accuracy and practicality in precision clocks.

Late 19th-Century Developments

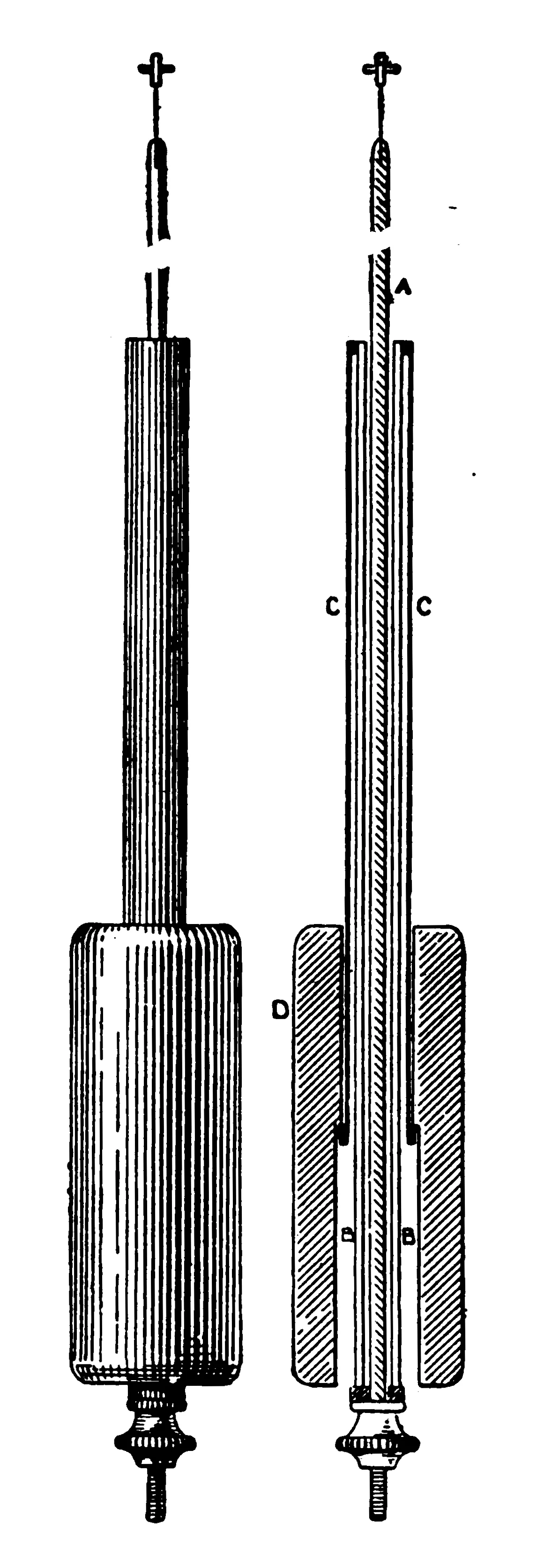

In the late 19th century, the Dent company introduced a tubular version of the gridiron pendulum. This innovation adapted the traditional rod structure into a tubular form, offering new mechanical advantages. The tubular design likely improved airflow and reduced air resistance, further enhancing the pendulum’s performance. This evolution reflected the ongoing efforts to optimize precision timekeeping mechanisms as clockmaking technology advanced. The gridiron pendulum remained a critical component in high-precision clocks, demonstrating the enduring impact of Harrison’s initial invention and subsequent refinements by Smeaton, Ellicott, and the Dent company.

Mathematical analysis and temperature error

The period of a simple pendulum is governed by its effective length. For an uncompensated pendulum rod of initial length L0 and linear coefficient of thermal expansion α, the length at temperature T becomes L=L0(1+αΔT). Since the period P is proportional to L, the relative change in period is approximately PΔP≈21αΔT. This relationship demonstrates that even small temperature fluctuations cause measurable timekeeping errors, as the swing duration varies directly with the rod’s expansion. In ordinary clocks, this leads to a gain or loss of seconds per day depending on the ambient temperature shift.

Gridiron Compensation Condition

The gridiron pendulum achieves compensation by combining rods of two metals with different expansion coefficients, typically steel and brass. The design arranges these rods in parallel, connected by a frame such that their expansions oppose each other. If the total length of the steel rods is Ls with coefficient αs, and the total length of the brass rods is Lb with coefficient αb, the net change in length must be zero for perfect compensation. The condition for thermal neutrality is derived from the sum of individual expansions: αsLsΔT−αbLbΔT=0. This simplifies to the ratio LbLs=αsαb. By selecting appropriate lengths for each metal, the overall pendulum length remains constant across a range of temperatures.

Worked Example

Consider a gridiron pendulum using steel (αs≈1.2×10−5/∘C) and brass (αb≈1.9×10−5/∘C). To satisfy the compensation condition, the ratio of steel length to brass length must equal the ratio of their expansion coefficients. Thus, LbLs=1.21.9≈1.58. This means the total length of the steel rods should be approximately 1.58 times the total length of the brass rods. If the brass rods total 200 mm, the steel rods must total about 316 mm. This precise geometric arrangement ensures that the thermal expansion of the brass is offset by the contraction relative to the steel, maintaining a constant effective length and stable timekeeping.

Worked examples

Thermal Error Calculation

The primary function of the gridiron pendulum is to counteract the linear thermal expansion of the pendulum rod. To understand the magnitude of the problem, consider a simple steel pendulum rod. Steel has a coefficient of linear thermal expansion of approximately 11.5 ppm/°C. This means that for every degree Celsius change in temperature, the length of the rod changes by 11.5 parts per million.

Let us calculate the accumulated error over a typical seasonal temperature variation. Assume a seasonal change of 14 °C. The total fractional change in length (ΔL/L) is calculated as:

ΔL/L=11.5 ppm/°C×14 °C=161 ppm

Since the period of a pendulum is proportional to the square root of its length (T∝L), the fractional change in time is approximately half the fractional change in length. Therefore, the timekeeping error is:

ΔT/T≈21×161 ppm=80.5 ppm

For a clock that ticks once per second, this results in a gain or loss of approximately 80.5 seconds per day, or roughly 5.6 minutes per day, which is significant for precision timekeeping.

Comparison with Wood

Before the widespread adoption of the gridiron design, clockmakers often used wood for pendulum rods due to its lower thermal expansion. Wood has a much lower coefficient of linear thermal expansion, approximately 4.9 ppm/°C. Using the same 14 °C seasonal change:

ΔL/L=4.9 ppm/°C×14 °C=68.6 ppm

ΔT/T≈21×68.6 ppm=34.3 ppm

This results in a gain or loss of approximately 34.3 seconds per day. While better than steel, wood is susceptible to humidity changes, which can affect its length and density, making the gridiron pendulum a more robust solution for high-precision clocks.

Seconds Pendulum Length

A seconds pendulum is defined as a pendulum with a period of exactly two seconds (one second for each swing). The length L of a seconds pendulum can be calculated using the formula:

L=g(2πT)2

Where g is the acceleration due to gravity (approximately 9.80665 m/s²) and T is the period (2 seconds). Plugging in the values:

L=9.80665×(2π2)2≈9.80665×0.10132≈0.9936 m

Thus, the length of a seconds pendulum is approximately 0.9936 meters. This precise length is critical for ensuring that the pendulum completes one full cycle in exactly two seconds, providing the basis for accurate time measurement in precision clocks.

Applications and historical significance

The gridiron pendulum, invented by John Harrison around 1726, became a critical component in precision regulator clocks during the Industrial Revolution. Its ability to maintain a constant period despite temperature fluctuations made it indispensable for accurate timekeeping in various sectors. In factories, laboratories, railroad stations, and post offices, these clocks provided the temporal stability necessary for efficient operations. The alternating parallel rods of steel and brass compensated for thermal expansion, ensuring that the overall length of the pendulum remained constant.

Industrial and Scientific Applications

In industrial settings, the gridiron pendulum allowed for precise scheduling and coordination of machinery and workers. Laboratories relied on these clocks for experimental timing, where even minor deviations could affect results. Railroad stations used them to synchronize train schedules, reducing delays and improving reliability. Post offices depended on accurate time for mail sorting and delivery, enhancing overall efficiency. The design's effectiveness in maintaining time accuracy made it a standard in these environments.

Decorative Use by the Turn of the 20th Century

By the turn of the 20th century, the gridiron pendulum also found decorative applications. Some clockmakers produced "fake" gridirons, where the aesthetic appeal of the alternating rods was prioritized over their functional compensation properties. These decorative versions were often used in clocks where precise timekeeping was less critical, yet the visual complexity of the gridiron design added to the clock's charm. This trend reflected a broader interest in ornate clock designs during the period, blending functionality with artistic expression.

Disadvantages and limitations

The gridiron pendulum, while a significant advancement in temperature compensation, introduced mechanical complexities that limited its universal adoption. The design relied on the precise interaction of alternating rods of steel and brass, connected by a frame to counteract thermal expansion. However, this mechanical linkage was susceptible to friction. As the rods expanded and contracted, the joints between the metals and the connecting frame could experience slight resistance, leading to friction-induced 'jumps' in the rod adjustment. These microscopic delays meant the compensation was not always instantaneous, causing minor irregularities in the pendulum's effective length and thus its period.

Material Instability and Creep

Beyond mechanical friction, the materials themselves presented challenges. While steel and brass were the standard choices, other metals like zinc were sometimes utilized for their higher coefficient of thermal expansion. Zinc, however, was prone to dimensional instability and creep over time. Creep is the tendency of a solid material to move slowly or deform permanently under the influence of mechanical stresses. In a gridiron pendulum, the weight of the bob and the rods themselves exerted constant stress on the metal joints. Over decades, this could cause the frame to warp or the rods to sag slightly, altering the calibrated compensation ratio. This long-term dimensional drift required periodic recalibration, reducing the "set-and-forget" reliability desired in precision timekeeping.

Competition from Mercury and Invar

These limitations made alternative compensation methods attractive. The mercury pendulum, invented by George Graham in 1721, offered a different approach. It used a glass or metal tube filled with mercury. As temperature rose, the rod expanded downward, but the mercury expanded upward, raising the center of mass. This method eliminated the friction of multiple metal rods and provided a more continuous compensation. By the late 19th century, the discovery of invar, an iron-nickel alloy with a very low coefficient of thermal expansion, further diminished the gridiron's dominance. An invar rod required minimal compensation, simplifying the pendulum design. By 1900, for the highest-precision clocks, invar rods and eventually quartz crystal oscillators became preferred, offering greater stability and less mechanical complexity than the multi-rod gridiron assembly. The gridiron remained in use, but its reign as the premier solution for precision was challenged by these more stable materials and fluid-based compensations.
