Overview
Dry distillation is a thermal processing technique defined by the heating of solid materials to yield gaseous products. This fundamental concept in chemical engineering and materials science involves the application of heat to a solid substrate, resulting in the evolution of vapors or gases that can be subsequently condensed or collected. The process is distinct from simple evaporation or sublimation because it often involves complex chemical transformations within the solid matrix, although the primary observable outcome is the production of a gaseous phase from a solid source. The term "dry" distinguishes this method from wet distillation, where a solvent or liquid medium is used to carry the volatile components, whereas dry distillation typically relies on the intrinsic volatiles of the solid material or the decomposition products generated by heat.
Thermolysis and Pyrolysis Mechanisms
The mechanism of dry distillation may involve pyrolysis, thermolysis, or neither, depending on the specific material and thermal conditions applied. Pyrolysis refers to the thermochemical decomposition of organic material at elevated temperatures in an inert atmosphere or in the absence of oxygen. In this context, the solid material undergoes chemical bond breaking, releasing volatile compounds as gases. Thermolysis is a broader term describing the decomposition of a compound by heat, which may or may not involve the exclusion of oxygen. If the process does not involve significant chemical change, it may simply represent the sublimation of the solid or the release of adsorbed gases. The distinction between these mechanisms is critical for understanding the composition of the resulting gaseous products. For instance, the dry distillation of coal, a classic example, involves extensive pyrolysis, producing coal gas, coal tar, and coke, whereas the dry distillation of limestone involves a chemical decomposition reaction:
CaCO₃(s) → CaO(s) + CO₂(g)
In this reaction, the solid calcium carbonate decomposes into solid calcium oxide and gaseous carbon dioxide. This illustrates how dry distillation can be driven by chemical changes rather than mere physical phase transitions. The operational status of dry distillation as a concept remains active in various industrial applications, including the production of biochar, the extraction of essential oils, and the processing of mineral resources. The flexibility of the method allows it to be applied to a mixed range of fuel sources and solid materials, making it a versatile tool in thermal processing. The choice between pyrolytic and non-pyrolytic dry distillation depends on the desired output, whether the goal is to maximize gas yield, produce a specific liquid condensate, or alter the chemical structure of the residual solid.
How does dry distillation differ from classical distillation?
Dry distillation differs fundamentally from classical distillation in the physical state of the feedstock and the nature of the phase change involved. Classical distillation is a separation technique applied to liquid mixtures, where components are separated based on differences in their volatility. The process involves heating a liquid mixture to produce vapor, which is then condensed back into a liquid form. In contrast, dry distillation involves the heating of solid materials to produce gaseous products, which are subsequently condensed. The method may involve pyrolysis or thermolysis, or it may not, depending on the specific material and temperature conditions.
Role of Temperature and Phase Change
In classical distillation, the temperature is typically controlled to reach the boiling points of the liquid components. The primary phase change is liquid to gas (vaporization) and then gas to liquid (condensation). The solid feedstock in dry distillation undergoes thermal decomposition or sublimation. The temperature must be high enough to drive off volatile components from the solid matrix. This process often occurs in the absence of air or in an inert atmosphere to prevent complete combustion, which would result in oxidation rather than distillation.
Distinction from Destructive Distillation and Cracking
Dry distillation is closely related to, and sometimes used interchangeably with, destructive distillation. Destructive distillation specifically refers to the thermal decomposition of organic materials, such as coal or wood, to yield solid, liquid, and gaseous products. The term "destructive" highlights the chemical breakdown of the original solid structure. Cracking, on the other hand, is a process primarily used in the petroleum industry to break down large hydrocarbon molecules into smaller, more useful molecules. While both dry distillation and cracking involve thermal decomposition, cracking is typically applied to liquid or gaseous hydrocarbons and often involves catalysts or higher pressures. Dry distillation is generally applied to solid feedstocks and focuses on the production of gaseous products that are condensed.
Applications in fuel and chemical production
Dry distillation serves as a foundational process in the production of liquid fuels and essential industrial chemicals, primarily through the thermal decomposition of solid organic and inorganic materials. In the context of fuel production, the method is extensively applied to coal and wood, transforming these solid feedstocks into valuable liquid and gaseous outputs through controlled heating in the absence or limited presence of oxygen. This application relies on the principles of pyrolysis, where thermal energy breaks down complex molecular structures, yielding condensable vapors that form liquid fuels.
Coal and Wood Derivatives
When applied to coal, dry distillation—historically referred to as coal carbonization—produces coal tar, a complex mixture of aromatic hydrocarbons, along with coal gas and coke. Coal tar serves as a primary source for various liquid fuels and chemical precursors, including benzene, toluene, and naphthalene. The process involves heating coal in retorts or ovens, where volatile matter is driven off and subsequently condensed. Similarly, the dry distillation of wood, known as wood carbonization or wood distillation, yields wood vinegar (pyroligneous acid), wood tar, and charcoal. Wood vinegar contains acetic acid, methanol, and acetone, which have historically been used as solvents and fuel additives. These liquid products are obtained by collecting and condensing the vapors released during the thermolysis of the solid biomass.
Production of Sulfuric Acid from Mineral Salts
Beyond organic fuels, dry distillation is utilized in the breakdown of mineral salts to produce inorganic chemicals, most notably sulfuric acid. This application involves the thermal decomposition of sulfate minerals, such as iron(II) sulfate or alum, in a dry state. The process typically requires heating the salt to high temperatures, causing it to release sulfur trioxide gas and water vapor, which then combine to form sulfuric acid. For example, the dry distillation of green vitriol (iron(II) sulfate heptahydrate) can be represented by the following reaction:
FeSO₄·7H₂O → Fe₂O₃ + SO₂ + SO₃ + 7H₂O
The sulfur trioxide (SO₃) and water vapor (H₂O) react to form sulfuric acid (H₂SO₄):
SO₃ + H₂O → H₂SO₄
This method was historically significant in the production of sulfuric acid before the dominance of the Contact Process. The dry distillation of sulfates allows for the extraction of sulfuric acid from solid mineral sources, providing a versatile route for chemical production from readily available inorganic solids. The efficiency and purity of the resulting acid depend on the temperature control and the specific mineral composition used in the distillation process.
What are the temperature stages of carbonization?
The thermal decomposition of solid materials during dry distillation proceeds through distinct temperature regimes, each characterized by specific physicochemical changes in the feedstock. The process is not uniform; rather, it involves sequential stages where volatile matter is driven off and the solid residue undergoes structural transformation. Understanding these stages is critical for optimizing the yield of gaseous products, liquids, and solid char.
Carbonization Stage
Carbonization typically occurs within the temperature range of 450 °C to 600 °C. In this intermediate thermal zone, the solid material undergoes significant structural reorganization. For coal-based feedstocks, this stage is marked by the softening and swelling of the coal mass, followed by the evolution of a substantial portion of the volatile matter. The primary chemical changes involve the cleavage of weaker bonds in the macromolecular structure, releasing gases such as carbon monoxide, carbon dioxide, and hydrogen, as well as condensable vapors that form coal tar.
The production of coal tar is a key indicator of the carbonization phase. This complex mixture of organic compounds condenses from the vapor phase as it cools, representing a significant liquid by-product of the process. The solid residue at the end of this stage, often referred to as coke or char, retains a higher carbon content than the original feedstock but still contains residual volatiles and hydrogen.
Coking Stage
When temperatures rise above 900 °C, the process enters the coking stage. This high-temperature regime is characterized by the further breakdown of the solid residue and the intensification of gas production. The remaining volatile matter is driven off, and the solid structure becomes more graphitic and porous. The gas produced in this stage is richer in hydrogen and methane compared to the gases evolved during carbonization.
The distinction between carbonization and coking is primarily thermal, but it also reflects the degree of thermal stress applied to the solid matrix. At temperatures exceeding 900 °C, the thermolysis of the solid material is more aggressive, leading to a higher ratio of gaseous products relative to the solid residue. This stage is crucial for producing high-grade metallurgical coke, where the structural integrity and carbon purity of the solid product are paramount.
The transition between these stages is continuous, and the exact temperature boundaries can vary depending on the heating rate, pressure, and the specific composition of the solid feedstock. However, the general framework of carbonization at 450 °C to 600 °C and coking above 900 °C provides a reliable guide for process control and product optimization in dry distillation operations.
Wood distillation and charcoal production
Dry distillation applied to wood is the foundational process for charcoal production, involving the heating of solid biomass to release volatile gaseous products. This method typically involves pyrolysis or thermolysis, where the wood is subjected to thermal energy in a restricted oxygen environment. The process is characterized by distinct thermal stages that determine the quality and yield of the resulting charcoal and condensates.
Moisture Removal and Initial Heating
The initial phase of wood distillation focuses on the removal of bound and free moisture. As the temperature rises to the range of 100–110 °C, water evaporates from the cellular structure of the wood. This stage is critical for preparing the biomass for subsequent thermal decomposition. The moisture content directly influences the thermal efficiency of the process, as excess water requires latent heat of vaporization before the solid matrix begins to break down significantly.
Thermal Decomposition and Pyrolysis
When the temperature exceeds 270 °C, the wood undergoes significant thermal decomposition. This stage is the core of the dry distillation process, where the complex organic polymers in the wood, such as cellulose, hemicellulose, and lignin, begin to break down. The heating of solid materials to produce gaseous products is most active in this range. The volatile matter released includes water vapor, carbon dioxide, carbon monoxide, and various organic compounds like acetic acid and methanol. The remaining solid residue is primarily carbon, forming the charcoal.
Combustion Risks and Temperature Control
Precise temperature control is essential to prevent the transition from pyrolysis to combustion. If the temperature rises to the range of 400–500 °C, the risk of ignition increases significantly. At these higher temperatures, the volatile gases released can react with any residual oxygen, leading to combustion. This can result in the loss of volatile products and the oxidation of the charcoal, reducing the yield and quality of the final product. Maintaining the temperature below the combustion threshold ensures that the process remains a dry distillation, maximizing the recovery of gaseous and liquid products while preserving the carbon structure of the charcoal.
Composition of wood gas and by-products
Dry distillation of wood, commonly referred to as wood gasification or pyrolysis, yields a complex mixture of gaseous and liquid by-products. The primary gaseous output, known as wood gas, serves as a combustible fuel source. The composition of this gas varies depending on the feedstock and temperature, but typically consists of methane, hydrogen, carbon monoxide, carbon dioxide, oxygen, and nitrogen.
Wood Gas Composition
The calorific value of standard wood gas is approximately 10.8 MJ/m³ (290 BTU/cu.ft.). The following table outlines the typical volumetric composition of the produced gas:
| Component | Chemical Formula | Typical Volume % |
|---|---|---|
| Carbon Monoxide | CO | ~15–20% |
| Hydrogen | H₂ | ~10–15% |
| Methane | CH₄ | ~20–30% |
| Carbon Dioxide | CO₂ | ~10–15% |
| Nitrogen | N₂ | ~40–50% |
| Oxygen | O₂ | ~1–5% |
These values represent general averages for the dry distillation process. The high nitrogen content often results from air being introduced during the thermolysis phase, which dilutes the calorific value compared to pure pyrolysis gas.
Liquid By-Products
In addition to the gaseous output, the condensation of vapors during dry distillation produces several valuable liquid by-products. Wood vinegar, also known as pyroligneous acid, is a dark liquid containing acetic acid, methanol, and various phenolic compounds. It is widely used in agriculture as a soil conditioner and in industry as a solvent.

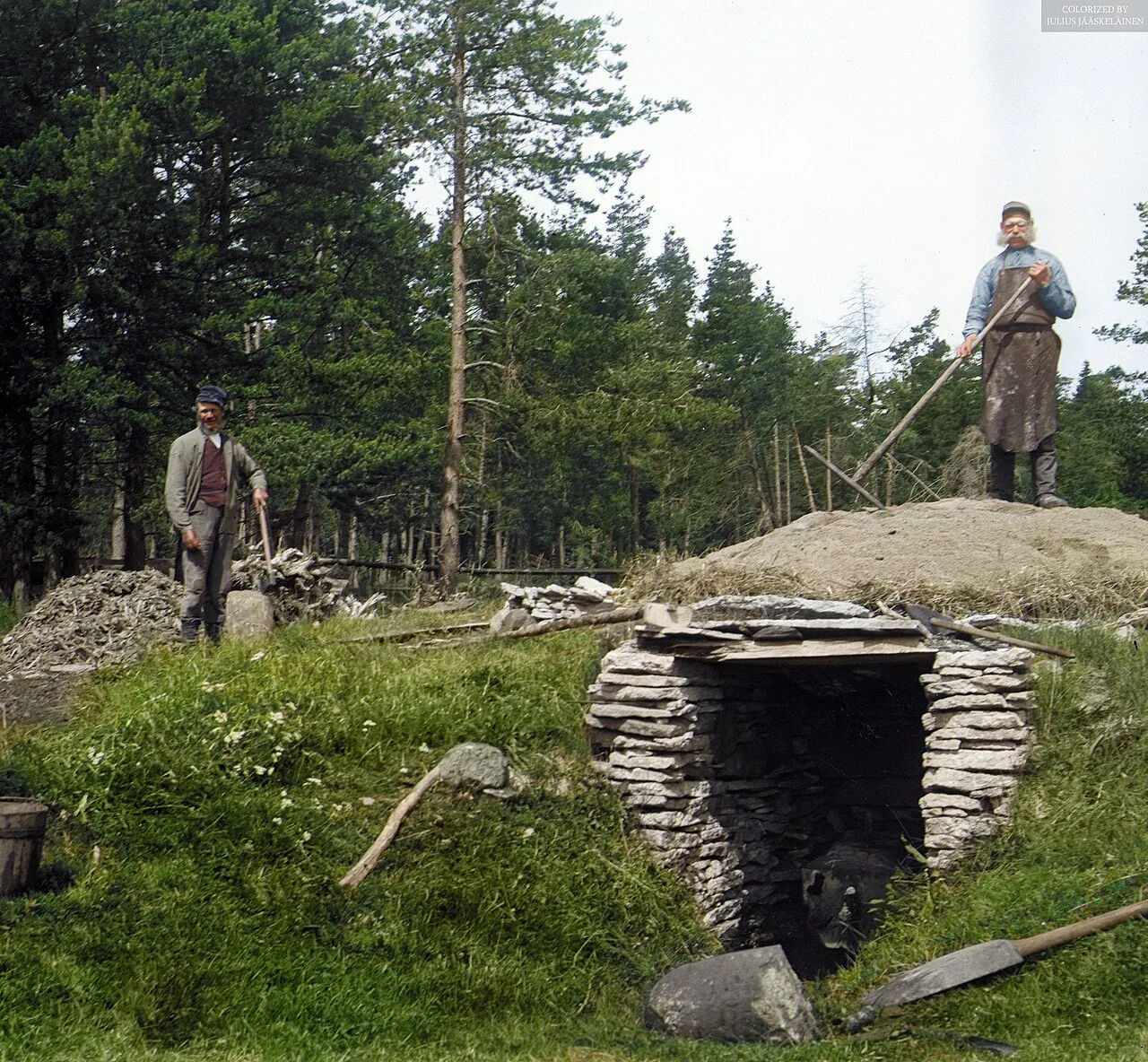

Depending on the specific type of wood used, distinct tars are produced. Pine tar is derived from the distillation of pine wood and is characterized by its high viscosity and strong aroma, historically used for preserving ropes and wood. Birch tar, produced from birch wood, is darker and has a higher phenol content, making it valuable in the production of cosmetics and pharmaceuticals. These liquid by-products represent significant economic value in the overall dry distillation process.
