Overview
The Douglas Point Nuclear Generating Station holds a distinct position in the history of Canadian energy infrastructure as the country's first full-scale nuclear power plant. This facility also served as the second CANDU (Canada Deuterium Uranium) pressurised heavy water reactor, a technology that would subsequently define much of Canada's nuclear fleet. The station's successful operation marked a critical milestone for the nation, signaling its formal entry into the global nuclear power scene. By demonstrating the viability of the CANDU design on a commercial scale, Douglas Point provided the operational confidence necessary for the expansion of nuclear energy in Ontario and beyond.
Operated by Ontario Hydro, the plant had an installed capacity of 200 MW, utilizing uranium as its primary fuel source. The station was commissioned in 1968, bringing its first unit online during a period of rapid industrial growth and increasing demand for baseload power generation. The facility represented a significant engineering achievement, leveraging the unique characteristics of heavy water moderation to optimize fuel flexibility and reactor efficiency. Its construction and early operation laid the groundwork for the larger nuclear complexes that would follow in the region.
The operational timeline of the Douglas Point station spanned from its commissioning in 1968 until its eventual decommissioning. The plant remained active for approximately sixteen years, contributing to the regional grid stability and providing valuable data on the performance of early CANDU reactors. Following its retirement, the site was not left idle; the location was later repurposed for the construction of the Bruce Nuclear Generating Station. This transition highlights the strategic land-use planning involved in Ontario's nuclear infrastructure, where the proven suitability of the Douglas Point site facilitated the expansion of nuclear capacity through the Bruce complex. The legacy of Douglas Point thus extends beyond its own operational years, influencing the layout and development of one of the world's largest nuclear generating stations.
Why it matters
Its construction and successful operation marked Canada's formal entry into the global nuclear power scene, establishing a technological foothold that would influence reactor design for decades. As the second CANDU pressurised heavy water reactor, it served as a critical proof-of-concept for the Canadian Advanced Heavy Water Reactor technology, validating the engineering choices that would define the country's nuclear industry.
The station functioned as an essential teaching tool for the emerging nuclear industry. By demonstrating the viability of the CANDU design on a commercial scale, it provided operational data and engineering insights that were instrumental for subsequent projects. The success of Douglas Point reduced the perceived risk for investors and engineers, paving the way for the expansion of nuclear capacity across Ontario and eventually Canada. The operational experience gained at this site directly informed the design and construction of later, larger facilities, most notably the Bruce Nuclear Generating Station, which was later developed on the same site.
The legacy of Douglas Point is deeply embedded in the technical lineage of the CANDU reactor. Its design choices, including the use of pressurised heavy water as both moderator and coolant, proved robust and adaptable. The validation of these technologies at Douglas Point allowed for the standardization of the CANDU model, enabling Canada to export its nuclear expertise and equipment to international markets. The station’s role was not merely to generate electricity, but to establish a reliable, indigenous nuclear technology that reduced Canada's dependence on foreign reactor designs. This strategic advantage has had long-lasting effects on the global nuclear landscape, with the CANDU design becoming a recognizable standard in the industry.
How did the CANDU design influence Douglas Point?
The Douglas Point Nuclear Generating Station served as the critical proving ground for the CANDU (CANada Deuterium Uranium) reactor design, establishing the technical viability of pressurized heavy water reactors on a commercial scale. As the second CANDU unit built and Canada’s first full-scale nuclear power plant, its operational success in 1968 validated the unique engineering choices that would define the Canadian nuclear sector for decades.
Core Reactor Architecture
The fundamental innovation of the Douglas Point design was the separation of the primary coolant and the moderator. The reactor utilized a large stainless steel vessel known as the calandria, which housed the heavy water moderator. This configuration allowed for the use of natural uranium fuel, significantly reducing the initial enrichment costs compared to Light Water Reactors (LWRs) prevalent in Europe and the United States at the time. The heavy water moderator, while expensive to produce and maintain, offered superior neutron economy, enabling the reactor to sustain a chain reaction with lower-grade uranium.
| Design Parameter | Specification |
|---|---|
| Reactor Type | CANDU Pressurized Heavy Water Reactor |
| Primary Fuel | Natural Uranium |
| Moderator | Heavy Water (Deuterium Oxide) |
| Calandria Material | Stainless Steel |
| Installed Capacity | 200 MW |
| Operator | Ontario Hydro |
| Commissioning Year | 1968 |
Compact Design Constraints
Douglas Point was engineered with specific spatial constraints, as it was sited on land that would later be integrated into the larger Bruce Nuclear Generating Station complex. The compact nature of the 200 MW unit required precise integration of the steam generators and turbine hall relative to the calandria. This layout demonstrated the modularity of the CANDU design, allowing for future expansion without significant reconfiguration of the core reactor vessel. The success of this compact footprint influenced subsequent Canadian nuclear projects, proving that heavy water reactors could be efficiently deployed in geographically constrained sites along the Great Lakes region.
Operational history and engineering challenges
The Douglas Point Nuclear Generating Station achieved first criticality in 1968, marking a pivotal moment in Canadian energy infrastructure. As Canada’s first full-scale nuclear power plant, its commissioning represented the successful translation of the CANDU pressurised heavy water reactor design from prototype to commercial scale. The station’s entry into service established the site as a primary hub for nuclear generation, later facilitating the expansion that would become the Bruce Nuclear Generating Station. This operational debut was not merely a local milestone; it signalled Canada's formal entry into the global nuclear power arena, demonstrating the viability of indigenous reactor technology on an international stage.
Engineering Challenges and Early Reliability
Despite its strategic importance, the Douglas Point station faced significant engineering hurdles during its initial years of operation. The compact design of the facility, while efficient for the site, introduced maintenance difficulties that strained operational workflows. Engineers and technicians had to navigate constrained spaces to access critical components, a challenge that was particularly acute given the novelty of the CANDU technology at the time. These spatial constraints often prolonged routine inspections and repairs, impacting the overall availability of the generating units.
Heavy water leakage emerged as a persistent technical issue. The pressurised heavy water reactor design relied on a complex network of calandria tubes and end shields, which were prone to minor leaks that required meticulous monitoring and repair. Maintaining the integrity of the heavy water moderator was essential for neutron efficiency, yet the early units struggled with containment, leading to periodic losses of the expensive deuterium oxide. This leakage problem was a common characteristic of early CANDU reactors, requiring ongoing engineering adjustments to seal integrity and material selection.
Online Refueling Demonstration
A key feature of the CANDU design demonstrated at Douglas Point was online refueling. Unlike light water reactors that often require shutdowns to change fuel bundles, the Douglas Point units could replace fuel while operating at full power. This capability was a major selling point for the technology, promising higher capacity factors. However, the mechanical complexity of the fueling machines and the need for precise alignment in a compact layout presented operational challenges. The success of online refueling at Douglas Point provided critical data that refined the process for subsequent CANDU installations, proving that continuous fueling was viable despite the initial mechanical quirks.
The combination of heavy water management, spatial constraints, and refueling mechanics defined the early operational profile of the station. These challenges were not unique to Douglas Point but were magnified by its status as a pioneer. The lessons learned from its decommissioning and subsequent site reuse for the Bruce Nuclear Generating Station underscored the long-term value of the location and the iterative nature of nuclear engineering in Canada.
Shutdown and decommissioning legacy
Douglas Point Nuclear Generating Station ceased operations in 1984, marking the end of an era for Canada’s first full-scale nuclear power plant. The shutdown was driven by a combination of technical and financial factors. Despite its role as the second CANDU pressurised heavy water reactor and a major milestone for the global nuclear power scene, the plant faced challenges typical of early-generation nuclear facilities. Ontario Hydro and the Atomic Energy of Canada Limited (AECL) made strategic decisions regarding the station's future, weighing the costs of continued operation against the benefits of expanding nearby capacity. The site’s success had already paved the way for broader adoption of CANDU technology, reducing the immediate need to maintain Douglas Point as a primary generation asset.
Site Repurposing and Bruce Nuclear Generating Station

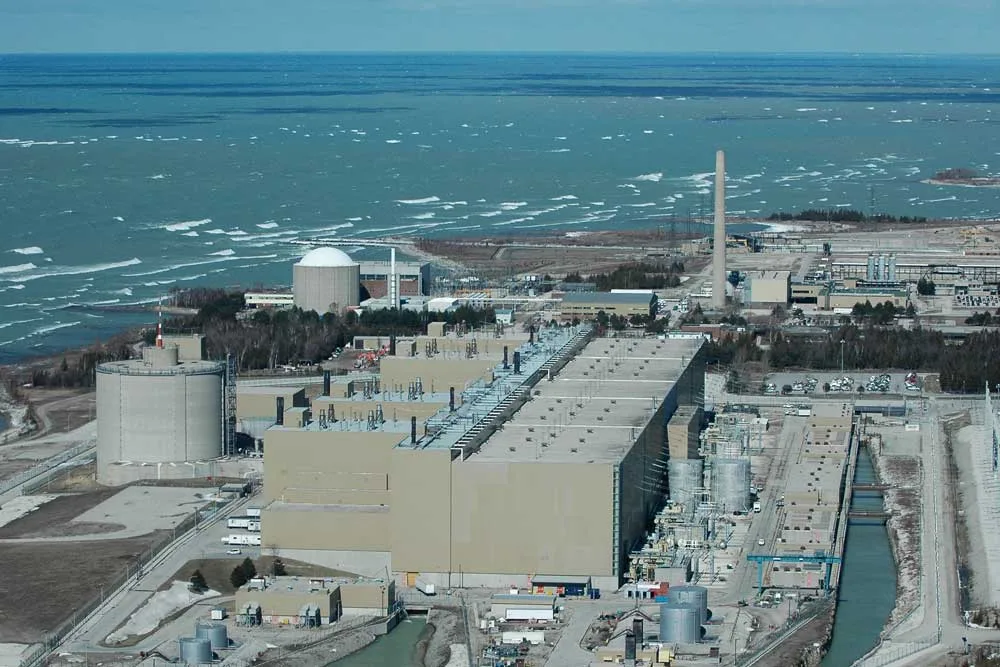

Following decommissioning, the physical footprint of Douglas Point was not left idle. The same site was later used for the Bruce Nuclear Generating Station, a larger and more advanced nuclear complex. This co-location strategy allowed Ontario Hydro to leverage existing infrastructure, including transmission lines and water intake systems, while consolidating operations in a proven geographic location. The integration of the Douglas Point site into the Bruce complex represents a key aspect of the station’s legacy, demonstrating how early nuclear investments supported subsequent expansions in Canada’s energy infrastructure.
The transition from Douglas Point to Bruce reflects broader trends in nuclear energy development, where initial pilot projects inform the design and operation of larger, more efficient plants. While Douglas Point had a capacity of 200 MW and was commissioned in 1968, the Bruce Nuclear Generating Station significantly increased output and operational longevity. This evolution underscores the strategic value of the location and the enduring impact of the CANDU reactor design on Canada’s electricity grid.
What distinguishes Douglas Point from other early nuclear plants?
Douglas Point Nuclear Generating Station holds a distinct position in nuclear history as Canada’s first full-scale nuclear power plant and the second CANDU pressurised heavy water reactor. Its operational profile diverged significantly from contemporary light water reactors and other heavy water designs, primarily through its utilization of natural uranium and the CANDU technology framework. The station was commissioned in 1968 and operated with a capacity of 200 MW under Ontario Hydro. This specific configuration allowed for technological advancements that were not immediately available to early competitors.
Technological Distinctions
The CANDU design employed at Douglas Point featured a pressurised heavy water reactor system. This technology enabled the use of natural uranium as fuel, contrasting with the enriched uranium often required by early light water reactors. The ability to utilize natural uranium was a critical economic and logistical advantage for Canada, reducing dependence on uranium enrichment facilities. The station’s success marked Canada's entry into the global nuclear power scene, demonstrating the viability of heavy water technology on a commercial scale.
Unlike many early light water reactors that required periodic shutdowns for fuel changes, the CANDU configuration allowed for continuous fueling while the reactor remained at full power. This capability increased the capacity factor and operational flexibility of the plant. The 200 MW output was achieved through this efficient use of natural uranium and heavy water moderation, setting a precedent for future Canadian nuclear developments.
Comparative Context
When compared to other early nuclear plants, Douglas Point’s heavy water technology offered distinct advantages in fuel flexibility. Magnox reactors, for instance, also used natural uranium but relied on carbon dioxide as a coolant, whereas Douglas Point used pressurised heavy water. RBMK reactors utilized graphite moderation and light water cooling, a different configuration that did not offer the same online refueling characteristics as the CANDU design. The success of Douglas Point validated the CANDU approach, influencing the subsequent development of larger nuclear facilities in Canada.
The site of Douglas Point was later used for the Bruce Nuclear Generating Station, indicating the strategic importance of the location for Canada’s nuclear infrastructure. This transition highlights the evolving scale of nuclear power generation in Canada, moving from the initial 200 MW capacity of Douglas Point to larger installations. The legacy of Douglas Point remains tied to its role as a pioneer in heavy water reactor technology and its contribution to the global nuclear power landscape.
