Overview

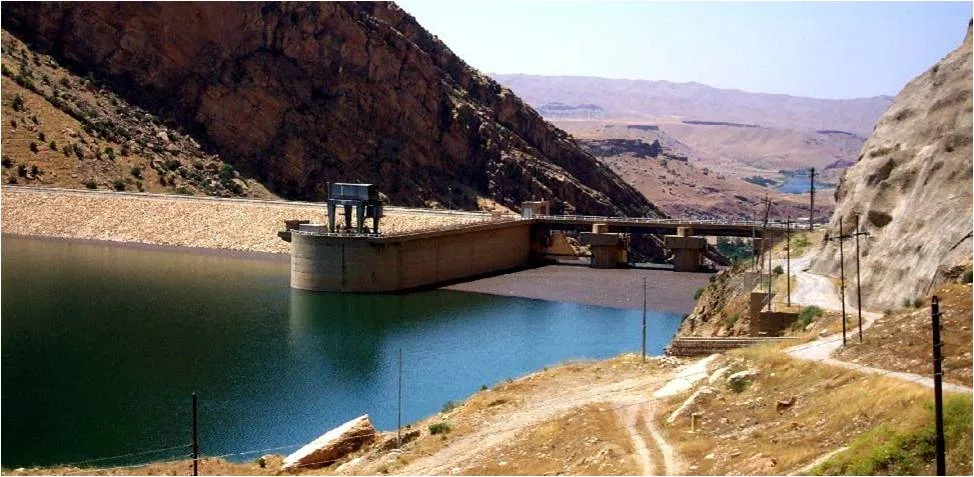

The Darbandikhan Dam is a multi-purpose embankment dam located on the Diyala River in northern Sulaymaniyah Governorate, Iraq. Situated within the Kurdistan Region of Iraq, this infrastructure project serves as a critical node for regional water management and energy generation. The facility was constructed between 1956 and 1961, with the power station officially commissioned in 1961. Its primary functions encompass irrigation, flood control, hydroelectric power production, and recreation, making it a versatile asset for the local economy and environment. The dam’s strategic placement on the Diyala River allows it to harness water resources effectively, supporting agricultural needs and providing a steady flow of electricity to the surrounding areas.
The hydroelectric power station associated with the Darbandikhan Dam has a capacity of 249 MW, contributing significantly to the energy mix of the Sulaymaniyah Governorate. However, the facility has faced operational challenges over the years due to poor construction and neglect. These issues necessitated several repairs to maintain its functionality and efficiency. A major rehabilitation of the power station began in 2007 and was completed in 2013, aiming to restore and enhance the dam’s performance. This extensive renovation addressed structural weaknesses and modernized the power generation equipment, ensuring the dam could continue to meet the growing energy demands of the region.
The Darbandikhan Dam’s role extends beyond mere energy production and water management. It also serves as a recreational spot for locals and tourists, offering a scenic landscape and various leisure activities. The reservoir created by the dam provides opportunities for boating, fishing, and picnicking, contributing to the cultural and social fabric of the area. Despite the challenges it has faced, the Darbandikhan Dam remains an essential piece of infrastructure in Iraq, symbolizing the region’s efforts to balance development with environmental stewardship. Its continued operation and periodic upgrades reflect the ongoing commitment to maintaining this vital resource for future generations.
Construction and Early History
The Darbandikhan Dam was constructed between 1956 and 1961 on the Diyala River in northern Sulaymaniyah Governorate, Iraq. The project was designed by the Harza Engineering Company, a prominent firm in early mid-20th-century dam engineering. The structure serves multiple purposes, including irrigation, flood control, hydroelectric power production, and recreation. The initial filling of the reservoir was completed in November 1961, marking the operational commencement of the facility. The hydroelectric power station associated with the dam has a capacity of 249 MW.
Early Structural Challenges
Despite its strategic importance, the dam faced significant structural issues shortly after completion. Poor construction quality and subsequent neglect led to several repairs over the years. A major slope failure occurred in 1967, located approximately 100 m upstream of the main structure. This incident highlighted vulnerabilities in the embankment design and the need for ongoing maintenance to ensure the stability of the dam and the reliability of the 249 MW power station.
Further structural interventions were required in the late 1990s and early 2000s. Repairs were conducted on the bedrock, crest, and rip-rap in 1999 and 2000 to address deterioration and enhance the dam's longevity. These efforts were part of a broader pattern of maintenance aimed at mitigating the effects of early construction flaws and environmental wear on the embankment dam.
Structural Design and Reservoir Capacity
The dam was constructed between 1956 and 1961, with the facility becoming operational in 1961. The primary design is a rock-fill embankment featuring a central clay core. This structural configuration supports the dam's multiple functions, including irrigation, flood control, hydroelectric power production, and recreation.
Structural Dimensions and Volume
The dam stands at a height of 128 m. The main embankment length is 445 m, which extends to 535 m when including the spillway section. The crest width measures 17 m, situated at an elevation of 495 m. The total structural volume of the embankment is 7,100,000 m3. These dimensions reflect the engineering requirements for containing the significant water volume of the Diyala River in this region.
Reservoir and Catchment Specifications
The dam creates a reservoir with a total capacity of 3,000,000,000 m3. This total volume is divided into an active capacity of 2,500,000,000 m3 and a dead storage capacity of 500,000,000 m3. The normal operating elevation of the reservoir is 485 m, covering a surface area of 113 km2. The catchment area feeding into the reservoir is 17,850 km2, contributing to the hydrological dynamics of the power station and irrigation systems.
| Parameter | Value |
|---|---|
| Height | 128 m |
| Length (main embankment) | 445 m |
| Length (with spillway) | 535 m |
| Crest width | 17 m |
| Crest elevation | 495 m |
| Structural volume | 7,100,000 m3 |
| Catchment area | 17,850 km2 |
| Total reservoir capacity | 3,000,000,000 m3 |
| Active reservoir capacity | 2,500,000,000 m3 |
| Dead reservoir capacity | 500,000,000 m3 |
| Normal elevation | 485 m |
| Surface area | 113 km2 |
How does the spillway and power station work?
The Darbandikhan Dam utilizes a controlled chute spillway located on the right bank to manage excess water flow and maintain reservoir levels. This critical hydraulic structure features three large tainter gates, each measuring 15 m by 15 m, which regulate the outflow with precision. To handle the kinetic energy of the discharged water, the spillway incorporates ski-jump energy dissipators. These dissipators project the water flow into the air, allowing it to break up and lose energy before re-entering the riverbed downstream, thereby reducing erosion and structural stress on the dam foundation. The maximum discharge capacity of this spillway system is 11,400 m3/s, providing significant flood control capability for the Diyala River basin.
Power Station Operations
The hydroelectric power station is situated at the toe of the dam, leveraging the hydraulic head to generate electricity. The facility houses three Francis turbine-generators, each with a rated capacity of 83 MW, contributing to the plant's total installed capacity of 249 MW. The turbines operate under a rated hydraulic head of 80 m, optimizing energy extraction from the water flow. Each turbine handles a discharge rate of 113 m3/s, ensuring efficient power generation across varying flow conditions. This configuration allows the plant to provide a reliable baseload power supply to the regional grid, supporting both urban and industrial demand in northern Sulaymaniyah Governorate.
Irrigation and Water Distribution
Beyond power generation and flood control, the dam plays a vital role in agricultural water management. The structure includes dedicated irrigation outlets designed to distribute water to the surrounding farmlands. Each irrigation outlet can discharge up to 175 m3/s, allowing for flexible water allocation based on seasonal agricultural needs. This capacity ensures that crops receive adequate hydration during dry periods, enhancing agricultural productivity in the region. The integration of these outlets into the dam's design underscores its multi-purpose functionality, balancing energy production with essential water resources management for local communities.
Rehabilitation and Modernization
The Darbandikhan power station underwent significant technical upgrades during the 1980s. Between 1983 and 1985, German firms Polensky & Zöllner and the Japanese company Mitsui led the replacement of the original generation equipment. The initial setup, which consisted of two 800 kW generators, was swapped for larger 83 MW generators to boost output. This modernization effort was formally commissioned in 1990. However, the operational stability of the new units was challenged by cavitation issues within the turbine systems.
External geopolitical conflicts also impacted the infrastructure. During the Iran–Iraq War, specifically between 1988 and 1990, the dam complex sustained notable damage. The spillway, the electrical substation, and the power station building all required repairs due to war-related wear and bombardment. These structural compromises, combined with earlier construction flaws, necessitated a comprehensive rehabilitation strategy to restore the plant’s reliability.
A major restoration initiative began in 2007, funded through a World Bank project. The total cost of the broader program was US35.36million,withUS18.85 million allocated specifically to the Darbandikhan Dam. This investment targeted the critical infrastructure deficits identified in previous decades. The rehabilitation work concluded in 2013. The project successfully addressed the mechanical and electrical deficiencies, resulting in 100 percent power availability for the 249 MW capacity. This milestone marked the full operational recovery of the hydroelectric facility after years of intermittent performance.
Why it matters
The Darbandikhan Dam serves as a critical infrastructure asset within the Kurdistan Region of Iraq, anchoring the hydrological and energy stability of the northern Sulaymaniyah Governorate. Located on the Diyala River, the facility functions as a multi-purpose embankment dam, integrating irrigation, flood control, hydroelectric power production, and recreation into a single operational framework. Its strategic importance extends beyond simple energy generation; it represents a vital node in the regional water management system for the Diyala River basin, supporting agricultural output and mitigating seasonal flood risks for downstream communities.
Post-Conflict Rehabilitation and Energy Recovery
The operational history of the Darbandikhan Dam highlights the challenges of maintaining critical infrastructure through decades of neglect and war damage. Originally constructed between 1956 and 1961, the dam and its associated power station suffered from poor construction quality and prolonged periods of under-maintenance. These factors led to significant performance degradation, threatening the reliability of the 249 MW power station that had been commissioned in 1961.
A major rehabilitation of the power station began in 2007 and was completed in 2013, marking a successful case study for post-conflict infrastructure recovery. This extensive renovation restored full power availability, ensuring the dam could once again deliver its rated capacity to the regional grid. The project addressed structural deficiencies and modernized the hydroelectric systems, transforming the facility from a neglected relic into a reliable energy source. This restoration underscores the value of targeted infrastructure investment in stabilizing regional energy supplies following prolonged periods of geopolitical and environmental stress.
