Damp proofing: Methods, materials and construction applications

Overview

Damp proofing is a fundamental moisture control strategy applied to building walls and floors to prevent moisture from passing into interior spaces. It serves as a critical component of construction integrity, addressing dampness problems that are among the most frequent issues encountered in residences. The practice involves the application of materials or systems that resist the passage of water vapor and liquid moisture, thereby protecting structural elements and indoor air quality. Unlike general waterproofing, which is designed to withstand hydrostatic pressure and prevent liquid water intrusion, damp proofing primarily targets capillary action and vapor diffusion. This distinction is vital for engineers and architects when selecting appropriate materials for specific building zones, such as basements, crawl spaces, and above-grade walls.

ASTM Standards and Technical Distinctions

The American Society for Testing and Materials (ASTM) provides the authoritative framework for defining and testing damp proofing materials. According to ASTM standards, damp proofing is distinguished from waterproofing and vapor barriers by its specific performance criteria and application methods. ASTM E2112, the Standard Terminology for Moisture in Buildings, clarifies that damp proofing is a system or material that resists the passage of moisture but may not be entirely impermeable to water under hydrostatic pressure. This is in contrast to waterproofing, which must remain impervious to liquid water under sustained pressure. Vapor barriers, often confused with damp proofers, are thin membranes designed primarily to slow the diffusion of water vapor through building assemblies, governed by standards such as ASTM E1745.

ASTM E1745, the Standard Guide for Moisture Control in Buildings, outlines the selection and installation of damp proofing membranes. These membranes are typically applied to the exterior of foundation walls or beneath floor slabs. Common materials include asphalt-impregnated papers, polyethylene sheets, and fluid-applied coatings. The effectiveness of a damp proofing system is measured by its permeance, a metric defined in ASTM E96. A material with low permeance allows less water vapor to pass through per unit of time, making it more effective at controlling dampness. Engineers must consider the specific climate and soil conditions when selecting a damp proofing solution, as the performance requirements vary significantly between humid coastal regions and arid inland areas.

Proper installation is as critical as material selection. ASTM guidelines emphasize the continuity of the damp proofing layer to prevent bypassing of moisture. Joints, corners, and penetrations must be carefully sealed to maintain the integrity of the system. Failure to adhere to these standards can lead to recurrent dampness problems, including mold growth, wood rot, and corrosion of embedded steel. The American Society for Testing and Materials continues to update these standards to reflect advancements in material science and construction techniques, ensuring that damp proofing remains an effective strategy for long-term building durability.

What are the main methods of damp proofing?

Damp proofing employs several distinct methods to control moisture migration through building envelopes. The selection of a specific technique depends on the substrate, the direction of moisture flow, and the desired level of protection. Common approaches include physical barriers, chemical treatments, and structural configurations.

Damp-Proof Courses and Membranes

Damp-proof courses (DPC) and damp-proof membranes (DPM) are physical barriers installed to interrupt capillary action. A DPC is typically a thin, impermeable layer placed horizontally within masonry walls, often at the foundation level, to prevent rising damp from the ground. Materials for DPCs include bitumen-impregnated felt, polyethylene sheets, and slate. Damp-proof membranes (DPM) serve a similar function but are generally thicker and more flexible, commonly used in concrete floors and basement walls. These membranes create a continuous sheet that moisture must either evaporate through or bypass, effectively sealing the interior space from ground moisture.

Integral and Surface Treatments

Integral damp proofing involves adding water-repellent admixtures directly into the concrete or mortar mix during construction. These chemicals, often hydrophobic agents or crystalline compounds, reduce the porosity of the material, forcing moisture to evaporate from the exposed surface rather than penetrating through the wall. Surface suppressant coatings are applied to finished surfaces. These coatings, which can be cementitious, acrylic, or epoxy-based, form a protective film that resists water ingress. They are particularly useful for retrofitting existing structures where installing a physical membrane is disruptive.

Structural and Grouting Methods

Cavity wall construction is a structural method of damp proofing that utilizes an air gap between two leaves of masonry. The cavity prevents moisture from the outer leaf from reaching the inner leaf, provided that weep holes and cavity closers are correctly installed to allow drainage and ventilation. Pressure grouting is a remedial technique used to inject waterproofing compounds, such as silicone or polyurethane resins, into masonry joints or concrete cracks. The pressure forces the material into the voids, creating a continuous seal that blocks moisture pathways. This method is effective for addressing localized dampness or repairing compromised barriers in existing structures.

Materials used in damp proofing

Damp proofing materials are categorized by their physical properties and application methods, primarily divided into flexible, semi-rigid, and rigid types. These materials serve as barriers to prevent moisture migration through building walls and floors, addressing one of the most frequent issues in residential construction. The selection of material depends on the substrate, the level of moisture exposure, and the desired longevity of the barrier.

Flexible Materials

Flexible damp proofing materials conform to irregular surfaces and minor structural movements. Common examples include butyl rubber, bitumen, and plastic sheets. Butyl rubber is valued for its elasticity and adhesive properties, making it suitable for sealing joints and complex geometries. Bitumen, often applied as a liquid or in sheet form, provides a robust, water-resistant layer commonly used in basements and foundations. Plastic sheets, typically made from polyethylene or polyvinyl chloride (PVC), offer a lightweight and cost-effective solution for floor and wall damp proofing. These materials are particularly effective in areas where slight movement or vibration might compromise more rigid barriers.

Semi-Rigid Materials

Semi-rigid materials offer a balance between flexibility and structural integrity. Lead and copper are traditional examples, often used in roofing and flashing applications where durability and malleability are critical. Mastic asphalt is another semi-rigid material, known for its high resistance to water penetration and ability to bridge small cracks. These materials are less prone to tearing than flexible sheets but do not possess the compressive strength of rigid barriers, making them ideal for intermediate layers in composite damp proofing systems.

Rigid Materials

Rigid damp proofing materials provide structural support while resisting moisture ingress. Brick, stone, and wood are commonly used in this category, particularly in historical or traditional construction. Brick and stone act as natural barriers when properly laid with moisture-resistant mortar, while wood, when treated or selected for natural resistance (such as cedar or teak), can serve as a damp-proof course in specific applications. These materials are less flexible and may require additional sealing at joints to ensure continuous moisture control. Their use is often dictated by aesthetic preferences or the need for combined structural and damp proofing functions.

The effectiveness of any damp proofing material depends on proper installation and compatibility with adjacent building components. Engineers and builders must consider factors such as thermal expansion, chemical resistance, and long-term durability when selecting materials for specific projects.

How is damp proofing applied in masonry construction?

Damp proofing in masonry construction relies on the strategic placement of damp proof courses (DPC) and damp proof membranes (DPM) to interrupt capillary action and prevent moisture ingress. As a core component of moisture control, these barriers are essential for maintaining the integrity of building walls and floors. The application process requires precise alignment with ground levels and seamless integration with adjacent moisture barriers to ensure continuous protection for interior spaces.

Placement and Integration

Standard practice dictates that the DPC be positioned between 150 mm and 200 mm above the external ground level. This elevation is critical to prevent splashback from reaching the barrier while ensuring it remains above the typical capillary rise zone. The DPC must be properly sealed to the DPM at floor level to create a continuous moisture trap. In commercial housebuilding, cavity trays are frequently employed to bridge gaps in the barrier, particularly around window sills and roof lines, directing moisture back to the exterior.

Wall Type	DPC Placement Requirements	Integration Points
Outer Walls	150 mm to 200 mm above external ground level	Sealed to DPM; connected to cavity trays
Inner Walls	Above floor DPM level	Continuous seal with floor membrane

Proper installation ensures that moisture is effectively managed, reducing the frequency of dampness problems in residences. The use of standardized materials, often defined by organizations such as the American Society for Testing and Materials, helps maintain consistency in performance. Failure to align the DPC correctly can lead to bridging, where moisture bypasses the barrier and enters the interior spaces, compromising the building's structural and aesthetic quality.

Damp proofing for concrete walls and floors

Concrete structures present unique challenges for moisture control due to the inherent permeability of the material. Even after curing, concrete contains a network of capillary pores and micro-cracks that allow water vapor and liquid moisture to migrate through the substrate. In basements and ground-floor slabs, hydrostatic pressure can force moisture through these pathways, leading to interior dampness, efflorescence, and potential degradation of finishes. Effective damp proofing for concrete requires addressing both capillary action and vapor diffusion.

Vertical Vapor Barriers and Membranes

For concrete walls, vertical vapor barriers are often installed on the exterior face before backfilling. These membranes act as a continuous shield against soil moisture. Common materials include rubberized asphalt and ethylene propylene diene monomer (EPDM) sheets. Rubberized asphalt membranes are typically self-adhering, allowing them to bond directly to the concrete surface, sealing minor imperfections and creating a robust barrier. EPDM membranes offer high elasticity and durability, resisting punctures from backfill stones and maintaining integrity under varying soil movements. These systems are critical in preventing liquid water intrusion driven by hydrostatic pressure.

Coatings and Surface Treatments

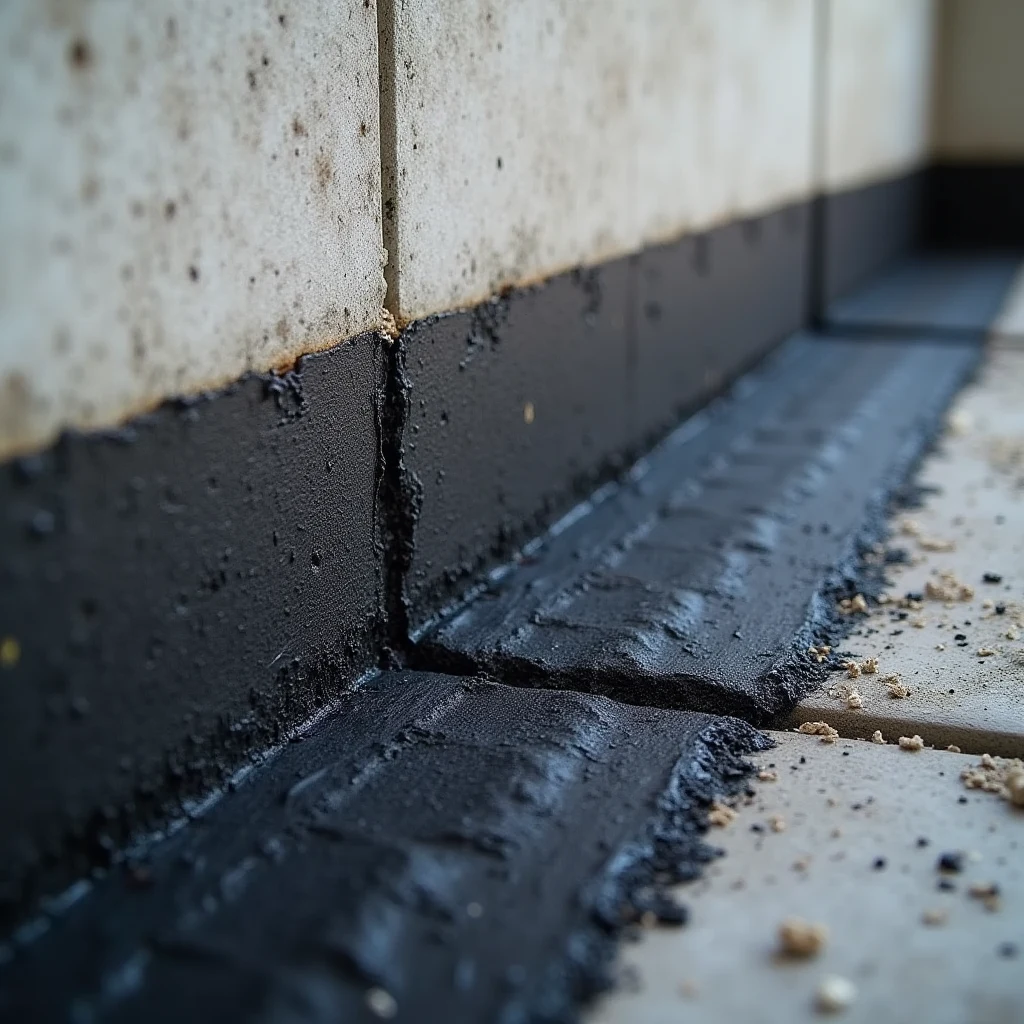

When exterior membrane installation is constrained, interior or exterior coatings provide an alternative solution. Asphalt-based coatings are widely used for their water resistance and ease of application. These coatings penetrate the surface pores and form a continuous film that repels moisture. Elastomeric coatings offer additional flexibility, accommodating slight structural shifts in the concrete without cracking. These materials are particularly effective in controlling vapor transmission and preventing dampness from reaching interior spaces. The selection of coating depends on the specific moisture load and the condition of the concrete substrate.

Remedial damp proofing and historical context

Damp proofing is a critical component of moisture control in construction, applied to building walls and floors to prevent moisture ingress into interior spaces (per American Society for Testing and Materials). Dampness remains one of the most frequent problems encountered in residences, often stemming from the evolution of building materials and construction techniques over time.

Historical Context: From Permeability to Impermeability

The nature of dampness issues has shifted significantly with the transition from pre-20th century building materials to modern constructions. Traditional buildings utilized permeable materials such as lime plaster, solid brick, and timber, which allowed structures to "breathe." This permeability enabled moisture to evaporate naturally, reducing the likelihood of trapped dampness. However, the introduction of impermeable modern materials, including cement-based renders, vinyl wallpapers, and synthetic membranes, has altered this dynamic. These materials often trap moisture within wall cavities and floors, leading to increased instances of rising damp, condensation, and penetrating damp. The historical shift towards airtight constructions, while beneficial for thermal efficiency, has necessitated more sophisticated damp proofing strategies to manage moisture accumulation.

Remedial Solutions for Common Damp Issues

Addressing dampness requires targeted remedial solutions based on the type of moisture problem identified. Rising damp, caused by capillary action drawing groundwater up through masonry, is typically remedied by installing a damp proof course (DPC). This can involve injecting chemical barriers, inserting physical membranes, or replacing the lower section of walls with impermeable bricks. Condensation, resulting from high humidity levels meeting cool surfaces, is mitigated through improved ventilation, insulation, and the use of dehumidifiers. Penetrating damp, often due to defective external walls or roof leaks, requires repairing cracks, repointing masonry, and ensuring proper drainage around the building's perimeter.

Effective damp proofing not only preserves the structural integrity of buildings but also enhances indoor air quality and energy efficiency. By understanding the historical context and applying appropriate remedial measures, builders and homeowners can effectively manage moisture control, reducing the prevalence of dampness problems in both traditional and modern residences. As construction techniques continue to evolve, the integration of advanced materials and methods will further refine damp proofing strategies, ensuring long-term protection against moisture-related issues.

Health and safety considerations

The selection and application of damp proofing materials introduce specific health and safety considerations, particularly regarding the longevity of the installation and the potential for long-term exposure to hazardous substances. While modern damp proof courses (DPCs) and sealants are generally composed of polyethylene, bitumen, or silicone-based compounds, older construction methods relied heavily on materials that are now recognized as significant health risks. The primary concern in retrofitting, renovation, and demolition projects involves the identification of asbestos fibres embedded in legacy damp proofing systems.

Asbestos in Legacy DPC Materials

Historical damp proofing installations, particularly those dating from the mid-20th century, frequently utilized flexible tar boards and grey sealants that contained asbestos fibres. These materials were chosen for their durability, flexibility, and resistance to moisture penetration. However, the presence of asbestos introduces a latent health hazard that persists long after the initial construction phase. Asbestos fibres, when disturbed during drilling, cutting, or removal of the DPC, become airborne and can be inhaled, leading to serious respiratory conditions.

The health risks associated with asbestos exposure are well-documented and include asbestosis, lung cancer, and mesothelioma. These conditions often have a long latency period, meaning symptoms may not appear until decades after the initial exposure. In the context of damp proofing, the risk is most acute during renovation works where the continuity of the DPC is tested or where the material is physically breached. Flexible tar boards, which were commonly laid at the base of walls to create a continuous moisture barrier, are particularly prone to fibre release if not handled with appropriate personal protective equipment (PPE) and containment measures.

Identification and Mitigation Strategies

Identifying asbestos-containing damp proofing materials requires careful inspection and, in many cases, laboratory analysis. Visual identification alone is often insufficient, as asbestos fibres can be present in various forms, including chrysotile, amosite, and crocidolite. Grey sealants used in older constructions are a common suspect, but definitive identification typically involves taking a small sample and subjecting it to polarised light microscopy (PLM) or transmission electron microscopy (TEM).

Once identified, the management of asbestos in DPC materials follows a risk-based approach. If the material is in good condition and unlikely to be disturbed, it may be left in situ with appropriate labeling and monitoring. However, if the damp proofing system requires repair or replacement, abatement procedures must be followed. These procedures include sealing the work area, using negative air pressure to contain fibres, and employing wet methods to minimise dust generation. Workers must wear respirators with appropriate filter ratings and disposable coveralls to prevent cross-contamination.

For modern installations, the shift towards non-asbestos materials has significantly reduced the health risks associated with damp proofing. Polyethylene sheets, for example, offer excellent moisture resistance without the fibrous nature of tar boards. However, the legacy of asbestos in older buildings remains a critical consideration for engineers, architects, and property managers. Proper documentation of DPC materials during the initial construction phase can aid in future maintenance and renovation efforts, ensuring that health and safety protocols are effectively implemented.

In summary, while damp proofing is essential for maintaining the structural integrity and comfort of buildings, the materials used must be selected and managed with health and safety in mind. The presence of asbestos in older grey sealants and flexible tar boards represents a significant, albeit manageable, risk. Through careful identification, appropriate handling procedures, and the adoption of modern, safer materials, the health impacts associated with damp proofing can be effectively mitigated.

Worked examples

Damp proofing is a concept focused on moisture control in construction, as defined by the American Society for Testing and Materials. To understand its application, we can examine two illustrative scenarios: installing a damp proof membrane (DPM) under a concrete slab and sealing a cavity wall with a rigid plastic tray.

Scenario 1: Installing a DPM Under a Concrete Slab

In this scenario, the goal is to prevent ground moisture from rising into a residential concrete floor. The process begins with preparing the sub-base, ensuring it is level and free of sharp objects that could puncture the membrane. Next, a polyethylene sheet, typically 100–200 microns thick, is laid over the sub-base. The edges of the sheet are overlapped by at least 150 mm and sealed with tape to create a continuous barrier. The DPM is then folded up the sides of the slab formwork to integrate with the wall damp proof course. Finally, the concrete is poured over the membrane, ensuring minimal disturbance to maintain its integrity.

Scenario 2: Sealing a Cavity Wall with a Rigid Plastic Tray

This example addresses moisture ingress in a cavity wall, particularly around window sills. A rigid plastic tray is installed to direct water away from the interior leaf of the wall. First, the cavity is cleared of debris and insulation is adjusted to accommodate the tray. The tray is then positioned at the base of the window opening, with weep holes aligned to allow water to escape. The tray is secured with clips or mortar, ensuring a slight outward slope for drainage. Finally, the cavity is filled with insulation, and the interior and exterior finishes are applied, completing the moisture control system.
