Cryogenic rocket engine

Overview

A cryogenic rocket engine is a specific class of liquid-propellant rocket engine characterized by the use of cryogenic fuels and oxidizers. In this configuration, both the fuel and the oxidizer are gases that have been liquefied and stored at very low temperatures to maximize density and volumetric efficiency. The term "cryogenic" refers to the extremely low temperatures required to maintain these propellants in a liquid state, which is critical for achieving high specific impulse and overall engine performance. These engines represent a highly efficient propulsion solution, leveraging the thermodynamic properties of liquefied gases to generate thrust.

Historical Significance and Development

The development of cryogenic rocket engines has played a pivotal role in space exploration history. These highly efficient engines were first flown on the US Atlas-Centaur rocket, marking a significant milestone in the utilization of liquid hydrogen and liquid oxygen as primary propellants. The success of the Atlas-Centaur demonstrated the viability of cryogenic propulsion for upper-stage applications, providing the necessary delta-v to reach higher orbits and interplanetary trajectories. Furthermore, cryogenic engines were one of the main factors of NASA's success in reaching the Moon by the Saturn V rocket. The Saturn V's powerful stages, particularly the second and third stages, relied on the high efficiency of cryogenic propellants to carry the Apollo spacecraft to lunar orbit and back. This historical context underscores the critical importance of cryogenic technology in achieving major milestones in spaceflight.

Classification and Operational Principles

Cryogenic rocket engines are classified as liquid-propellant engines, distinguishing them from solid-propellant and hybrid rocket engines. The operational principle involves storing the fuel and oxidizer at cryogenic temperatures, which allows for a greater mass of propellant to be stored in a given volume compared to gaseous or room-temperature liquid propellants. This high density is essential for reducing the overall mass of the rocket and improving its payload capacity. The use of liquefied gases ensures that the propellants remain in a stable liquid state until they are fed into the combustion chamber, where they are mixed and ignited to produce thrust. The efficiency of these engines is largely due to the high specific impulse achieved by the combination of cryogenic fuel and oxidizer, which provides more thrust per unit of propellant mass compared to other propellant combinations.

History and development

The development of the cryogenic rocket engine represents a pivotal advancement in propulsion technology, fundamentally altering the trajectory of space exploration through the utilization of extremely low-temperature propellants. By definition, these engines operate using a cryogenic fuel and oxidizer, meaning both components are gases that have been liquefied and stored at very low temperatures. This phase change and thermal management allow for a higher mass density of propellants compared to their gaseous counterparts, enabling greater efficiency and specific impulse, which are critical metrics for orbital and interplanetary missions.

Early Implementation: The Atlas-Centaur

The first successful flight of a cryogenic rocket engine occurred on the US Atlas-Centaur launch vehicle. This milestone marked the introduction of liquid hydrogen and liquid oxygen as a primary propellant combination in operational spaceflight. The Atlas-Centaur demonstrated the viability of cryogenic storage and feed systems in the harsh environment of space, proving that the thermal insulation and turbopump technologies required to manage such volatile fluids were robust enough for reliable performance. This early adoption laid the technical groundwork for subsequent heavy-lift vehicles, validating the engineering choices that would define the next generation of launch systems.

NASA's Saturn V and the Lunar Missions

The cryogenic rocket engine played a central role in NASA's success in reaching the Moon, serving as one of the main factors behind the performance of the Saturn V rocket. The Saturn V, the workhorse of the Apollo program, relied heavily on the high efficiency of its cryogenic stages to achieve the trans-lunar injection velocities required for lunar landing. The use of cryogenic propellants allowed the Saturn V to carry a heavier payload to low Earth orbit and beyond, directly influencing the mission architecture that enabled astronauts to walk on the lunar surface. The operational status of these engines remains a testament to the enduring effectiveness of cryogenic technology in high-performance rocketry.

Cryogenic propellants

Cryogenic rocket engines derive their high efficiency from the use of propellants stored at extremely low temperatures, where they exist as liquids. The two most common cryogenic propellants are liquid oxygen (LOX) and liquid hydrogen (LH2). These substances are chosen because their low molecular weight and high energy density contribute significantly to the specific impulse of the engine. Liquid oxygen is stored at approximately -183 °C, while liquid hydrogen requires even colder storage at around -253 °C. These temperatures are necessary to maintain the propellants in a liquid state, which allows for more compact storage compared to their gaseous counterparts.

Properties of Liquid Oxygen and Liquid Hydrogen

Liquid oxygen is a pale blue, paramagnetic liquid that serves as the primary oxidizer in many cryogenic rocket engines. Its density is significantly higher than that of gaseous oxygen, allowing for more efficient storage in the rocket's tanks. Liquid hydrogen, on the other hand, is the lightest element and has a high specific heat capacity. Its low density requires larger tanks, but its high energy content per unit mass makes it an ideal fuel for achieving high specific impulse. The combination of LOX and LH2 provides a balanced mixture that maximizes the thrust-to-weight ratio of the rocket engine.

Combustion and Performance

The combustion of liquid hydrogen and liquid oxygen produces water vapor as the primary exhaust product, along with a small amount of unburned hydrogen and oxygen. This reaction releases a significant amount of energy, resulting in high exhaust velocities. The specific impulse of a cryogenic rocket engine using LOX and LH2 can reach up to 450 seconds, which is one of the highest among chemical rocket engines. The exhaust velocity can be as high as 4.4 km/s, contributing to the engine's overall efficiency. The performance of these engines is often described by the following equation:

I_sp = F / (m_dot * g_0)

where I_sp is the specific impulse, F is the thrust force, m_dot is the mass flow rate of the propellants, and g_0 is the standard gravity. This high specific impulse makes cryogenic engines particularly suitable for upper stages of rockets, where maximizing the payload capacity is crucial.

Components and combustion cycles

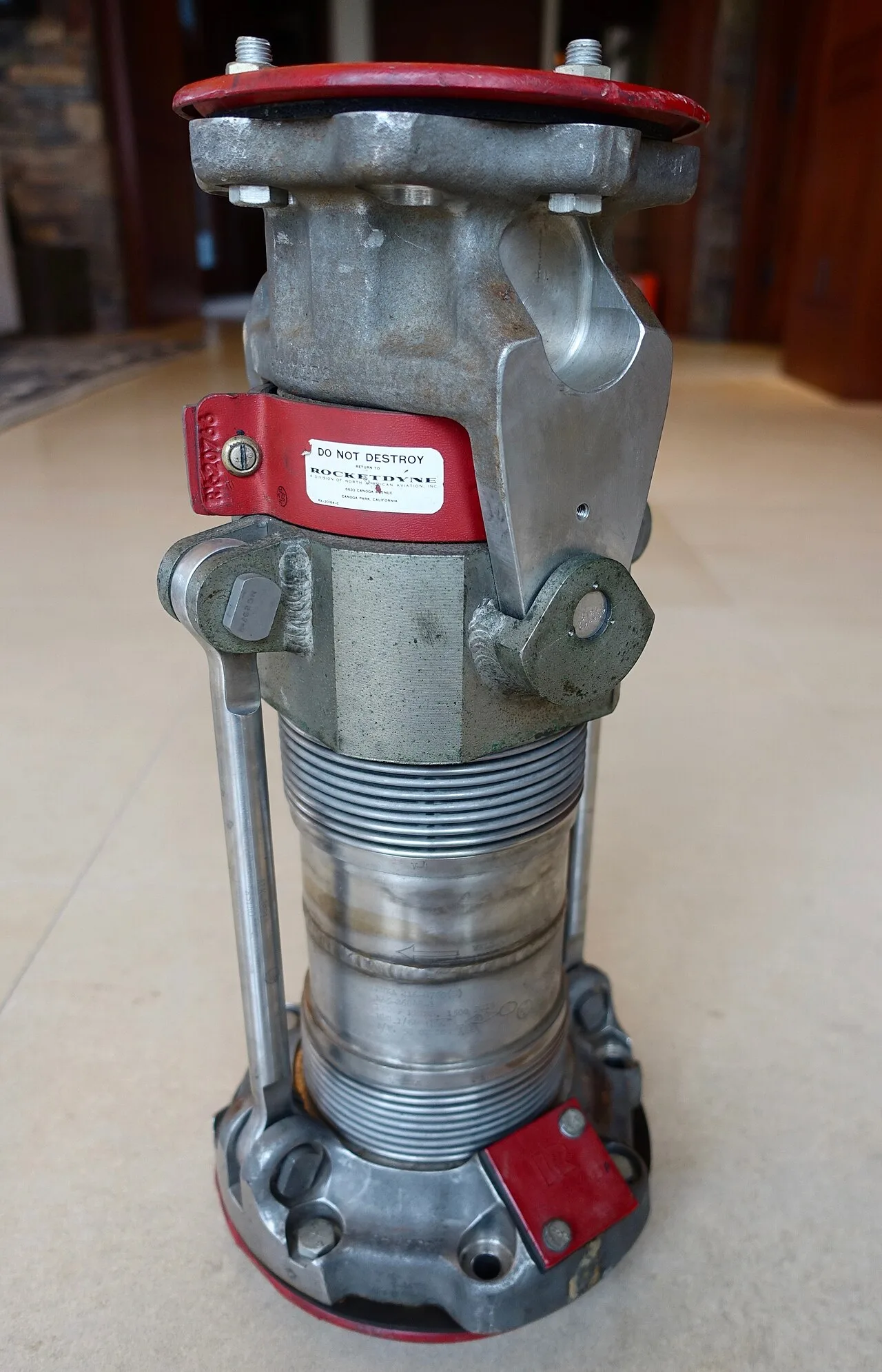

Cryogenic rocket engines rely on precise thermodynamic management to maintain propellants in their liquid states. The primary components include the combustion chamber, where fuel and oxidizer mix and ignite, and turbopumps, which pressurize the fluids before injection. Because cryogenic propellants such as hydrogen are stored at extremely low temperatures, insulation and feed systems must minimize heat ingress to prevent premature vaporization. The efficiency of these engines is largely determined by the combustion cycle employed, which dictates how the turbopumps are driven and how exhaust gases are managed.

Combustion Cycles

Different cycles offer trade-offs between complexity, mass flow, and specific impulse. The three primary types are the gas-generator, staged-combustion, and expander cycles.

In a gas-generator cycle, a small portion of the fuel and oxidizer is bled off and burned in a separate chamber, producing gas that drives the turbopumps. This method is mechanically simple but can sacrifice some specific impulse if the exhaust is vented rather than fed into the main chamber. Staged-combustion cycles are more complex but highly efficient, as the pre-burner exhaust is injected into the main combustion chamber, ensuring nearly all propellant contributes to thrust. This cycle often achieves higher chamber pressures, enhancing performance.

The expander cycle is particularly suited for liquid hydrogen engines. Heat from the combustion chamber walls warms the incoming hydrogen, causing it to expand and drive the turbopumps before entering the main chamber. This cycle minimizes moving parts and leverages the high specific heat of hydrogen. The thermodynamic efficiency can be approximated by the enthalpy change of the fuel, where ΔH drives the turbine work. These cycles were central to the success of early cryogenic stages, including those used in the Saturn V rocket, demonstrating the critical role of cycle selection in achieving high specific impulse for lunar missions.

What countries have operational cryogenic engines?

Cryogenic rocket engines, characterized by the use of liquefied gases stored at very low temperatures for both fuel and oxidizer, represent a highly efficient propulsion technology in aerospace engineering. These engines were first flown on the US Atlas-Centaur and were a main factor in NASA's success in reaching the Moon by the Saturn V rocket. Operational status is currently held by six countries: the United States, Russia, India, Japan, France, and China.

Global Operational Landscape

The deployment of cryogenic engines varies by national space program requirements, often leveraging hydrogen as the primary fuel source. The following table lists the six countries with operational cryogenic rocket engines:

These nations utilize cryogenic propulsion to achieve high specific impulse, a key metric for rocket engine efficiency. The technology relies on the thermodynamic properties of cryogenic fluids, where the fuel and oxidizer are gases which have been liquefied and are stored at very low temperatures. This approach allows for greater mass flow rates and higher combustion temperatures compared to hypergolic or solid-fuel alternatives.

The United States pioneered this technology with the Atlas-Centaur, establishing a foundation for subsequent developments. Russia has maintained a robust program, often integrating cryogenic stages into heavy-lift configurations. India, Japan, France, and China have each developed or adopted cryogenic upper stages to optimize payload delivery to low Earth orbit and beyond. The operational status of these engines reflects a mature technology base, with continuous improvements in turbopump design, insulation, and thermal management.

Efficiency in cryogenic engines is often evaluated using the specific impulse (Isp​), which measures the thrust produced per unit of propellant mass flow rate. The use of hydrogen as a primary fuel source contributes to high Isp​ values due to its low molecular weight. This efficiency is critical for missions requiring significant delta-v, such as trans-lunar injections or geostationary transfers. The six countries listed above continue to refine these engines to meet evolving mission profiles, ensuring that cryogenic propulsion remains a cornerstone of modern space exploration.

The operational landscape is dynamic, with each country adapting its cryogenic engine designs to specific launch vehicle architectures. For instance, some programs focus on reusable cryogenic stages, while others prioritize single-use high-thrust configurations. The common thread among the United States, Russia, India, Japan, France, and China is the reliance on cryogenic fluids to maximize performance. This technological convergence underscores the universal advantages of low-temperature propellants in achieving high-efficiency rocket propulsion.

Future developments in cryogenic engines may involve advanced materials and additive manufacturing to reduce weight and improve thermal resistance. However, the core principle remains unchanged: the use of liquefied gases stored at very low temperatures. The six operational countries continue to lead the field, driving innovation and maintaining the reliability of cryogenic propulsion systems. Their ongoing efforts ensure that this technology remains vital for both commercial and scientific space missions.

Current applications and launch vehicles

Cryogenic rocket engines are predominantly utilized in high-performance upper stages and core boosters where specific impulse and mass fraction are critical. The use of liquefied hydrogen and oxygen allows for higher exhaust velocities compared to hypergolic or kerosene-based propellants, making them ideal for trans-lunar injection and geostationary transfer orbits. Several major space agencies rely on these engines for their flagship launch vehicles.

Global Launch Vehicle Applications

ESA's Ariane 6 utilizes cryogenic upper stages to optimize payload delivery to geostationary transfer orbit. ISRO employs cryogenic technology in its Geosynchronous Launch Vehicle (GSLV) and the larger LVM3, where the cryogenic upper stage provides the final velocity increment required for satellite deployment. JAXA's H-II series has historically depended on the LE-5 family of cryogenic engines for its upper stages, ensuring reliable performance for Japanese satellite launches. NASA's Space Launch System (SLS) represents a significant application of cryogenic propulsion, using the RS-25 engines, originally developed for the Space Shuttle, to power the core stage. These engines burn liquid hydrogen and liquid oxygen to provide the thrust necessary for deep-space missions.

The high specific impulse of the hydrogen-oxygen combination is a key factor in the selection of cryogenic engines for these critical stages. The operational status of these systems is well-established, with decades of flight heritage supporting their continued use in modern space exploration and commercial satellite deployment.

How do cryogenic engines compare to other types?

Cryogenic rocket engines are distinguished by their use of liquefied gases stored at very low temperatures, specifically utilizing hydrogen as the primary fuel and a corresponding cryogenic oxidizer. This configuration offers significant efficiency advantages but introduces distinct engineering trade-offs compared to other propulsion systems. The primary benefit of cryogenic propellants is their high specific impulse, which results from the low molecular weight of the exhaust products, particularly when hydrogen is used. This high efficiency was a critical factor in the success of major spaceflight milestones, such as the Saturn V rocket's mission to reach the Moon, and was first demonstrated in flight on the US Atlas-Centaur vehicle.

Efficiency vs. Complexity Trade-offs

While cryogenic engines deliver superior performance, they are generally more complex than engines using storable propellants like kerosene or hypergolic fuels. The low temperatures required to keep hydrogen and oxygen in liquid state necessitate sophisticated tankage and insulation systems. These tanks must be designed to minimize heat ingress, which can cause boil-off and pressure buildup, adding mass to the overall vehicle structure. In contrast, storable propellants often allow for simpler tank designs and longer dwell times in space, but they typically sacrifice specific impulse, requiring higher mass flow rates to achieve similar thrust levels.

Tankage and Mass Flow Considerations

The mass flow rates in cryogenic engines are influenced by the density of the propellants. Liquid hydrogen, for instance, has a relatively low density compared to liquid oxygen or kerosene. This means that cryogenic engines often require larger fuel tanks to store the same mass of propellant, increasing the volumetric efficiency challenges. The tankage must therefore balance the need for large volume with the structural mass required to withstand cryogenic temperatures. This complexity is a direct trade-off for the high specific impulse gained from the hydrogen fuel. Engineers must carefully optimize the mass flow rates to ensure that the engine operates within its optimal efficiency range, considering the additional mass of the tankage and insulation. The operational status of these engines remains active, as evidenced by their continued use in various launch vehicles, demonstrating that the efficiency gains justify the added complexity in many mission profiles.
