Overview
The Coo-Trois-Ponts Hydroelectric Power Station is a major pumped-storage facility situated in Trois-Ponts, within the Province of Liege in Belgium. It stands as one of the country’s most significant hydroelectric assets, leveraging the unique topography of the region to store and generate electrical energy. The plant is strategically located next to the Amblève River, a site chosen specifically because it is one of the few locations in Belgium where a local elevation difference of over 250 meters can be utilized for hydroelectric purposes. This substantial vertical drop is critical for the efficiency of the pumped-storage scheme, allowing for effective energy conversion between potential and kinetic forms.
Operational Mechanism
The power station operates on a classic pumped-storage principle designed to balance energy demand and supply. The system features a lower reservoir connected to two upper reservoirs, known as Coo I and Coo II. During periods of lower energy demand, water is pumped from the lower reservoir up to these elevated storage areas. When energy demand peaks, the stored water is released from Coo I and Coo II back down to the lower reservoir. As the water descends, it drives turbines that generate electricity. The same machines that function as pumps to move water uphill also serve as generators during the downhill flow, maximizing the mechanical efficiency of the plant. This cyclical process allows the station to act as a large-scale battery for the regional grid.
Ownership and Capacity
The facility is owned and operated by Engie Electrabel, a leading energy company in the region. The plant has a total installed capacity of 1,164 MW, making it a substantial contributor to Belgium’s power infrastructure. The station was commissioned in two distinct stages to optimize construction and operational rollout. The first phase, Coo I, began operations in 1969, followed by the second phase, Coo II, which was commissioned in 1978. Since its initial launch, the Coo-Trois-Ponts station has remained operational, continuing to provide critical load-balancing services to the Belgian energy grid through its dual-reservoir system.
How does the pumped-storage system work?
The Coo-Trois-Ponts facility operates as a pumped-storage hydroelectric power station, utilizing the natural topography of the Amblève River valley to store and generate energy. The system relies on a significant local elevation difference of over 250 meters, one of the few such gradients available in Belgium. Water is actively pumped from a lower reservoir into two distinct upper reservoirs, known as Coo I and Coo II. This process typically occurs during periods of lower energy demand, effectively converting electrical energy into potential energy. When grid demand peaks, the stored water is released from these upper reservoirs back to the lower level. The same machinery used for pumping also functions as generators during the release phase, driving turbines to produce electricity.
Reservoir Configuration and Infrastructure
The infrastructure is divided into two main phases, corresponding to the two upper reservoirs. The Coo I section was commissioned in 1969, while the Coo II section followed in 1978. The plant is owned and operated by Engie Electrabel, with a total installed capacity of 1,164 MW. The system utilizes Francis pump turbines, which are well-suited for the medium to high head conditions provided by the 250-meter elevation drop. The water flows through penstocks connecting the upper and lower reservoirs, ensuring efficient transmission of hydraulic energy to the turbine generators. The lower reservoir serves as the primary collection point, feeding the pumps and receiving the return flow after generation.
| Component | Details |
|---|---|
| Upper Reservoirs | Coo I and Coo II |
| Lower Reservoir | Amblève River basin |
| Elevation Difference | 250+ meters |
| Turbine Type | Francis pump turbines |
| Total Capacity | 1,164 MW |
| Operator | Engie Electrabel |
The operational flexibility of the Coo-Trois-Ponts station is critical for balancing the Belgian energy grid. By shifting water between the upper and lower reservoirs, the plant can respond quickly to fluctuations in demand. The dual-reservoir setup of Coo I and Coo II provides redundancy and allows for staged operation depending on the specific needs of the power scheme. The location in Trois-Ponts, Province of Liege, was selected specifically for its unique geological features that support this vertical water transfer system. The continuous cycle of pumping and generating ensures that the water resources are reused efficiently, minimizing waste while maximizing energy output during peak hours.
Infrastructure and technical specifications
The infrastructure is strategically located adjacent to the Amblève River, leveraging one of the few geographic sites in Belgium offering a local elevation difference exceeding 250 meters. This significant topographical gradient is essential for the plant's energy storage and generation cycle. The system functions by pumping water from a lower reservoir to two distinct upper reservoirs, designated as Coo I and Coo II. During periods of high energy demand, water is released from these upper reservoirs to drive the turbines for power generation, after which the water returns to the lower reservoir to repeat the cycle. The plant is owned by Engie-Electrabel and utilizes reversible machines that serve dual functions as both pumps and generators.
Commissioning and Capacity
The power station was commissioned in two distinct stages. The facility has a total installed capacity of 1,164 MW. This capacity is derived from the combined output of the units within both the Coo I and Coo II sections, allowing for flexible energy dispatch based on grid demand. The operational status remains active, with the plant continuing to utilize the same machinery for both pumping and generation tasks.
Technical Specifications
The technical design relies on the hydraulic head provided by the elevation difference between the lower and upper reservoirs. The system incorporates two upper reservoirs, Coo I and Coo II, which store the potential energy required for generation. The lower reservoir serves as the source for pumping and the return point for generated water. The reversible turbine-generator sets are central to the plant's efficiency, allowing for rapid switching between pumping mode (consuming electricity) and generation mode (producing electricity). The specific hydraulic head is characterized by the local elevation change of over 250 meters, which is a critical parameter for the energy density of the stored water. Detailed specifications of the turbine and reservoir configuration are summarized below.
| Parameter | Value / Description |
|---|---|
| Plant Type | Pumped-storage hydroelectric |
| Operator | Engie-Electrabel |
| Total Installed Capacity | 1,164 MW |
| Upper Reservoirs | Coo I and Coo II |
| Lower Reservoir | Adjacent to Amblève River |
| Hydraulic Head | >250 meters |
| Turbine Type | Reversible (Pump/Generator) |
| Commissioning (Coo I) | 1969 |
| Commissioning (Coo II) | 1978 |
History of development and expansion
The Coo-Trois-Ponts Hydroelectric Power Station was developed in two distinct phases to maximize the potential of the Amblève River basin and the significant local elevation differences in the Province of Liege. The first stage, designated as Coo I, was commissioned in 1969. This initial phase established the fundamental pumped-storage mechanism, utilizing the natural topography to create a lower reservoir and an upper reservoir. The system was designed so that the same machinery could function as both pumps and generators, allowing for flexible energy management. Water is pumped from the lower reservoir to the upper reservoir during periods of low energy demand and released back down to generate electricity when demand peaks. This dual-use capability was central to the plant's operational strategy from its inception.
The expansion to the second stage, known as Coo II, was completed and commissioned in 1978. This phase added a second upper reservoir, further increasing the plant's storage capacity and operational flexibility. The addition of Coo II allowed for more nuanced control over water release and power generation, enhancing the station's role in the Belgian energy grid. The combined installed capacity of the two stages reached 1,164 MW, making it a significant asset for load balancing and peak power delivery. The plant has been owned and operated by Engie Electrabel since its development, ensuring consistent management of the infrastructure. The strategic location next to the Amblève River provided the necessary water source and elevation drop, which are critical for the efficiency of pumped-storage hydroelectric systems.
In recent years, the plant has undergone maintenance and expansion projects to ensure its continued operational efficiency. In 2021, significant work was carried out to modernize the infrastructure and address wear and tear from decades of operation. These projects focused on upgrading the mechanical and electrical components of the pumping and generation systems. The maintenance efforts were aimed at extending the lifespan of the plant and improving its reliability as a source of renewable energy. The updates also included improvements to the reservoir management systems, ensuring that water flow and storage levels are optimized for current energy demands. These ongoing investments reflect the plant's enduring importance in Belgium's energy mix, particularly as the grid integrates more variable renewable sources.
Why it matters
The Coo-Trois-Ponts Hydroelectric Power Station serves as a critical infrastructure asset for the Belgian energy grid, functioning primarily as a large-scale peaking power source. With an installed capacity of 1,164 MW, the facility provides substantial flexibility to balance supply and demand fluctuations. The plant’s operational model relies on pumped-storage hydroelectricity, a technology that effectively acts as a giant battery for the grid. Water is pumped from a lower reservoir to the upper reservoirs, Coo I and Coo II, during periods of lower energy demand. When demand peaks, water is released from these upper reservoirs to drive the same machines as generators, converting potential energy into electricity before returning to the lower reservoir. This cycle allows the grid to store excess energy and dispatch it rapidly when needed.
Rapid Response and Grid Stability
The strategic value of Coo-Trois-Ponts lies in its ability to respond quickly to grid signals. Unlike thermal power plants, which may take hours to reach full output, the hydroelectric turbines at Coo-Trois-Ponts can adjust their output rapidly. The plant was commissioned in two stages, with Coo I coming online in 1969 and Coo II following in 1978, establishing a long-standing role in Belgium’s energy mix. The location next to the Amblève River, in an area with significant local elevation changes exceeding 250 meters, provides the necessary hydraulic head to generate high power output efficiently. This geographic advantage enables the plant to stabilize the grid frequency and provide reserve capacity, ensuring reliability during sudden spikes in consumption or unexpected outages in other generation sources.
Comparison with Chemical Battery Technology
In the context of modern energy storage, pumped-storage hydroelectricity offers distinct advantages over chemical battery technology. While batteries, such as lithium-ion systems, are increasingly popular for short-duration storage, facilities like Coo-Trois-Ponts provide large-scale, long-duration storage capabilities. The 1,164 MW capacity represents a significant chunk of the grid’s flexible generation, often exceeding the output of individual battery farms. Pumped storage also benefits from a longer operational lifespan and lower degradation rates compared to chemical batteries, which can lose capacity over repeated charge-discharge cycles. Owned by Engie Electrabel, the plant continues to operate as a cornerstone of Belgium’s renewable and flexible energy infrastructure, complementing variable sources like wind and solar by storing their excess output and releasing it during peak hours. This synergy highlights the enduring relevance of hydroelectric pumped storage in a transitioning energy landscape.
What are the future plans for Coo-Trois-Ponts?
Planning for the expansion of the Coo-Trois-Ponts Hydroelectric Power Station has evolved significantly since its initial construction. In the year 2000, proposals were made to construct a third reservoir to further enhance the plant's storage capabilities. However, this expansion plan was ultimately abandoned, leaving the facility with its existing two upper reservoirs, Coo I and Coo II, which continue to serve as the primary storage components for the pumped-storage scheme. The decision to halt the third reservoir project meant that subsequent development efforts shifted from capacity expansion to modernization and efficiency improvements of the existing infrastructure.
2021–2026 Modernization Program
Recent years have seen a major upgrade program for the Coo-Trois-Ponts facility, running from 2021 to 2026. This modernization effort is focused on raising the dykes of the existing reservoirs and replacing key turbine units to maintain the operational efficiency of the 1,164 MW installed capacity. The dyke raising project aims to increase the storage volume of the upper reservoirs, thereby extending the duration of peak power generation without adding new land footprint or constructing entirely new reservoir structures. This approach allows the operator, Engie Electrabel, to optimize the use of the existing water resources from the Amblève River and the surrounding elevation differences.

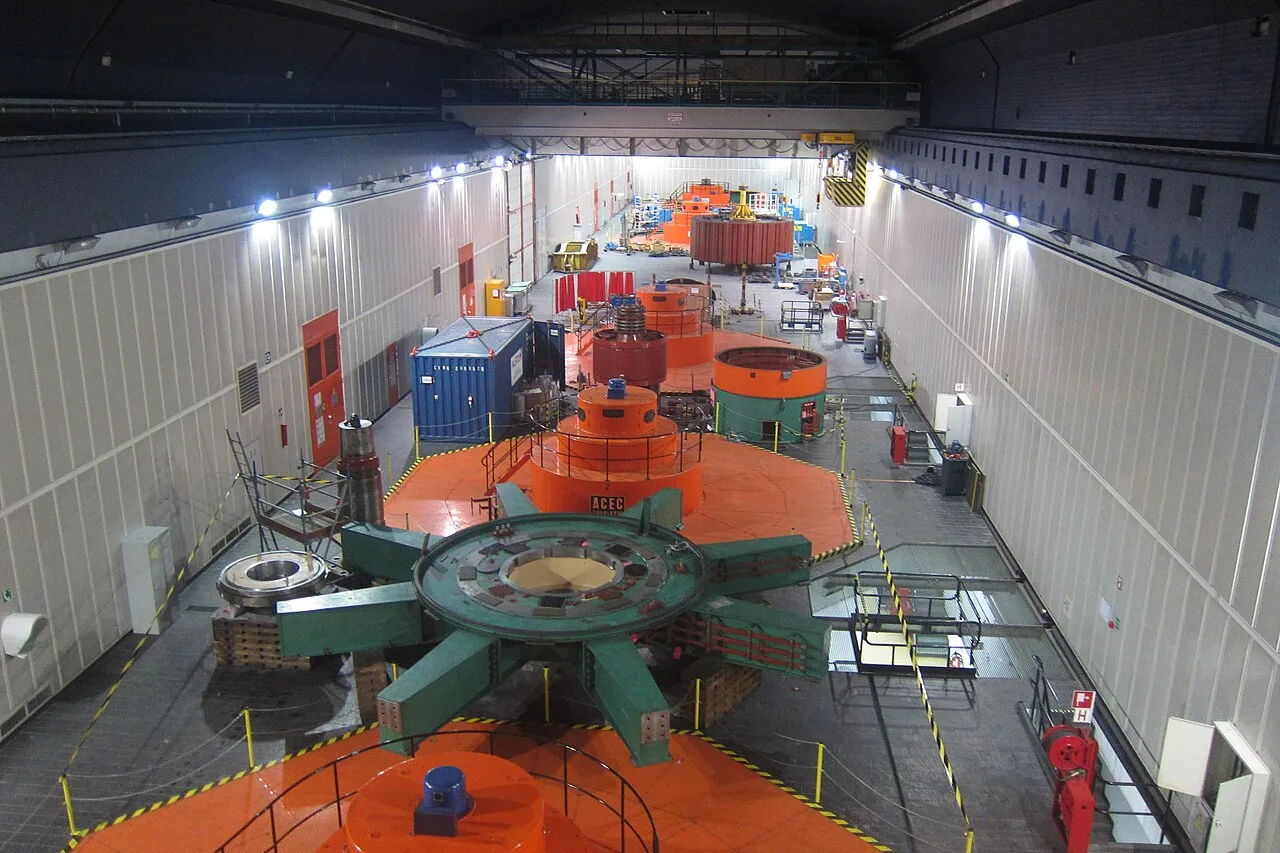

The turbine replacement component of the upgrade involves installing new or refurbished pump-turbine units. These machines are critical to the plant's operation, as they function both as pumps moving water to the higher elevation reservoirs and as generators releasing water back to the lower reservoir during periods of high energy demand. By updating these mechanical systems, the plant aims to reduce maintenance downtime and improve the overall conversion efficiency of the hydroelectric cycle. The upgrades are designed to ensure that the Coo-Trois-Ponts station remains a reliable component of the Belgian energy grid, leveraging its unique geographical advantage of more than 250 meters of local elevation difference.
Operational efficiency and economics
The Coo-Trois-Ponts facility operates as a critical component of Belgium’s energy infrastructure, functioning primarily as a pumped-storage hydroelectric power station. Its operational model relies on the dynamic interplay between water elevation and electrical demand, leveraging the significant local topography. The site is situated next to the Amblève River, identified as one of the few locations in Belgium featuring a local elevation difference exceeding 250 meters. This geographical advantage is central to the plant’s ability to store and release energy efficiently, allowing for the conversion of potential energy into electrical power with minimal thermal losses compared to other storage technologies.
Hydrological and Mechanical Cycle
The power scheme utilizes a lower reservoir and two distinct upper reservoirs, designated as Coo I and Coo II. During periods of low electrical demand, water is pumped from the lower reservoir to these upper elevations. The same machinery that drives the pumping process also functions as generators when energy demand peaks, allowing water to be released back to the lower reservoir. This reversible turbine technology maximizes the utility of the installed capacity of 1,164 MW. The plant was commissioned in two stages, with Coo I entering service in 1969 and Coo II following in 1978. This phased implementation allowed for the gradual integration of the storage capacity into the national grid, managed by the operator Engie Electrabel.
Economic Strategy and Grid Support
The economic viability of the Coo-Trois-Ponts station is derived from its ability to arbitrage energy prices and provide grid stability. By pumping water during off-peak hours when electricity prices are typically lower, the plant stores energy in the form of gravitational potential. When demand surges, the stored water is released to generate power at higher price points, effectively acting as a giant battery for the Belgian grid. This operational flexibility supports the integration of variable renewable sources by absorbing excess generation and releasing it during peak consumption windows. The strategic location in the Province of Liege further enhances its role in regional power distribution, providing a reliable source of dispatchable power in a landscape where significant elevation changes are rare.
