Overview
Conformal fuel tanks (CFTs) are specialized additional fuel storage units designed to integrate closely with the aerodynamic profile of an aircraft. Unlike traditional external fuel tanks, which often protrude significantly from the fuselage or wing structure, CFTs are shaped to match the contours of the airframe. This design choice allows them to extend the endurance of the aircraft by increasing total fuel capacity while minimizing the aerodynamic drag penalty typically associated with external fuel storage. The concept represents a strategic compromise between the internal fuel capacity of the fuselage and the modular flexibility of drop tanks.
Design and Aerodynamic Integration
The primary engineering objective of a conformal fuel tank is to reduce the wetted area and streamline the airflow around the fuel storage volume. Standard external tanks, such as cylindrical drop tanks, create significant form drag and can interfere with the boundary layer of the wing or fuselage. By fitting closely to the aircraft's profile, CFTs maintain a smoother airflow, which is particularly critical for high-speed and supersonic flight regimes. This integration allows military and commercial aircraft to carry more fuel without sacrificing as much range or speed as they would with conventional external tanks. The tanks are often mounted on the sides of the fuselage or along the leading edges of the wings, areas where the natural curvature of the aircraft can be utilized to house the fuel volume.
Operational Impact and History
The operational status of conformal fuel tanks is active, with the concept being commissioned in 1974. This introduction marked a significant shift in aircraft design philosophy, particularly for fighter jets and long-range bombers where payload and range are critical. By utilizing CFTs, aircraft can free up hardpoints that would otherwise be occupied by drop tanks, allowing for greater flexibility in weapon loadouts. Instead of dedicating wing pylons to fuel, those stations can be used for missiles, bombs, or avionics pods, enhancing the tactical versatility of the aircraft. The endurance extension provided by CFTs enables longer loiter times or greater reach, reducing the need for mid-air refueling in certain mission profiles. This technology continues to be a key component in modern aviation engineering, balancing the trade-offs between weight, drag, and fuel capacity.
How do conformal fuel tanks differ from drop tanks?
Conformal fuel tanks (CFTs) represent a distinct engineering approach to extending aircraft endurance compared to traditional external drop tanks. While both systems add fuel capacity without consuming internal volume, their integration methods create significant differences in aerodynamic performance, radar visibility, and structural loading. Understanding these distinctions is critical for mission planning and aircraft design.
Aerodynamic Efficiency and Drag
Drop tanks are typically cylindrical or teardrop-shaped containers mounted on wing or fuselage hardpoints. Their primary disadvantage is the aerodynamic penalty; they create substantial parasitic drag, especially at high subsonic and supersonic speeds. This drag reduces top speed and increases fuel consumption, often negating some of the range benefits of the added fuel. In contrast, CFTs are molded to fit closely to the aircraft’s fuselage or wing roots. This conformal shape minimizes the disruption of airflow, resulting in a significantly lower drag coefficient. The streamlined integration allows the aircraft to maintain higher speeds with less power loss compared to equivalent volume drop tanks.
Radar Cross-Section (RCS) Impact
For air superiority fighters, radar visibility is paramount. Drop tanks are often the largest contributors to an aircraft’s radar cross-section (RCS) due to their curved surfaces and the formation of radar shadows. Even with radar-absorbent materials, they remain prominent targets. CFTs, by hugging the aircraft’s body, break up these large reflective surfaces and integrate into the overall radar profile. This results in a lower overall RCS, enhancing the aircraft’s stealth characteristics. The reduction in radar shadowing and the smoothing of the fuselage lines make CFTs a preferred choice for multirole fighters requiring both range and stealth.
Hardpoint Usage and Structural Loading
External drop tanks occupy wing hardpoints, which are often needed for weapons or auxiliary equipment. When drop tanks are used, the aircraft must carry them on specific pylons, potentially limiting the number of missiles or bombs that can be carried simultaneously. CFTs are mounted on dedicated rails or brackets along the fuselage or wing roots, leaving the primary wing hardpoints free for weapons. This increases the aircraft’s payload flexibility. Furthermore, CFTs are often designed to be semi-permanent, reducing the structural stress on individual wing spars compared to the concentrated loads of heavy drop tanks.
| Feature | Conformal Fuel Tanks (CFTs) | External Drop Tanks |
|---|---|---|
| Aerodynamic Drag | Low; integrated shape minimizes airflow disruption | High; cylindrical shape creates significant parasitic drag |
| Radar Cross-Section | Lower; reduces radar shadows and integrates with fuselage | Higher; large curved surfaces increase radar visibility |
| Hardpoint Usage | Uses fuselage/wing root mounts; frees wing pylons for weapons | Occupies wing or fuselage hardpoints, reducing weapon capacity |
| Mounting Method | Semi-permanent or bolted to dedicated rails | Bolted to pylons; often jettisoned mid-flight |
What are the disadvantages of using conformal fuel tanks?
Conformal fuel tanks (CFTs) offer significant range extension by utilizing the aircraft's fuselage and wing roots, but they introduce several aerodynamic and structural trade-offs compared to traditional drop tanks. The primary disadvantage is their non-discardable nature. Unlike external drop tanks, which can be jettisoned during combat or emergency landings to reduce weight and drag, CFTs are permanently attached to the airframe. This permanence means the aircraft must carry the weight of the tanks even after the fuel is consumed, impacting maneuverability and payload capacity.
Aerodynamic Drag Penalties
While CFTs are designed to blend with the aircraft's profile to minimize aerodynamic interference, they still contribute to parasitic drag. When the tanks are full, the drag penalty is often considered acceptable relative to the fuel volume added. However, as the fuel is burned and the tanks become emptier, the drag remains constant while the lift-to-drag ratio may degrade. This is particularly noticeable at high subsonic and supersonic speeds, where the smooth integration of the CFTs helps, but the added wetted area still increases skin friction drag. The aerodynamic efficiency gain from removing a drop tank is lost with CFTs, as the "empty shell" continues to disrupt airflow.
Structural Weight and Payload
The structural weight of CFTs is another significant factor. Because they must withstand high g-forces and aerodynamic pressures without the support of landing gear or quick-release mechanisms, CFTs are often heavier than equivalent volume drop tanks. This dead weight reduces the maximum takeoff weight available for payload, such as weapons or avionics. In missions where fuel is not the primary constraint, the weight of empty CFTs can limit the aircraft's agility and ceiling.
G-Load Limitations
The addition of CFTs can also impose limitations on the aircraft's maximum g-load. The fuel sloshing within the tanks and the structural stress on the attachment points can reduce the safe operational envelope. Pilots may need to limit pull-up forces to prevent structural fatigue or fuel system anomalies, which can be critical in dogfighting scenarios. These limitations require careful mission planning to balance range extension with tactical flexibility.
History and development of CFT technology
The concept of conformal fuel tanks (CFTs) predates the specific 1974 commissioning date, with early experimental applications during the Second World War. During this period, aircraft designers sought to maximize range by utilizing the fuselage's aerodynamic profile to house additional fuel volume. Notable examples include modifications to the Supermarine Spitfire and the Messerschmitt Bf 109, where belly tanks were integrated to reduce drag compared to traditional drop tanks. The Messerschmitt Bf 110D-1 variant, known as the 'Dackelbauch' (Dachshund belly), exemplifies this early approach, featuring a streamlined fuel container that closely followed the aircraft's lower fuselage line.
Post-War Evolution and Jet Applications
Following the war, the development of CFT technology continued as jet propulsion introduced new aerodynamic and capacity challenges. The integration of fuel tanks into the aircraft's structure allowed for increased endurance without significantly altering the external silhouette. This was particularly valuable for fighter aircraft where radar cross-section and drag were critical performance factors. The technology evolved from simple external additions to more sophisticated integrations that became part of the airframe's structural logic.
By 1974, the operational status of conformal fuel tanks was firmly established, marking a significant milestone in their adoption across various aircraft platforms. This period saw the refinement of CFTs for modern jet applications, where the balance between fuel capacity, aerodynamic efficiency, and structural weight became increasingly important. The tanks were designed to fit closely to the profile of the aircraft, extending its endurance while maintaining aerodynamic smoothness. This development represented a shift from temporary fuel solutions to permanent or semi-permanent structural components, enhancing the operational flexibility of military and commercial aircraft alike.
Applications on US fighter aircraft

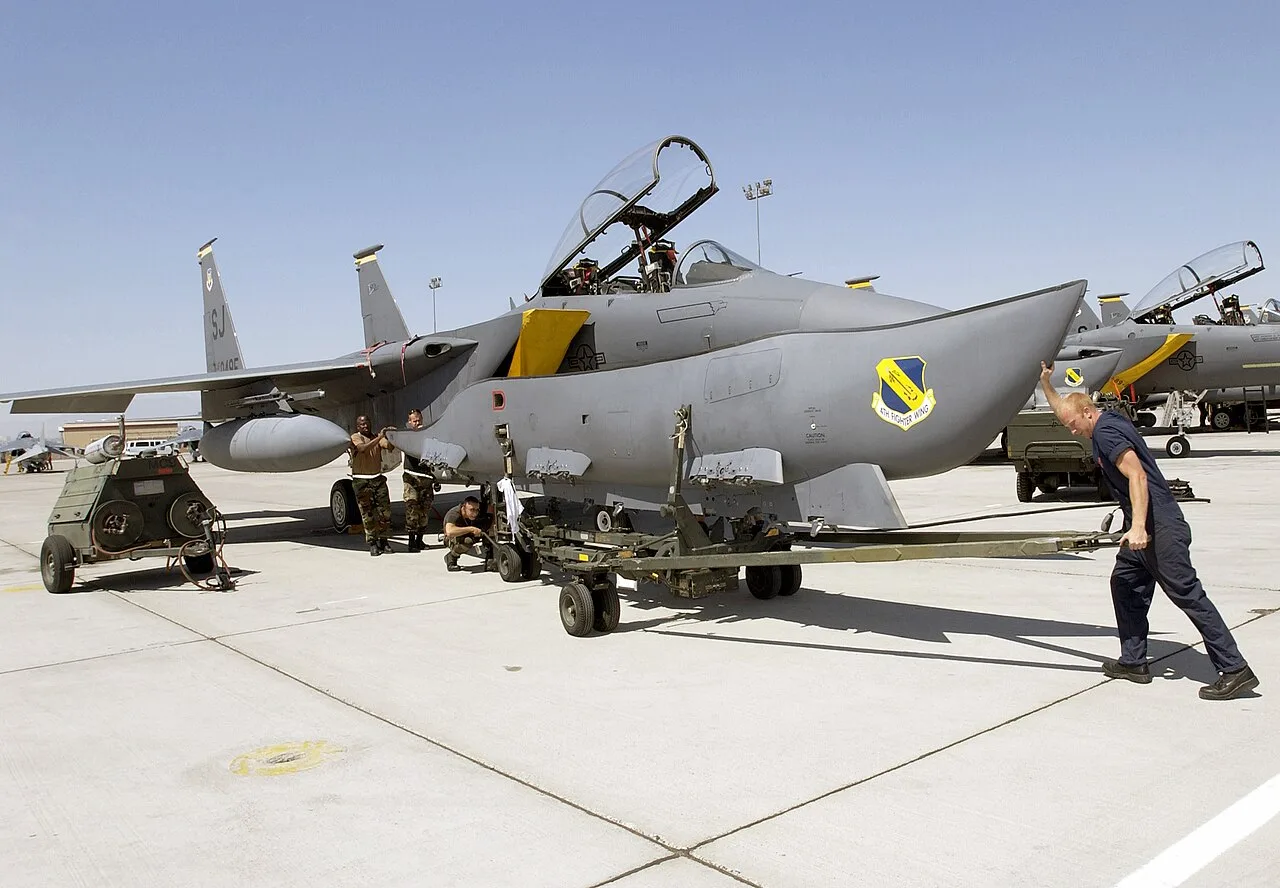

Conformal fuel tanks have been extensively utilized on United States fighter aircraft to enhance range and payload flexibility without significantly increasing drag. The F-15 Eagle series represents one of the earliest and most prominent applications of this technology. Testing for the F-15 Conformal Fuel Tanks began in 1974, leading to the development of the F-15C and later the F-15E Strike Eagle and F-15EX models. These tanks, often referred to as FAST packs (F-15 Advanced Super Tank), are mounted along the fuselage sides. Each tank holds approximately 750 US gallons, which is equivalent to 2800 liters of fuel. This configuration allows the aircraft to carry additional fuel while freeing up wing hardpoints for weapons or other avionics pods, thereby improving overall mission efficiency.
F-16 Fighting Falcon Variants
The F-16 Fighting Falcon has also adopted conformal fuel tanks across several key variants, including the Block 50/52 and later Block 60, 70, and 72 models. These tanks are particularly notable for their integration into the aircraft’s aerodynamic profile, reducing the need for external drop tanks. The F-16 CFTs have a capacity of 450 US gallons, which translates to 1700 liters. In terms of weight, this fuel load amounts to approximately 3050 pounds or 1380 kilograms. This additional fuel significantly extends the endurance of the F-16, making it more versatile for long-range missions.
Export models of the F-16, such as the Israeli Air Force’s F-16I Sufa, have also benefited from conformal fuel tanks. The F-16I Sufa, for instance, utilizes these tanks to enhance its operational range and payload capacity, allowing it to perform diverse mission profiles with greater flexibility. The integration of CFTs on these export variants demonstrates the widespread adoption and effectiveness of this technology in modern fighter aircraft design.
International aircraft with conformal fuel tanks
Several international fighter aircraft have adopted conformal fuel tanks to enhance range and reduce drag. The Dassault Rafale utilizes CFTs that hold 300 US gallons (1150 L) of fuel. Testing of these tanks began in 2001, and they were prominently featured at the 2025 Paris Air Show. This integration allows the Rafale to extend its endurance without occupying wing pylons.
Mikoyan and Eurofighter Implementations
The Mikoyan MiG-29SMT and MiG-35 variants employ CFTs with a capacity of 250 US gallons (950 L). These tanks are mounted along the fuselage sides, providing additional fuel storage while maintaining a relatively low aerodynamic profile. The Eurofighter Typhoon also uses CFTs, with each tank holding 400 US gallons (1500 L) of fuel. This significant capacity helps the Typhoon achieve greater range during long-range interception missions.
Asian Fighter Aircraft
Asian manufacturers have also integrated CFT technology into their designs. The AIDC F-CK-1 features conformal tanks to boost its operational range. Similarly, the Chengdu J-10 incorporates CFTs to enhance its endurance capabilities. These implementations demonstrate the widespread adoption of CFTs across different air forces to optimize fuel efficiency and payload flexibility.
Distended internal tanks and related designs
Distended internal tanks represent a distinct approach to extending aircraft endurance, differing from external conformal tanks by integrating fuel storage directly into the fuselage structure. These designs often create visible bulges or utilize flush-mounted compartments to minimize aerodynamic drag while maximizing volume. The English Electric Lightning employed this concept, utilizing fuselage extensions to house additional fuel, thereby enhancing its high-altitude interception capabilities without the penalty of external pod drag. Similarly, the Gloster Javelin featured specialized internal fuel arrangements known as "bosom tanks" or "Sabrinas." These tanks held 300 US gallons (1100 L) of fuel, strategically positioned within the fuselage to maintain the aircraft's center of gravity and aerodynamic profile. The Gloster Meteor also incorporated distended internal tank designs, adapting its fuselage to accommodate increased fuel capacity for longer missions. In Asian aviation, the Shenyang J-6 utilized similar principles, integrating fuel storage within the fuselage to extend its range. The Nanchang Q-5 attack aircraft also employed distended internal tank configurations, optimizing its internal volume for fuel to support its ground-attack roles. These designs highlight the engineering trade-offs between internal volume utilization and external aerodynamic cleanliness, offering a middle ground between pure internal fuel capacity and the added drag of external conformal tanks.
Why it matters
Conformal fuel tanks (CFTs) represent a critical evolution in aerospace engineering, fundamentally altering the trade-offs between range, payload, and aerodynamic efficiency in modern air combat. By integrating fuel storage directly into the aircraft's fuselage or wing roots, CFTs eliminate the need for traditional external drop tanks, which often protrude significantly from the airframe. This integration is particularly significant for stealth aircraft and multirole fighters, where maintaining a low radar cross-section (RCS) is paramount for survivability. Traditional drop tanks create substantial radar reflections and drag, compromising both stealth and speed. CFTs, by contrast, are designed to blend seamlessly with the aircraft's profile, preserving the aerodynamic smoothness required for reduced drag and enhanced radar absorption.
Ordnance Retention and Tactical Versatility
A primary tactical advantage of CFTs is the ability to retain a full ordnance payload without sacrificing range. In conventional configurations, pilots often face a choice between carrying maximum fuel for endurance or maximizing weapons load for strike missions, as both compete for limited hardpoints under the wings and fuselage. With CFTs, the fuel is stored in the "conformal" spaces, freeing up critical hardpoints for air-to-air missiles, air-to-ground bombs, or electronic warfare pods. This versatility allows aircraft to execute longer-range missions while maintaining a heavy weapons load, reducing the need for mid-air refueling and increasing operational flexibility. The retention of full ordnance is especially crucial in contested airspace, where the ability to carry a diverse mix of weapons can determine mission success.
Stealth and Aerodynamic Efficiency
The reduction in radar signature is a defining feature of CFTs, particularly for fifth-generation fighters. By minimizing external protrusions, CFTs help maintain the aircraft's stealth characteristics, allowing it to penetrate enemy air defenses with a lower probability of detection. Additionally, the aerodynamic benefits of CFTs contribute to improved fuel efficiency and speed. Traditional drop tanks create significant drag, which can reduce top speed and maneuverability. CFTs, being integrated into the airframe, offer a more streamlined profile, reducing drag and enhancing overall performance. This combination of stealth, payload retention, and aerodynamic efficiency makes CFTs a vital component in modern air combat, enabling aircraft to operate effectively in diverse and challenging environments.
