CO2-Plume Geothermal: Technology, Principles and Research Status

Overview

CO2-Plume Geothermal (CPG) is a proposed energy technology designed to integrate carbon capture and storage (CCS/CCUS) with geothermal energy extraction. Unlike conventional geothermal systems that primarily utilize water as the working fluid, CPG leverages carbon dioxide itself to drive the energy extraction process. This dual-purpose mechanism aims to enhance the efficiency of geothermal reservoirs while simultaneously sequestering CO2, thereby linking renewable energy production with climate change mitigation strategies.

The concept was first introduced by Dr. Donald W. Brown at the 25th Workshop on Geothermal Reservoir Engineering held at Stanford University in 2000. This initial proposal laid the groundwork for understanding how supercritical CO2 could function as an effective heat transfer fluid in subsurface geological formations. The technology remains in the proposed stage, indicating that while the theoretical framework and initial modeling have been established, widespread commercial deployment is still under development and evaluation.

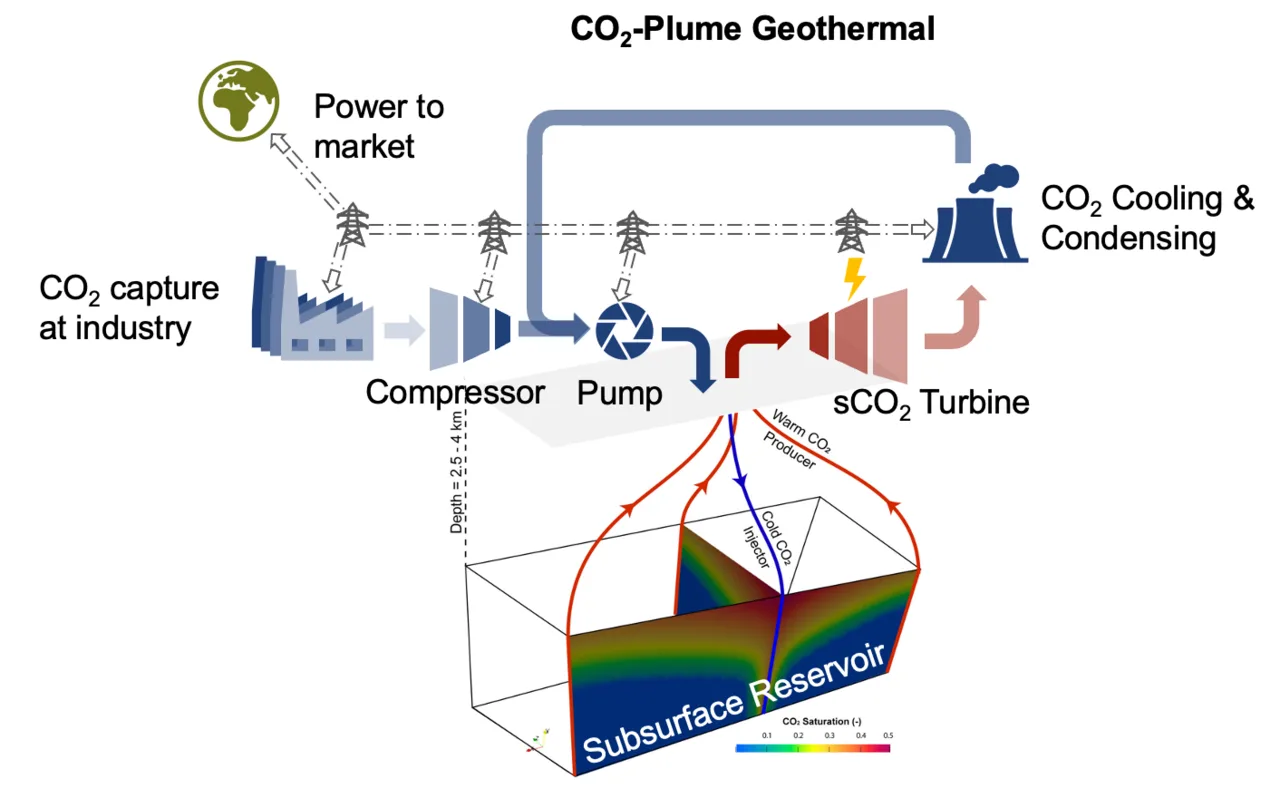

In a typical CPG system, carbon dioxide is injected into a geothermal reservoir where it forms a plume. As the CO2 circulates through the heated rock formations, it absorbs thermal energy and expands, driving turbines to generate electricity. The use of CO2 as the working fluid offers potential advantages over water, including lower viscosity and higher density, which can improve heat extraction efficiency. Additionally, the process facilitates the storage of captured CO2, contributing to carbon capture and storage (CCS/CCUS) efforts. This integration represents a significant advancement in geothermal technology, aiming to optimize both energy output and carbon sequestration in a single operational framework.

History and Origins

CO2-Plume Geothermal (CPG) is a proposed technology that integrates carbon capture and storage (CCS/CCUS) with geothermal energy extraction. This system utilizes carbon dioxide as the primary working fluid for extracting geothermal energy. The concept was first introduced by Dr. Donald W. Brown in the year 2000. He presented this proposal at the 25th Workshop on Geothermal Reservoir Engineering held at Stanford University. This event marked the formal inception of the CPG concept in academic and engineering discourse.

Conceptual Framework

The core innovation of CPG lies in its dual function: it captures CO2 for storage while simultaneously generating geothermal power. Unlike traditional geothermal systems that often rely on water or brine, CPG injects supercritical carbon dioxide into a reservoir. The CO2 expands and heats up, driving turbines to produce electricity. This approach addresses two major energy challenges: renewable power generation and carbon sequestration.

Dr. Brown's 2000 presentation at Stanford laid the groundwork for understanding how CO2 behaves as a geothermal working fluid. The workshop provided a platform for peer review and initial technical validation. This early academic exposure helped establish CPG as a viable candidate for further research and development in the geothermal sector.

Academic and Technical Context

The 25th Workshop on Geothermal Reservoir Engineering at Stanford University is a significant venue for geothermal research. Presenting at this workshop allowed Dr. Brown to introduce the CPG concept to a specialized audience of engineers and scientists. This academic setting facilitated the initial technical discussions necessary to refine the CPG model. The year 2000 serves as the baseline for the technology's proposed status.

Since its proposal, CPG has remained a proposed technology. It has not been widely commercialized but continues to be studied for its potential to enhance geothermal efficiency. The integration of CCS with geothermal energy extraction represents a strategic convergence of two critical energy infrastructure domains. Dr. Brown's work at Stanford remains the foundational reference for this technological approach.

How does CO2-Plume Geothermal work?

CO2-Plume Geothermal (CPG) operates by utilizing carbon dioxide as the primary working fluid for geothermal energy extraction, effectively merging carbon capture and storage with power generation. The process begins with the injection of CO2 into a geothermal reservoir. As the CO2 descends, it forms a "plume" that spreads through the porous rock matrix. Unlike water, which is relatively dense, CO2 is buoyant and tends to rise, creating a natural convection current that enhances heat transfer efficiency from the surrounding rock to the fluid.

The thermodynamic properties of CO2 make it particularly suitable for this cycle. When CO2 is heated underground, it often reaches a supercritical state, where it exhibits properties of both a gas and a liquid. This supercritical CO2 is then extracted through a production well and directed to the surface. At the surface, the fluid expands through turbines to generate electricity. Following expansion, the CO2 is condensed and re-injected into the reservoir, closing the loop and ensuring continuous storage of the carbon.

Thermodynamic Properties

The efficiency of the CPG cycle relies heavily on the specific physical characteristics of CO2 compared to traditional water-based systems. Key properties include specific heat capacity and dynamic viscosity.

Property	CO2	Water
Specific Heat Capacity	Higher (in supercritical state)	Lower (relative to supercritical CO2)
Dynamic Viscosity	Lower	Higher

The lower viscosity of CO2 reduces pumping power requirements, while its higher specific heat capacity in the supercritical phase allows for greater energy storage per unit volume. The energy extraction can be modeled using thermodynamic relations, where the work output W is a function of the enthalpy difference between the inlet and outlet of the turbine.

Relation to Carbon Capture and Storage

CO2-Plume Geothermal (CPG) fundamentally alters the economics and engineering of Carbon Capture and Storage (CCS) by transforming carbon dioxide from a pure cost center into a working fluid for energy extraction (per the foundational proposal by Dr. Donald W. Brown at Stanford University in 2000). In traditional CCS, CO2 is injected into a subsurface reservoir primarily for sequestration, often requiring significant energy input to compress and pump the fluid. CPG integrates this process with geothermal energy production, allowing the CO2 plume to absorb heat from the surrounding rock matrix as it migrates through the reservoir. This dual-use approach reduces the net carbon intensity of the energy system, as the geothermal power generated offsets the energy penalty typically associated with the capture and injection phases of CCS.

Subsurface Dynamics and Density Control

The behavior of CO2 in a CPG system is distinct from water-based geothermal systems due to the thermodynamic properties of carbon dioxide. As CO2 is injected into the subsurface, it undergoes cooling, which increases its density. This increased density helps control the volumetric sweep of the plume, allowing for more efficient heat exchange with the rock formation. The control of the plume's movement is critical for maximizing energy extraction and ensuring long-term storage security. Unlike water, which has relatively stable density across a range of temperatures, CO2’s density is highly sensitive to pressure and temperature changes, providing operators with additional leverage to manage the reservoir’s thermal and fluid dynamics.

Monitoring and Well Repurposing

CPG offers enhanced monitoring capabilities compared to traditional geothermal or CCS projects. The movement of the CO2 plume can be tracked using seismic and tracer data, providing real-time insights into the reservoir’s condition. This data is invaluable for optimizing energy production and verifying the integrity of the storage site. Furthermore, CPG introduces flexibility in well repurposing. Existing oil and gas wells, or even dedicated CCS injection wells, can be adapted for CPG use, reducing the capital expenditure required for new infrastructure. This adaptability makes CPG a viable option for regions with mature hydrocarbon basins, where the subsurface geology is already well-characterized.

Impact on CCS Project Viability

By generating revenue through geothermal energy production, CPG can improve the financial viability of CCS projects. The energy produced can be fed into the local grid or used to power the capture and injection facilities, creating a more self-sustaining system. This economic benefit is particularly significant for CCS projects that are otherwise marginal due to high operational costs. The integration of CPG with CCS also supports the broader goal of decarbonization by providing a scalable solution for storing large volumes of CO2 while simultaneously generating low-carbon energy. The technology’s potential to reduce the levelized cost of stored carbon makes it an attractive option for policymakers and energy investors seeking to accelerate the transition to a net-zero energy system.

What are the research needs for CPG?

Research into CO2-Plume Geothermal (CPG) focuses heavily on optimizing the thermodynamic cycle to accommodate the unique properties of supercritical carbon dioxide. Unlike traditional water-based systems, CPG requires specialized equipment capable of handling high-pressure CO2 at varying temperatures. A primary area of investigation involves the development of lower temperature supercritical turbines. These turbines must efficiently convert the enthalpy of the CO2 plume into mechanical work, often necessitating adjustments to blade geometry and casing materials to withstand the corrosive and dense nature of the working fluid. The efficiency of these turbines is critical, as the temperature gradient in CPG systems can differ significantly from conventional geothermal fields, impacting the overall exergy recovery of the plant.

Another significant research need concerns the design and integration of high-pressure CO2 cooling units. As the CO2 circulates through the subsurface reservoir, it absorbs heat and expands. Upon returning to the surface, the fluid must be cooled and recompressed to maintain the supercritical state required for efficient injection. This process demands robust heat exchangers and compressors that can operate reliably under high-pressure conditions. Researchers are examining materials science advancements to reduce degradation and fatigue in these units, ensuring long-term operational stability. The thermal management of these cooling units is also vital, as inefficient cooling can lead to pressure losses and reduced net power output.

Location selection presents a complex challenge for CPG deployment. Suitable sites must possess specific geological characteristics, including adequate permeability, porosity, and thermal gradient to support the CO2 plume's expansion and heat exchange. Research is ongoing to identify and characterize reservoirs that can effectively trap the CO2 while maximizing heat extraction. This involves detailed seismic surveys and well-log analyses to map the subsurface structure. Additionally, the proximity to CO2 sources, such as power plants or industrial emitters, is crucial for minimizing transportation costs. The integration of CPG with existing carbon capture and storage (CCS) infrastructure can enhance economic viability, but requires careful planning to ensure compatibility between the injection and extraction phases.

Repurposing equipment from CO2 enhanced oil recovery (EOR) and CCS projects offers a potential pathway to reduce capital expenditures. Many EOR fields already possess the necessary well infrastructure, separators, and compressors. However, adapting this equipment for CPG requires modifications to handle the different flow dynamics and thermal profiles. Research is needed to assess the longevity and performance of repurposed assets, particularly in terms of corrosion resistance and mechanical stress. Understanding the synergies between EOR and CPG can lead to hybrid models where oil production and geothermal energy extraction occur simultaneously, optimizing the use of the subsurface reservoir. This interdisciplinary approach requires collaboration between petroleum engineers and geothermal specialists to refine operational strategies and equipment specifications.

Applications and Use Cases

CO2-Plume Geothermal (CPG) represents a proposed technological framework designed to address two critical components of global energy infrastructure: power generation and carbon sequestration. By utilizing carbon dioxide as the primary working fluid within geothermal reservoirs, CPG integrates carbon capture and storage (CCS) with heat extraction. This dual-purpose mechanism allows for the simultaneous production of geothermal electricity and the subsurface storage of CO2, offering a potential pathway to enhance the efficiency of geothermal systems while reducing atmospheric carbon loads.

Dual Benefits of Power Production and Storage

The core application of CPG lies in its ability to combine energy extraction with carbon management. Traditional geothermal systems often use water or brine as the working fluid, which is circulated through hot rock formations to capture heat. In CPG, CO2 is injected into the reservoir, where it absorbs thermal energy from the surrounding rock. As the CO2 heats up, it expands and rises, driving turbines to generate electricity before being reinjected or stored. This process leverages the unique thermodynamic properties of CO2, which can exhibit higher thermal conductivity and lower viscosity compared to water, potentially improving heat transfer efficiency in certain geological settings.

From a carbon sequestration perspective, CPG offers a mechanism for long-term CO2 storage. The injected CO2 can remain trapped in the subsurface through various mechanisms, including structural trapping, residual trapping, and solubility trapping. This integration means that geothermal power plants could serve as significant carbon sinks, contributing to broader climate mitigation strategies. The technology is particularly relevant in regions with abundant geothermal resources and significant CO2 emission sources, such as industrial clusters or fossil fuel power plants.

Proposed Status and Future Potential

As a proposed technology, CPG remains in the developmental and pilot stages. The concept was first introduced by Dr. Donald W. Brown at Stanford University in 2000, highlighting its relatively recent emergence in the geothermal energy landscape. While not yet widely deployed, CPG holds promise for enhancing the sustainability of geothermal energy production. Its application could extend to enhanced geothermal systems (EGS), where the injectivity and permeability of the reservoir are improved by the CO2 plume, potentially unlocking geothermal resources in areas with lower natural permeability.

The integration of CPG with existing carbon capture infrastructure could also facilitate the scaling of CCS technologies. By providing a revenue stream from geothermal power generation, CPG could help offset the costs associated with carbon capture and storage, making CCS more economically viable. This synergy between energy production and carbon management positions CPG as a promising candidate for future energy infrastructure development, particularly in the context of transitioning to low-carbon energy systems.
