Black powder in gas pipelines: Formation, corrosion mechanisms and mitigation technologies

Overview

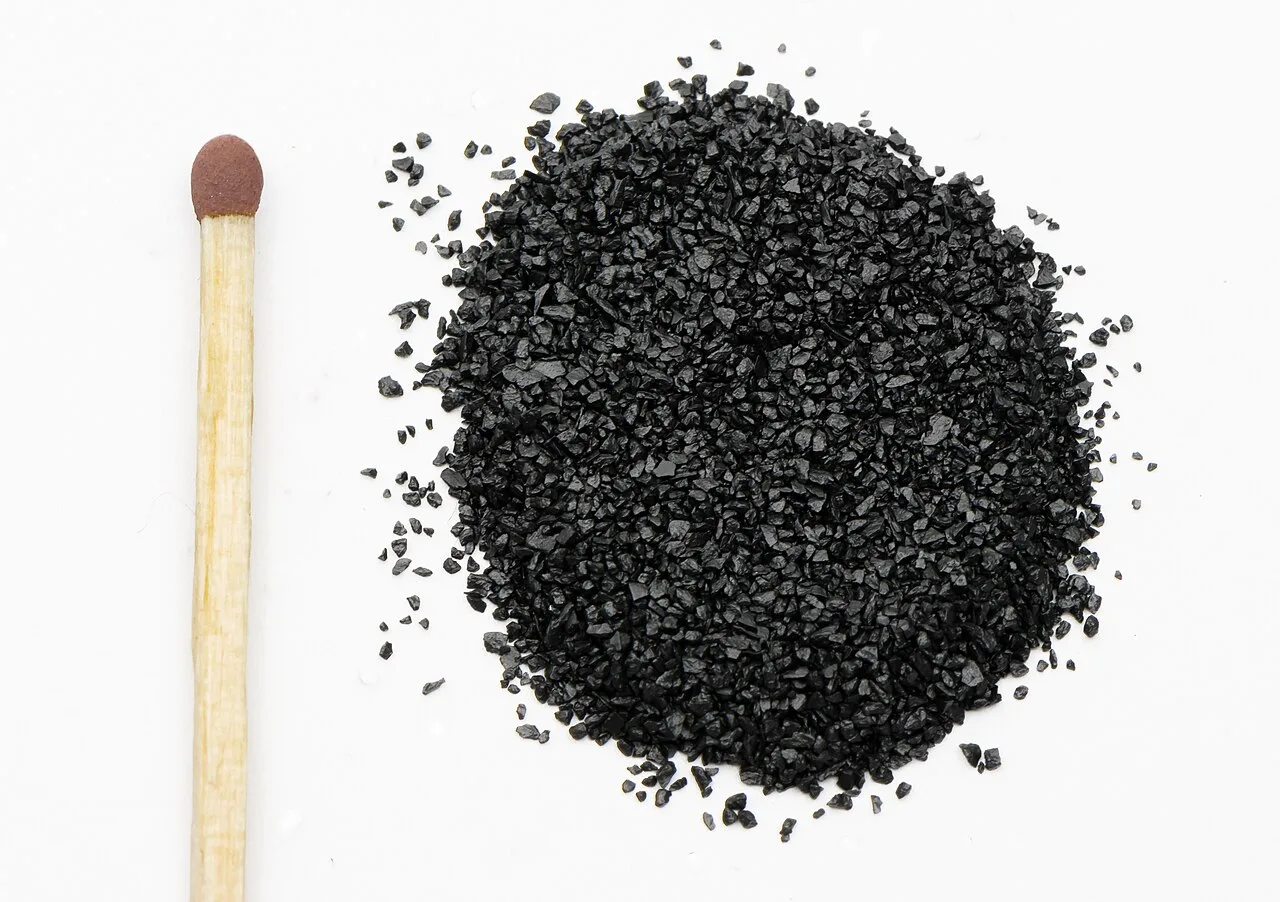

Black powder is the standard industry designation for the abrasive, reactive particulate contamination found within natural gas and hydrocarbon fluid transmission lines. This phenomenon is ubiquitous, affecting pipelines from the initial production stage through to the end-user delivery point. The material presents as a fine particulate matter that ranges in color from light brown to deep black, depending on the specific mineral makeup associated with the production field. Its presence is a critical operational concern due to its dual nature as both an abrasive agent and a reactive chemical component within the pipeline environment.

The composition of black powder is complex and varies significantly based on the geological source of the hydrocarbon. Primary constituents typically include iron oxides, iron sulfides, silica, and calcium compounds. Iron oxides, often derived from the corrosion of carbon steel pipelines, are a dominant component. Iron sulfides, such as pyrite or mackinawite, are frequently present and contribute to the reactive properties of the powder. Silica particles, often entrained from the reservoir rock, and calcium-based salts further contribute to the bulk material. The specific ratio of these minerals determines the hardness and chemical reactivity of the black powder in any given pipeline system.

The formation and transport of black powder involve complex physicochemical processes. As natural gas flows through the pipeline, these fine particles are suspended in the fluid phase. The abrasive nature of the particles, particularly the silica and harder iron oxide variants, leads to mechanical wear on pipeline components, including compressors, valves, and heat exchangers. Simultaneously, the reactive components, especially iron sulfides, can undergo oxidation when exposed to air during maintenance or leaks, posing potential fire and explosion hazards. The variability in mineral makeup means that mitigation strategies must be tailored to the specific production field, as the behavior of black powder is not uniform across all natural gas infrastructure.

How does black powder form in pipeline systems?

Black powder formation in natural gas pipelines is a complex process driven by the interaction of chemical reactions, physical conditions, and biological activity. This abrasive, reactive particulate contamination ranges from light brown to black, with mineral makeup varying significantly depending on the specific production field. The formation mechanisms are primarily categorized into chemical precipitation and bacterial metabolism, both heavily influenced by pipeline operating conditions.

Chemical Precipitation Mechanisms

Chemical black powder often originates from the interaction of hydrogen sulfide (H₂S) and iron constituents within the pipeline system. When natural gas containing H₂S flows through steel pipelines, a corrosion reaction occurs. Iron (Fe) from the pipe wall reacts with hydrogen sulfide to form iron sulfide (FeS), a primary component of black powder. This reaction is accelerated by the presence of moisture, which acts as an electrolyte, facilitating ion exchange. The general reaction can be represented as Fe + H₂S → FeS + H₂. Variations in temperature and pressure further influence this precipitation. As gas expands and cools, solubility of certain compounds decreases, causing solids to precipitate out of the fluid stream. These chemical precipitates are typically fine, abrasive particles that contribute significantly to the "black" appearance of the contamination.

Bacterial Metabolism and Biofilms

Biological activity plays a critical role in black powder formation, particularly in wet gas pipelines. Specific bacteria, such as Desulfovibrio desulfuricans and Clostridium species, thrive in the anaerobic environments found within pipeline biofilms. Desulfovibrio desulfuricans is a sulfate-reducing bacterium that metabolizes sulfates and sulfur compounds, producing hydrogen sulfide as a byproduct. This biogenic H₂S then reacts with iron to form additional iron sulfide particles. Clostridium bacteria, often found in the crude oil and natural gas fields, contribute through the reduction of sulfur and the production of various organic acids. These bacteria form complex biofilms that trap mineral particles and corrosion products, creating a cohesive, abrasive sludge. The presence of moisture is essential for bacterial survival and metabolic activity, making water management a key factor in controlling biological black powder.

Comparison of Formation Catalysts

Catalyst Type	Key Components	Primary Mechanism	Influencing Factors
Chemical	Iron (Fe), Hydrogen Sulfide (H₂S), Moisture	Corrosion reaction forming Iron Sulfide (FeS)	Temperature variance, Pressure drops, Moisture presence
Bacterial	Desulfovibrio desulfuricans, Clostridium, Sulfates	Metabolic production of H₂S and organic acids	Moisture (electrolyte), Anaerobic conditions, Biofilm formation

Understanding these distinct yet interconnected mechanisms is essential for effective mitigation strategies in gas and hydrocarbon fluid transmission lines. The mineral makeup of the black powder varies per production field, reflecting the unique chemical and biological profile of each gas source.

What are the primary sources of corrosion and erosion?

Black powder contamination in natural gas pipelines arises from distinct chemical and mechanical processes that degrade infrastructure integrity. The primary chemical mechanism involves the conversion of iron sulfide (FeS) and iron oxide (Fe2O3) scales formed within the transmission lines. These compounds react with the hydrocarbon fluid, creating a mixture of abrasive particulates that range from light brown to black, with mineral makeup varying per production field around the world (per industry definitions of black powder). This reactive particulate contamination is present in all gas and hydrocarbon fluid transmission lines, necessitating continuous monitoring.

Mill Scale and Flash Rust Formation

Mechanical erosion is significantly driven by mill scale and flash rust, which originate during the initial construction and commissioning phases of the pipeline. Mill scale consists of layered iron oxides formed during the rolling of steel pipes, while flash rust develops when exposed steel surfaces encounter moisture and oxygen before the protective coating fully cures. These materials detach under high-velocity flow, contributing to the bulk volume of black powder. The presence of these sub-micron particles is particularly damaging because they are often undetectable by standard visual inspection methods yet possess high abrasiveness relative to their size.

Erosion Factors and Flow Dynamics

The erosive impact of black powder is governed by flow rate and contamination levels. Higher flow velocities increase the kinetic energy of the particulates, accelerating the wear on pipe walls and internal components. The relationship between erosion rate and flow dynamics can be conceptualized through empirical models where erosion is proportional to the particle concentration and velocity raised to a specific power, often expressed as E∝C⋅vn, where E is erosion, C is concentration, and v is velocity. Contamination levels fluctuate based on the upstream production field characteristics, meaning that pipelines transporting gas from diverse sources may experience varying degrees of abrasive stress. Understanding these factors is critical for predicting maintenance intervals and selecting appropriate filtration systems to mitigate the abrasive, reactive nature of the contamination.

Why is black powder a critical operational problem?

Black powder represents a persistent operational challenge in natural gas and hydrocarbon transmission systems due to its abrasive and reactive nature. This particulate contamination, which ranges from light brown to black, accumulates within pipelines and affects critical infrastructure components. The mineral composition varies significantly depending on the production field, introducing uncertainty in material compatibility and wear rates. Because black powder is present in virtually all gas lines, operators must account for its impact on system integrity, efficiency, and maintenance costs.

Impact on Carbon Steel Components and Pressure Boundaries

Carbon steel is the predominant material for pipeline construction, yet it is highly susceptible to degradation when exposed to black powder. The abrasive particles cause localized erosion, leading to thinning of the pipe wall and potential pressure boundary disruption. Over time, this erosion can compromise the structural integrity of the pipeline, increasing the risk of leaks or ruptures. The reactive nature of the powder can also accelerate corrosion, particularly when water is present, forming a slurry that exacerbates wear on the steel surface. This dual mechanism of abrasion and corrosion demands rigorous monitoring and maintenance to prevent catastrophic failures.

Effects on Pumps, Compressors, and Valves

Moving parts within the transmission system, such as pumps and compressors, are particularly vulnerable to black powder accumulation. The abrasive particles can damage pump seals, leading to leakage and reduced efficiency. In compressors, the powder can cause wear on impellers and bearings, increasing vibration and energy consumption. Valves, which rely on precise sealing surfaces, may experience sticking or leakage due to particle ingress, affecting flow control and pressure regulation. These components require frequent inspection and replacement, driving up operational expenditures and downtime.

Flow Restriction and Metering Accuracy

Accumulation of black powder can lead to flow restriction, reducing the effective diameter of the pipeline and increasing pressure drop. This restriction can impact the throughput capacity of the system, necessitating more frequent pigging or cleaning operations. Additionally, black powder can affect the accuracy of flow meters, which are critical for billing and process control. Particulate buildup on metering elements can cause erratic readings, leading to revenue loss or overpayment. Ensuring metering accuracy requires regular calibration and cleaning, adding to the operational complexity.

Economic Implications for Refineries and Transmission Lines

The high cost of damage caused by black powder is a significant concern for refineries and transmission line operators. Maintenance and repair costs include labor, materials, and downtime, which can be substantial for large-scale systems. In refineries, black powder can affect downstream processes, leading to product quality issues and increased refining costs. For transmission lines, the cost of replacing corroded or eroded sections can be high, particularly in remote locations. The cumulative effect of these costs underscores the importance of effective black powder management strategies to optimize operational efficiency and extend asset life.

What are the limitations of traditional filtration methods?

Traditional mitigation strategies for black powder in gas pipelines rely heavily on reactive measures and mechanical separation, each presenting distinct operational limitations. Pigging and chemical cleaning are primarily corrective actions rather than continuous solutions. Pigging effectively removes bulk accumulations but requires line stoppages or reduced throughput, introducing downtime costs. Chemical cleaners dissolve specific components but often fail to address the heterogeneous mineral makeup of black powder, which varies significantly across production fields. These methods do not prevent the continuous ingress of particulate contamination, leading to recurring maintenance cycles.

Inefficiencies of Mechanical Filtration

Mechanical filtration systems, including cyclones, cone/basket strainers, and cartridge filters, face inherent physical constraints when handling the abrasive and reactive nature of black powder. Cyclones utilize centrifugal force to separate heavier particles, yet they struggle with sub-micron particulates. The separation efficiency of a cyclone is often described by the cut-off diameter d50, below which only 50% of particles are captured. For fine black powder, this results in significant slip-through, allowing abrasive particles to reach downstream equipment. Furthermore, cyclones introduce a pressure drop ΔP that increases with flow rate, impacting overall pipeline efficiency.

Cone and basket strainers offer robust initial filtration but are prone to rapid plugging. The heterogeneous composition of black powder, ranging from light brown to black minerals, leads to uneven cake formation on the strainer media. This uneven loading creates localized high-velocity channels, reducing effective filtration area and accelerating wear. Frequent backwashing or manual cleaning is required to maintain flow, increasing operational labor and downtime. The risk of strainer failure under high differential pressure also poses a threat to pipeline integrity.

Cartridge Filters and Flow Restriction

Cartridge filters provide higher surface area and finer filtration capabilities compared to cone strainers. However, they are susceptible to blinding, especially when dealing with sticky or reactive components of black powder. The accumulation of particulates on the filter media increases the specific cake resistance α, leading to a non-linear rise in pressure drop over time. This flow restriction necessitates more frequent replacement or regeneration of cartridges, driving up operational expenditures. Additionally, the cost of filter media and the logistics of handling spent cartridges contribute to the total cost of ownership. In high-throughput gas lines, the cumulative effect of these limitations can significantly impact the economic viability of traditional filtration approaches.

How does rare-earth magnetic separation technology work?

Principles of Radial Magnetic Separation

Rare-earth magnetic separation technology addresses black powder contamination in natural gas transmission lines by leveraging high-intensity radial magnetic fields. This method is particularly effective for the proactive removal of particulate matter that characterizes the abrasive, reactive nature of black powder. The system utilizes permanent magnets, often composed of neodymium-iron-boron alloys, to generate a non-uniform magnetic field across the pipeline cross-section. This radial configuration ensures that magnetic flux lines are perpendicular to the flow direction, maximizing the gradient force exerted on suspended particles.

The fundamental mechanism relies on the magnetic force Fm acting on a particle, which is proportional to the product of the particle's magnetic moment m and the gradient of the magnetic field B. For ferrous particles, such as iron oxides commonly found in black powder, the magnetic susceptibility is high, leading to significant attraction towards the magnetic source.

Entrapment and Static Adhesion

The process of entrapment involves the migration of particles from the bulk flow towards the magnetic surface. As ferrous particles approach the magnet, they experience a strong attractive force that pulls them out of the streamline. Once in contact with the magnetic surface or a collection screen, static adhesion plays a crucial role in retaining the particles. The adhesion force Fa is influenced by the surface energy of the particles and the roughness of the magnetic surface. For effective separation, the magnetic force must be sufficient to hold the particle against the shear stress of the fluid flow.

Non-ferrous particles, which have lower magnetic susceptibility, are also affected but to a lesser extent. These particles may become entrained in the magnetic field through dipole-dipole interactions with ferrous particles or through induced magnetization. The efficiency of capturing non-ferrous contaminants depends on the strength of the magnetic field and the presence of binder materials that can enhance particle agglomeration.

Role of Binder Materials

Black powder in gas pipelines is not solely composed of discrete mineral particles; it often includes organic binders such as paraffins and glycols. These binders can significantly influence the magnetic separation process. Paraffins, for instance, can coat the particles, reducing their effective magnetic susceptibility and increasing their hydrodynamic diameter. This can lead to a decrease in the magnetic force relative to the drag force, making separation more challenging. Glycols, on the other hand, can act as lubricants, reducing the static adhesion between particles and the magnetic surface.

To mitigate these effects, the magnetic separation system may incorporate pre-conditioning steps, such as heating or chemical treatment, to alter the properties of the binder materials. Alternatively, the magnetic field strength can be adjusted to compensate for the reduced susceptibility of bound particles. The choice of binder material and its concentration in the black powder mixture are critical factors in designing an efficient magnetic separation system for natural gas pipelines.

Applications and strategic placement of separators

Magnetic separators are strategically deployed at critical nodes within gas transmission and processing infrastructure to mitigate the abrasive and reactive nature of black powder. Optimal placement includes port facilities, liquefied natural gas (LNG) plants, refineries, and metering stations. In these locations, the removal of particulate contamination is essential for maintaining operational efficiency and protecting downstream equipment. The mineral makeup of black powder varies per production field, necessitating tailored separation strategies at key interfaces where gas quality directly impacts process integrity.

Equipment Protection and Lifecycle Monitoring

The strategic installation of magnetic separators significantly reduces equipment wear. By capturing abrasive particles before they reach sensitive components, these devices extend the service life of valves, compressors, and turbines. Furthermore, the collected black powder provides valuable data for pipe wall life cycle monitoring. Analyzing the composition and volume of the particulate contamination allows engineers to assess corrosion rates and predict maintenance needs. This proactive approach helps in optimizing inspection schedules and reducing unplanned downtime in gas and hydrocarbon fluid transmission lines.

Safety Precautions for Iron Sulfides

A critical safety consideration in handling black powder is the auto-ignition of iron sulfides. Iron sulfides are common constituents of black powder and can spontaneously combust when exposed to air. This poses a significant fire hazard during maintenance and cleaning operations. Safety protocols must include proper ventilation, inerting with nitrogen, and the use of personal protective equipment. Understanding the reactive properties of the particulate contamination is vital for ensuring personnel safety and preventing incidents in port facilities, LNG plants, and refineries. The industry name "black powder" reflects its appearance, ranging from light brown to black, but its chemical reactivity demands rigorous safety management.
