Overview

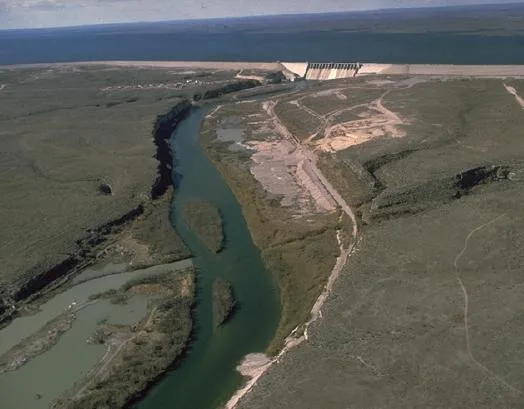

Amistad Dam is a major embankment dam spanning the Rio Grande, situated at the international border between Texas, United States, and Coahuila, Mexico. Constructed to serve multiple critical functions, the facility provides essential irrigation water storage, flood control, and hydropower generation for the surrounding regions. It stands as the largest dam along the international boundary reach of the Rio Grande, playing a pivotal role in the hydrological management of the transboundary river system. The structure is over 6 miles (9.7 km) long and lies mostly on the Mexican side of the border, forming the extensive Amistad Reservoir.
The dam supplies water for irrigation in the Rio Grande Valley, located 574 miles (924 km) upstream of the Rio Grande's mouth on the Gulf of Mexico at Brownsville, Texas, and Matamoros, Tamaulipas. This strategic positioning allows for significant water resource allocation to agricultural areas downstream. The facility is operated by the International Boundary and Water Commission, ensuring coordinated management between the two nations.
As a hydroelectric power plant, Amistad Dam has an installed capacity of 66 MW, contributing to the regional energy mix. The plant has been operational since its commissioning in 1969, marking several decades of continuous service in both power generation and water management. Its dual role in energy production and water storage underscores its importance to the economic and environmental stability of the Texas-Coahuila border region.
History of Construction and Treaty Background
The construction of Amistad Dam was rooted in long-standing diplomatic efforts to manage the shared water resources of the Rio Grande. The foundational legal framework was established by the 1906 Treaty of Limits and the 1944 Water Treaty between the United States and Mexico. These agreements outlined the division of waters and the need for infrastructure to mitigate flooding and ensure irrigation supplies for both nations. The urgency for a major storage facility became evident during the catastrophic 1954 flood, which saw the Rio Grande reach a peak discharge of 1,158,000 cubic feet per second. This event demonstrated the vulnerability of downstream communities and agricultural lands, prompting intensified planning for a large-scale embankment dam.
Planning and Naming
Initial planning stages involved extensive hydrological studies and diplomatic negotiations. The project was initially referred to as the "Diablo Reservoir," a name reflecting the challenging terrain and the powerful flow of the river. A key diplomatic milestone was reached with Minute 207 of the International Boundary and Water Commission, which formalized the technical and financial arrangements for the joint project. The dam was designed to serve multiple purposes, including irrigation water storage, flood control, and hydropower generation, making it the largest dam along the international boundary reach of the Rio Grande.
Construction and Dedication
Construction of the Amistad Dam began in 1963 and concluded in 1969. The project required significant logistical efforts, including the relocation of 14.3 miles of railroad tracks and 19 miles of highways to accommodate the rising waters of the new reservoir. The construction site also yielded important archaeological findings, with 170 distinct sites identified and documented, preserving the historical heritage of the region. It was officially dedicated by U.S. President Richard Nixon and Mexican President Gustavo Díaz Ordaz, symbolizing the binational cooperation that defined the project.
Engineering Specifications and Structural Design
Dam Dimensions and Structural Composition
Amistad Dam is the largest structure along the international boundary reach of the Rio Grande, spanning over 6 miles (9.7 km) across the river between Texas, United States, and Coahuila, Mexico. The dam lies mostly on the Mexican side of the border and forms Amistad Reservoir, which provides critical irrigation water storage, flood control, and hydropower generation.
| Parameter | Value |
|---|---|
| Length | 32,022 feet (9,760 m) |
| Height | 254 feet (77 m) |
| Crest Elevation | 1,152.3 feet (351.2 m) |
Construction Materials and Foundation Engineering
The dam features a concrete gravity center section measuring 2,182 feet (665 m) in length, flanked by extensive earthen embankments. Construction required significant material volumes, including 13.5 million cubic yards of earth and 1.8 million cubic yards of concrete. The foundation consists of karstic limestone, which presented unique engineering challenges regarding seepage. To mitigate water loss through the porous rock, a grout curtain was installed to seal the foundation. Despite these measures, seepage issues persisted, with recorded flows reaching 180 cubic feet per second through the limestone bedrock.
Spillway and Hydraulic Capacity
The spillway system is designed to manage substantial hydraulic loads, featuring 16 Tainter gates. This configuration provides a total spillway capacity of 1,507,000 cubic feet per second, ensuring effective flood control for the downstream Rio Grande Valley. The structural design integrates these hydraulic features with the embankment and gravity sections to maintain stability across the international boundary.
How does Amistad Dam manage water allocation and flood control?
Amistad Dam manages a complex hydrological regime across the international boundary of the Rio Grande. The reservoir serves dual purposes: conservation storage for irrigation and flood control for downstream communities. The total capacity of Amistad Reservoir is 5,535,000 acre-feet. This volume is divided into three distinct zones to balance operational flexibility and hydraulic safety.
| Storage Zone | Percentage of Total Capacity | Volume (Acre-Feet) |
|---|---|---|
| Conservation Storage | 61% | 3,376,350 |
| Flood Control | 32% | 1,771,200 |
| Surcharge Storage | 7% | 387,450 |
The allocation of water from the reservoir is governed by international agreements between the United States and Mexico. The split is not equal; 56.2% of the available water is allocated to the United States, while 43.8% goes to Mexico. This division reflects the relative contributions of each nation to the river's flow and the needs of the respective agricultural regions. The water supports irrigation in the Rio Grande Valley, which lies 574 miles upstream of the river's mouth at Brownsville, Texas, and Matamoros, Tamaulipas.
Inflow to the reservoir is a mix of surface water and groundwater. Approximately 70% of the inflow comes from rivers, while 30% is contributed by springs. The average annual inflow is 2,080,000 acre-feet. However, this average masks significant variability. The Rio Conchos, a major tributary, plays a critical role in sustaining the reservoir's levels, especially when upriver diversions reduce the main stem flow. Upriver diversions have increasingly impacted the volume of water reaching the dam, making the contribution of the Rio Conchos vital for maintaining the 5,535,000-acre-foot capacity.
Historical data shows significant fluctuations in reservoir levels. The record high level was reached in 1974, while the record low occurred in 2013. These extremes highlight the vulnerability of the system to climatic variations and upstream water management decisions. The flood control zone, comprising 32% of the total capacity, is often kept partially empty to accommodate sudden inflows, protecting downstream areas from the hydraulic surge. The surcharge zone, at 7%, acts as a buffer during peak flow events, preventing overflow beyond the conservation and flood control limits.
Hydroelectric Power Generation Capabilities
Amistad Dam supports dual hydropower facilities, one on each side of the international border, contributing to the project’s total installed capacity of 66 MW. The infrastructure utilizes Francis turbines to convert hydraulic energy into electricity, with each national plant comprising four generators rated at 33 MW each. This configuration allows for flexible power output depending on seasonal water flow and regional demand.
| Parameter | Value |
|---|---|
| Installed Capacity | 66 MW |
| Turbine Type | Francis |
| Generators per Plant | 4 (33 MW each) |
| Maximum Hydraulic Head | 234 feet |
| Minimum Hydraulic Head | 115 feet |
| 2009 Production | 296,734,000 kWh |
The two power plants were completed in distinct phases: the United States facility was commissioned in 1983, while the Mexican counterpart followed in 1987. These completion dates reflect the coordinated yet independent construction efforts by the International Boundary and Water Commission. The hydraulic head varies significantly, ranging from a minimum of 115 feet to a maximum of 234 feet, influencing the efficiency of the Francis turbines throughout the year.
Financial responsibility for the hydropower infrastructure was shared between the two nations, with the United States contributing 57% and Mexico contributing 43% of the roughly US$125 million total cost. This cost-sharing arrangement underscores the binational nature of the project. In 2009, the combined facilities generated 296,734,000 kilowatt hours of electricity, demonstrating the ongoing productivity of the dam’s power generation capabilities. The generated power supplements regional grids in both Texas and Coahuila, enhancing energy security along the Rio Grande corridor.
Transboundary Cooperation and Border Crossing
The Amistad Dam serves as a critical node for transboundary cooperation between the United States and Mexico, physically and symbolically linking Texas and Coahuila. The name "Amistad," meaning friendship in Spanish, reflects the diplomatic intent behind the infrastructure. Beyond its primary functions of irrigation water storage, flood control, and hydropower generation, the dam facilitates a dedicated Port of Entry for vehicular and pedestrian traffic. This crossing point was established in 1969, coinciding with the dam's initial commissioning, to streamline movement along the international boundary reach of the Rio Grande. The port allows for efficient trade and travel between the two nations, leveraging the dam's structural span to connect the two sides of the border.
Infrastructure Development and Rebuilding
The Port of Entry infrastructure has undergone significant evolution since its inception. In 2012, the US Army Corps of Engineers led a major rebuild of the crossing facilities. This project aimed to modernize the port to handle increasing traffic volumes and improve the efficiency of border inspections. The rebuild ensured that the port remained a functional and reliable gateway for the surrounding communities. The dam itself, being over 6 miles (9.7 km) long and lying mostly on the Mexican side of the border, provides a stable foundation for these facilities. The engineering efforts by the US Army Corps of Engineers were crucial in maintaining the port's operational status and enhancing its capacity to serve the growing needs of the region.
Traffic Volume and Economic Impact
The Amistad Port of Entry handles a substantial volume of traffic, underscoring its importance to the local economies of Texas and Coahuila. In 2005, approximately 65,000 vehicles passed through the port, highlighting its role as a key corridor for commuters, tourists, and commercial transport. This traffic volume demonstrates the dam's function not just as a hydroelectric powerplant with a capacity of 66 MW, but also as a vital artery for cross-border interaction. The combination of water supply and transportation infrastructure makes the Amistad Dam a multifaceted asset for both nations.
Symbol of Binational Partnership
As the largest dam along the international boundary reach of the Rio Grande, the Amistad Dam stands as a testament to the enduring partnership between the United States and Mexico. The International Boundary and Water Commission operates the facility, ensuring that the benefits of the dam—irrigation, flood control, and hydropower—are shared equitably. The dam's construction and ongoing maintenance reflect the collaborative efforts of both countries to manage their shared water resources. The port of entry further cements this relationship by providing a seamless connection for people and goods. The Amistad Dam continues to be a symbol of friendship and cooperation, embodying the spirit of "Amistad" that defines the binational relationship in the region.
Why it matters
Its strategic importance extends beyond simple hydropower generation, functioning as a primary mechanism for flood mitigation and irrigation water storage in a region prone to hydrological variability.
Flood Control and Hydrological Management
The dam plays a decisive role in flood control, a function demonstrated during significant meteorological events. For instance, during the 1974 hurricane event, the dam successfully held outflow at 62200 cubic feet per second, illustrating its engineering capacity to manage peak water volumes and protect downstream communities. This flood mitigation capability is complemented by its role in sustaining water supply for agriculture, ensuring that irrigation needs are met even during periods of fluctuating river flow.
Engineering Challenges and Sedimentation
The construction and ongoing maintenance of Amistad Dam involve significant engineering challenges, particularly due to the karstic limestone geology of the site. Building on this porous rock formation required careful planning to ensure structural integrity and water retention efficiency. Additionally, the dam faces the ongoing issue of silting, which impacts its long-term storage capacity. Data from 1993 indicated a sedimentation rate of 14000 acre-feet per year, highlighting the need for continuous management of the reservoir’s volume and efficiency.
Binational Water Rights and Cooperation
As a structure spanning the border between Texas, United States, and Coahuila, Mexico, Amistad Dam is central to binational water rights management. Operated by the International Boundary and Water Commission, it exemplifies the cooperative framework required to manage shared water resources effectively. The dam’s operation influences water distribution, flood control, and hydropower generation for both nations, making it a key element in the diplomatic and practical management of the Rio Grande basin.
Recreation and Environmental Impact
The Amistad Reservoir serves as the centerpiece of the Amistad National Recreation Area, a significant recreational destination straddling the international boundary between Texas and Coahuila. The reservoir is substantial in scale, covering 65000 acres at normal pool levels and expanding to 89000 acres when under surcharge conditions. This vast body of water creates an extensive shoreline totaling 851 miles, providing diverse opportunities for boating, fishing, and camping along the Rio Grande.
Archaeological and Environmental Consequences
The creation of Amistad Reservoir involved significant environmental alteration, particularly the inundation of land that held considerable cultural and historical value. The flooding submerged numerous Native American rock art sites, which had adorned the canyon walls for centuries before the waters rose. To mitigate the loss of cultural heritage, a comprehensive archaeological survey was conducted between 1958 and 1969. This effort resulted in the cataloging of 170 archaeological sites, preserving records of the human history that existed along the Rio Grande prior to the dam's completion.
The environmental impact extended beyond archaeology, affecting the local ecosystem and the flow dynamics of the Rio Grande. The dam's operation regulates water storage for irrigation in the Rio Grande Valley, which lies 574 miles downstream from the dam. This regulation influences sediment transport and water quality, affecting both the US and Mexican sides of the border. The reservoir's formation altered the natural floodplain, creating a new aquatic habitat while submerging terrestrial landscapes that had previously supported diverse flora and fauna.
