Overview
The Afourer Pumped Storage Station is a significant pumped-storage hydroelectric facility situated in the hills above the town of Afourer, within Azilal Province, Morocco. This infrastructure project serves as a critical component of the regional energy grid, utilizing water as its primary energy source to provide flexible power generation and storage capabilities. The scheme is characterized by its dual-station configuration, which collectively delivers an installed capacity of 465 megawatts, equivalent to 624,000 horsepower. This capacity allows the station to play a vital role in balancing supply and demand, particularly for variable renewable energy integration and peak-load management in the Moroccan power sector.
Construction of the Afourer project commenced in 2001 and was completed three years later, with the facility officially commissioned in 2004. The development was supported by substantial international financing, specifically funded by the Arab Fund for Economic & Social Development. The total cost of the project was recorded at US$220 million, reflecting the significant investment required for the civil works and electromechanical installations necessary to operate the two power stations. Since its completion, the station has maintained an operational status, contributing to the stability and efficiency of the energy infrastructure in the Azilal region.
How does the two-step pumping system work?
The Afourer Pumped Storage Station utilizes a two-step pumping system to optimize energy storage and generation across the varied topography of the Azilal Province hills. Water is initially derived from the Aït Ouarda Dam, serving as the primary source for the hydraulic circuit. This water is then pumped upward by approximately 600 meters to reach the Upper Afourer Reservoir. This significant vertical lift stores potential energy, which is subsequently released as water flows down another 800 meters to the Lower Afourer Reservoir, driving turbines during peak demand periods.
Reservoir Specifications

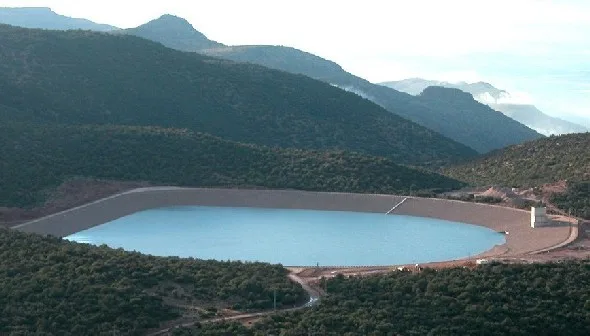

The efficiency of the pumped storage scheme relies heavily on the characteristics of its two main reservoirs. The Upper Afourer Reservoir acts as the primary storage unit at the higher elevation, while the Lower Afourer Reservoir serves as the lower basin for water return and secondary storage. Specific details regarding the elevation, capacity, and coordinates of these reservoirs are outlined below.
| Reservoir | Elevation | Capacity | Coordinates |
|---|---|---|---|
| Upper Afourer Reservoir | Higher elevation | Varies | Hills above Afourer |
| Lower Afourer Reservoir | Lower elevation | Varies | Afourer area |
This configuration allows the station to manage water flow effectively, ensuring that the 465 MW combined installed capacity can be leveraged efficiently. The system's design, completed in 2004, integrates these hydraulic principles to provide reliable energy storage and generation capabilities for the region.
What are the technical specifications of the turbines?
The Afourer Pumped Storage Station utilizes two distinct power house structures, commonly referred to as Step 1 and Step 2, to manage its combined installed capacity of 465 MW (624,000 hp). The facility relies on reversible Francis turbines, a technology well-suited for pumped storage operations where water flows in both directions to generate electricity and pump water back to the upper reservoir. The technical configuration is divided between the two stations, with Step 1 handling the majority of the output through larger units, while Step 2 provides additional capacity with smaller, complementary units.
Step 1 Power Station
The first stage of the scheme, Step 1, is equipped with two large reversible Francis turbines. Each of these units has an installed capacity of 172.5 MW, contributing a total of 345 MW to the overall station output. These turbines are designed to operate efficiently under the specific head conditions provided by the hills above Afourer in Azilal Province, Morocco. The use of reversible units allows the station to function as both a generator during peak demand and a motor-pump during off-peak hours, optimizing the energy storage cycle.
Step 2 Power Station
The second stage, Step 2, consists of two smaller reversible Francis turbines. Each unit in this stage has a capacity of 60 MW, adding 120 MW to the total installed capacity. The combination of the two 172.5 MW units in Step 1 and the two 60 MW units in Step 2 results in the facility’s total rated capacity of 465 MW. This distribution of turbine sizes allows for flexible operation, enabling the grid operator to adjust output based on real-time energy demands and water availability in the Azilal Province hills.
| Parameter | Step 1 | Step 2 | Total |
|---|---|---|---|
| Turbine Type | Reversible Francis | Reversible Francis | Reversible Francis |
| Number of Units | 2 | 2 | 4 |
| Capacity per Unit | 172.5 MW | 60 MW | — |
| Total Station Capacity | 345 MW | 120 MW | 465 MW |
History and funding
The Afourer Pumped Storage Station was developed as a significant infrastructure project in Morocco's energy sector, specifically situated in the hills above Afourer in Azilal Province. The construction phase for the scheme commenced in 2001, marking the beginning of the physical development of the two power stations that comprise the facility. The project was completed and reached operational status in 2004, establishing a combined installed capacity of 465 megawatts, which is equivalent to 624,000 horsepower. This three-year construction timeline reflects the rapid deployment of the hydroelectric infrastructure in the region.
Funding for the Afourer project was secured through international financial mechanisms, specifically from the Arab Fund for Economic & Social Development. This financial support was critical in enabling the development of the pumped storage hydroelectric scheme. The total cost of the project was recorded at US$220 million, a figure that covered the engineering, construction, and equipment necessary to bring the two power stations online. The involvement of the Arab Fund highlights the strategic importance of energy infrastructure investments within the broader economic development goals of the region during that period.
The completion of the station in 2004 provided Morocco with a key asset for energy management, leveraging the topography of the Azilal Province to store and generate power. The facility operates using water as its primary source, utilizing the pumped storage mechanism to balance supply and demand on the grid. The project stands as a notable example of early 2000s energy investments in Morocco, combining local geographical advantages with international financial backing to enhance national energy capacity.
Significance
The Afourer Pumped Storage Station serves a critical dual function within Morocco's energy infrastructure, distinguishing it from conventional single-purpose hydroelectric facilities. While many hydro plants are designed primarily for either power generation or irrigation, the Afourer scheme integrates both roles to maximize regional utility. The facility operates as a pumped storage system, utilizing water as its primary energy source to provide grid stability and peak power delivery. This operational model allows the station to act as a "battery" for the national grid, storing energy during periods of low demand and releasing it during peak hours. The combined installed capacity of 465 megawatts contributes significantly to the energy mix of the Azilal Province and the broader Moroccan grid, offering flexible power output that complements other generation sources.
Integration of Power and Irrigation
A defining characteristic of the Afourer project is its simultaneous contribution to agricultural productivity. Located in the hills above Afourer, the scheme manages water resources to support the irrigation supply for the Afourer area. This dual-purpose design ensures that the water used for hydroelectric generation is not merely a transient resource but also a sustained input for local agriculture. By balancing the hydraulic needs of the turbines with the irrigation demands of the surrounding lands, the station optimizes the economic return on the water resource. This integration is particularly valuable in the Azilal Province, where agricultural output relies on consistent water availability. The project's design reflects a strategic approach to resource management, where energy infrastructure directly supports local economic activities beyond electricity production.
Infrastructure Investment and Regional Impact
The development of the Afourer Pumped Storage Station represents a significant infrastructure investment in Morocco's energy sector. Construction began in 2001 and was completed in 2004, resulting in a facility funded by the Arab Fund for Economic & Social Development at a cost of US$220 million. This financial backing underscores the strategic importance of the project for regional development. The completion of the two power stations in 2004 marked a milestone in the operational capacity of the Azilal Province's energy infrastructure. The station's operational status remains active, continuing to deliver on its design objectives of power generation and water management. The project exemplifies how international funding mechanisms, such as the Arab Fund for Economic & Social Development, can catalyze critical energy infrastructure in developing regions. The 465 MW capacity provides a substantial baseline for grid reliability, supporting both industrial and residential power needs in the area. The dual functionality of the Afourer scheme ensures that the infrastructure serves multiple stakeholders, from energy consumers to agricultural producers, thereby enhancing the overall resilience of the local economy.
Geographic context
This geographic placement is central to the scheme’s function as a pumped storage hydroelectric facility, leveraging the natural elevation differences in the region to store and generate energy. The station’s location in the Atlas Mountains provides the necessary topographic gradient for the two power stations that comprise the project, which together deliver a combined installed capacity of 465 megawatts. The hills surrounding Afourer offer a strategic vantage point for the infrastructure, allowing for efficient water management and gravitational energy conversion.
Hydrological Infrastructure
The operation of the Afourer scheme is intrinsically linked to the local hydrological network, particularly the El Abid River and the Bin el Ouidane Dam. The El Abid River serves as a critical water source for the system, feeding into the reservoirs that power the station. The Bin el Ouidane Dam plays a pivotal role in regulating water flow and storage, ensuring a consistent supply for the pumped storage cycles. This dam is part of the broader infrastructure that supports the Afourer project, enabling the movement of water between upper and lower reservoirs to generate electricity during peak demand periods. The integration of these water bodies and structures highlights the importance of regional water resources in the success of the hydroelectric scheme.
Regional Significance
Azilal Province, where the station is located, benefits significantly from the Afourer Pumped Storage Station. The facility contributes to the regional energy grid, providing a reliable source of power that helps meet local and national energy demands. This investment underscores the strategic importance of the Afourer scheme in Morocco’s energy infrastructure. The station’s operational status as of 2004 marks a key milestone in the province’s development, enhancing energy security and supporting economic growth in the region.
