Overview

An absorption heat transformer (AHT) is a thermodynamic device designed to transfer heat from an intermediate temperature level to a higher temperature level through an absorption process. This operation is driven by the temperature difference between the intermediate heat source and a low-temperature heat sink. The AHT effectively splits a single heat flow at an intermediate temperature into two distinct heat flows: one at a revaluated, higher temperature level and another at a lower temperature level. This process allows for the upgrading of thermal energy without the need for significant mechanical work, distinguishing it from vapor-compression systems.

Alternative Terminology

In technical literature and engineering contexts, the absorption heat transformer is also referred to as a type II absorption heat pump or a booster heat pump. These alternative names reflect the device's functional role in "boosting" the temperature of waste heat streams to make them more useful for industrial applications. The classification as a "type II" system distinguishes it from other absorption cycles based on the number of heat sources and sinks involved in the thermodynamic loop.

Industrial Applications and Advantages

Absorption heat transformers are particularly suitable for heat recovery in industrial processes. Their primary advantage lies in the capacity to upgrade the temperature of waste heat streams to a usable level while consuming only negligible quantities of electrical energy. Unlike electrically driven heat pumps, AHTs require no additional primary energy input beyond the thermal energy itself, making them highly efficient for industries with abundant low-grade waste heat. This characteristic makes them valuable for improving overall energy efficiency in sectors such as chemical processing, power generation, and manufacturing, where thermal energy management is critical.

How does an absorption heat transformer work?

This process is driven entirely by the temperature difference between that intermediate level and a lower, ambient or low-temperature level. Unlike conventional mechanical heat pumps that rely heavily on electrical compression, the AHT utilizes an absorption process to achieve this thermal upgrading. This mechanism makes the device particularly effective for industrial heat recovery, where waste heat streams can be elevated to a usable temperature with negligible electrical energy input and no additional primary energy consumption.

Thermodynamic Process and Heat Flow Splitting

The fundamental operation of an absorption heat transformer involves splitting a single heat flow at an intermediate temperature into two distinct output flows. A heat input, denoted as Q1, is applied at the intermediate temperature level. The system then redistributes this energy into two separate streams: a revalued heat flow Q2 delivered at a higher temperature level, and a rejected heat flow Q0 expelled at a lower temperature level. This splitting action allows the system to "boost" a portion of the incoming thermal energy to a higher grade, making it suitable for driving other thermal processes or heating systems that require temperatures higher than the original waste heat source.

The efficiency of this transformation is governed by the temperature gradients between the three levels: the source (intermediate), the sink (low), and the delivery (high). The device effectively acts as a thermal booster, leveraging the thermodynamic properties of the working fluid pair—typically a solvent and a solute—to absorb and release heat at different pressures and temperatures. The ability to upgrade waste heat to a usable level is the primary advantage of the AHT, enabling industries to recover energy that would otherwise be lost at intermediate temperatures.

Comparison with Type I Absorption Heat Pumps

This classification distinguishes it from the more common type I absorption heat pump. In a type I system, heat is typically drawn from a low-temperature source and delivered to a high-temperature sink, driven by a high-temperature heat source. In contrast, the AHT (type II) operates in a reverse manner relative to the heat flow directions. It takes heat from an intermediate level and splits it, delivering part of it to a higher level and rejecting the remainder to a lower level. This reverse operation highlights the AHT's unique capability to upgrade thermal energy rather than simply moving it from cold to hot, making it an essential component in complex energy integration and cogeneration systems.

What distinguishes absorption heat transformers from heat pumps?

Absorption heat transformers (AHTs), also known as type II absorption heat pumps or booster heat pumps, operate on a distinct thermodynamic principle compared to standard type I absorption heat pumps. While type I heat pumps upgrade heat from a low temperature level to a high temperature level using an intermediate heat source, AHTs split a single heat flow at an intermediate temperature level into two separate flows: one at a higher (revaluated) temperature and one at a lower temperature. This process is driven by the temperature difference between the intermediate and low temperature levels, allowing for the recovery of industrial waste heat with negligible electrical energy input and no additional primary energy consumption.

Pressure Level Configuration

The fundamental distinction between these systems lies in their pressure configurations. In a type I absorption heat pump, the condenser and generator typically operate at high pressure, while the evaporator and absorber function at low pressure. In contrast, absorption heat transformers invert this arrangement for specific components. In an AHT, the absorber and evaporator operate at high pressure, whereas the condenser and generator function at low pressure. This unique pressure state allows the AHT to effectively "boost" the temperature of the intermediate heat source without requiring a separate low-temperature heat source as the primary input.

Comparative Analysis

Parameter Type I Absorption Heat Pump Absorption Heat Transformer (Type II)
Primary Function Upgrades low-temp heat to high-temp Splits intermediate heat into high and low-temp flows
Absorber Pressure Low Pressure High Pressure
Evaporator Pressure Low Pressure High Pressure
Condenser Pressure High Pressure Low Pressure
Generator Pressure High Pressure Low Pressure
Heat Flow Direction Low → High (driven by Intermediate) Intermediate → High + Low

This configuration makes AHTs particularly suitable for industrial heat recovery processes where waste heat streams need to be upgraded to a usable temperature level. The system's ability to function with minimal electrical energy input distinguishes it from mechanical vapor compression systems, offering a viable solution for enhancing energy efficiency in industrial settings.

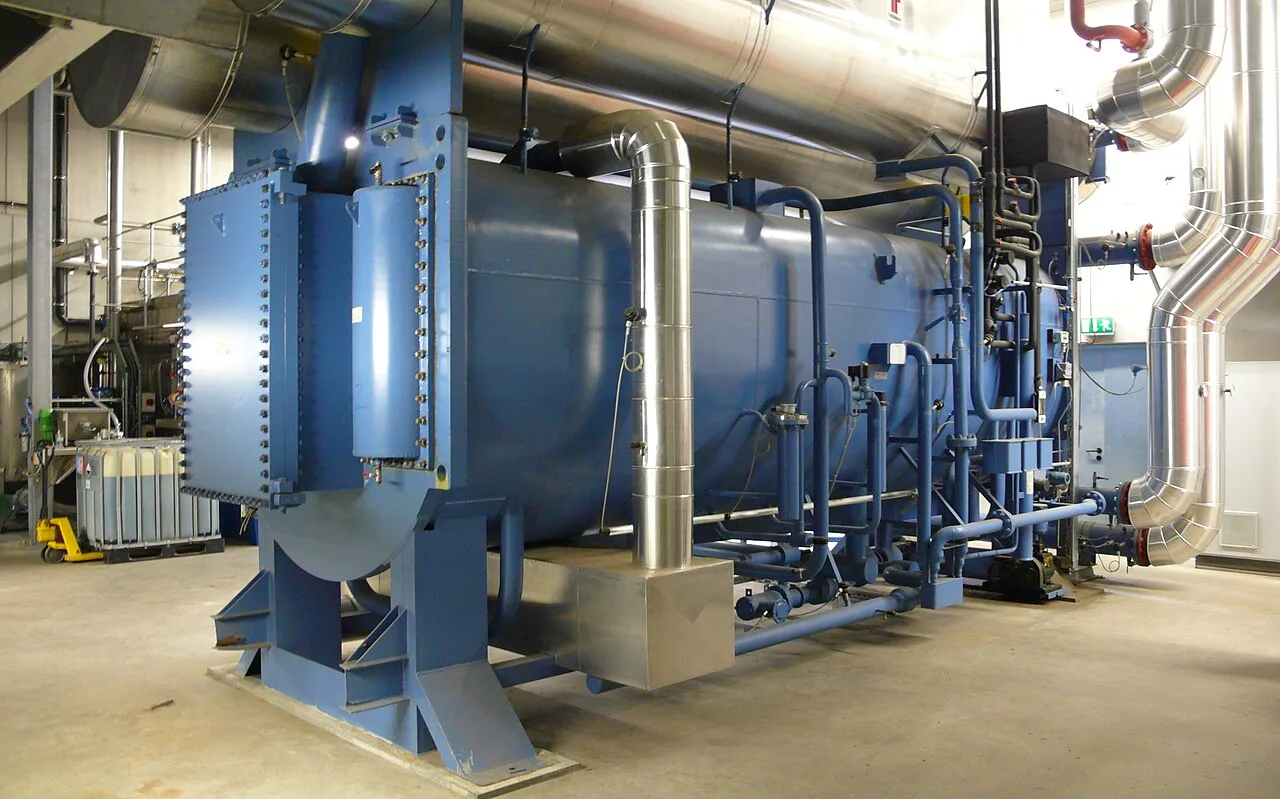

Components and construction

This configuration is also known as a type II absorption heat pump or a booster heat pump. The primary advantage of the AHT is its ability to recover industrial waste heat and upgrade it to a usable temperature level using only negligible electrical energy and no additional primary energy input.

Core Components

The single-effect absorption heat transformer consists of several key components that facilitate the thermodynamic cycle. These include a condenser, an evaporator, an absorber, and a generator. The system also requires mechanical and fluidic components such as a refrigerant pump, a solution pump, a solution throttle valve, and a solution heat exchanger. These elements work together to manage the flow of the working fluid, typically a binary mixture such as water-lithium bromide or ammonia-water, through the various pressure and temperature stages of the cycle.

Internal Heat Recovery

Internal heat recovery mechanisms are critical to the efficiency of the absorption heat transformer. The solution heat exchanger plays a central role in this process by transferring heat between the rich and lean solution streams. This preheating and precooling reduces the thermal load on the generator and the absorber, thereby enhancing the overall coefficient of performance. The precise arrangement of these components allows for effective heat integration, minimizing external energy requirements and maximizing the temperature lift achieved by the system.

Working pairs and materials

Absorption heat transformers rely on specific binary mixtures, known as working pairs, to facilitate the thermodynamic cycle. The selection of these pairs is critical for determining the operating temperature range, pressure levels, and overall efficiency of the system. The two most prevalent working pairs utilized in industrial and commercial applications are water/lithium bromide and ammonia/water. Each pair presents distinct advantages and operational constraints based on the physical properties of the refrigerant and the absorbent.

Water and Lithium Bromide

The water/lithium bromide (H₂O/LiBr) pair is widely used in applications where the intermediate temperature level is moderate. In this configuration, water serves as the refrigerant, while lithium bromide acts as the absorbent. The system operates under vacuum conditions to allow water to evaporate at lower temperatures. However, the choice of lithium bromide as the absorbent introduces specific material considerations. Lithium bromide is highly hygroscopic and can be corrosive to standard metals, necessitating the use of stainless steel or specific coatings for the heat exchanger surfaces. Additionally, the risk of crystallization of the lithium bromide solution must be managed through careful control of the concentration and temperature profiles within the absorber and generator.

Ammonia and Water

The ammonia/water (NH₃/H₂O) pair is another common working fluid combination, often selected for applications requiring different temperature lifts or when freezing points are a concern. In this system, ammonia functions as the refrigerant, and water acts as the absorbent. This pair allows for operation at higher pressures compared to the water/lithium bromide system, which can be advantageous in certain industrial settings. Ammonia's lower boiling point enables effective heat transfer at various temperature levels. However, the ammonia/water system typically requires a rectifier to separate the ammonia vapor from water vapor, adding complexity to the cycle. The corrosive nature of ammonia also demands specific material selections, such as copper or stainless steel, to ensure long-term operational integrity. The thermodynamic properties of this pair make it suitable for a broad range of heat recovery scenarios, contributing to the versatility of absorption heat transformers in upgrading waste heat streams.

Working Pair Refrigerant Absorbent
Water/Lithium Bromide Water (H₂O) Lithium Bromide (LiBr)
Ammonia/Water Ammonia (NH₃) Water (H₂O)

Performance parameters

The thermal performance of an absorption heat transformer (AHT) is primarily characterized by the thermal coefficient of performance, denoted as COPth. This metric is defined as the ratio of the revalued heat flow delivered at the high temperature level to the total driving heat input. The COPth quantifies the efficiency of this upgrading process, indicating how effectively the system converts the driving heat into useful high-grade thermal energy.

Thermal Revaluation and Temperature Lift

A key operational characteristic of the absorption heat transformer is its capacity for thermal revaluation. The system is designed to upgrade waste heat streams to a usable temperature level, a process that involves splitting the intermediate heat flow. In typical configurations, the AHT achieves an approximate 50% revaluation of the driving heat flow. This means that roughly half of the input heat energy is elevated to the higher temperature level, while the remainder is rejected at the lower temperature level. This revaluation capability is central to the device's utility in industrial heat recovery applications.

The temperature lift achievable by an AHT is constrained by the thermodynamic properties of the working fluid and the temperature difference between the intermediate and low temperature levels. The maximum temperature lift from the intermediate to the high temperature level is approximately 50 K. This limit defines the range within which the AHT can effectively operate to upgrade heat. The device is driven by the temperature difference between the intermediate temperature and a low temperature level, which provides the necessary thermodynamic potential for the absorption process. This temperature lift is sufficient for many industrial processes where waste heat needs to be upgraded to a level suitable for reuse, such as preheating feedwater or driving other thermal cycles.

Energy Efficiency and Operational Advantages

The absorption heat transformer offers significant energy efficiency advantages, particularly in industrial settings. Its main benefit is the ability to upgrade the temperature of waste heat streams using only negligible quantities of electrical energy and no additional primary energy. This makes AHTs especially suitable for heat recovery from industrial processes, where waste heat is abundant but often at a temperature level that is too low for direct reuse. By leveraging the absorption process, the AHT minimizes the reliance on electrical energy, which is typically more expensive than thermal energy in industrial contexts. The system's ability to operate with minimal electrical input enhances its overall energy efficiency and reduces operational costs. This efficiency is further supported by the device's operational status, which is currently active in various industrial applications, demonstrating its practical viability and effectiveness in real-world scenarios.

Applications in industrial heat recovery

Absorption heat transformers (AHTs) are particularly well-suited for industrial heat recovery applications. This makes them highly efficient for processes where low-grade thermal energy is abundant but needs to be elevated to match the temperature requirements of specific industrial operations.

Industrial Process Integration

By leveraging this mechanism, industries can effectively recover and utilize waste heat that would otherwise be lost, thereby enhancing overall energy efficiency.

The application of AHTs in industrial processes is particularly beneficial in sectors with significant waste heat generation, such as chemical processing, food and beverage production, and power generation. These systems can operate with minimal electrical input, making them an attractive option for industries looking to reduce their energy costs and carbon footprint without requiring substantial additional primary energy sources.

Energy Efficiency and Cost Savings

The use of AHTs in industrial heat recovery contributes significantly to energy efficiency. By upgrading waste heat to a higher temperature level, these devices enable industries to reuse thermal energy that might otherwise be considered low-grade and less useful. This not only reduces the demand for primary energy sources but also leads to considerable cost savings over time.

Furthermore, the negligible electrical energy requirement of AHTs means that they can be integrated into existing industrial setups with minimal disruption. This flexibility allows for easier adoption and scalability, making AHTs a practical solution for a wide range of industrial applications. The ability to operate efficiently with minimal external energy inputs underscores the potential of AHTs to play a crucial role in the transition towards more sustainable industrial processes.

Worked examples

The coefficient of performance (COPth) of an absorption heat transformer is calculated using the formula COPth = Q2/Q1, where Q2 represents the revalued heat flow at the higher temperature level and Q1 is the driving heat flow at the intermediate temperature level. This metric demonstrates the efficiency of upgrading waste heat to a usable temperature range using negligible electrical energy.

Example 1: Basic Industrial Heat Recovery

Consider a theoretical single-effect system recovering waste heat from an industrial process. The driving heat flow (Q1) is 100 kW at an intermediate temperature. The system upgrades this energy, delivering a revalued heat flow (Q2) of 60 kW at a higher temperature level. The calculation is as follows:

This result indicates that for every kilowatt of intermediate heat input, 0.6 kW is delivered at the upgraded temperature level.

Example 2: High-Temperature Booster Application

In a second scenario, an absorption heat transformer operates as a booster heat pump. The device splits this flow, delivering a revalued heat flow (Q2) of 120 kW to a high-temperature sink.

The COPth of 0.6 confirms the system's capacity to upgrade waste heat streams to a usable level without additional primary energy input.

Example 3: Variable Load Conditions

A third example illustrates variable load conditions. The driving heat flow (Q1) is 150 kW, and the revalued heat flow (Q2) is 90 kW. The calculation is:

These examples demonstrate how the COPth formula quantifies the performance of absorption heat transformers in upgrading intermediate temperature heat to higher levels.
